Industrial Stand Fan With 45 Degree Adjustable Tilt
Three sizes, four wheels, IP55, and a pivot that puts the air where the work is rather than where the fan happens to point.
HVLS Floor Fan
Product Overview

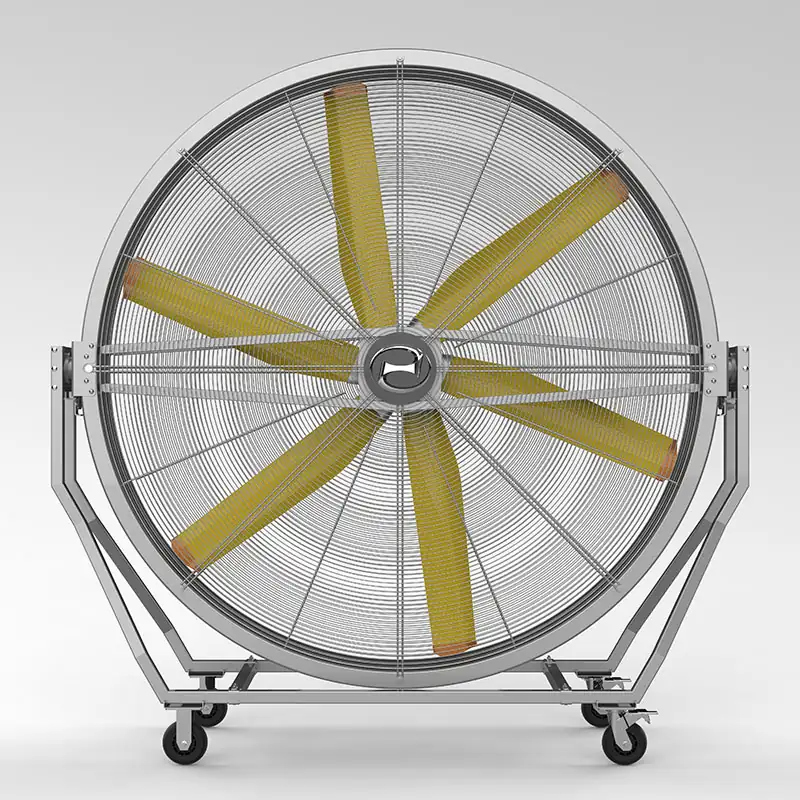

The industrial stand fan is a portable HVLS fan on four wheels, developed to improve the comfort of a working environment where an HVLS ceiling fan cannot be installed. Three sizes are offered and the head pivots 45 degrees up and down.
Drive is a self-designed variable frequency speed control feeding a high-efficiency energy-saving permanent magnet external rotor motor. The result is low noise, small volume, light weight and a compact structure. The fan is protected to IP55 for industrial environments.
The typical applications are specific: industries where a particular area needs cooling and HVLS fans cannot be hung, sports spaces such as gyms, tennis courts, padel courts and football pitches, car workshops and dealerships, and commercial stores. It is also used in fitness centres, outdoor wedding venues, industrial factories, logistics warehousing, waiting rooms, exhibition halls and physical education halls.
Key Benefits
What This Product Changes
1
The pivot is the point
45 degrees of up and down adjustment aims the air column at the working plane, not at the ceiling or the floor, which is what makes a portable fan useful on a service bay or a court.
2
Three sizes so the fan fits the bay
The size range and the pivot together mean one product family covers a tennis court, a two-post lift bay and a retail floor.
3
IP55 for a real industrial environment
Dust and washdown are normal in the places this fan is used. IP55 is the reason it survives them.
4
Arrives ready to run
No on-site installation. Everything is factory pre-installed and commissioned, and it is maintenance-free in use.
Problems It Solves
The Situations That Lead People Here
1
One area is hot and the rest of the building is fine
Fitting ceiling fans across a whole plant to fix one hot bay is the wrong investment. A pivoting stand fan solves the bay.
2
The roof is not available
Leased units, crane-served bays and structures with no suitable beam all block a ceiling installation.
3
Sports halls need air at player height
A fan that cannot be tilted either blows over the players or at their feet. The 45 degree pivot is what makes courts workable.
4
Workshops need cooling that can be wheeled away
A vehicle bay has to be clear for the vehicle. Four wheels mean the fan moves out for the job and back for the crew.
Technical Features
How It Is Built
1

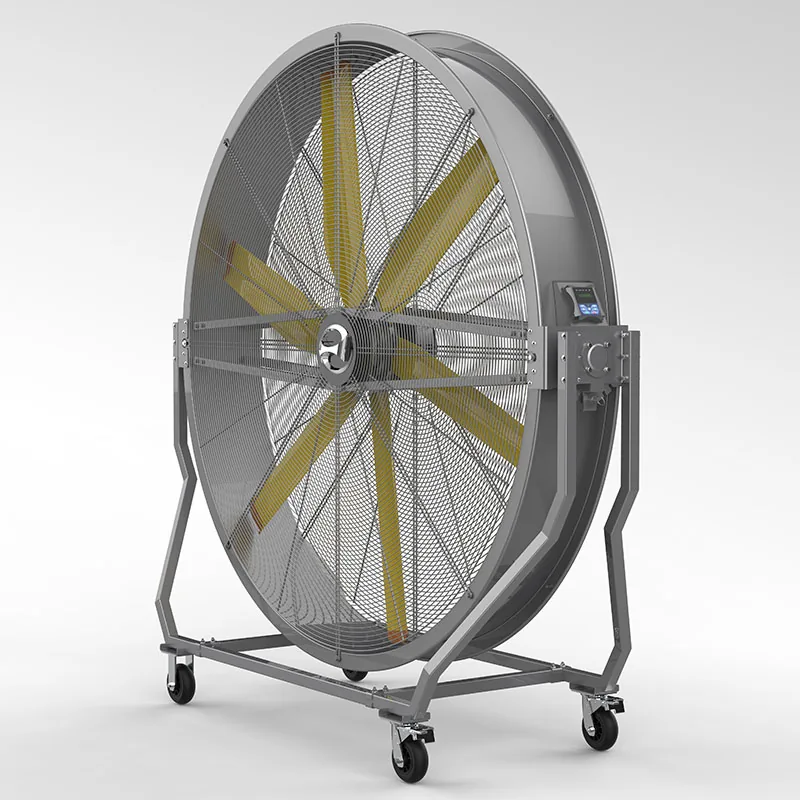

45 degree up and down pivot
The head tilts through 45 degrees so the air column can be aimed at the working plane rather than fixed horizontally.
2
PMSM motor with variable frequency speed control
No rotor losses, high efficiency and precision, large power factor, frequency modulation width of 0 to 200 Hz, small size and light weight.
3
Four-button controller rated IP66
No position vector control, anti-electromagnetic interference and anti-radiation. Start, stop, speed up, slow down, with an 18-month warranty.
4
Protection across the drive
Over-voltage, under-voltage, voltage loss regulation, current, phase loss, overload, collision, overheating, lightning and abnormal protection.
5
Aluminium magnesium alloy blade with energy saving tail
Extruded and stretched for high strength and light weight, T5 plus bright surface oxidation for corrosion and oxidation resistance, with a tail that removes the tip vortex.
Specifications
Data Sheet
Every figure below comes from our own specification. Where a value depends on the diameter or the duty it is written as TBC rather than invented, and it is confirmed on the specification sheet issued with your quotation.
| Sizes | Three sizes offered, dimensions confirmed at quotation |
|---|---|
| Tilt adjustment | 45 degrees up and down |
| Protection class | IP55 |
| Controller protection and warranty | IP66, 18-month warranty |
| Motor type | Permanent magnet external rotor motor with variable frequency speed control |
| Frequency modulation width | 0 to 200 Hz |
| Mobility | Four universal indoor and outdoor casters |
| Installation | None required, factory pre-installed and commissioned |
| Blade material | Aluminium magnesium alloy, T5 plus bright surface oxidation |
| Blade diameter per size | TBC, confirm at quotation |
| Motor power | TBC per size, confirm at quotation |
Materials
- Aluminium magnesium alloy blade, extruded and stretched
- T5 plus bright surface oxidation blade finish
- Steel guard and tilting head frame
- Universal casters rated for indoor and outdoor floors
Quality Control
- Every unit pre-installed and commissioned in the factory before despatch
- Stator withstand-voltage testing on the motor
- Blade dynamic balancing
- Tilt mechanism and caster function checked at final inspection
Customisation Options
- Size selected from the three-size range for the bay or court
- Supply voltage matched to the site grid
- Frame and blade colour on production orders
- Nameplate branding for distributors and rental fleets
Comparison
How It Compares
How the stand fan compares with the neighbouring options.
| Against the big movable fan | The movable fan is the larger drum format with a 28 m throw. The stand fan adds the 45 degree pivot and three sizes, which suits courts and vehicle bays. |
|---|---|
| Against an HVLS ceiling fan | The ceiling fan covers far more area and frees the floor. Use the stand fan where the roof is unavailable or the requirement is one specific area. |
| Against a conventional pedestal fan | Higher volume at lower speed, IP55 protection and an aerodynamic blade rather than a stamped one. It is a different class of equipment at a different price. |
| Against a wall-mounted exhaust fan | Different job. The exhaust fan removes air from the building; the stand fan circulates it inside. Buildings with a heat load usually need both. |
Use Guide
Getting It Right on Site
1
Set the tilt before the speed
Aim the head at the working plane first. Most people reach for more speed when the answer is a few degrees of tilt.
2
Give the air somewhere to go
Position the fan so the column runs down the bay towards an opening rather than into a solid wall two metres away.
3
Lock the casters on a sloped floor
Workshop and yard floors fall to drainage. Lock the wheels once the fan is placed.
4
Keep the guard clear
In a tyre bay or a fabrication shop the guard blocks quickly. Clean it on the same cycle as the rest of the bay.
