Tubesheet and Tube Fit Up What to Specify
Most tubesheet problems are information problems. Here is the list of data that has to travel with the enquiry.
What the plate has to match
Tube outside diameter and wall thickness, because they set hole diameter and the grooving for a rolled joint.
Hole pattern and pitch, which come from the bundle layout rather than from the plate dimensions.
Plate thickness and outside diameter. We machine up to 5000 mm outside diameter and 750 mm thickness, with tube holes up to 120 mm.
Material pairing
Plate is available in carbon steel, stainless steel, duplex stainless steel, nickel alloy and copper.
A duplex tube rolled into a carbon steel plate is a different joint design from an all-stainless bundle. State both materials in the enquiry, not just the plate.
Rolled or welded joints
A rolled joint needs grooves in the tube hole and enough plate thickness for the roll length.
A welded joint needs the hole finish and the tube projection specified. Say which one the design uses before the plate is drilled.
Why one supplier for both
When plate and tube come from separate suppliers, one drawing gets interpreted twice and the difference shows up at assembly.
Ordering both against the same drawing is the simplest way to remove that risk, and it is how we normally deliver exchanger bundles.
Tube Referenced Above

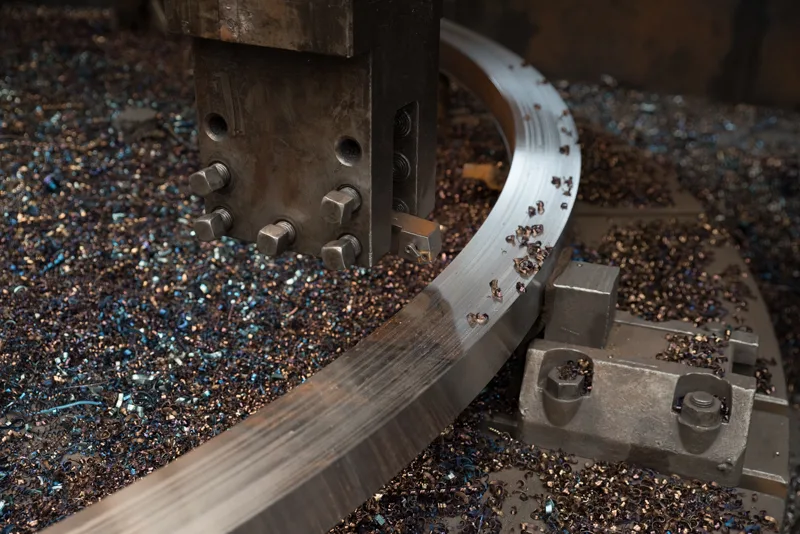

Tubesheet
Drilled tube plate up to 5000 mm diameter and 750 mm thick
Maximum outside diameter: 5000 mm · Maximum thickness: 750 mm
Stainless Steel Tube
Austenitic and super austenitic seamless tube and pipe to ASTM A213, A269 and A312
Tube outside diameter: 1/2" - 3" (12 mm - 76.2 mm) · Tube wall thickness: 0.02" - 0.5" (0.5 mm - 12.0 mm)
Duplex Stainless Steel Tube
Duplex and super duplex seamless tube and pipe to ASTM A789 and A790
Tube outside diameter: 1/2" - 3" (12 mm - 76.2 mm) · Tube wall thickness: 0.02" - 0.5" (0.5 mm - 12.0 mm)More guides
Reader Questions
What is the largest tubesheet you can machine?
5000 mm outside diameter and up to 750 mm thick, with tube holes up to 120 mm in diameter.
Do you drill to our hole pattern?
Yes. Send the exchanger drawing with hole pattern, pitch, grooving detail and plate material, together with the tube dimensions.
Apply This to Your Bundle
Send the duty, the stream data and the envelope. We will tell you which geometry and grade the guide points to in your case.
