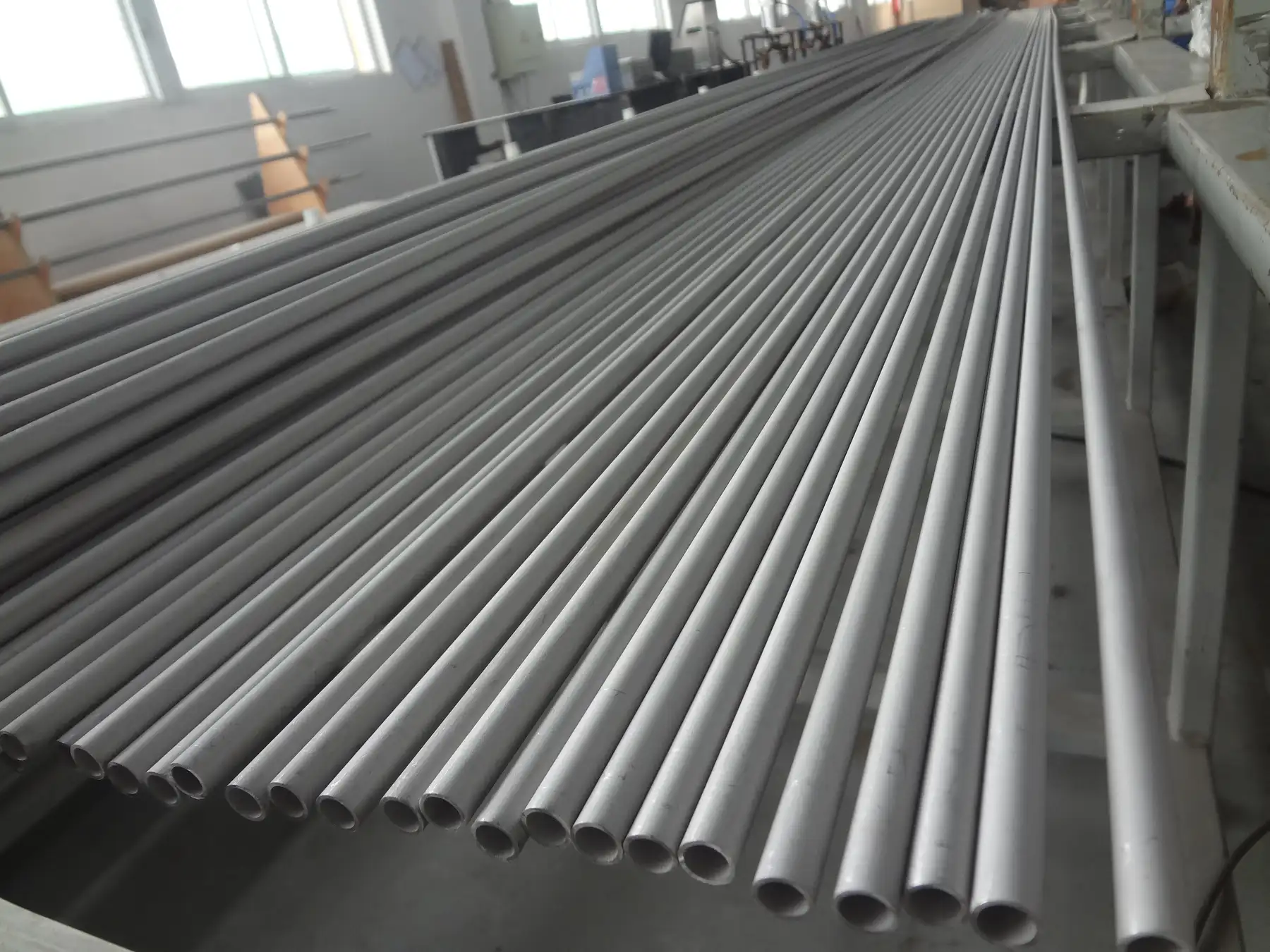

Stainless steel tube lengths ready for inspection
Solution

Corrosion Resistant Tube Selection

Most tube failures we are asked to replace were grade selection decisions, not manufacturing defects. This is the sequence we work through with a buyer before a grade is fixed.

Get A Custom Solution See the Process
Process

From Enquiry to Delivery

Seven steps, each with a decision that belongs to it. Nothing is left to be discovered at assembly.

Stream dataComposition, temperature, velocity and chloride content are collected for both sides of the tube.
Mechanism checkThe likely mechanism is identified - pitting, chloride stress corrosion cracking, reducing acid attack, creep or erosion.
Family selectionAustenitic for general duty, duplex for chloride plus strength, nickel alloy for reducing acids, high temperature and seawater.
Grade selectionWithin the family, grade is fixed on PREN, stabilisation or molybdenum content as the mechanism requires.
SpecificationThe ASTM or ASME standard is named with the grade, because test and heat treatment requirements differ between them.
Testing scopeIntergranular corrosion, hardness and chemical analysis are added to the test plan where the specification calls for them.
DocumentationCertificates are issued against the named standard and travel with the shipment.
Products Involved

What This Solution Uses

Seamless stainless steel tubes stacked in the tube workshop Stainless Steel Tube Austenitic and super austenitic seamless tube and pipe to ASTM A213, A269 and A312 Tube outside diameter: 1/2" - 3" (12 mm - 76.2 mm) · Tube wall thickness: 0.02" - 0.5" (0.5 mm - 12.0 mm) Duplex stainless steel seamless tube lengths in the workshop Duplex Stainless Steel Tube Duplex and super duplex seamless tube and pipe to ASTM A789 and A790 Tube outside diameter: 1/2" - 3" (12 mm - 76.2 mm) · Tube wall thickness: 0.02" - 0.5" (0.5 mm - 12.0 mm) Nickel alloy seamless tube ends showing wall thickness Nickel / Nickel Alloy Tube Monel, Inconel, Incoloy and Hastelloy grade seamless tube for the hardest corrosion duty Tube outside diameter: 1/2" - 3" (12 mm - 76.2 mm) · Tube wall thickness: 0.02" - 0.5" (0.5 mm - 12.0 mm)
Capability Behind It

What Sits Behind the Promise

  • 25 rolling and cold drawing machines in the seamless tube workshop
  • 23 fin machines and lines across eight fin geometries
  • Tubesheets machined to 5000 mm outside diameter and 750 mm thickness
  • Hydro, eddy current, mechanical, chemical and dimensional testing in house
  • ISO 9001:2015, CE certificate, Production licence for pressure pipe

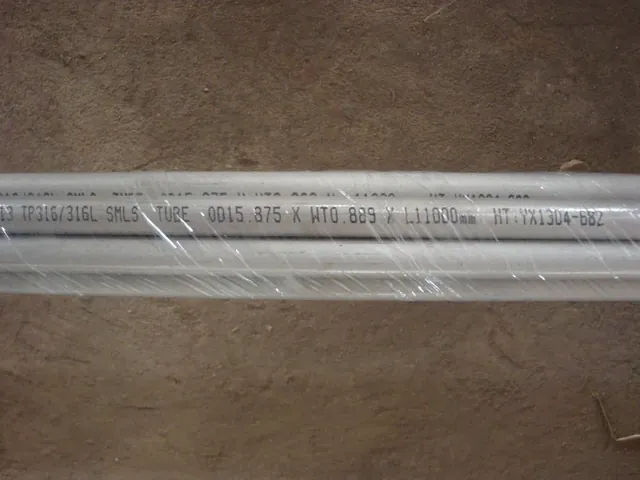

Seamless stainless steel tube stock in the workshop
Seamless tube stock across austenitic, duplex and nickel alloy grades.
FAQ

Corrosion Resistant Tube Selection Questions

What data do you need to recommend a grade?

Stream composition, temperature, velocity and chloride content for both sides of the tube.

Is duplex always cheaper than a nickel alloy?

Per kilogram, yes, by a wide margin. That is why the mechanism matters - duplex in reducing acid service is a false economy.

Do you issue certificates against the named standard?

Yes. Name the specification with the grade, because B163, B622 and API 5CRA carry different test and heat treatment requirements.

Can you add intergranular corrosion testing?

Yes, we have intergranular corrosion equipment in house. Ask for it with the order.

Start With the Drawing

Send the bundle drawing, the process data or the tube schedule. The first thing you get back is a list of what is missing, not an invoice.
