Welded Finned Tube
Spiral, H type, longitudinal and stud fins welded to the tube for flue gas service
Welded Finned Tube Range
When flue gas is hot, dusty or both, the fin has to be welded to the tube rather than held by mechanical grip.

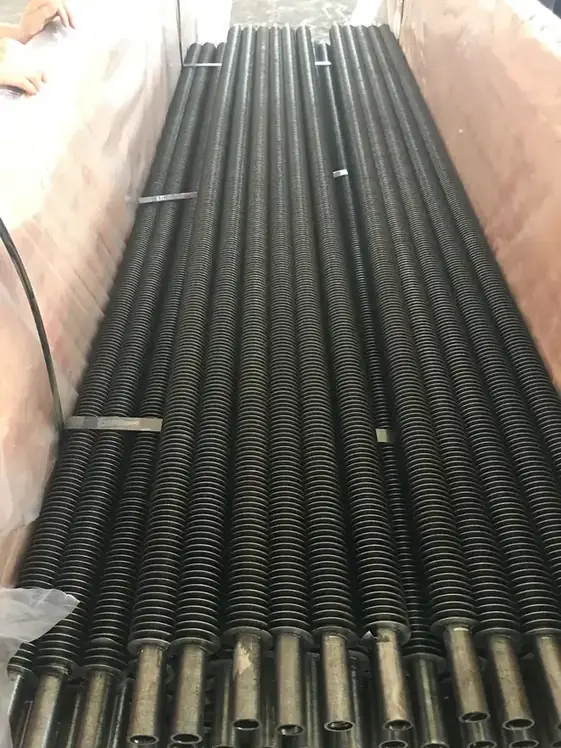

Spiral Fin Tube
Continuously welded helical fin for boiler, economizer and flue gas duty
Base tube diameter: 15 mm - 70 mm · Base tube wall thickness: 2.0 mm - 15.0 mm

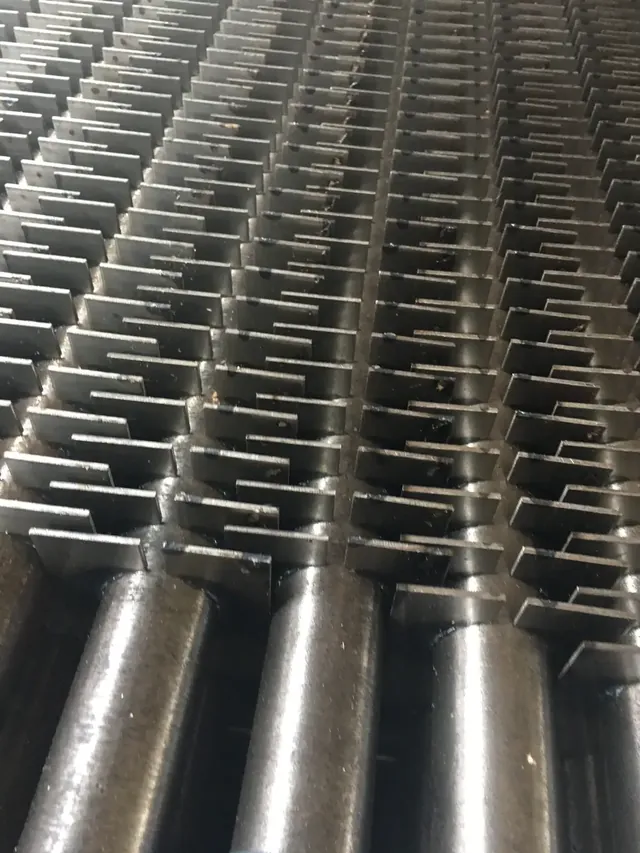

H/HH Fin Tube
Split square fins welded in pairs, leaving a straight ash lane along the tube
Base tube diameter: 25 mm - 73 mm · Base tube wall thickness: 3.0 mm - 6.0 mm

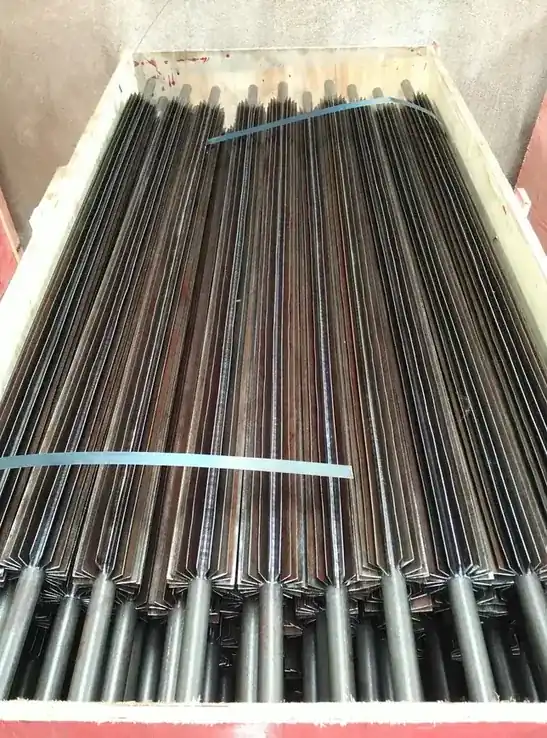

Longitudinal Fin Tube
Straight fins welded along the tube axis for viscous fluids and low velocity gas
Base tube diameter: 12 mm - 273 mm · Base tube wall thickness: 2.11 mm - 25.4 mm

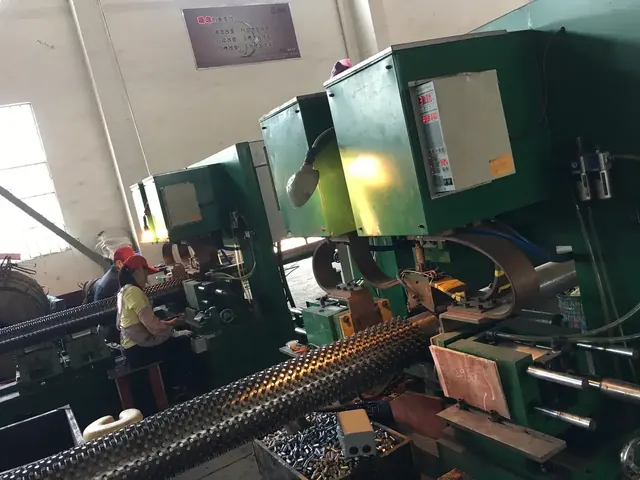

Stud Fin Tube
Individually welded studs for the dirtiest furnace and process heater duty
Base tube diameter: 38 mm - 273 mm · Base tube wall thickness: 3.5 mm - 10.0 mmWhat This Family Is For
In a flue gas path the fin is attacked from two directions at once - metal temperature that releases a mechanical bond, and ash that blinds the gaps between fins. Geometry, not material, is what solves it.
Four geometries cover the range: spiral for clean gas, H and HH for ash-laden economizer duty, longitudinal for viscous fluids and low velocity gas, and studs for slagging furnace sections.
All four are steel fin on steel tube, so the weld metallurgy stays simple and the assembly can be part of a pressure boundary.
Core Strengths in Welded Finned Tube
Geometry matched to the gas
Spiral, H/HH, longitudinal and stud fins, selected by dust loading and metal temperature.
Heavy base tubes
Up to 273 mm outside diameter and 25.4 mm wall thickness.
Continuous weld along the fin root
An unbroken metallic path from fin to tube.
Seven dedicated welded fin lines
Three spiral, two H/HH and two longitudinal production lines.
Suited To
- Boiler and economizer manufacturers
- Waste heat recovery contractors
- Fired heater and furnace builders
- Marine boiler manufacturers
Welded Finned Tube in Production
Welded Finned Tube Questions
Which welded fin type suits ash-laden flue gas?
H or HH type, because the split square fins leave an ash lane along the tube for deposits to fall through.
How thick a base tube wall can you fin?
Up to 15.0 mm on spiral fin tube and 25.4 mm on longitudinal fin tube.
Can the finned tube be part of the pressure boundary?
Base tube wall thickness and material certification are specified accordingly when the finned tube is a pressure part. State this at enquiry stage.
What is the largest tube you can weld fins to?
273 mm outside diameter, on longitudinal and stud fin tube.
Quote Welded Finned Tube Against Your Drawing
Send base tube size, fin geometry, material and quantity. If a different product in the range fits better, we will say so.
[email protected] · Tel 0086 512 58392615 · Monday to Saturday, 08:30 - 17:30 China Standard Time (GMT+8)
