Water Barrier Layer
CAPC
HD-CAPC
10⁻²–10⁻³ g/m²·day water transmission in a 325 µm transparent construction, with PID288 and DH2000 degradation under 2%.
Portable and lightweight modules spend their lives in worse humidity conditions than rooftop arrays — folded in a damp boot, hung on a coastal balcony, parked outdoors through a monsoon — and they have no glass to seal them.
HD-CAPC answers that with a water vapour transmission rate two to three orders of magnitude below a plain PET construction, while staying weather-resistant, lightweight and transparent enough to be the published best choice for packaging portable components.
Why this one
- Water vapour transmission of 10⁻² to 10⁻³ g/m²·dayWhich is the specification that decides whether a glassless module reaches its warranty period in a humid climate.
- Insulation by structureThe special structure satisfies the insulation requirements for PV modules without an added layer.
- High reliabilityPower degradation under 2% after PID288 and DH2000 testing.
- 325 µm ±5% total, transparent20 µm air coating, 300 µm PET middle layer and a 5 µm inner coating with high reflectivity and strong EVA bonding.
Specification
| Product Structure | Air Coating | 10μm, Protect PET |
|---|---|---|
| Middle Layer (PET) | 300μm, Insulation Property, Water Vapor Barrier Property | |
| Inner Coating | Inner Coating: 5μm, High Reflectivity, Great Bonding Performance with EVA | |
| Product Type | HD-CPC | |
| Product Code | HD-CPC | |
| Product Name | Insulating back sheet for crystalline silicon terrestrial photovoltaic (PV) modules | |
| Thickness | Air Coating: 20±2μm PET: 300μm±5% Inner Coating: 5 (-0,+2)μm Total Thickness: 325μm±5% | |
| Color | Transparent |
Values as published by the manufacturer. Tolerances and roll formats are confirmed in writing per order.
Storage and shelf life
High storage stability with no special storage requirements. Warranty period is one year under cool, dry storage conditions; laminating process generality should be evaluated after that period.
Applications
- Portable and foldable modules
- Balcony lightweight modules
- Humid and coastal installations
Supplied from

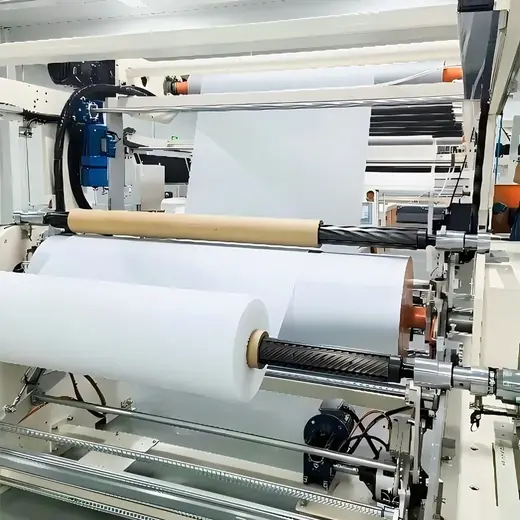

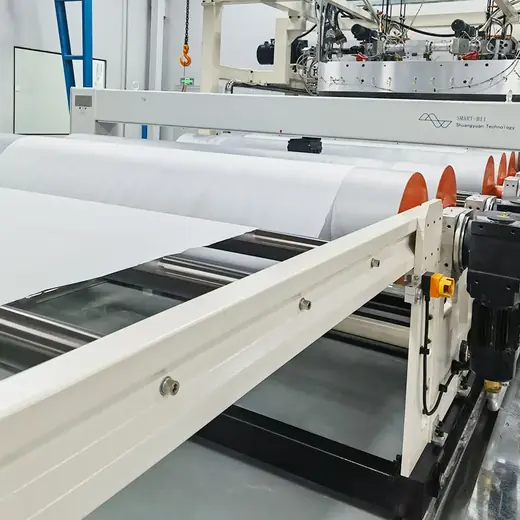

Suzhou, Jiangsu, China — and PT. Hondol Material Indonesia, Batam, for customers served from Indonesia.
Questions about CAPC
What do PID288 and DH2000 mean?
Potential-induced degradation testing at 288 hours and damp heat at 2000 hours — accelerated ageing protocols. Power degradation stays under 2% through both.
Is CAPC transparent or white?
The published colour for HD-CAPC in this construction is transparent.
How does it compare with CPPC/HPPC?
Both hold the same 10⁻²–10⁻³ g/m²·day barrier. CPPC/HPPC adds a dedicated water block layer and is specified for 25-year service life with high transmittance; CAPC is the simpler, lighter construction for portable use.
