LED Sign Modules
Injection-moulded, potted LED modules for channel letters, 3D luminous characters and light boxes. Every model publishes its module size, the sign depth it is designed for, its beam angle, its IP rating and how many modules may be cascaded before power has to be fed again.
Every LED Sign Modules We Publish
The core range: sealed low-voltage modules that sit behind an acrylic face and light it evenly. Choose by the internal depth of the sign first, then by the brightness the face needs.
JDS-6515RGB/W
Addressable RGB/RGBW module with a built-in IC, 65 x 15 x 10 mm, IP68, for medium-sized signs 80 to 120 mm deep.
See the specification

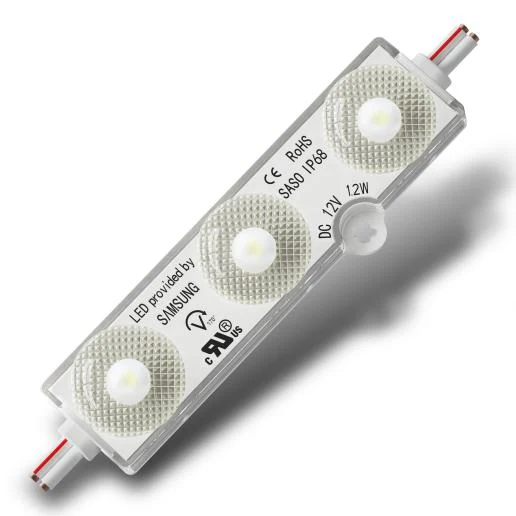

JDS-6515B
150 lm/W single-colour module, 65 x 15 x 10 mm, IP68, dual 12 V / 24 V input, for signs 80 to 120 mm deep.
See the specification

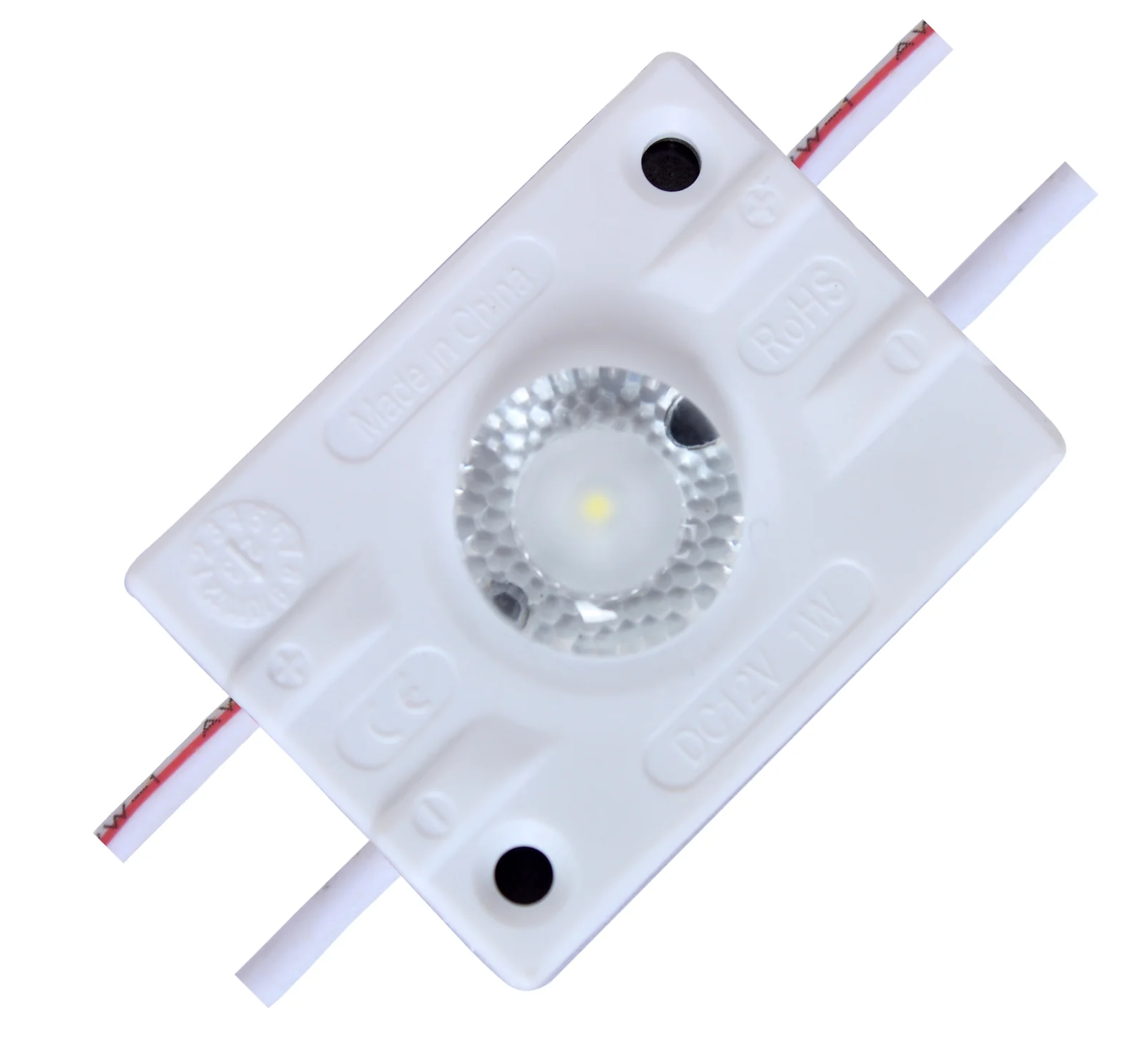

JDS-3828D
Double-sided 1.5 W module at 93 lm/W, IP67, 8 pieces per metre, for signs deeper than 60 mm.
See the specification

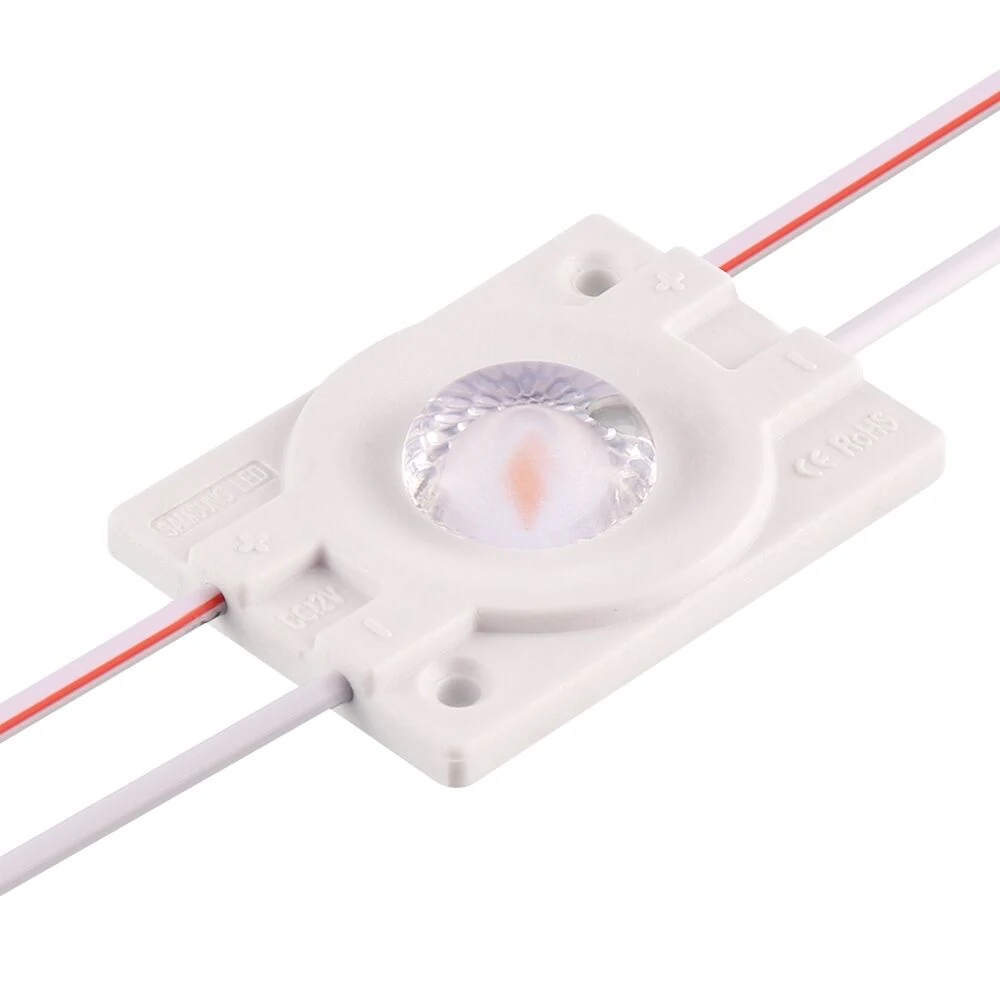

JDS-3828B
1.5 W backlit module at 93 lm/W, IP67, rated -40 to +60 C, for signs deeper than 60 mm.
See the specification

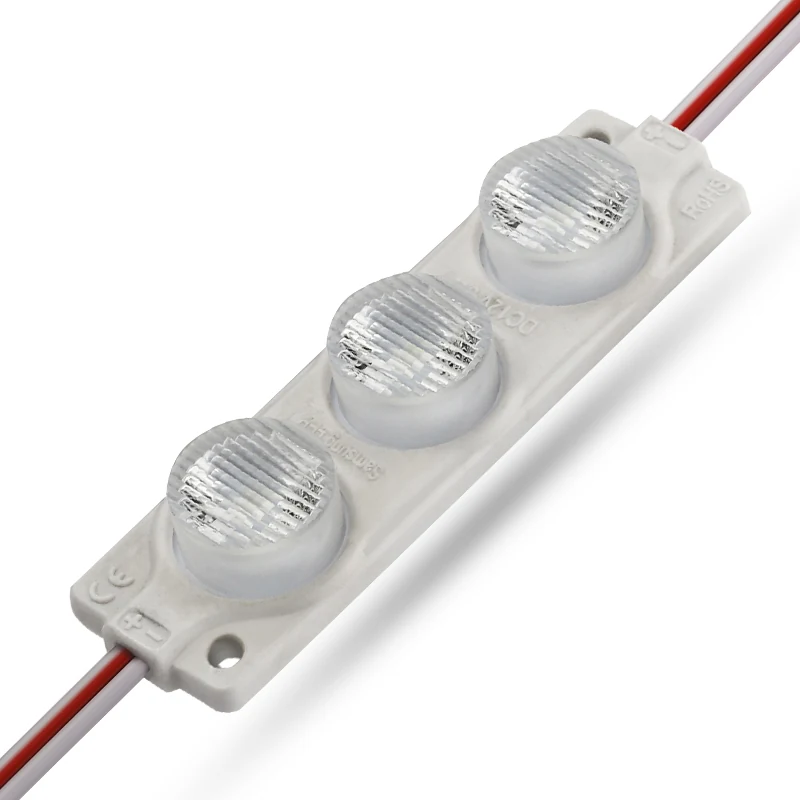

JDS-7420V
3 W side-emitting module, 300 lm per piece, IP67, for single-sided boxes 50 to 100 mm and double-sided boxes 60 to 200 mm deep.
See the specification
JDS-4035V
120 lm/W side-emitting module at 3 W and 360 lm per piece, IP67, eight pieces per metre.
See the specification
JDS-3828V
1.5 W side-emitting module, 140 lm per piece, IP67, for light boxes where 3 W per piece would over-light the face.
See the specification
JDS-6615RGB/RGBW
6.5 mm-thin RGB/RGBW module with a bat-wing lens, 60 lm, IP67, 50 modules per chain.
See the specification
JDS-3636RGB/RGBW
1.44 W RGB/RGBW module at 100 lm/W, IP67, nine pieces per metre, for signs deeper than 150 mm.
See the specification
JDS-3208B
208 lm/W mini module, 32 x 8 x 8.5 mm, IP68, 100 modules per double-ended run, for signs 30 to 50 mm deep.
See the specification
JDS-1208B
The smallest module published here at 12 x 8 x 8.5 mm, 0.36 W, IP68, for narrow strokes in signs 30 to 50 mm deep.
See the specification
JDS-6616B/AC120V/220V
Mains-driven module at AC 120 V or 220 V, 1.5 W, IP67, no DC driver needed inside the sign.
See the specification
JDS-3939B/AC120V/220V
Square four-lens mains module, 39 x 39 x 9 mm, 2 W at AC 120 V or 220 V, IP67, for signs 120 to 200 mm deep.
See the specification
JDS-7618B
Three-lens 76 mm module, 360 lm per piece at up to 170 lm/W, IP67, for signs 40 to 70 mm deep.
See the specification

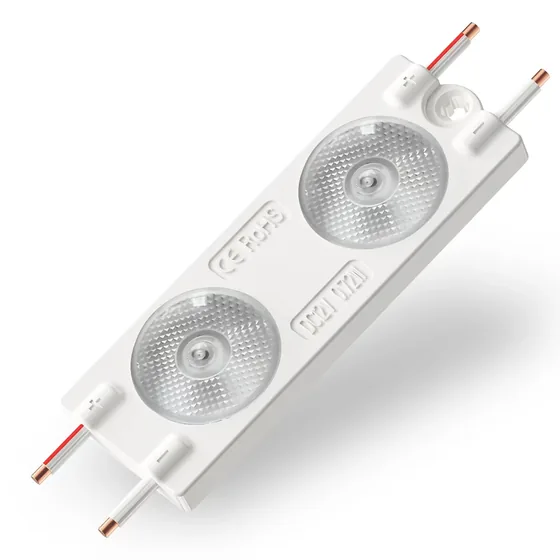

JDS-5118B
Two-lens 51 mm module, 240 lm per piece at up to 170 lm/W, IP67, for signs 30 to 60 mm deep.
See the specification
JDS-4543B
Four-lens square module, 480 lm per piece at up to 4 W, IP67, the brightest single module published here.
See the specification

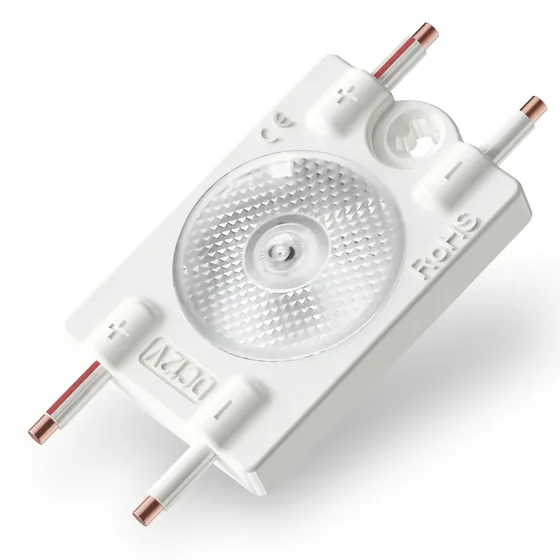

JDS-2618B
Single-lens 26 mm module at 170 lm/W, IP67, rated for signs 25 to 50 mm deep - the shallowest depth in the high power family.
See the specification

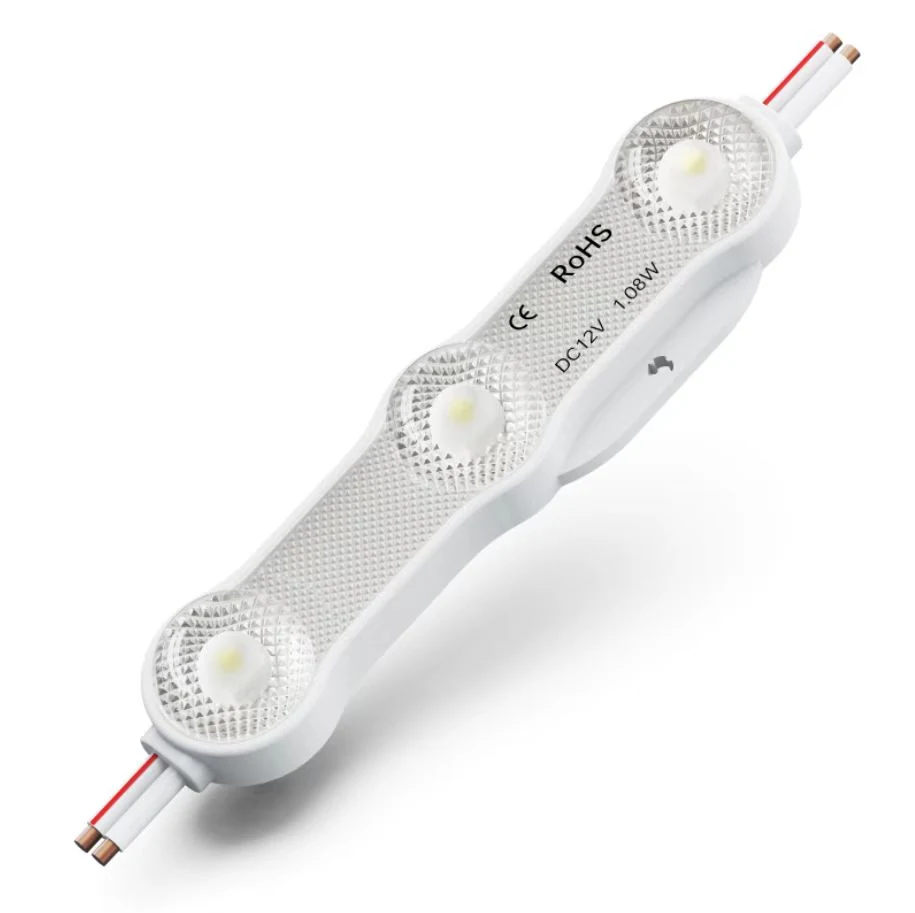

JDS-6616B
Three-lens 66 mm module at 170 lm/W and IP68, for deep channel letters and light boxes 80 to 120 mm deep.
See the specification

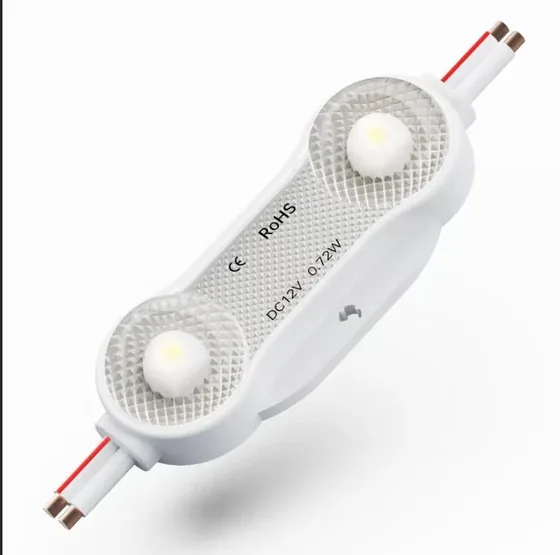

JDS-4116B
Two-lens 41 mm module at 170 lm/W and IP68, for signs 50 to 80 mm deep.
See the specification

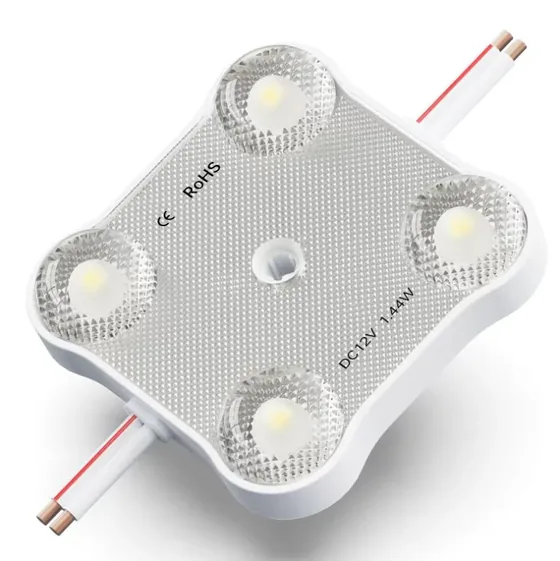

JDS-3939B
Square four-lens DC module, 245 lm per piece, IP68, for deep signs 120 to 200 mm behind the face.
See the specification

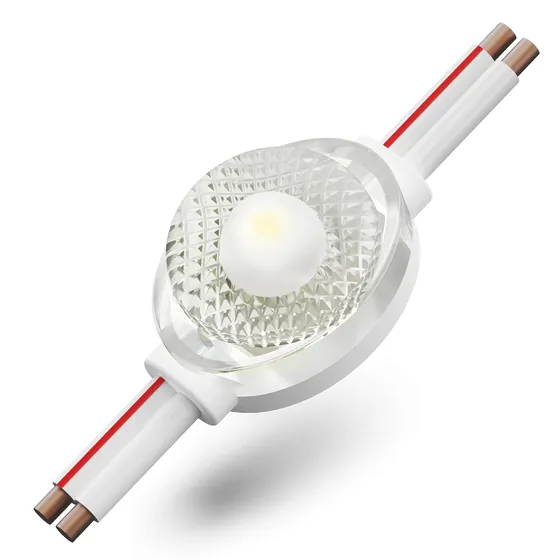

JDS-1812B
Single-lens mini module, 18 x 12 x 9 mm at 170 lm/W and IP68, 100 modules per double-ended run.
See the specificationProblems This Family Solves
