All 25 Products
Every product this manufacturer publishes, grouped by family, with nothing paginated and nothing held back: sign modules from a 12 x 8 x 8.5 mm mini body up to a 480 lumen four-lens module, side-emitting optics for light boxes, mains-driven AC modules, RGB and RGBW colour modules, and four strip and neon flex products.
LED Sign Modules
Injection-moulded, potted LED modules for channel letters, 3D luminous characters and light boxes. Every model publishes its module size, the sign depth it is designed for, its beam angle, its IP rating and how many modules may be cascaded before power has to be fed again.
JDS-6515RGB/W
Addressable RGB/RGBW module with a built-in IC, 65 x 15 x 10 mm, IP68, for medium-sized signs 80 to 120 mm deep.
See the specification
JDS-6515B
150 lm/W single-colour module, 65 x 15 x 10 mm, IP68, dual 12 V / 24 V input, for signs 80 to 120 mm deep.
See the specification
JDS-3828D
Double-sided 1.5 W module at 93 lm/W, IP67, 8 pieces per metre, for signs deeper than 60 mm.
See the specification
JDS-3828B
1.5 W backlit module at 93 lm/W, IP67, rated -40 to +60 C, for signs deeper than 60 mm.
See the specification
JDS-7420V
3 W side-emitting module, 300 lm per piece, IP67, for single-sided boxes 50 to 100 mm and double-sided boxes 60 to 200 mm deep.
See the specification
JDS-4035V
120 lm/W side-emitting module at 3 W and 360 lm per piece, IP67, eight pieces per metre.
See the specification
JDS-3828V
1.5 W side-emitting module, 140 lm per piece, IP67, for light boxes where 3 W per piece would over-light the face.
See the specification
JDS-6615RGB/RGBW
6.5 mm-thin RGB/RGBW module with a bat-wing lens, 60 lm, IP67, 50 modules per chain.
See the specification
JDS-3636RGB/RGBW
1.44 W RGB/RGBW module at 100 lm/W, IP67, nine pieces per metre, for signs deeper than 150 mm.
See the specification
JDS-3208B
208 lm/W mini module, 32 x 8 x 8.5 mm, IP68, 100 modules per double-ended run, for signs 30 to 50 mm deep.
See the specification
JDS-1208B
The smallest module published here at 12 x 8 x 8.5 mm, 0.36 W, IP68, for narrow strokes in signs 30 to 50 mm deep.
See the specification
JDS-6616B/AC120V/220V
Mains-driven module at AC 120 V or 220 V, 1.5 W, IP67, no DC driver needed inside the sign.
See the specification
JDS-3939B/AC120V/220V
Square four-lens mains module, 39 x 39 x 9 mm, 2 W at AC 120 V or 220 V, IP67, for signs 120 to 200 mm deep.
See the specification
JDS-7618B
Three-lens 76 mm module, 360 lm per piece at up to 170 lm/W, IP67, for signs 40 to 70 mm deep.
See the specification
JDS-5118B
Two-lens 51 mm module, 240 lm per piece at up to 170 lm/W, IP67, for signs 30 to 60 mm deep.
See the specification
JDS-4543B
Four-lens square module, 480 lm per piece at up to 4 W, IP67, the brightest single module published here.
See the specification
JDS-2618B
Single-lens 26 mm module at 170 lm/W, IP67, rated for signs 25 to 50 mm deep - the shallowest depth in the high power family.
See the specification
JDS-6616B
Three-lens 66 mm module at 170 lm/W and IP68, for deep channel letters and light boxes 80 to 120 mm deep.
See the specification
JDS-4116B
Two-lens 41 mm module at 170 lm/W and IP68, for signs 50 to 80 mm deep.
See the specification
JDS-3939B
Square four-lens DC module, 245 lm per piece, IP68, for deep signs 120 to 200 mm behind the face.
See the specification
JDS-1812B
Single-lens mini module, 18 x 12 x 9 mm at 170 lm/W and IP68, 100 modules per double-ended run.
See the specificationHigh Power LED Modules
Lens modules rated 1.5 W to 4 W per piece, for large-format channel letters and deep light boxes where a standard module cannot reach the face without hot spots showing through it.
JDS-3828D
Double-sided 1.5 W module at 93 lm/W, IP67, 8 pieces per metre, for signs deeper than 60 mm.
See the specificationJDS-3828B
1.5 W backlit module at 93 lm/W, IP67, rated -40 to +60 C, for signs deeper than 60 mm.
See the specificationJDS-7618B
Three-lens 76 mm module, 360 lm per piece at up to 170 lm/W, IP67, for signs 40 to 70 mm deep.
See the specificationJDS-5118B
Two-lens 51 mm module, 240 lm per piece at up to 170 lm/W, IP67, for signs 30 to 60 mm deep.
See the specificationJDS-4543B
Four-lens square module, 480 lm per piece at up to 4 W, IP67, the brightest single module published here.
See the specificationJDS-2618B
Single-lens 26 mm module at 170 lm/W, IP67, rated for signs 25 to 50 mm deep - the shallowest depth in the high power family.
See the specificationMini LED Modules
Modules from 12 x 8 x 8.5 mm upward for narrow strokes, small letters and signs with only 30 to 50 mm of internal depth, where a full-size module physically will not fit inside the return.
JDS-3208B
208 lm/W mini module, 32 x 8 x 8.5 mm, IP68, 100 modules per double-ended run, for signs 30 to 50 mm deep.
See the specificationJDS-1208B
The smallest module published here at 12 x 8 x 8.5 mm, 0.36 W, IP68, for narrow strokes in signs 30 to 50 mm deep.
See the specificationJDS-1812B
Single-lens mini module, 18 x 12 x 9 mm at 170 lm/W and IP68, 100 modules per double-ended run.
See the specificationSide-Emitting LED Modules
Side-firing modules with asymmetric 65x10 or 45x20 degree optics, mounted on the inside wall of a light box so the light travels across the face instead of straight at it.
JDS-7420V
3 W side-emitting module, 300 lm per piece, IP67, for single-sided boxes 50 to 100 mm and double-sided boxes 60 to 200 mm deep.
See the specificationJDS-4035V
120 lm/W side-emitting module at 3 W and 360 lm per piece, IP67, eight pieces per metre.
See the specificationJDS-3828V
1.5 W side-emitting module, 140 lm per piece, IP67, for light boxes where 3 W per piece would over-light the face.
See the specificationAC LED Modules
Modules driven straight from AC 120 V or AC 220 V with no separate DC power supply in the sign, for installations where there is no room or no access for a driver box.
JDS-6616B/AC120V/220V
Mains-driven module at AC 120 V or 220 V, 1.5 W, IP67, no DC driver needed inside the sign.
See the specificationJDS-3939B/AC120V/220V
Square four-lens mains module, 39 x 39 x 9 mm, 2 W at AC 120 V or 220 V, IP67, for signs 120 to 200 mm deep.
See the specificationRGB and RGBW Modules
Colour-changing modules in RGB and RGB+W, including a built-in-IC version for addressable effects, for signage and facade work that has to change colour rather than stay one temperature.
JDS-6515RGB/W
Addressable RGB/RGBW module with a built-in IC, 65 x 15 x 10 mm, IP68, for medium-sized signs 80 to 120 mm deep.
See the specificationJDS-6615RGB/RGBW
6.5 mm-thin RGB/RGBW module with a bat-wing lens, 60 lm, IP67, 50 modules per chain.
See the specificationJDS-3636RGB/RGBW
1.44 W RGB/RGBW module at 100 lm/W, IP67, nine pieces per metre, for signs deeper than 150 mm.
See the specificationLED Strip and Neon Flex
Flexible strip and neon flex for cove lighting, edge lighting and linear detail: COB CCT, 5050 RGBW, DMX512-addressable neon flex and a 220 V high-voltage strip that runs long lengths without a low-voltage driver.
DMX512 Neon Flex Strip, 60 LEDs/m
DMX512-addressable RGBW neon flex, 60 LEDs/m, 24 V, 450 lm/m, cut every 100 mm, 5 m per roll.
See the specification
COB LED Strip, CCT Series, 640 LEDs/m
Dot-free COB strip at 640 LEDs/m, 24 V, 800 lm/m, Ra > 90, cut every 25 mm.
See the specification
5050 LED Strip, Colorful Series, RGBW 60 LEDs/m
SMD5050 RGBW strip at 60 LEDs/m, 17.2 W/m, available in a 12 V and a 24 V model with different cut lengths.
See the specification

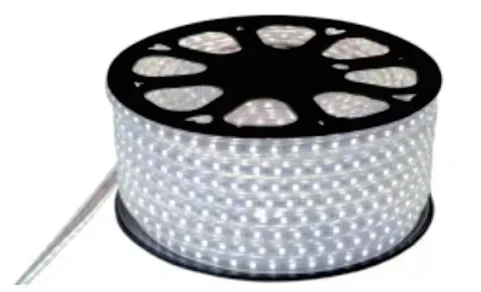

2835 LED Strip, High Voltage Series, 120 LEDs/m
220 V mains strip at 120 LEDs/m, 1440 lm/m and 120 lm/W, cut every 100 mm.
See the specificationNot Sure Which Depth Band You Are In
The internal depth of the sign - the distance from the module face to the inside of the acrylic - is the figure that decides which of these twenty-five products applies. Send that measurement and the face area and a shortlist comes back with the published specification for each candidate. Colour temperature, lead wire length, module pitch and packing quantity are then selected per order.
Not Sure Which Product Fits
Send the internal depth of the cavity, the face area and the quantity. A shortlist comes back with the published specification for each candidate.
