Side-Emitting LED Modules manufactured by Shenzhen Jinda Shun Technology Co., Ltd.
3 products in this family

Side-Emitting LED Modules

Side-firing modules with asymmetric 65x10 or 45x20 degree optics, mounted on the inside wall of a light box so the light travels across the face instead of straight at it.

Request A Quote See The Range
The Range

Every Side-Emitting LED Modules We Publish

A shallow light box lit from the back always shows the module pattern. Lit from the edge, it does not. These three models are built for that, with beam angles published for both orientations.

JDS-7420V, 3 W side-emitting module, 300 lm per piece, IP67, for single
Bezel-Free Series 7420V

JDS-7420V

3 W side-emitting module, 300 lm per piece, IP67, for single-sided boxes 50 to 100 mm and double-sided boxes 60 to 200 mm deep.

See the specification
JDS-4035V, 120 lm/W side-emitting module at 3 W and 360 lm per piece, I
Bezel-Free Series 4035V

JDS-4035V

120 lm/W side-emitting module at 3 W and 360 lm per piece, IP67, eight pieces per metre.

See the specification

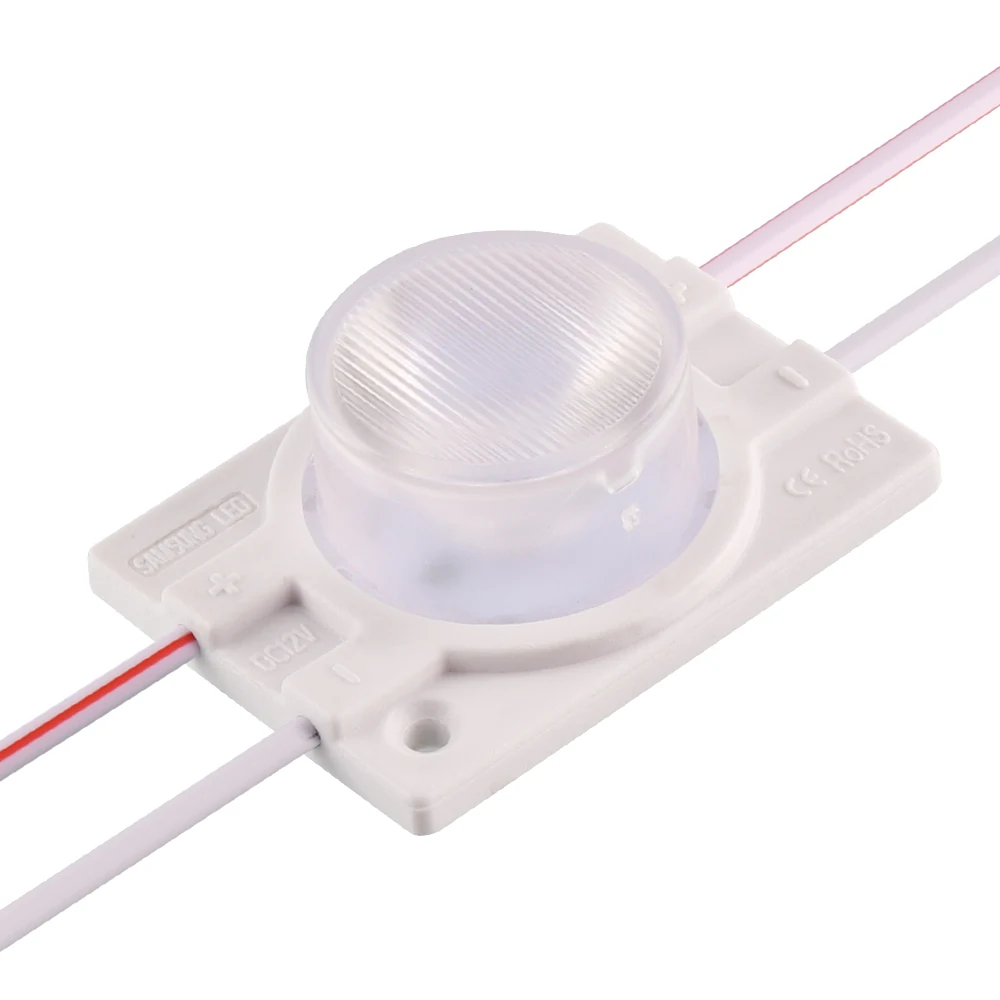

JDS-3828V, 1.5 W side-emitting module, 140 lm per piece, IP67, for ligh
Bezel-Free Series 3828V

JDS-3828V

1.5 W side-emitting module, 140 lm per piece, IP67, for light boxes where 3 W per piece would over-light the face.

See the specification

Problems This Family Solves

  • A shallow light box lit from behind, where every module shows through the face as a bright dot.
  • Two edges wired and powered where one would have done.
  • A side-lit box specified without knowing the beam is asymmetric and has an orientation.
  • Light spilling out of the edge of the box instead of across the face.

Who It Is For

  • Light box manufacturers working in shallow depths
  • Fabricators of double-sided projecting signs
  • Shop fitters building illuminated panels into joinery
  • Distributors supplying edge-lit sign components
The Hardware

What The Modules In This Family Look Like

The manufacturer's own product images for this family, shown at the size they were published at. Each one links through to the model's full specification.

JDS-7420V, 3 W side-emitting module, 300 lm per piece, IP67, for single
JDS-7420V, 3 W side-emitting module, 300 lm per piece, IP67, for single
JDS-4035V, 120 lm/W side-emitting module at 3 W and 360 lm per piece, I
JDS-4035V, 120 lm/W side-emitting module at 3 W and 360 lm per piece, I
JDS-3828V, 1.5 W side-emitting module, 140 lm per piece, IP67, for ligh
JDS-3828V, 1.5 W side-emitting module, 140 lm per piece, IP67, for ligh

Why Buyers Choose This Range

  • Asymmetric optics published for both orientations, 65x10 and 45x20 degrees
  • Depth bands published for single-sided and double-sided boxes separately
  • Up to 360 lm per piece at 120 lm/W on the 4035V
  • IP67 with 3M backing tape for mounting inside the return

Typical Application Scenarios

  • Shallow single-sided light boxes 50 to 100 mm deep
  • Double-sided projecting boxes 60 to 200 mm deep
  • Illuminated panels built into shop joinery
  • Edge-lit fascia panels where the face must stay unbroken
Installed

Where This Family Has Been Photographed

White illuminated channel letters under fabrication, lit by LED sign modules
Project Photograph

Double-Sided Projecting Light Box

A projecting box that has to be read from both sides, where lighting each face separately doubles the module count, the wiring and the number of things that can fail.

Read what was specified

Who Orders These

Guides Covering This Family

Questions

Side-Emitting LED Modules Questions

What is the difference between the two beam angles quoted?
The module can be mounted in either of two orientations and the optic is asymmetric, so the published sheet gives both: 65x10 degrees and 45x20 degrees.
How deep a box can be lit from one edge?
The published bands are 50 to 100 mm for a single-sided box and 60 to 200 mm for a double-sided one.
Do I still need a module behind the face?
Not within those depth bands. That is the point of a side-emitter: the face stays unbroken and the light crosses it from the return.

Get The Side-Emitting LED Modules Specifications

Tell us which products you are shortlisting and the specifications come back by email, with packing and a schedule for your quantity.
