Mini LED Modules
Modules from 12 x 8 x 8.5 mm upward for narrow strokes, small letters and signs with only 30 to 50 mm of internal depth, where a full-size module physically will not fit inside the return.
Every Mini LED Modules We Publish
Thin letters, small logos and shallow returns. These are the models that fit where nothing else does, and they still publish IP68 and the same five year warranty as the full-size range.

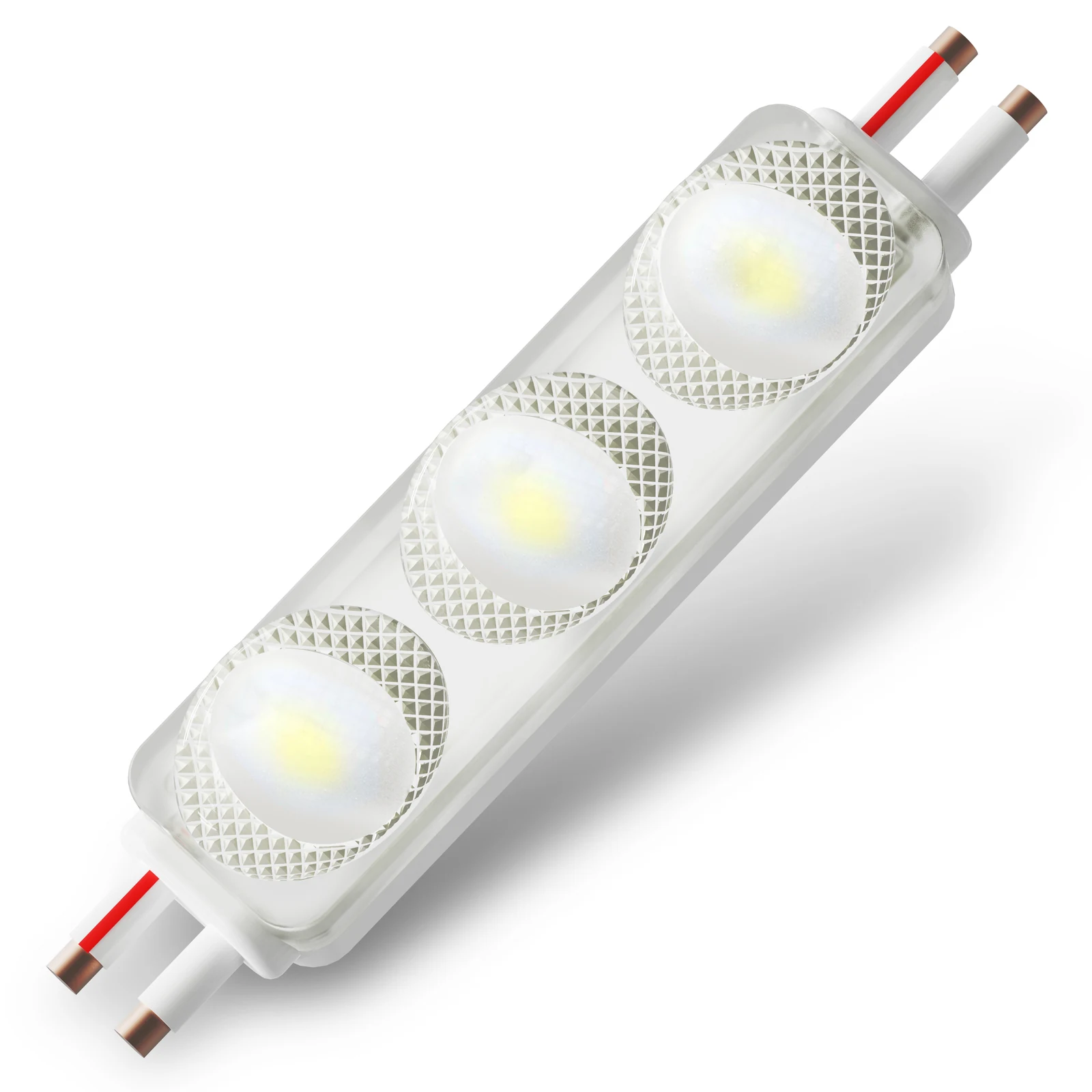

JDS-3208B
208 lm/W mini module, 32 x 8 x 8.5 mm, IP68, 100 modules per double-ended run, for signs 30 to 50 mm deep.
See the specification
JDS-1208B
The smallest module published here at 12 x 8 x 8.5 mm, 0.36 W, IP68, for narrow strokes in signs 30 to 50 mm deep.
See the specification

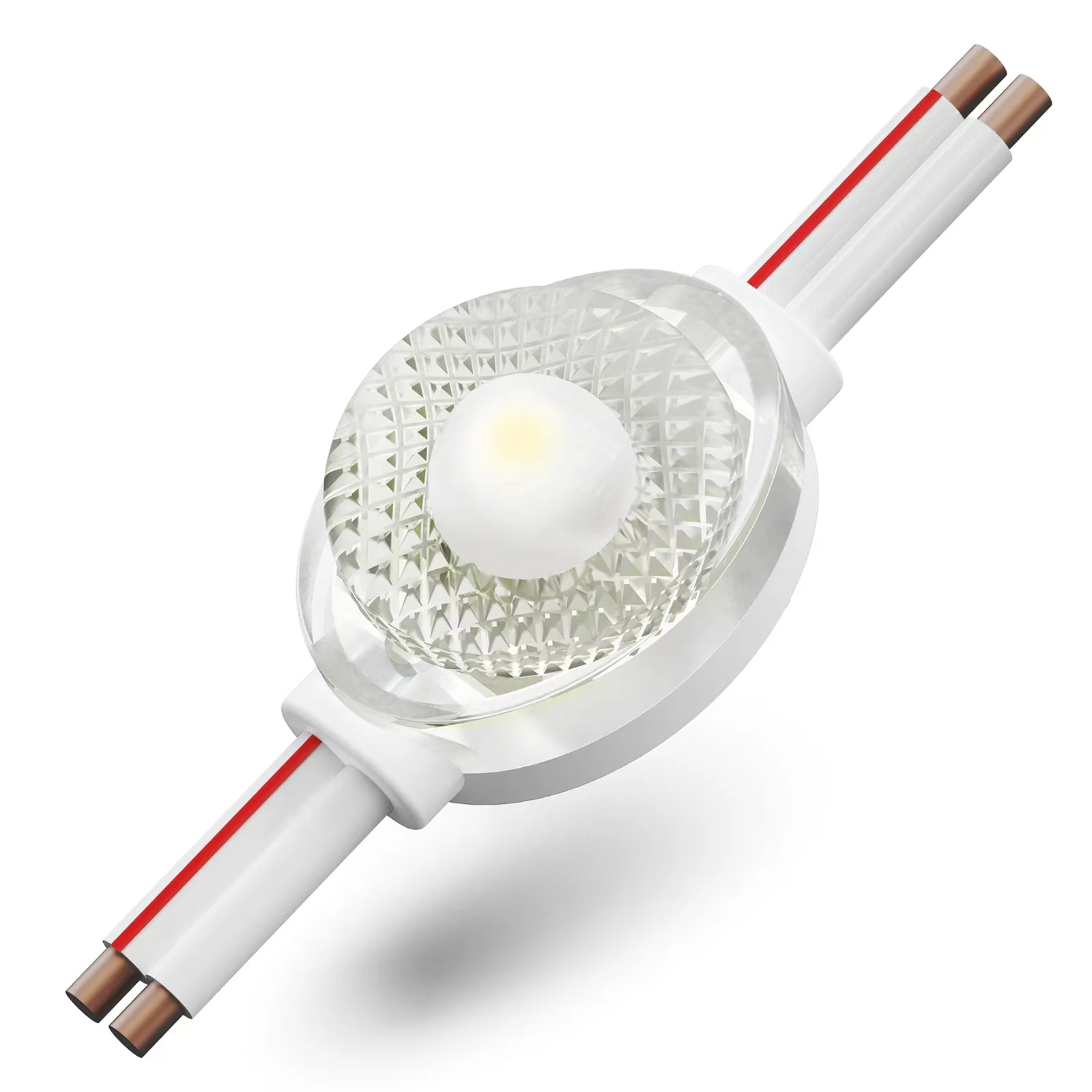

JDS-1812B
Single-lens mini module, 18 x 12 x 9 mm at 170 lm/W and IP68, 100 modules per double-ended run.
See the specificationProblems This Family Solves
- A thin script letter that no standard module will physically pass into.
- A 30 mm return lit with a module rated for a 100 mm cavity, which burns a bright line up the middle of the stroke.
- Too few feed points on a long run of small modules.
- Small modules sold without an IP rating because nobody expects one at that size.
Who It Is For
- Fabricators of thin-stroke and script lettering
- Makers of small logo signs and door plates
- Contractors working on shallow-return fascia retrofits
- Distributors covering the narrow end of the depth range
What The Modules In This Family Look Like
The manufacturer's own product images for this family, shown at the size they were published at. Each one links through to the model's full specification.
Why Buyers Choose This Range
- Bodies from 12 x 8 x 8.5 mm upward
- IP68 on all three models
- 100 modules per double-ended run, twice the full-size limit
- Up to 208 lm/W, the highest efficacy figure on this site
Typical Application Scenarios
- Script and handwriting-style channel letters
- Small logo signs and reception lettering
- Shallow-return fascia retrofits
- Narrow strokes inside otherwise large characters
Who Orders These
Guides Covering This Family
Mini LED Modules Questions
How shallow a sign will these light?
Why do mini modules cascade further than full-size ones?
Are they as well sealed as the larger modules?
Get The Mini LED Modules Specifications
Tell us which products you are shortlisting and the specifications come back by email, with packing and a schedule for your quantity.
