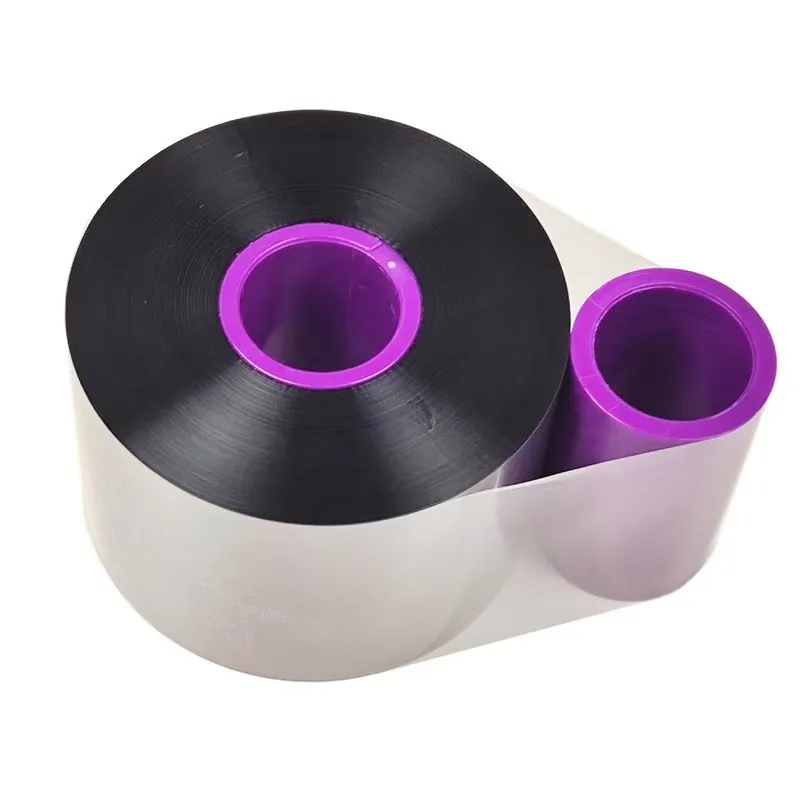

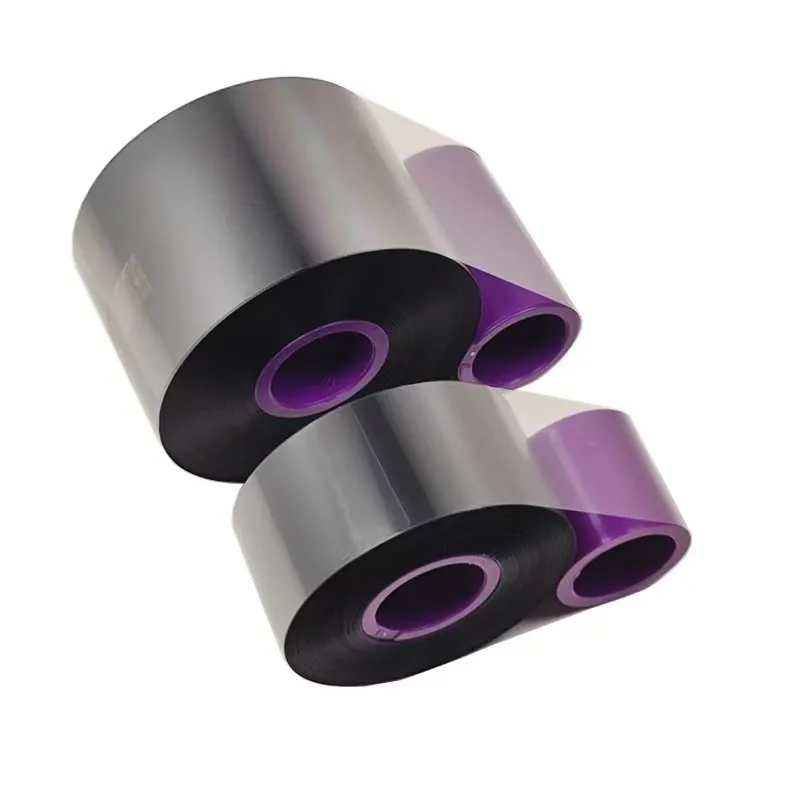

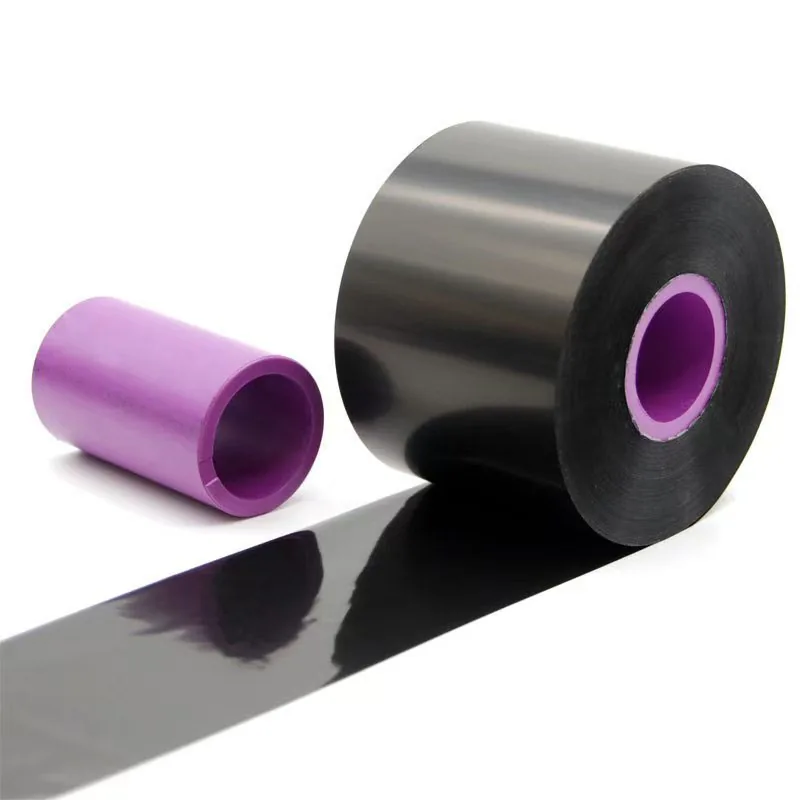

Wax Resin TTO Ribbon 33 and 55mm x 600m for High Speed Coding
A 600 m thermal transfer overprinting ribbon on a 25 mm core, in wax resin or resin, for coding production dates, batch numbers and QR codes onto flexible packaging at line speed.
- Model numberZY18
- Product nameTTO thermal transfer high speed coding ribbon
- Brand nameZHIYE
- MaterialWax resin or resin
- Size33 mm and 55 mm x 600 m, customisable
- Core25 mm
- ColourBlack or white, custom available
- Ink sideOutside or inside
- CertificateRoHS, MSDS
- Applicable machinesThermal transfer overprinters on production lines, including Videojet, Markem-Imaje, Domino, Linx and Dikai
- Applicable mediaPP synthetic paper, PET, PE, PVC, aluminium foil, plastic film, paper
- ApplicationProduction dates, batch numbers and QR codes on food, pharmaceutical and other product packaging
- FeatureStrong adhesion, scratch resistance, clear print, high resolution, easy to use
- PackingNeutral packing
Free samples ship in 2 to 3 days. Tell us the printer model and the surface you are labelling and we will confirm the specification before you order.
What This Product Does Better
Long rolls for long production runs
600 m on a 25 mm core means fewer stops on a packing line where every ribbon change is lost output.
Codes that stay on the film
Strong adhesion and scratch resistance keep a date code readable through case packing, palletising and retail handling.
Prints on the films packers actually use
PP synthetic paper, PET, PE, PVC, aluminium foil, plastic film and paper all take the same ribbon.
Documented for a food and pharma audit
RoHS and MSDS documentation is available, which is what a food or pharmaceutical quality team asks for before a consumable is approved.
What Goes Wrong Without It
- A date code smudges on the film and a retail customer rejects the batch at goods-in.
- Short ribbons force line stops during a shift, and every stop is scrap at the start-up.
- A consumable with no RoHS or MSDS paperwork cannot be approved for a food or pharmaceutical line.
Where It Is Used
- Production date and best-before coding on food packaging
- Batch and lot numbers on pharmaceutical packaging
- QR and 2D codes for traceability on flexible film
- Coding on aluminium foil lidding and sachets
- Contract packing lines running mixed products
Who Buys This Item
Food packers, pharmaceutical packers, beverage plants and contract packers running TTO printers on form-fill-seal and flow-wrap lines.
How It Compares With the Alternatives
A TTO ribbon is not the same product as a desktop barcode ribbon. It runs at higher speed on a narrow print head mounted on the packaging line, comes in long 600 m lengths on a 25 mm core, and is formulated to print on film rather than on a label. Wax resin suits most food packaging films; choose the resin grade where the code faces solvents, heat or heavy abrasion.
How It Is Made and Checked
Coating, printing, slitting and die-cutting run on more than 30 production lines across two factories, producing around one million square metres of material a week.
Ribbon coating workshop
The ZHIYE ribbon coating workshop. Coating and slitting in the same building means a ribbon width and ink side can be built to a customer's printer rather than picked from stock.
Ribbon slitting
Jumbo ribbon stock being slit to finished widths. 30 mm to 110 mm and 30 m to 900 m are all cut to order on the same line.
Coating line
Adhesive coating on the label laminate line. Controlling the coat weight here is what makes the published peel adhesion figures repeatable.
Certification. High-Tech Enterprise, ISO 9001, ISO 14001, SGS, RoHS, BPA Free, FSC. The company is certified as a High-Tech Enterprise and holds multiple patents including one invention patent. Documentation applicable to this item is supplied with the shipment on request.
Getting It Right on the First Roll
Match the ribbon width to the print head, 33 mm or 55 mm on most intermittent and continuous TTO printers.
Confirm the ink side against the machine before ordering; TTO printers are not tolerant of a reversed ribbon.
Choose wax resin for standard food packaging film and resin where the code faces solvent or heat.
Keep the ribbon sealed until loading; dust on the ribbon surface shows up as voids in a date code.
What Can Be Changed to Order
Size and shape
Any size, and square, rectangle, round or oval dies. Ribbons are slit from 30 mm to 110 mm and 30 m to 900 m.
Material and adhesive
Paper, BOPP, PET and PE facestocks with hot melt, acrylic, removable or freezer adhesive.
Print and colour
CMYK, Pantone, full colour, transparent, gold and silver, by offset, flexo, screen, digital, inkjet or thermal transfer.
Core and winding
1 in, 1.5 in and 3 in label cores; 0.5 in and 1 in ribbon cores; piece counts and winding direction set to your printer.
Branding
Printed logo on the product, your design on the carton, or neutral packing with no supplier name.
Documentation
ISO 9001, ISO 14001, RoHS, SGS, FSC, BPA free and MSDS paperwork supplied where the product is covered.
Wax Resin TTO Ribbon 33 and 55mm x 600m for High Speed Codin FAQ
Straight answers to the questions buyers ask before a first order.
Which overprinters does it fit?
Thermal transfer overprinters used on production lines, including Videojet, Markem-Imaje, Domino, Linx and Dikai machines. Tell us the model and the roll is slit and cored to match.
What can it print on?
PP synthetic paper, PET, PE, PVC, aluminium foil, plastic film and paper, which covers most flexible food and pharmaceutical packaging.
What sizes are standard?
33 mm and 55 mm wide by 600 m long on a 25 mm core, and the size can be customised.
Do you have compliance documentation?
RoHS and MSDS documentation is available for this ribbon, and packing is neutral so it can be supplied under your own programme.

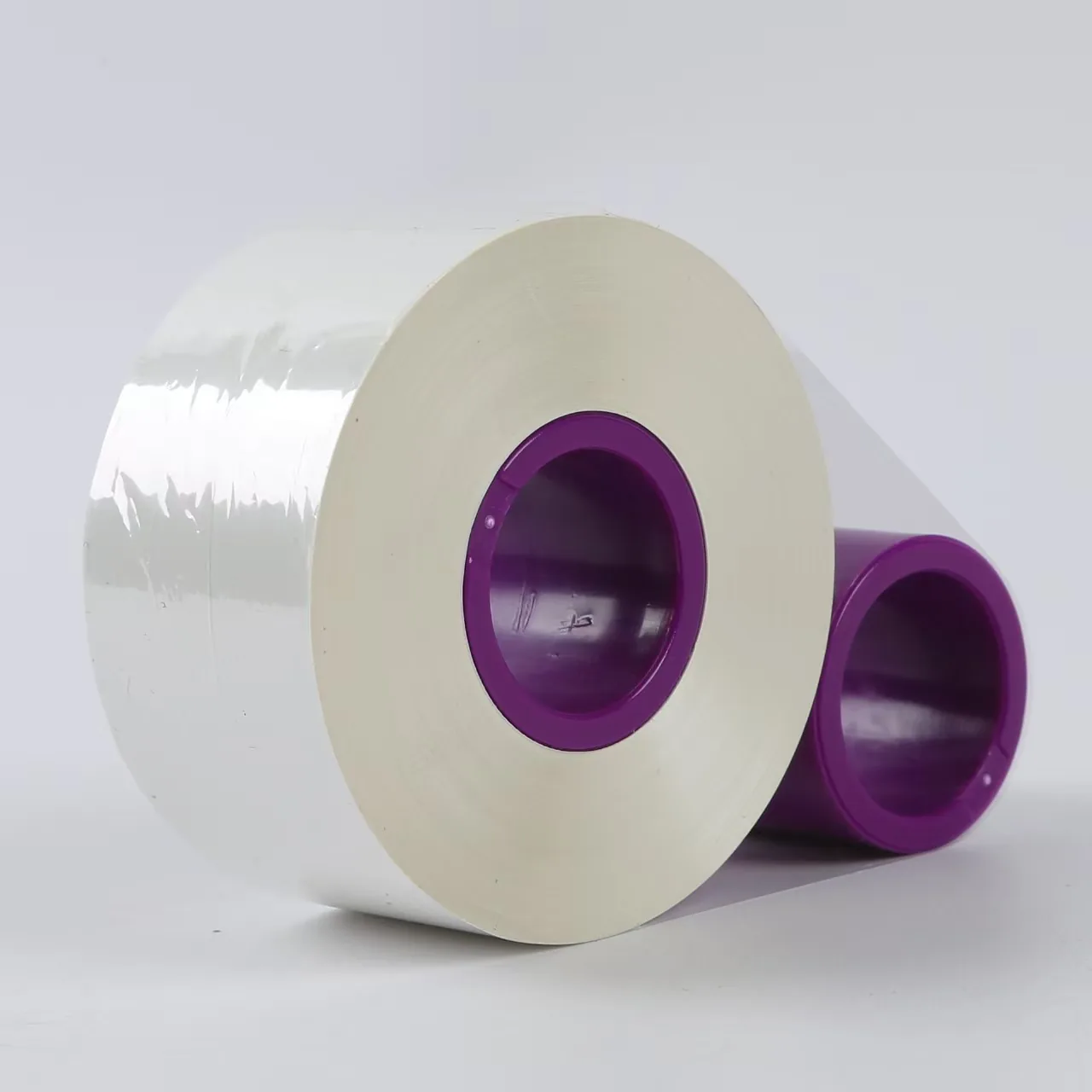

Is white available as well as black?
Yes. Black and white are standard, with custom colours available on request.
