Direct Thermal Barcode Label Roll 100x150 mm for Express Shipping
The 4 x 6 in shipping label, in 100x150, 100x100 and 100x80 mm, on 75 gsm thermal facestock with permanent hot melt or acrylic adhesive, wound 220 to 2,000 pieces per roll.
- Product size4 x 6 in (102x152 mm); 100x150, 100x100, 100x80, 104x159 mm available
- Other sizes2 x 1 in, 50x25 mm, 60x40 mm or customised
- Face paper75 gsm thermal paper, BPA free
- MaterialThermal paper with glassine release liner
- AdhesivePermanent hot melt adhesive or acrylic adhesive
- Release paperWhite, blue or yellow
- Service temperature-20 to +70 degrees C
- Paper core1 in, 1.5 in or 3 in
- Pieces per roll220-2,000 pieces or as requested
- ColourWhite or custom
- FeatureWaterproof, oil proof, scratch proof, strong adhesive, dark print image
- Printing handlingColour printing available
- Packing2 rolls per shrink wrap; 8, 12 or 18 rolls per carton
- OEM packingColour, logo and brand on label or carton
Free samples ship in 2 to 3 days. Tell us the printer model and the surface you are labelling and we will confirm the specification before you order.
What This Product Does Better
The size every carrier already expects
4 x 6 in is the default label for courier and marketplace shipping. Running the standard size means no scaling, no clipped barcodes and no rejected manifests.
A dark image that scanners read first time
75 gsm thermal facestock with a high sensitivity coating gives a dense black image, which matters when the label is scanned wet, at an angle, or through shrink wrap.
Survives the parcel network

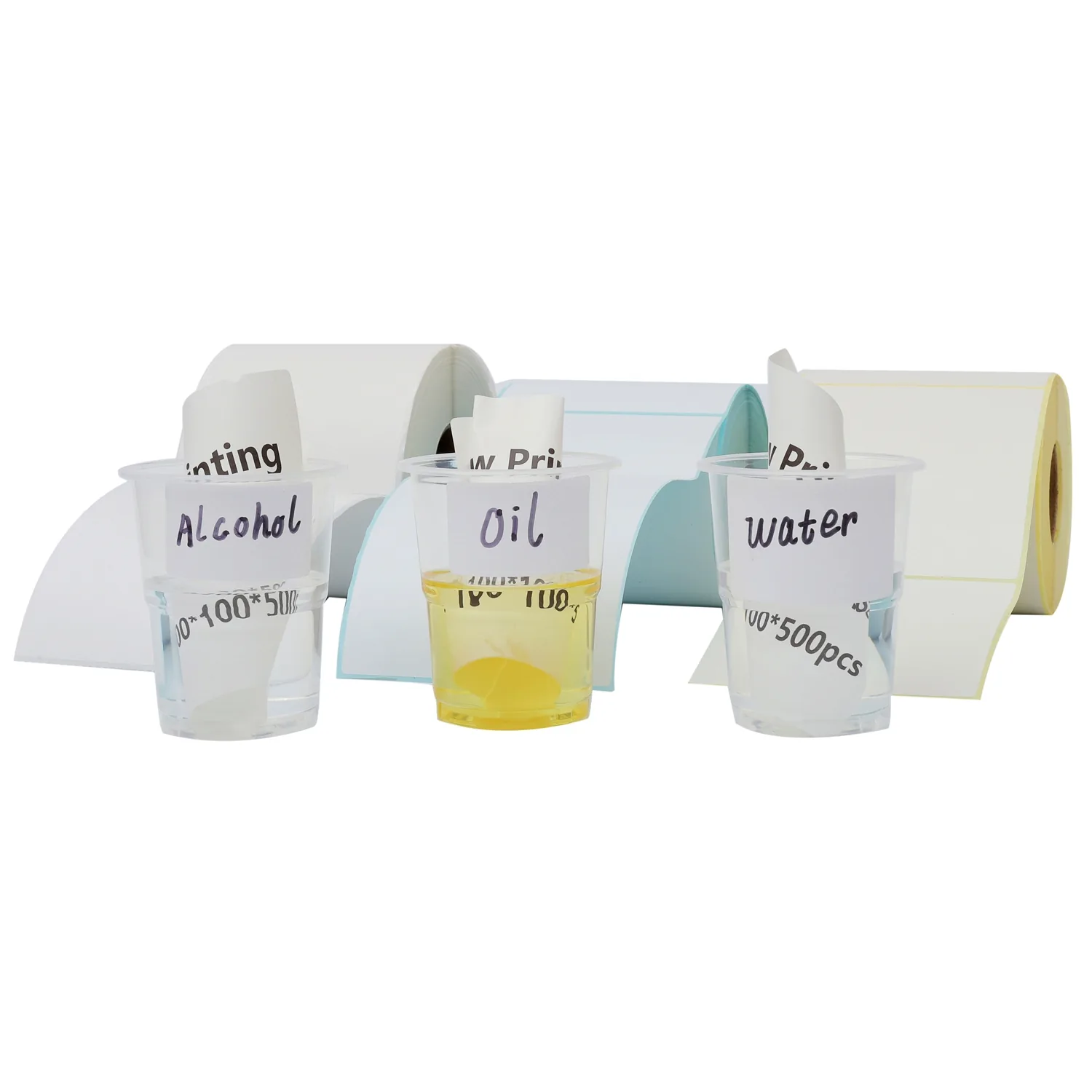

Waterproof, oil proof and scratch proof coating, with a permanent adhesive that holds on corrugated board through sortation belts and rain.
No ribbon to buy or change
Direct thermal means one consumable. For a despatch bench running hundreds of parcels a day that removes a whole failure mode.
What Goes Wrong Without It
- Thin shipping labels tear on peel and stall a packing bench at the busiest hour of the day.
- Labels that lift at the corner get caught in sortation equipment and arrive unscannable.
- Roll counts that do not match the shift mean an operator changing rolls mid-flow instead of packing.
Where It Is Used
- Courier and parcel shipping labels
- Marketplace and e-commerce order despatch
- Third-party logistics and fulfilment centres
- Warehouse put-away and pick-face labels
- Return and exchange labels
Who Buys This Item
Fulfilment centres, 3PL operators, courier depots, marketplace sellers shipping at volume, and distributors supplying shipping labels into those channels.
How It Compares With the Alternatives
Against a thermal transfer 4 x 6 label, this direct thermal roll removes the ribbon cost and the ribbon change, at the price of a shorter image life and sensitivity to prolonged heat. For a parcel that is scanned within days that trade is worth making. For an asset label that has to be readable in five years, use a thermal transfer facestock with a resin ribbon instead.
How It Is Made and Checked
Coating, printing, slitting and die-cutting run on more than 30 production lines across two factories, producing around one million square metres of material a week.
Ribbon coating workshop
The ZHIYE ribbon coating workshop. Coating and slitting in the same building means a ribbon width and ink side can be built to a customer's printer rather than picked from stock.
Ribbon slitting
Jumbo ribbon stock being slit to finished widths. 30 mm to 110 mm and 30 m to 900 m are all cut to order on the same line.
Coating line
Adhesive coating on the label laminate line. Controlling the coat weight here is what makes the published peel adhesion figures repeatable.
Certification. High-Tech Enterprise, ISO 9001, ISO 14001, SGS, RoHS, BPA Free, FSC. The company is certified as a High-Tech Enterprise and holds multiple patents including one invention patent. Documentation applicable to this item is supplied with the shipment on request.
Getting It Right on the First Roll
Set the printer to direct thermal mode, then calibrate on the gap so the 4 x 6 pitch is learned.
Choose a 3 in core for industrial printers and a 1 in core for desktop units; the roll diameter follows from the piece count.
Keep unused rolls in the shrink wrap until needed; heat, sunlight and solvent vapour all age the thermal coating.
Apply above 10 degrees C and press the label down across its full area, not just the leading edge.
What Can Be Changed to Order
Size and shape
Any size, and square, rectangle, round or oval dies. Ribbons are slit from 30 mm to 110 mm and 30 m to 900 m.
Material and adhesive
Paper, BOPP, PET and PE facestocks with hot melt, acrylic, removable or freezer adhesive.
Print and colour
CMYK, Pantone, full colour, transparent, gold and silver, by offset, flexo, screen, digital, inkjet or thermal transfer.
Core and winding
1 in, 1.5 in and 3 in label cores; 0.5 in and 1 in ribbon cores; piece counts and winding direction set to your printer.
Branding
Printed logo on the product, your design on the carton, or neutral packing with no supplier name.
Documentation
ISO 9001, ISO 14001, RoHS, SGS, FSC, BPA free and MSDS paperwork supplied where the product is covered.
Direct Thermal Barcode Label Roll 100x150 mm for Express Shi FAQ
Straight answers to the questions buyers ask before a first order.
Which exact sizes do you hold?
4 x 6 in (102x152 mm), 100x150 mm, 100x100 mm, 100x80 mm and 104x159 mm are the common shipping sizes, with 2 x 1 in, 50x25 mm and 60x40 mm available for smaller items. Any size can be cut to order.
How many labels per roll, and how are they packed?
220 to 2,000 pieces per roll depending on core and diameter. Standard export packing is 2 rolls per shrink wrap and 8, 12 or 18 rolls per carton, with OEM colour and logo available on label or carton.
Which adhesive is used?
A permanent adhesive, in either hot melt or acrylic. Hot melt gives higher initial tack on corrugated board; acrylic holds up better over a long service life and a wider temperature range.
What service temperature does the label hold?
-20 to +70 degrees C, so parcels moving between a cold store and a hot transit hub stay labelled.
Can we print colour on the label as well?
Yes. Colour printing is available on this stock, so a carrier block, a brand strip or a returns instruction can be pre-printed and the variable barcode area left blank for the thermal head.
