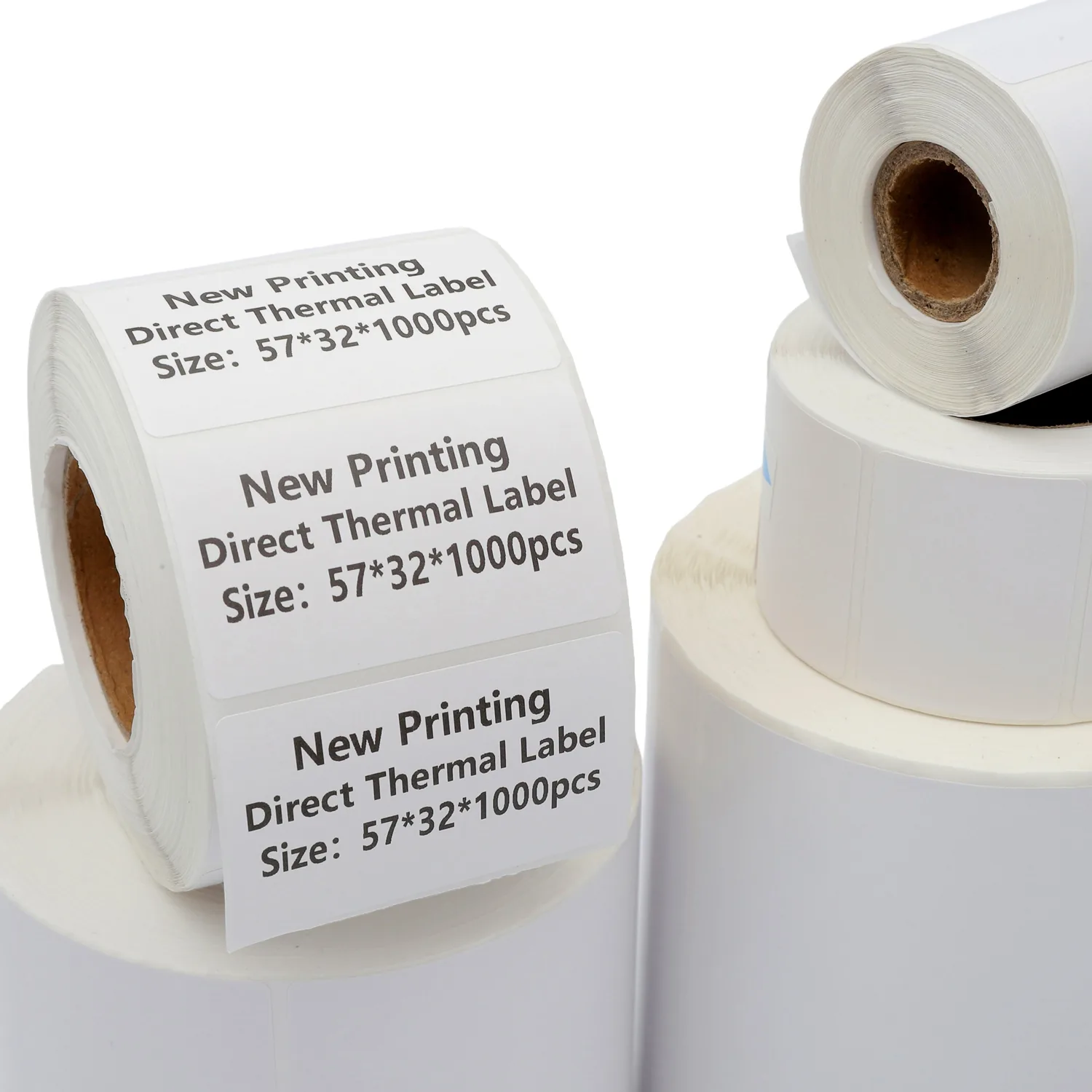

Self Adhesive Direct Thermal Labels 70x50 60x40 and 50x30 mm
The small-format direct thermal label sizes a food packer, pharmacy or warehouse actually runs, on 65/70 g thermal facestock with hot melt adhesive and a 40/50 g glassine liner.
- Product sizes70x50, 60x40, 50x30 mm
- Popular sizes50x25, 57x32, 60x40, 58x40, 58x60, 80x50, 80x60, 100x150 mm or custom
- Material65/70 g thermal paper + hot melt adhesive + 40/50 g white glassine liner
- FacestockThermal paper with thermal protective coating, BPA free
- AdhesiveHot melt adhesive or water based acrylic
- LinerWhite glassine
- Paper core1 in, 1.5 in or 3 in
- Pieces per roll500-2,000 pieces per roll
- Minimum labelling temperature10 degrees C
- Service temperature-10 to +65 degrees C
- StorageOne year at 23 +/- 2 degrees C and 50 +/- 5% RH
- Applicable printerMost direct thermal printers except Brother and Dymo; no ribbon required
- PackagingShrink wrap plus carton, or custom
- FeatureWaterproof, oil resistant, plasticiser resistant, scratch resistant
Free samples ship in 2 to 3 days. Tell us the printer model and the surface you are labelling and we will confirm the specification before you order.
What This Product Does Better
The sizes small items actually need
70x50, 60x40 and 50x30 mm cover retail packs, jars, dispensed medicine and small parcels without wasting label area or trimming artwork.
No ribbon, no second consumable
Direct thermal on most desktop and industrial printers means one item to stock and one thing to change.
Coated against the real environment
Water, oil, plasticiser and scratch resistance, so a label on a chilled tray or a greasy component still scans.
A documented one-year shelf life
One year at 23 +/- 2 degrees C and 50 +/- 5 percent RH, so buying a year's cover in one shipment is a safe decision.
What Goes Wrong Without It
- Labels sized for shipping get used on small packs and cover information the customer needs to read.
- Uncoated thermal stock smears when it meets oil or a chilled surface and the barcode is lost.
- Labels bought for a Brother or Dymo printer do not run, because those machines need their own stock.
Where It Is Used
- Food packing and use-by date labels
- Pharmacy dispensing and medicine labels
- Retail product and price labels
- Small parcel and jiffy bag shipping labels
- Warehouse bin and shelf identification
Who Buys This Item
Food packers, pharmacies, retail operators, small parcel senders and warehouses running Zebra, TSC and similar direct thermal printers.
How It Compares With the Alternatives
Against the 4 x 6 in shipping label, these small sizes use the same facestock and adhesive but a shorter roll length and a smaller die, which suits a counter printer rather than a despatch bench. Against a thermal transfer label of the same size, this stock removes the ribbon but has a shorter image life, so it fits fast-turnover food and retail rather than archive labelling.
How It Is Made and Checked
Coating, printing, slitting and die-cutting run on more than 30 production lines across two factories, producing around one million square metres of material a week.
Ribbon coating workshop
The ZHIYE ribbon coating workshop. Coating and slitting in the same building means a ribbon width and ink side can be built to a customer's printer rather than picked from stock.
Ribbon slitting
Jumbo ribbon stock being slit to finished widths. 30 mm to 110 mm and 30 m to 900 m are all cut to order on the same line.
Coating line
Adhesive coating on the label laminate line. Controlling the coat weight here is what makes the published peel adhesion figures repeatable.
Certification. High-Tech Enterprise, ISO 9001, ISO 14001, SGS, RoHS, BPA Free, FSC. The company is certified as a High-Tech Enterprise and holds multiple patents including one invention patent. Documentation applicable to this item is supplied with the shipment on request.
Getting It Right on the First Roll
Check your printer first: this stock runs on most direct thermal printers but not on Brother or Dymo machines, which take their own media.
Set direct thermal mode and calibrate on the gap each time the label size changes.
Apply at 10 degrees C or above, and keep the labelled product between -10 and +65 degrees C.
Store rolls in their shrink wrap at 23 +/- 2 degrees C and 50 +/- 5 percent RH and use within a year.
What Can Be Changed to Order
Size and shape
Any size, and square, rectangle, round or oval dies. Ribbons are slit from 30 mm to 110 mm and 30 m to 900 m.
Material and adhesive
Paper, BOPP, PET and PE facestocks with hot melt, acrylic, removable or freezer adhesive.
Print and colour
CMYK, Pantone, full colour, transparent, gold and silver, by offset, flexo, screen, digital, inkjet or thermal transfer.
Core and winding
1 in, 1.5 in and 3 in label cores; 0.5 in and 1 in ribbon cores; piece counts and winding direction set to your printer.
Branding
Printed logo on the product, your design on the carton, or neutral packing with no supplier name.
Documentation
ISO 9001, ISO 14001, RoHS, SGS, FSC, BPA free and MSDS paperwork supplied where the product is covered.
Self Adhesive Direct Thermal Labels 70x50 60x40 and 50x30 mm FAQ
Straight answers to the questions buyers ask before a first order.
Will these labels work in a Brother or Dymo printer?
No. This direct thermal material runs on most direct thermal printers but not on Brother or Dymo machines, which require their own media. Tell us the printer model and we will confirm before you order.
Do I need a ribbon?
No. Direct thermal prints from the heat of the print head, so there is no ribbon to buy or change.
Which adhesive is on the label?
Hot melt adhesive as standard, with water based acrylic available. Both are permanent; hot melt gives higher initial tack on rough and recycled surfaces.
How many labels are on a roll?
500 to 2,000 pieces per roll on a 1 in, 1.5 in or 3 in core, packed shrink wrapped in cartons.
Can these sizes be customised?
Yes. 50x25, 57x32, 58x40, 58x60, 80x50, 80x60 and 100x150 mm are also common, and any size, material, colour and design can be made to order.
