AW3209 Fasson Coated Paper Label Jumbo Roll With 60g White Glassine Liner
A specified Fasson laminate in jumbo roll form: 80 g/m2 semi-glossy coated paper on a general purpose permanent acrylic emulsion, over a 60 g/m2 back-printed white glassine liner.
- Product codeAW3209.2000
- FacestockCoated paper / AP104, semi-glossy white, super-calendered
- Facestock basis weight80 g/m2 +/- 10% (ISO 536)
- Facestock thickness0.070 mm +/- 10% (ISO 534)
- AdhesiveFasson general purpose permanent acrylic emulsion
- LinerWhite glassine paper, super-calendered, back printing
- Liner basis weight60 g/m2 +/- 10% (ISO 536)
- Liner thickness0.052 mm +/- 10% (ISO 534)
- Initial tack (FTM 9)14.0 N/25mm or failure
- 20 minute 90 degree peel (FTM 2)7.0 N/25mm or failure
- 24 hour 90 degree peel (FTM 2)8.0 N/25mm or failure
- Minimum labelling temperature10 degrees C
- Service temperature-50 to +90 degrees C, 24 hours after labelling
- WidthAny width available
- LengthAny length available
- SampleFree samples, delivered in 2-3 days
- PackagingPallet packing
Free samples ship in 2 to 3 days. Tell us the printer model and the surface you are labelling and we will confirm the specification before you order.
What This Product Does Better
A specification, not an approximation
Basis weight, thickness, initial tack and 20-hour and 24-hour FTM peel values are all published, so the material can be quoted, approved and audited against a number.
A -50 to +90 degrees C service window
Once labelled, the acrylic emulsion holds from deep freeze to a hot fill line, which is a wider window than most general purpose hot melts.
Runs clean on a converting press
Super-calendered facestock and a 60 g/m2 super-calendered glassine liner are chosen for flat, straight winding and consistent die-cut matrix stripping.
Back-printed liner for line control
Liner back printing lets a converter or end user verify the grade on the machine rather than trusting a label on the pallet.
What Goes Wrong Without It
- A near-equivalent laminate substituted for a specified product code fails the customer's approval and the whole run is rejected.
- Liner breaks on the press at speed because the glassine grammage is lower than quoted.
- Labels applied in a chilled room fall off because the minimum labelling temperature was ignored.
Where It Is Used
- Converting into blank and printed labels for food and retail
- Thermal transfer printed labels needing a semi-gloss finish
- Offset and flexo printed packaging labels
- Blank die-cut roll production for barcode printing
- General purpose permanent labelling on cartons and containers
Who Buys This Item
Label converters, printing houses and distributors holding laminate stock for regional converters.
How It Compares With the Alternatives
Within the same coated paper family, AW3209.2000 uses a Fasson acrylic adhesive while AW5209.2000 pairs the same coated paper / HP104 facestock with a Fasson hot melt adhesive. The 58 g liner grades AW4200K.2000 and AW5200K.2000 use coated paper / AP103 and HP103 with acrylic and hot melt respectively, and AW3288.2000 is a Fasson hot melt on the 58 g white glassine liner. Acrylic suits long service life and a wide temperature range; hot melt gives higher initial tack on rough and recycled board.
How It Is Made and Checked
Coating, printing, slitting and die-cutting run on more than 30 production lines across two factories, producing around one million square metres of material a week.
Ribbon coating workshop
The ZHIYE ribbon coating workshop. Coating and slitting in the same building means a ribbon width and ink side can be built to a customer's printer rather than picked from stock.

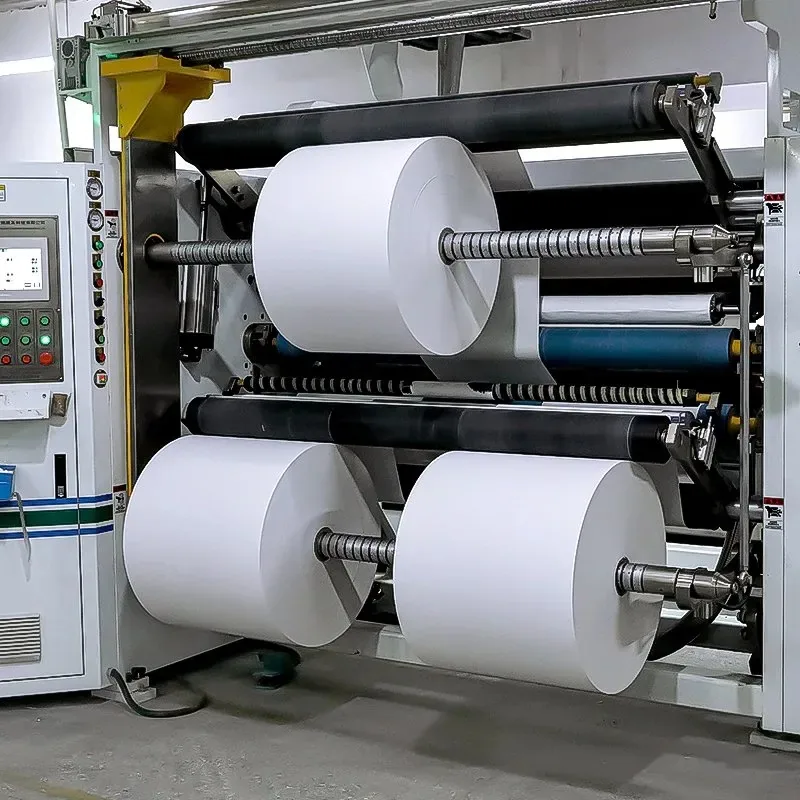

Ribbon slitting
Jumbo ribbon stock being slit to finished widths. 30 mm to 110 mm and 30 m to 900 m are all cut to order on the same line.
Coating line
Adhesive coating on the label laminate line. Controlling the coat weight here is what makes the published peel adhesion figures repeatable.
Certification. High-Tech Enterprise, ISO 9001, ISO 14001, SGS, RoHS, BPA Free, FSC. The company is certified as a High-Tech Enterprise and holds multiple patents including one invention patent. Documentation applicable to this item is supplied with the shipment on request.
Getting It Right on the First Roll
Apply above 10 degrees C; below that the acrylic emulsion will not wet the surface and adhesion values do not apply.
Allow 24 hours after labelling before judging final peel adhesion; the published 8.0 N/25mm figure is a 24-hour value.
Store jumbo rolls upright on pallet, away from heat and direct sun, and let them reach workshop temperature before running.
Specify the slit width and roll length at order stage; any width and length can be produced.
What Can Be Changed to Order
Size and shape
Any size, and square, rectangle, round or oval dies. Ribbons are slit from 30 mm to 110 mm and 30 m to 900 m.
Material and adhesive
Paper, BOPP, PET and PE facestocks with hot melt, acrylic, removable or freezer adhesive.
Print and colour
CMYK, Pantone, full colour, transparent, gold and silver, by offset, flexo, screen, digital, inkjet or thermal transfer.
Core and winding
1 in, 1.5 in and 3 in label cores; 0.5 in and 1 in ribbon cores; piece counts and winding direction set to your printer.
Branding
Printed logo on the product, your design on the carton, or neutral packing with no supplier name.
Documentation
ISO 9001, ISO 14001, RoHS, SGS, FSC, BPA free and MSDS paperwork supplied where the product is covered.
AW3209 Fasson Coated Paper Label Jumbo Roll With 60g White G FAQ
Straight answers to the questions buyers ask before a first order.
What exactly is AW3209?
Coated paper / AP104 facestock at 80 g/m2 over a Fasson general purpose permanent acrylic emulsion, on a 60 g/m2 white glassine liner with back printing. Thickness is 0.070 mm for the face and 0.052 mm for the liner, both to ISO 534.
What adhesion values should I design to?
Initial tack 14.0 N/25mm to FTM 9, 20-minute 90 degree peel 7.0 N/25mm and 24-hour 90 degree peel 8.0 N/25mm, both to FTM 2, each quoted as the value or failure of the facestock.
Which related codes can you supply?
AW5209.2000 with hot melt adhesive on the same 60 g liner, AW4200K.2000 and AW5200K.2000 on a 58 g white glassine liner with acrylic and hot melt respectively, and AW3288.2000 hot melt on the 58 g liner.
What widths and lengths do you slit to?
Any width and any length. Jumbo rolls are supplied pallet packed with free samples delivered in two to three days.
Can the liner carry our own back printing?
The standard grade is supplied with back printing on the white glassine liner. Custom logo printing on the liner can be quoted with the order.
