Eight compact SD2201 models from Ø40×H60 mm to Ø80×H80 mm, built for cabinetry, display cases and ceilings with almost no plenum.
At Ø35 mm and Ø45 mm cut-out with a 60 mm body, SD2201-07 and SD2201-08 fit into wine cabinets, wardrobes, cloakrooms and display joinery — the applications the original catalogue calls the mini spotlight scenarios.

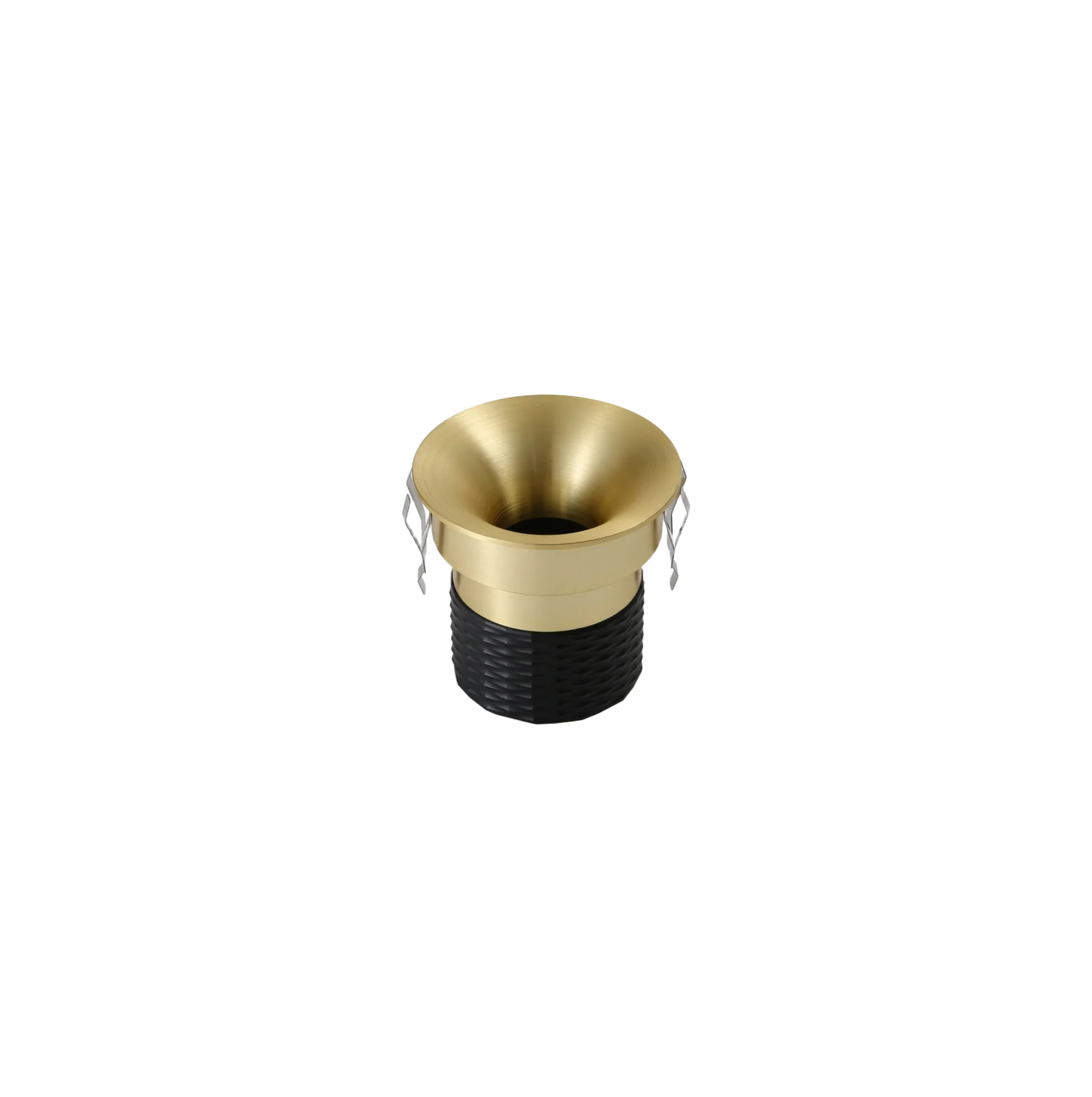

SD2201-01 through SD2201-05 offer 10°, 15°, 24°, 36° and 55°. A 10° beam from a 12 W Ø80 mm fitting is a genuine pinspot, which is what a jewellery or watch case needs to make stones read.
Each body size is offered against two cut-outs so the same fitting can go into different ceiling details: Ø80 mm body at Ø75 or Ø80 mm cut-out, Ø65 mm body at Ø55 or Ø65 mm, Ø50 mm body at Ø45 or Ø55 mm, Ø40 mm body at Ø35 or Ø45 mm.
| Models in range | 8 |
|---|---|
| Wattage options | 12W, 3-6W, 3W, 8W |
| Cut-out sizes | Ø35mm, Ø45mm, Ø55mm, Ø65mm, Ø75mm, Ø80mm |
| Beam angles | 10°/15°/24°/36°/55°, 15°/24°/36° |
| Build options | Beam angle, reflector finish, housing colour, chip holder |
| Sample lead time | Normally 7 days |
1313 on the 3 W and 3–6 W models, and 1507/1313 on the 3–6 W, 8 W and 12 W models.
No — 10° is available on SD2201-01 to SD2201-05. SD2201-06, -07 and -08 start at 15°.
Tell us the models, the quantities and the finish, and we will send pricing and a sample plan.
