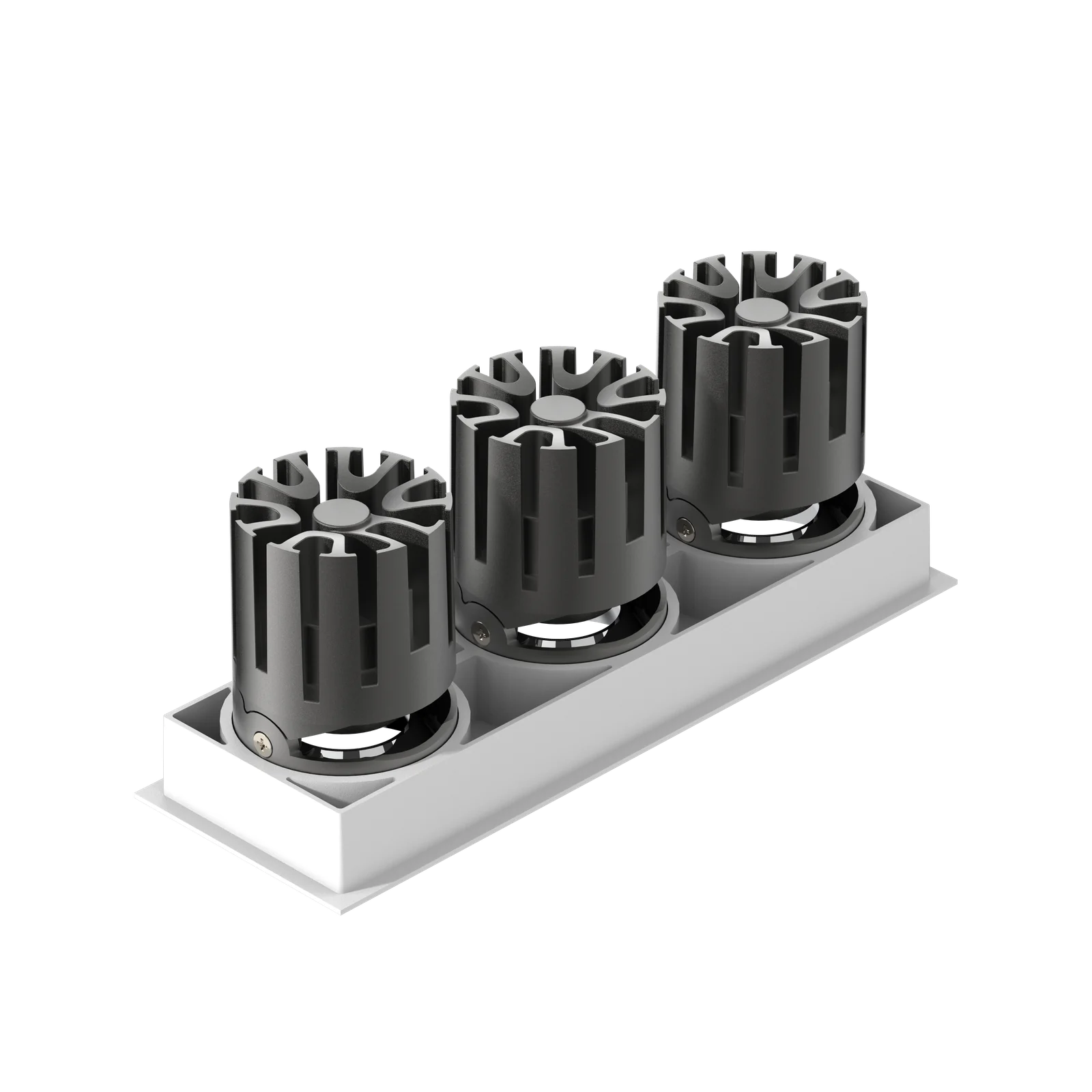

WA01-95-3 is a 24-30W×3 triple-head grille bar fitting for a 317×102 cut-out with 15/24/36/50° beam options.
| Power | 24-30W×3 |
|---|---|
| Dimensions | L325×109 H120 |
| Cut-out | 317×102 |
| Beam Angle | 15/24/36/50° |
| COB Module | 1616-11 |
Beam angle, reflector finish, housing colour and chip holder are selected per order. Samples are normally ready in seven days.
Cut-out is 317×102, in a body measuring L325×109 H120. Check the body depth against your plenum before specifying — depth kills more downlight specifications than diameter does. Each head runs at 24-30W, so the fitting draws up to 90 W from a single ceiling aperture.
4 beam angles are offered — a 15° display beam for merchandise and feature walls and a 50° wash for wall and table surfaces. carried on a 1616-11 holder. The holder footprint is listed because it decides which LED brands and output bins can be built into your order.
317×102. The body measures L325×109 H120, so confirm plenum depth as well as aperture.
15/24/36/50°. Beam angle is selected per order, so a single project can take the same fitting at more than one angle.
Yes. Reflector finish, housing colour, chip holder, beam angle and driver are order options. Samples are normally ready in seven days.
Send the quantity, the beam angle and the finish you need. We will reply with price, lead time and a sample plan.
