Three two-head linear fittings, 5–7 W, 7–15 W and 24–30 W per head.

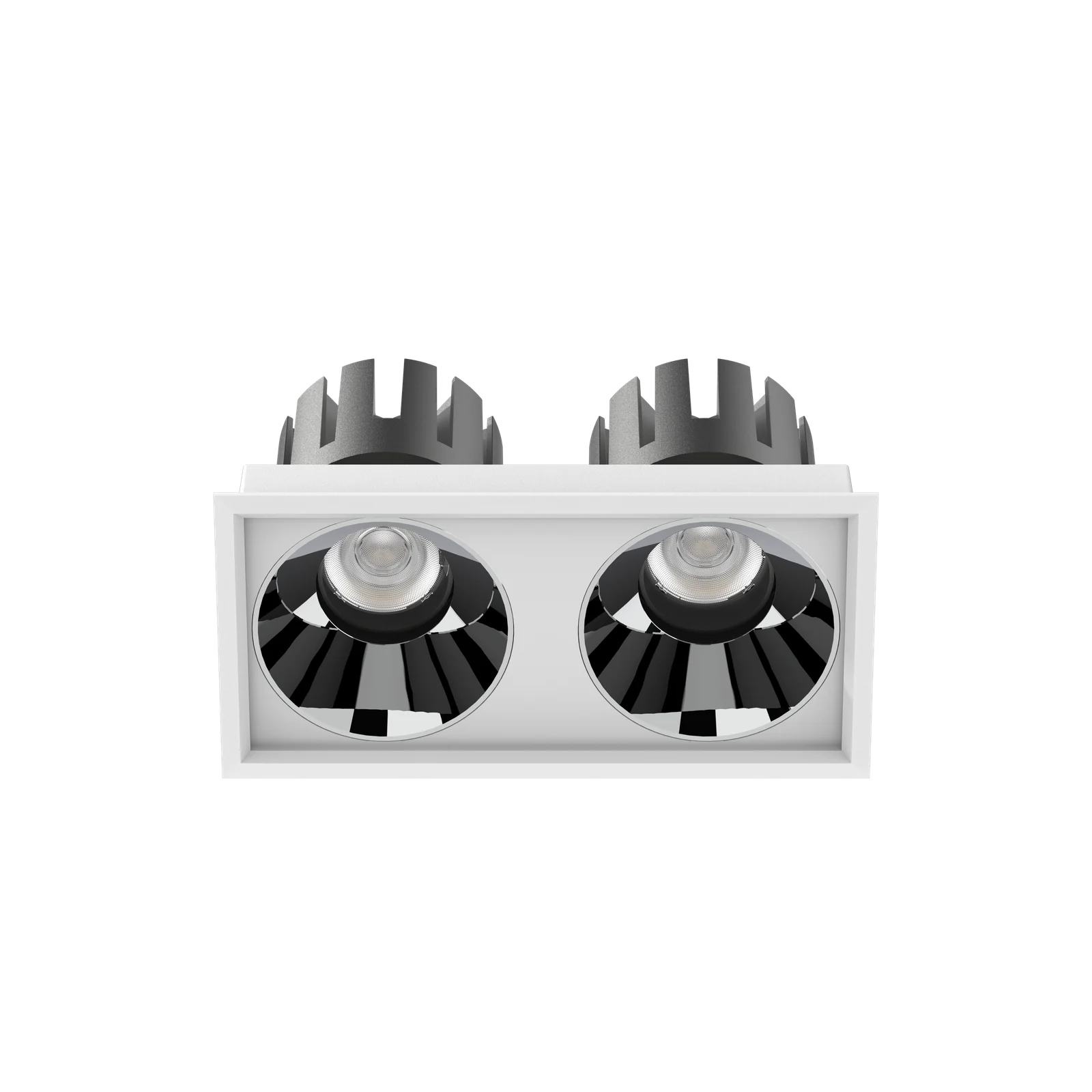

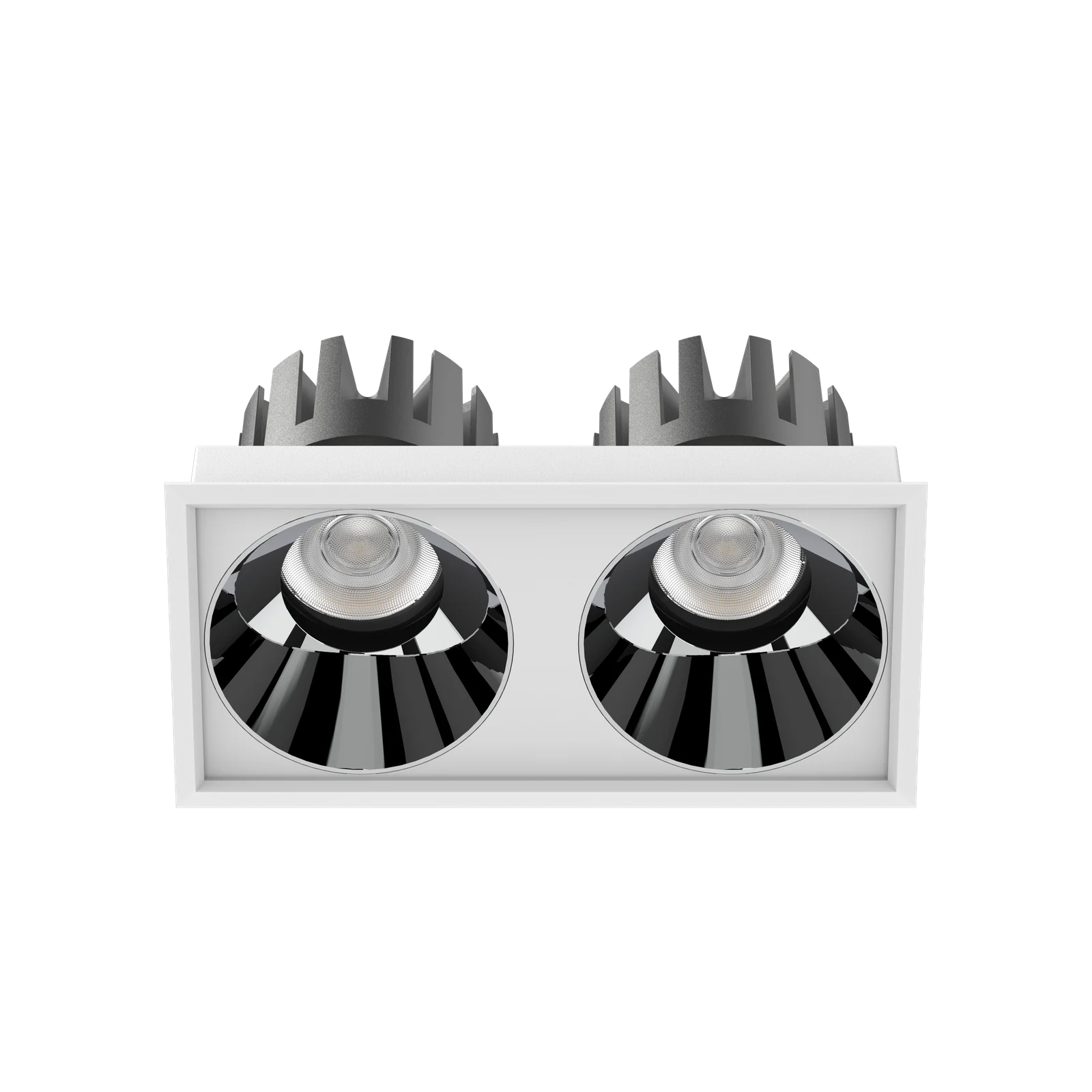

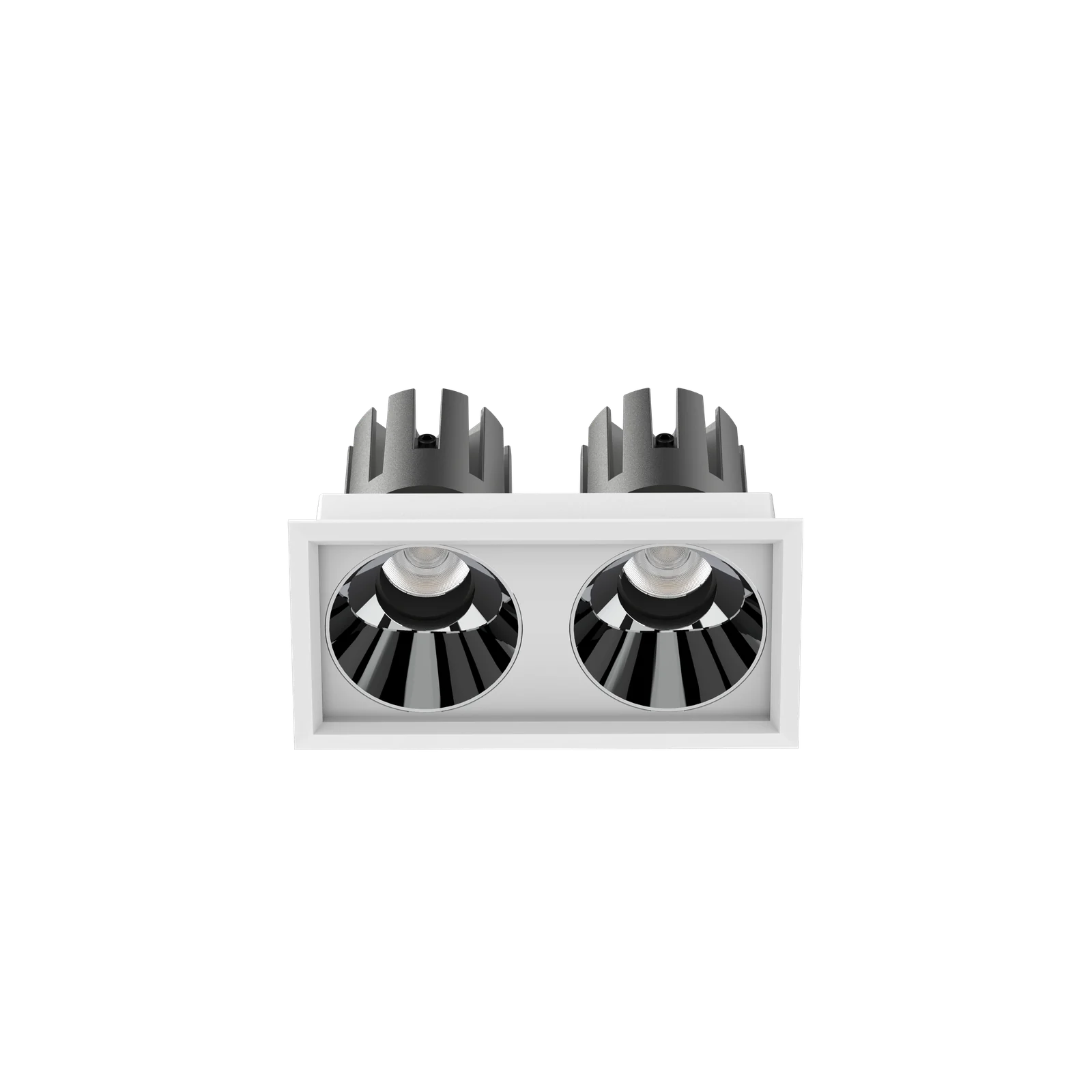

WA01-55-2 is L131×68 mm on a 125×60 mm cut-out, WA01-75-2 is L169×85 mm on 162×81 mm, and WA01-95-2 is L217×109 mm on 210×102 mm. Each replaces two separate downlight cuts with one clean rectangle.
5–7 W × 2 on the small bar, 7–15 W × 2 on the mid bar, 24–30 W × 2 on the large bar, all on the 1313-08 or 1616-11 COB module.
Above a counter, a fitting-room mirror or a corridor run where the two beams need to diverge — one on the wall, one on the floor.
| Models in range | 3 |
|---|---|
| Wattage options | 24-30W×2, 5-7W×2, 7-15W×2 |
| Cut-out sizes | 125×60, 162×81, 210×102 |
| Beam angles | 15/24/36/50° |
| Build options | Beam angle, reflector finish, housing colour, chip holder |
| Sample lead time | Normally 7 days |
H95 mm, H97 mm and H120 mm for the 55, 75 and 95 sizes respectively.
Yes — see the Triple-headed style range, which uses the same per-head wattages.
Tell us the models, the quantities and the finish, and we will send pricing and a sample plan.
