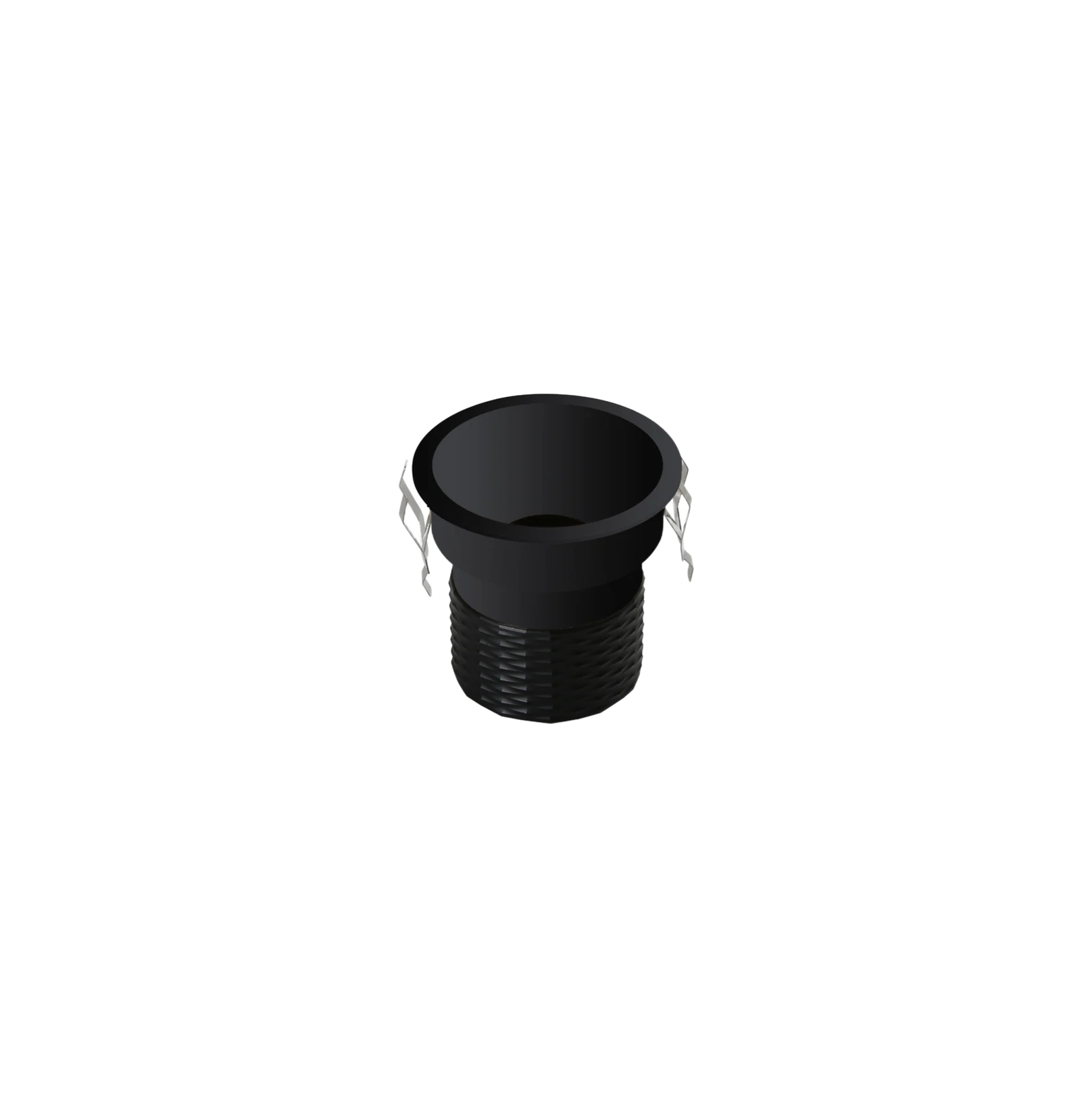

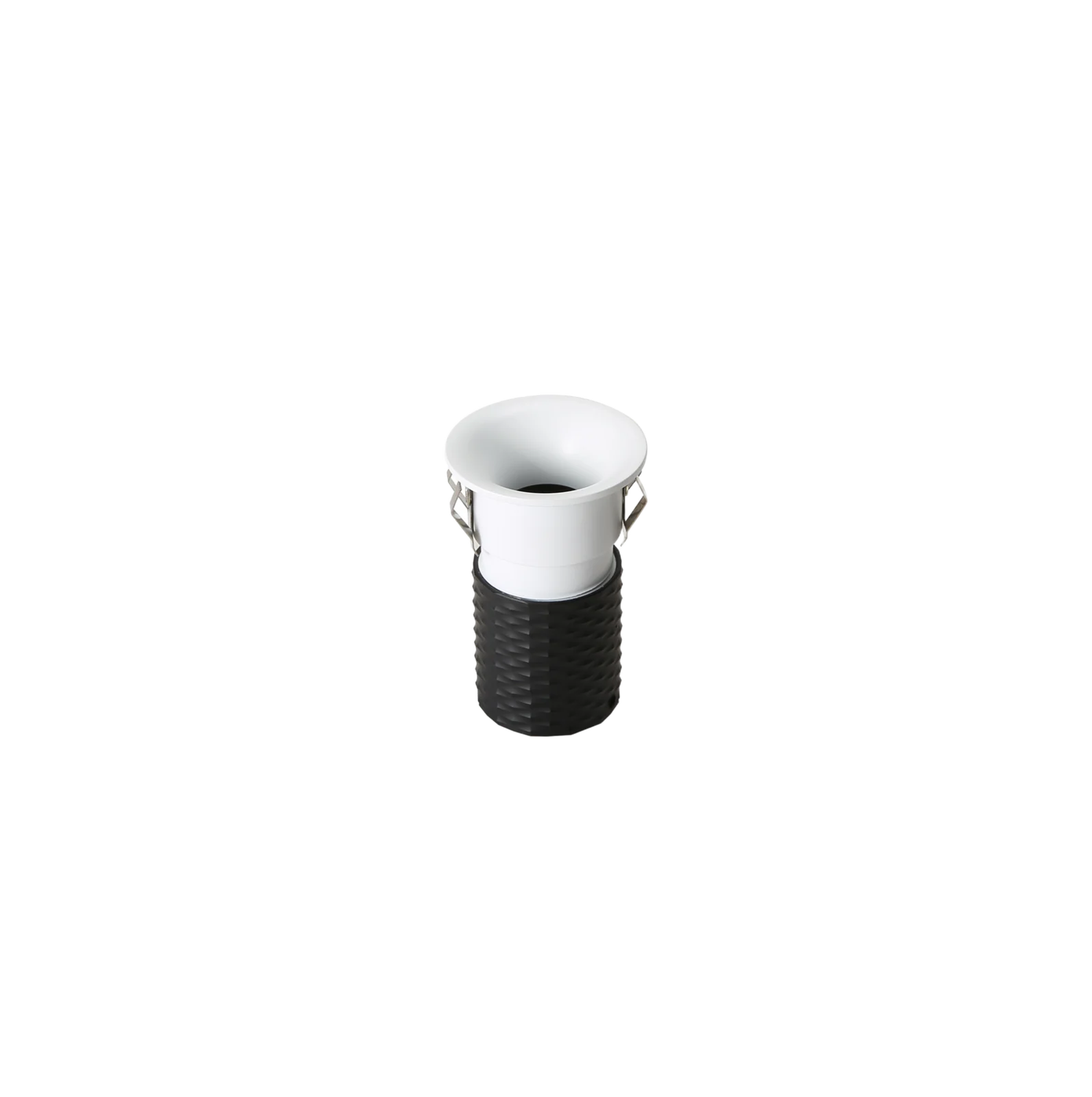

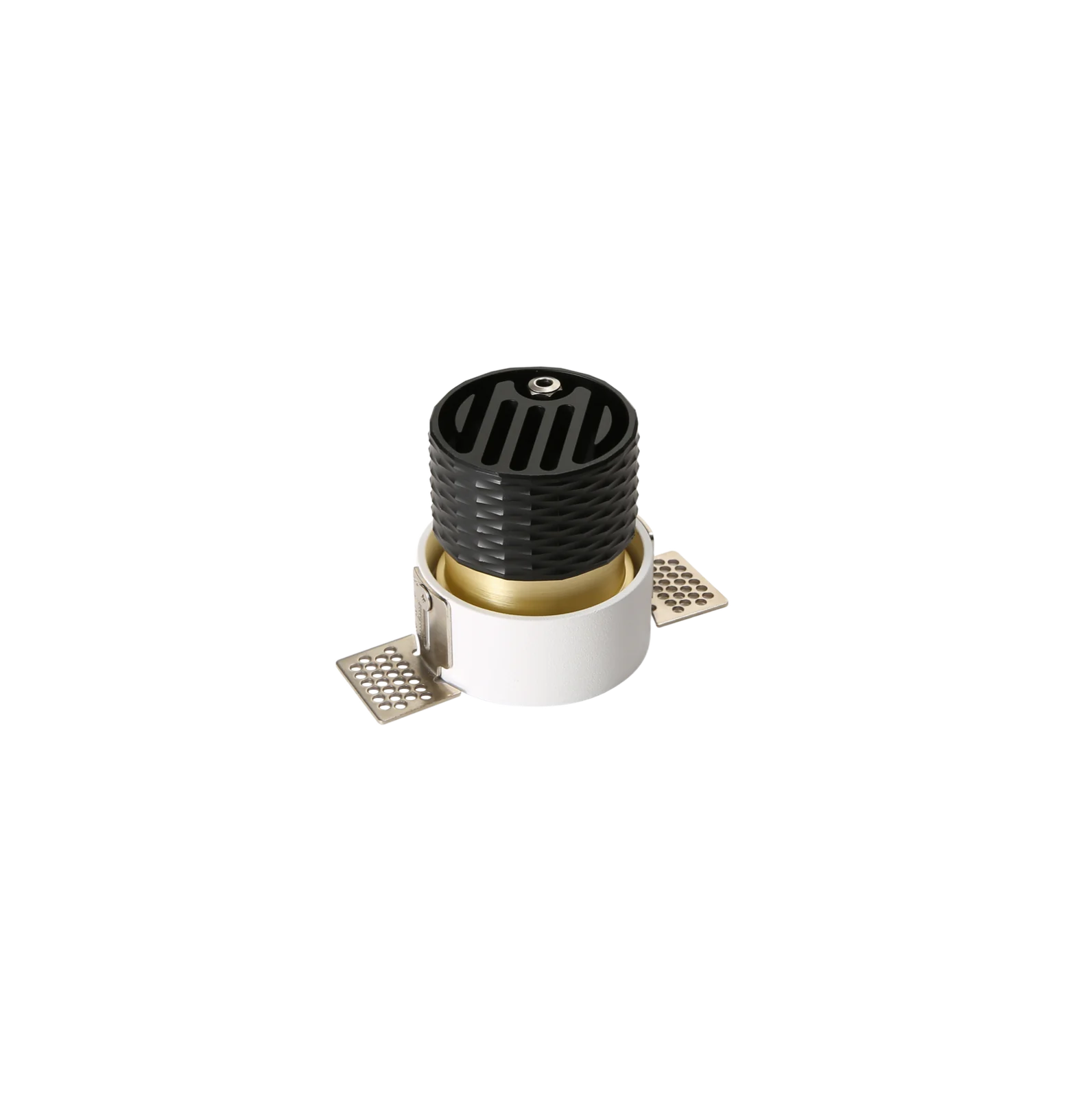

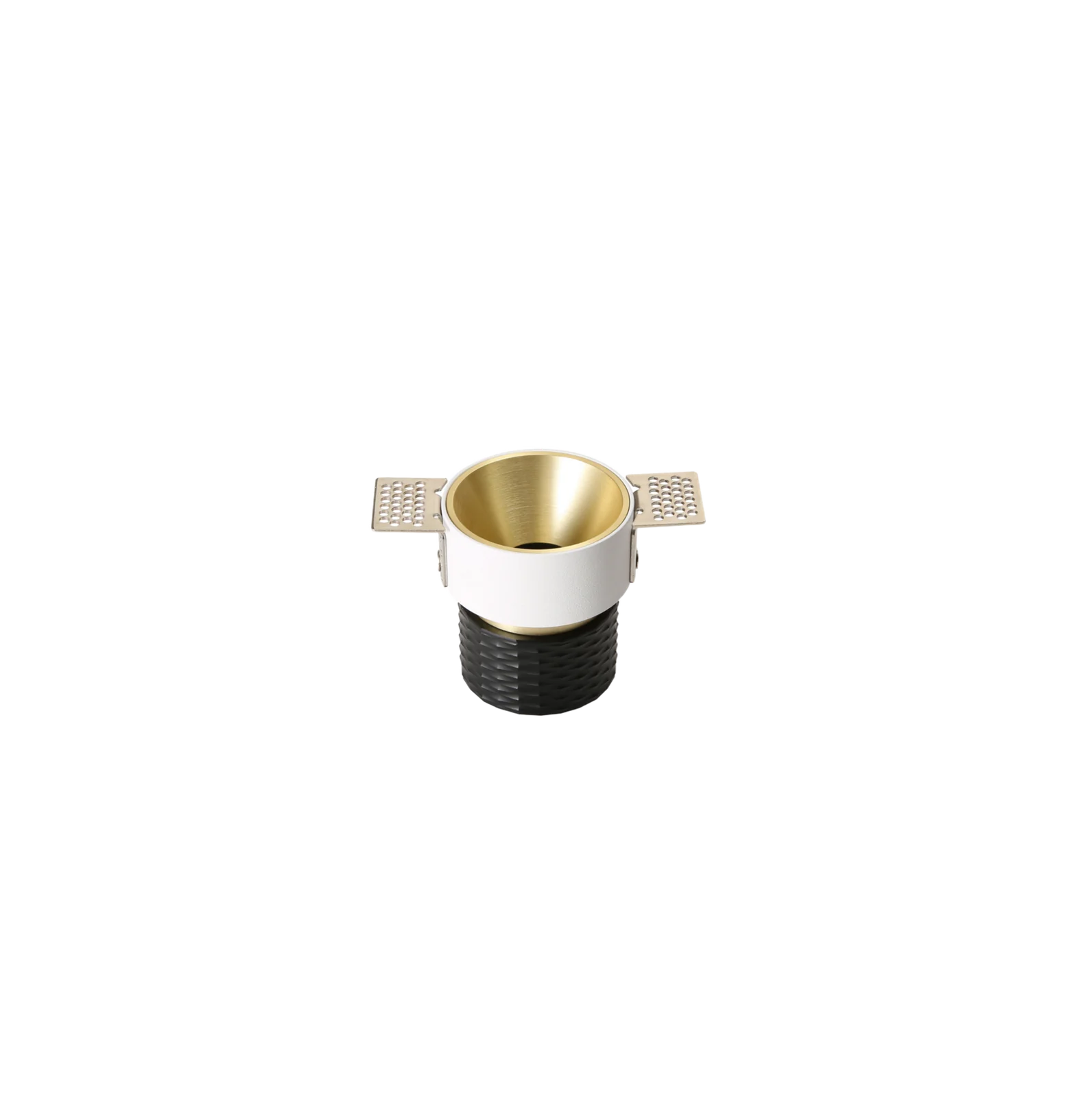

SD2201-05 is a 3-6W Diamond series fitting for a Ø45mm cut-out with 10°/15°/24°/36°/55° beam options.
| Power | 3-6W |
|---|---|
| Dimensions | Ø50×H60mm |
| Cut-out | Ø45mm |
| Beam Angle | 10°/15°/24°/36°/55° |
| Chip Holder | 1507/1313 |
Beam angle, reflector finish, housing colour and chip holder are selected per order. Samples are normally ready in seven days.
Cut-out is Ø45mm, in a body measuring Ø50×H60mm. Check the body depth against your plenum before specifying — depth kills more downlight specifications than diameter does. At this output it is a cabinetry and joinery fitting rather than a room light.
5 beam angles are offered from the one housing — a 10° pinspot for a single object or a tall ceiling and a 55° distribution that behaves like a general downlight. carried on a 1507/1313 holder. The holder footprint is listed because it decides which LED brands and output bins can be built into your order.
Ø45mm. The body measures Ø50×H60mm, so confirm plenum depth as well as aperture.
10°/15°/24°/36°/55°. Beam angle is selected per order, so a single project can take the same fitting at more than one angle.
Yes. Reflector finish, housing colour, chip holder, beam angle and driver are order options. Samples are normally ready in seven days.
Send the quantity, the beam angle and the finish you need. We will reply with price, lead time and a sample plan.
