Wax Thermal Transfer Ribbon 110mm x 300m for Zebra Barcode Printers
The workhorse black wax ribbon at 110 mm x 300 m, compatible with Zebra and equivalent barcode printers, for coated paper, thermal paper, woodfree, kraft, tags and price labels.
- Model numberZY11
- ProductThermal transfer ribbon, wax
- Brand nameZHIYE
- MaterialWax
- SubstratesSemi-gloss coated paper, thermal paper, woodfree paper, kraft paper, tags, price labels
- Width30 mm to 110 mm or customised
- Length300 m / 450 m, 30 m to 900 m available
- Core size0.5 in or 1 in
- Ink sideInk outside or ink inside

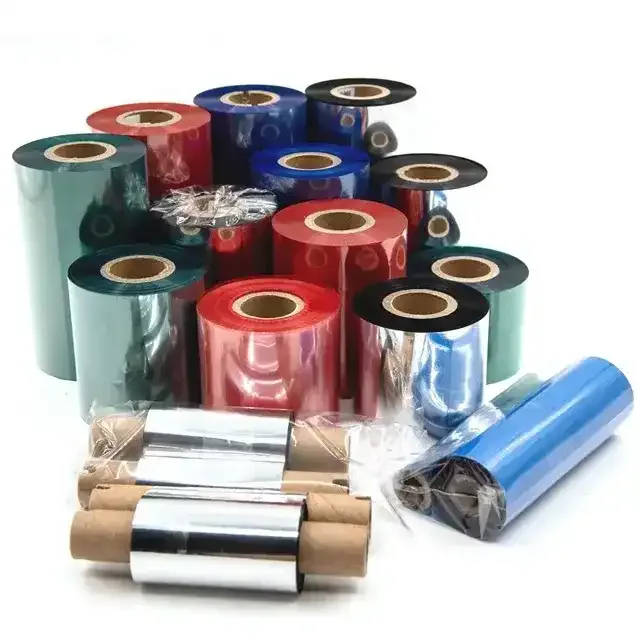

- Ribbon colourBlack, white, gold, red, yellow, blue, green, grey or custom
- MOQ20 rolls
- FeatureCompatible; excellent print quality, high readability, wide range of print media
- Delivery timeWithin 7-15 days after deposit
- ServiceOEM service available
Free samples ship in 2 to 3 days. Tell us the printer model and the surface you are labelling and we will confirm the specification before you order.
What This Product Does Better
Lowest cost per printed paper label
On coated paper, woodfree and kraft, wax gives a clean scannable barcode at the lowest ink cost of the three ribbon families.
Gentle on the print head
Wax transfers at a lower head energy than resin, so heads last longer on a printer running thousands of labels a shift.
Drop-in compatible
Built to the width, length, core and ink side that Zebra and equivalent printers expect, so the roll loads without adapters.
Available beyond black
White, gold, red, yellow, blue, green, grey and custom colours run on the same wax base for tags and price marking that needs to stand out.
What Goes Wrong Without It
- Buying a premium ribbon for plain paper labels spends money on durability the label will never use.
- A ribbon ordered on width alone arrives with the wrong core and cannot be loaded.
- Cheap ribbon breaks mid-roll and stops a printer in the middle of a picking wave.
Where It Is Used
- Warehouse and inventory barcode labels
- Retail price and shelf-edge labels
- Logistics and carton labels on coated paper
- Kraft and woodfree tags
- Office and stationery label printing
Who Buys This Item
Warehouses, retail chains, logistics operators, barcode printer dealers and converters printing paper labels at volume.
How It Compares With the Alternatives
Wax is the correct answer whenever the label is paper. Move to wax resin when the label is PP synthetic paper, matte coated paper or a glossy paper that a wax print would scratch off. Move to full resin only when the label is PET, PVC, PE or PP film. Paying for resin on a paper label buys nothing.
How It Is Made and Checked
Coating, printing, slitting and die-cutting run on more than 30 production lines across two factories, producing around one million square metres of material a week.
Ribbon coating workshop
The ZHIYE ribbon coating workshop. Coating and slitting in the same building means a ribbon width and ink side can be built to a customer's printer rather than picked from stock.
Ribbon slitting
Jumbo ribbon stock being slit to finished widths. 30 mm to 110 mm and 30 m to 900 m are all cut to order on the same line.
Coating line
Adhesive coating on the label laminate line. Controlling the coat weight here is what makes the published peel adhesion figures repeatable.
Certification. High-Tech Enterprise, ISO 9001, ISO 14001, SGS, RoHS, BPA Free, FSC. The company is certified as a High-Tech Enterprise and holds multiple patents including one invention patent. Documentation applicable to this item is supplied with the shipment on request.
Getting It Right on the First Roll
Confirm the printer's maximum ribbon width and length before ordering; 110 mm x 300 m fits most industrial 4 in printers.
Match ribbon width to label width; a ribbon much wider than the label wastes ink and can wrinkle.
Set ink side to match the printer's ribbon path, ink out for most Zebra industrial models.
If the printed barcode scratches with a fingernail, the label is not paper and the job needs a wax resin or resin ribbon instead.
What Can Be Changed to Order
Size and shape
Any size, and square, rectangle, round or oval dies. Ribbons are slit from 30 mm to 110 mm and 30 m to 900 m.
Material and adhesive
Paper, BOPP, PET and PE facestocks with hot melt, acrylic, removable or freezer adhesive.
Print and colour
CMYK, Pantone, full colour, transparent, gold and silver, by offset, flexo, screen, digital, inkjet or thermal transfer.
Core and winding
1 in, 1.5 in and 3 in label cores; 0.5 in and 1 in ribbon cores; piece counts and winding direction set to your printer.
Branding
Printed logo on the product, your design on the carton, or neutral packing with no supplier name.
Documentation
ISO 9001, ISO 14001, RoHS, SGS, FSC, BPA free and MSDS paperwork supplied where the product is covered.
Wax Thermal Transfer Ribbon 110mm x 300m for Zebra Barcode P FAQ
Straight answers to the questions buyers ask before a first order.
Is this ribbon genuinely compatible with Zebra printers?
It is a compatible ribbon built to the width, length, core size and ink side those printers use. Give us the exact model and the roll is specified to it.
Which labels should I not use it on?
Film labels. Wax will not bond properly to PET, PVC, PE or PP, and the print will rub away. Use a resin ribbon for those, or wax resin for PP synthetic paper and glossy coated paper.
What widths and lengths can I order?
30 mm to 110 mm wide and 30 m to 900 m long, with 300 m and 450 m held as the usual lengths. 0.5 in and 1 in cores, ink in or ink out.
What is the lead time?
7 to 15 days from receipt of deposit, with a 20 roll minimum. The ribbons are coated and slit in our own plant in Central China rather than bought in.
Can we have our own brand on the ribbon?
Yes, OEM service is available for the core, the label and the packaging.
