- DMX512 Neon Flex Strip, 60 LEDs/m
LED Strip and Neon Flex · RCC60AF12Z-1225-DMX512
DMX512 Neon Flex Strip, 60 LEDs/m
DMX512-addressable RGBW neon flex, 60 LEDs/m, 24 V, 450 lm/m, cut every 100 mm, 5 m per roll.
Sign depth designed for: Not applicableInput voltage: DC 24 VLuminous efficacy: 25 lm/W
Product Overview
DMX512 Neon Flex Strip, 60 LEDs/m is dMX512-addressable RGBW neon flex, 60 LEDs/m, 24 V, 450 lm/m, cut every 100 mm, 5 m per roll. The only DMX-addressable product in the range: pixel control over a continuous 25 mm-tall neon profile rather than over discrete modules. The specification below is reproduced from the manufacturer's own published sheet for this model: DC 24 V input, 18 W per metre, Not published and a published cascade limit of cut every 100 mm / 6 leds. Where that sheet publishes no figure, this page says so instead of estimating one.
Key Benefits
- Published efficacy of 25 lm/W, so the wattage behind a given face area can be calculated before the sign is built rather than after.
- Cascade limit published as cut every 100 mm / 6 leds, so the run length and the feed points are known at drawing stage.
At A Glance
- Family
- RCC60AF12Z-1225-DMX512
- Category
- LED Strip and Neon Flex
- Model
- DMX512 Neon Flex Strip, 60 LEDs/m
- Series
- RCC60AF12Z-1225-DMX512
- Module size
- 5000 x 12 x 25 mm
- Input voltage
- DC 24 V
Published Data Sheets
Drawings, Optical Distribution And Application Data

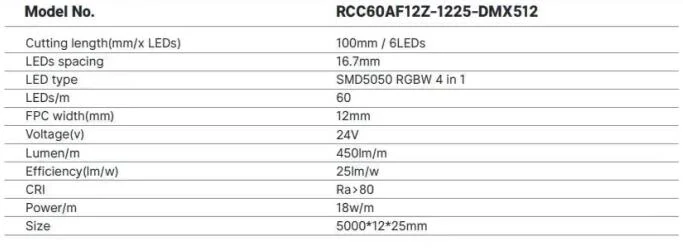

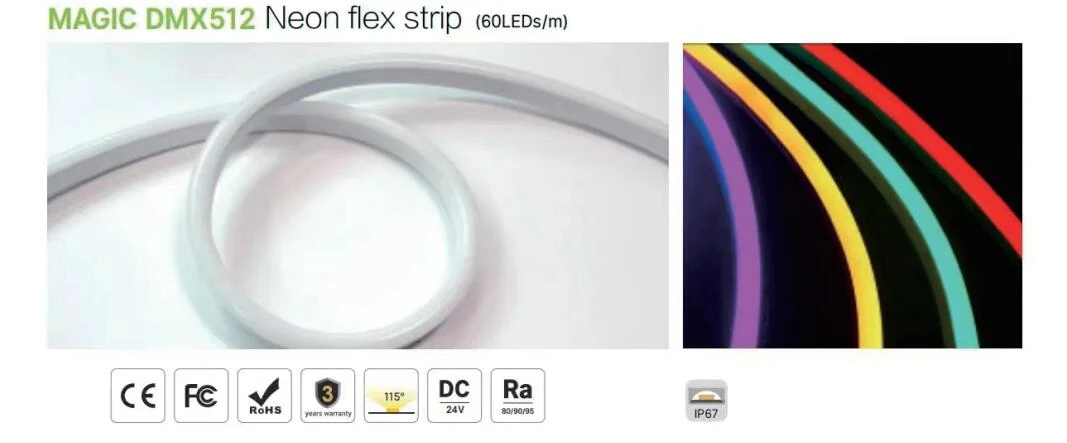

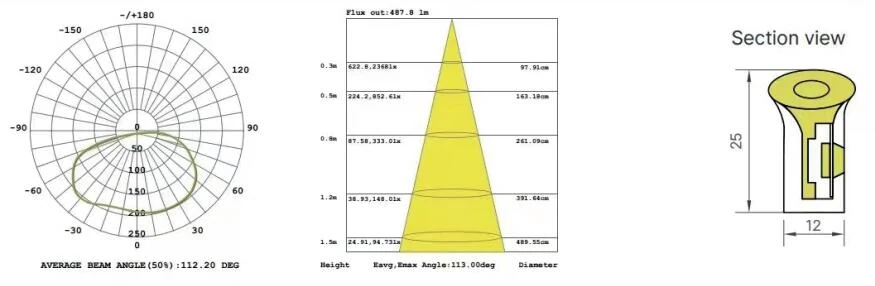

These are the manufacturer's own sheets for this model, reproduced as published: dimensioned drawings, the luminous distribution curve, the module pitch against sign depth, and the packing sequence. Nothing here has been redrawn or reinterpreted.
Who It Is For
- Sign fabricators building channel letters and 3D luminous characters who need the depth figure before they cut the return.
- Light box manufacturers sizing the module pitch against the face material.
- Signage distributors who have to hold a range that covers shallow and deep cavities from one supplier.
- Installers retrofitting an existing fascia where the cavity depth is fixed and the module has to fit it.
Problems It Solves
- A face that shows the module pattern because the module was specified for a different depth than the sign actually has.
- A run that is bright at the feed and dim at the far end because the cascade limit was never published by the supplier.
- Condensation inside a sign cavity reaching an unsealed module body.
- Two batches of the same model that do not match in colour on the same fascia.
Application Scenarios
- Retail fascia lettering on a shop front.
- Illuminated light box panels on a building entrance.
- Three-dimensional luminous characters on a building parapet.
- Advertising plastic characters of the kind this factory has specialised in since 2012.
Technical Features
- Beam angle published as Not published.
- Input DC 24 V.
- Rated 18 W per metre per module.
- Colour rendering Ra > 80.
Specification
Published Specification
Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.
| Model | DMX512 Neon Flex Strip, 60 LEDs/m |
| Series | RCC60AF12Z-1225-DMX512 |
| Module size | 5000 x 12 x 25 mm |
| Input voltage | DC 24 V |
| Power | 18 W per metre |
| LED layout | 60 LEDs per metre, 16.7 mm spacing |
| FPC width | 12 mm |
| Luminous efficacy | 25 lm/W |
| Luminous flux | 450 lm per metre |
| Colour rendering | Ra > 80 |
| Beam angle | Not published |
| Ingress protection | Not published |
| Cascade limit | Cut every 100 mm / 6 LEDs |
| Colour options | SMD5050 RGBW 4-in-1 |
| Sign depth designed for | Not applicable |
| Operating temperature | Not published |
| Storage temperature | Not published |
| Warranty | Not published |
| Packing | Not published |
| Carton weight | Not published |
| Carton dimensions | Not published |
Use Guide
- Work out the run length from the cascade figure: cut every 100 mm / 6 leds. Beyond that, voltage drop starts to dim the far end and power has to be reintroduced.
- Size the power supply from 18 W per metre multiplied by the module count, then leave headroom rather than running a driver at its rated ceiling.
Quality Control
- Modules are potted and sealed before the ingress rating is verified, not after assembly into a sign.
- Colour binning is checked against the published bin so cartons shipped months apart still match on the same fascia.
- Every batch is aged before packing; the aging rack is photographed on the factory's own process board.
- Finished modules are packed in anti-static bags and cartoned to the published quantity so the count on the box matches the count on the order.
Materials
- Injection-moulded housing with the optic moulded in, rather than a lens glued on afterwards.
- Potting compound filling the cavity around the board, which is what carries the IP rating.
- Pre-tinned lead wires on both ends for cascading, cut to the published module pitch.
- 3M backing tape on the models where the specification lists it, for direct mounting to the inside of a return.
Manufacturing Process
- ['Patch', 'A misplaced die shows as a dark lens once the face goes on.', "SMT placement of the emitters onto the module board, photographed as stage one on the factory's own process board."]
- ['Solder wire', 'A cold joint at the lead is the most common field failure in cascaded modules.', 'Lead wires are soldered and strain-relieved before the housing is closed.']
- ['Injection moulding', 'A lens bonded on after the fact separates in the heat cycle of a south-facing sign.', 'The housing and the optic are moulded together, then the cavity is potted.']
- ['Testing', 'A module that only fails under load passes a visual check.', 'Electrical test under load before the module leaves the line.']
- ['Back glue', 'Tape applied to a contaminated surface releases in the first summer.', '3M backing tape is applied to a cleaned housing on the models specified with it.']
- ['Aging', 'Infant mortality in LEDs shows in the first hours, not the first year.', 'Finished modules are run on the aging rack before packing.']
Certification Standards
Production follows CE, RoHS, LVD, IP68 test report, UL. Certificates are sent per product on request rather than posted publicly, because the documents a shipment needs depend on the destination market.
Customisation Options
- Colour temperature selected per order from the published options rather than held as one stock colour.
- Lead wire length and module pitch cut to the sign layout instead of a default spacing.
- OEM and ODM work: the source site states that OEM and ODM are supported for customers in all markets.
- Packing quantity per bag and per carton adjusted to how the modules will be issued on the fabrication floor.
Comparison
How It Compares With The Alternatives
A technical comparison against other ways of solving the same problem. Nothing here is a performance claim against a named competitor product.
| Against a module sold without a published depth band | The depth band is the figure that decides whether the face lights evenly. This model publishes Not applicable. A supplier who publishes only lumens is asking you to find that band by building the sign. |
| Against a module with no stated cascade limit | This model publishes Cut every 100 mm / 6 LEDs. Without that number the feed points are guessed, and the symptom - a fascia that dims towards one end - looks like a bad batch rather than a wiring decision. |
| Against an IP rating quoted for the range rather than the model | The rating here is Not published, published against this model. Note that it covers the module body as supplied and not the joints made on site. |
| Against another family in this range | See the LED Strip and Neon Flex page for what this family does that the others do not, and the related products below for the nearest alternatives. |
Questions
DMX512 Neon Flex Strip, 60 LEDs/m Questions
How many DMX512 Neon Flex Strip, 60 LEDs/m modules can run from one feed?
The specification publishes cut every 100 mm / 6 leds. Past that limit voltage drop dims the far end of the run, so power is reintroduced rather than the run extended.
What is the ingress rating?
The manufacturer does not publish an ingress rating for this product, so none is stated here. Ask before specifying it for an outdoor position.
What is the warranty?
The manufacturer publishes no warranty figure for this product. Confirm it in writing with the order rather than assuming the five year figure that the module range carries.
Can it be supplied in a colour temperature that is not listed?
The published colour options are: smd5050 rgbw 4-in-1. Anything outside that list is a custom request and is confirmed in writing before the order, not assumed.
