LED Strip and Neon Flex · RB0Z0WW08A

COB LED Strip, CCT Series, 640 LEDs/m

Name: COB LED Strip, CCT Series, 640 LEDs/m
Brand: LEDjds

Dot-free COB strip at 640 LEDs/m, 24 V, 800 lm/m, Ra > 90, cut every 25 mm.

Sign depth designed for: Not applicableInput voltage: DC 24 VLuminous efficacy: 100 lm/W

Request A Quote Request A Sample

COB LED Strip, CCT Series, 640 LEDs/m, Dot-free COB strip at 640 LEDs/m, 24 V, 800 lm/m, Ra > 90, c

Product Overview

COB LED Strip, CCT Series, 640 LEDs/m is dot-free COB strip at 640 LEDs/m, 24 V, 800 lm/m, Ra > 90, cut every 25 mm. 640 emitters a metre under a single phosphor line, so a cove reads as a continuous bar of light with no dotting, at Ra > 90. The specification below is reproduced from the manufacturer's own published sheet for this model: DC 24 V input, 8 W per metre, Not published and a published cascade limit of cut every 25 mm / 16 leds. Where that sheet publishes no figure, this page says so instead of estimating one.

Key Benefits

Published efficacy of 100 lm/W, so the wattage behind a given face area can be calculated before the sign is built rather than after.
Cascade limit published as cut every 25 mm / 16 leds, so the run length and the feed points are known at drawing stage.

At A Glance

Family: RB0Z0WW08A
Category: LED Strip and Neon Flex
Model: COB LED Strip, CCT Series, 640 LEDs/m
Series: RB0Z0WW08A
Input voltage: DC 24 V
Power: 8 W per metre

Published Data Sheets

Drawings, Optical Distribution And Application Data

These are the manufacturer's own sheets for this model, reproduced as published: dimensioned drawings, the luminous distribution curve, the module pitch against sign depth, and the packing sequence. Nothing here has been redrawn or reinterpreted.

COB LED Strip, CCT Series, 640 LEDs/m technical drawing and optical data, sheet 1 — COB LED Strip, CCT Series, 640 LEDs/m - published drawing, optical distribution and application data

COB LED Strip, CCT Series, 640 LEDs/m technical drawing and optical data, sheet 2 — COB LED Strip, CCT Series, 640 LEDs/m - published drawing, optical distribution and application data

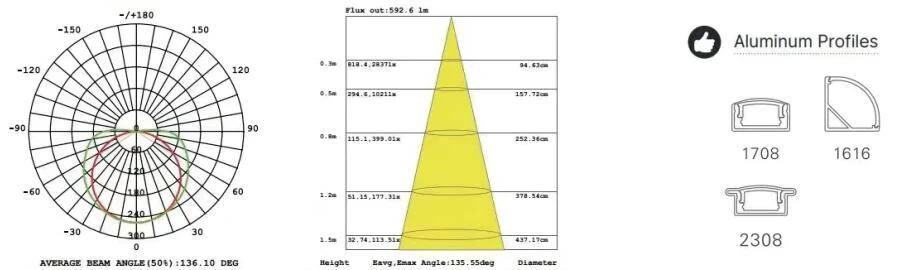

COB LED Strip, CCT Series, 640 LEDs/m technical drawing and optical data, sheet 3 — COB LED Strip, CCT Series, 640 LEDs/m - published drawing, optical distribution and application data

Who It Is For

Sign fabricators building channel letters and 3D luminous characters who need the depth figure before they cut the return.
Light box manufacturers sizing the module pitch against the face material.
Signage distributors who have to hold a range that covers shallow and deep cavities from one supplier.
Installers retrofitting an existing fascia where the cavity depth is fixed and the module has to fit it.

Problems It Solves

A face that shows the module pattern because the module was specified for a different depth than the sign actually has.
A run that is bright at the feed and dim at the far end because the cascade limit was never published by the supplier.
Condensation inside a sign cavity reaching an unsealed module body.
Two batches of the same model that do not match in colour on the same fascia.

Application Scenarios

Retail fascia lettering on a shop front.
Illuminated light box panels on a building entrance.
Three-dimensional luminous characters on a building parapet.
Advertising plastic characters of the kind this factory has specialised in since 2012.

Technical Features

Beam angle published as Not published.
Input DC 24 V.
Rated 8 W per metre per module.
Colour rendering Ra > 90.

Specification

Published Specification

Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.

Model	COB LED Strip, CCT Series, 640 LEDs/m
Series	RB0Z0WW08A
Input voltage	DC 24 V
Power	8 W per metre
LED layout	640 LEDs per metre
FPC width	10 mm
Luminous efficacy	100 lm/W
Luminous flux	800 lm per metre
Colour rendering	Ra > 90
Beam angle	Not published
Ingress protection	Not published
Cascade limit	Cut every 25 mm / 16 LEDs
Colour options	COB, tunable CCT
Sign depth designed for	Not applicable
Operating temperature	Not published
Storage temperature	Not published
Warranty	Not published
Packing	Not published
Carton weight	Not published
Carton dimensions	Not published
