LED Strip and Neon Flex · R060AH10Q (12 V) / R060AH10R (24 V)

5050 LED Strip, Colorful Series, RGBW 60 LEDs/m

Name: 5050 LED Strip, Colorful Series, RGBW 60 LEDs/m
Brand: LEDjds

SMD5050 RGBW strip at 60 LEDs/m, 17.2 W/m, available in a 12 V and a 24 V model with different cut lengths.

Sign depth designed for: Not applicableInput voltage: DC 12 V or DC 24 VColour rendering: Ra > 80

Request A Quote Request A Sample

5050 LED Strip, Colorful Series, RGBW 60 LEDs/m, SMD5050 RGBW strip at 60 LEDs/m, 17.2 W/m, available in a 12

Product Overview

5050 LED Strip, Colorful Series, RGBW 60 LEDs/m is sMD5050 RGBW strip at 60 LEDs/m, 17.2 W/m, available in a 12 V and a 24 V model with different cut lengths. Two model numbers on one product: the 12 V version cuts every 50 mm, the 24 V version every 100 mm, which decides how tight a detail you can wrap. The specification below is reproduced from the manufacturer's own published sheet for this model: DC 12 V or DC 24 V input, 17.2 W per metre, Not published and a published cascade limit of cut every 50 mm / 3 leds at 12 v, every 100 mm / 6 leds at 24 v. Where that sheet publishes no figure, this page says so instead of estimating one.

Key Benefits

Cascade limit published as cut every 50 mm / 3 leds at 12 v, every 100 mm / 6 leds at 24 v, so the run length and the feed points are known at drawing stage.

At A Glance

Family: R060AH10Q (12 V) / R060AH10R (24 V)
Category: LED Strip and Neon Flex
Model: 5050 LED Strip, Colorful Series, RGBW 60 LEDs/m
Series: R060AH10Q (12 V) / R060AH10R (24 V)
Input voltage: DC 12 V or DC 24 V
Power: 17.2 W per metre

Published Data Sheets

Drawings, Optical Distribution And Application Data

These are the manufacturer's own sheets for this model, reproduced as published: dimensioned drawings, the luminous distribution curve, the module pitch against sign depth, and the packing sequence. Nothing here has been redrawn or reinterpreted.

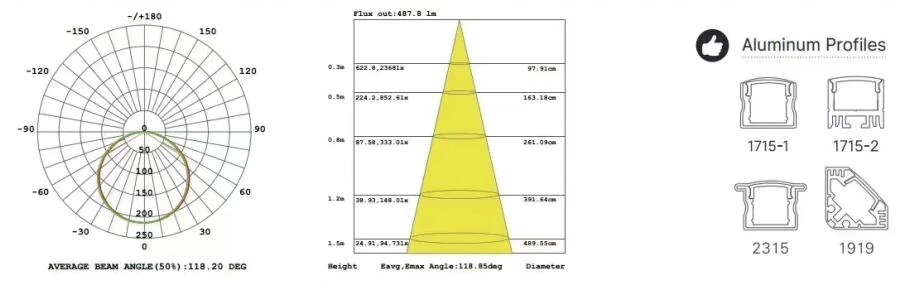

5050 LED Strip, Colorful Series, RGBW 60 LEDs/m technical drawing and optical data, sheet 1 — 5050 LED Strip, Colorful Series, RGBW 60 LEDs/m - published drawing, optical distribution and application data

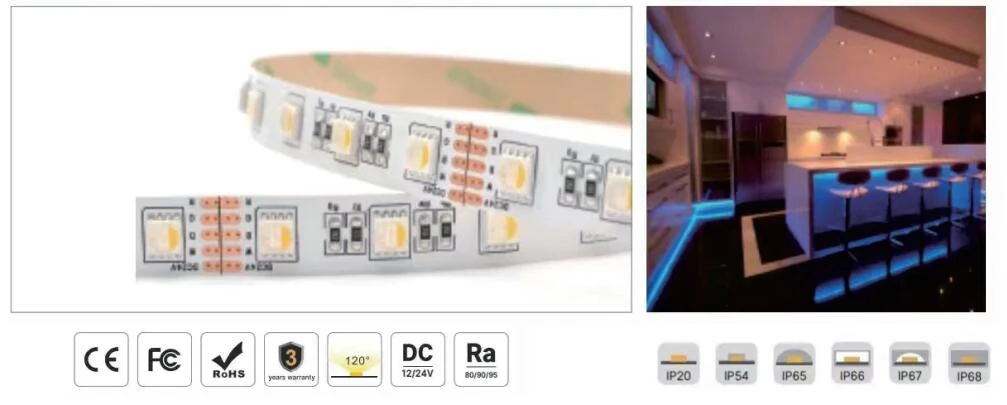

5050 LED Strip, Colorful Series, RGBW 60 LEDs/m technical drawing and optical data, sheet 2 — 5050 LED Strip, Colorful Series, RGBW 60 LEDs/m - published drawing, optical distribution and application data

5050 LED Strip, Colorful Series, RGBW 60 LEDs/m technical drawing and optical data, sheet 3 — 5050 LED Strip, Colorful Series, RGBW 60 LEDs/m - published drawing, optical distribution and application data

Who It Is For

Sign fabricators building channel letters and 3D luminous characters who need the depth figure before they cut the return.
Light box manufacturers sizing the module pitch against the face material.
Signage distributors who have to hold a range that covers shallow and deep cavities from one supplier.
Installers retrofitting an existing fascia where the cavity depth is fixed and the module has to fit it.

Problems It Solves

A face that shows the module pattern because the module was specified for a different depth than the sign actually has.
A run that is bright at the feed and dim at the far end because the cascade limit was never published by the supplier.
Condensation inside a sign cavity reaching an unsealed module body.
Two batches of the same model that do not match in colour on the same fascia.

Application Scenarios

Retail fascia lettering on a shop front.
Illuminated light box panels on a building entrance.
Three-dimensional luminous characters on a building parapet.
Advertising plastic characters of the kind this factory has specialised in since 2012.

Technical Features

Beam angle published as Not published.
Input DC 12 V or DC 24 V.
Rated 17.2 W per metre per module.
Colour rendering Ra > 80.

Specification

Published Specification

Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.

Model	5050 LED Strip, Colorful Series, RGBW 60 LEDs/m
Series	R060AH10Q (12 V) / R060AH10R (24 V)
Input voltage	DC 12 V or DC 24 V
Power	17.2 W per metre
LED layout	60 LEDs per metre, 16.7 mm spacing
FPC width	10 mm
Luminous efficacy	Not published
Luminous flux	Not published
Colour rendering	Ra > 80
Beam angle	Not published
Ingress protection	Not published
Cascade limit	Cut every 50 mm / 3 LEDs at 12 V, every 100 mm / 6 LEDs at 24 V
Colour options	SMD5050 RGBW
Sign depth designed for	Not applicable
Operating temperature	Not published
Storage temperature	Not published
Warranty	Not published
Packing	Not published
Carton weight	Not published
Carton dimensions	Not published

Use Guide

Work out the run length from the cascade figure: cut every 50 mm / 3 leds at 12 v, every 100 mm / 6 leds at 24 v. Beyond that, voltage drop starts to dim the far end and power has to be reintroduced.
