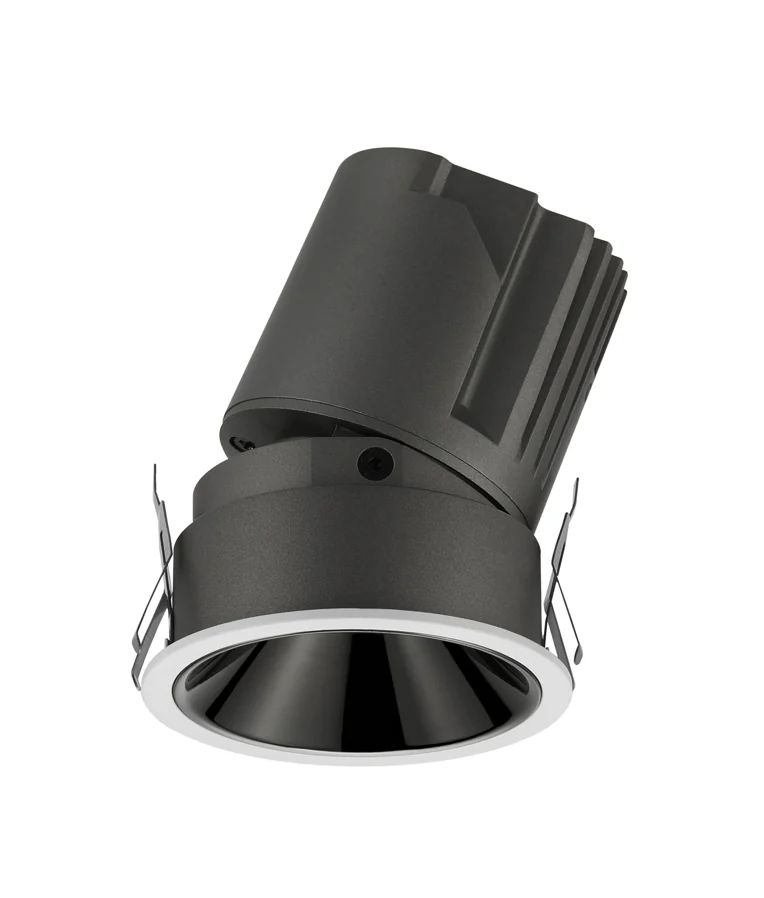

YY71007 is a 12W S1 series fitting for a Ø65mm cut-out with 15/24/38/60° beam options.
| Power | 12W |
|---|---|
| Dimensions | 72×H86mm |
| Cut-out | Ø65mm |
| Beam Angle | 15/24/38/60° |
| LED Chip | 1304/020/1204/1507 |
| Reflector Finish | Gun black/bright silver/matte black/matte white (Aluminum reflector) |
| Housing Finish | White + Grey |
Beam angle, reflector finish, housing colour and chip holder are selected per order. Samples are normally ready in seven days.
Cut-out is Ø65mm, in a body measuring 72×H86mm. Check the body depth against your plenum before specifying — depth kills more downlight specifications than diameter does. This is the general accent band — enough for a 2.5–3 m ceiling over merchandise.
4 beam angles are offered — a 15° display beam for merchandise and feature walls and a 60° distribution that behaves like a general downlight. The source is a 1304/020/1204/1507 package. The holder footprint is listed because it decides which LED brands and output bins can be built into your order.
Reflector finish options are Gun black/bright silver/matte black/matte white (Aluminum reflector). The dark finishes absorb the stray light that would otherwise leave the reflector wall at a shallow angle and land in a shopper's eye. Housing colours are White + Grey.
Ø65mm. The body measures 72×H86mm, so confirm plenum depth as well as aperture.
15/24/38/60°. Beam angle is selected per order, so a single project can take the same fitting at more than one angle.
Yes. Reflector finish, housing colour, chip holder, beam angle and driver are order options. Samples are normally ready in seven days.
Send the quantity, the beam angle and the finish you need. We will reply with price, lead time and a sample plan.
