Variable Frequency Drive

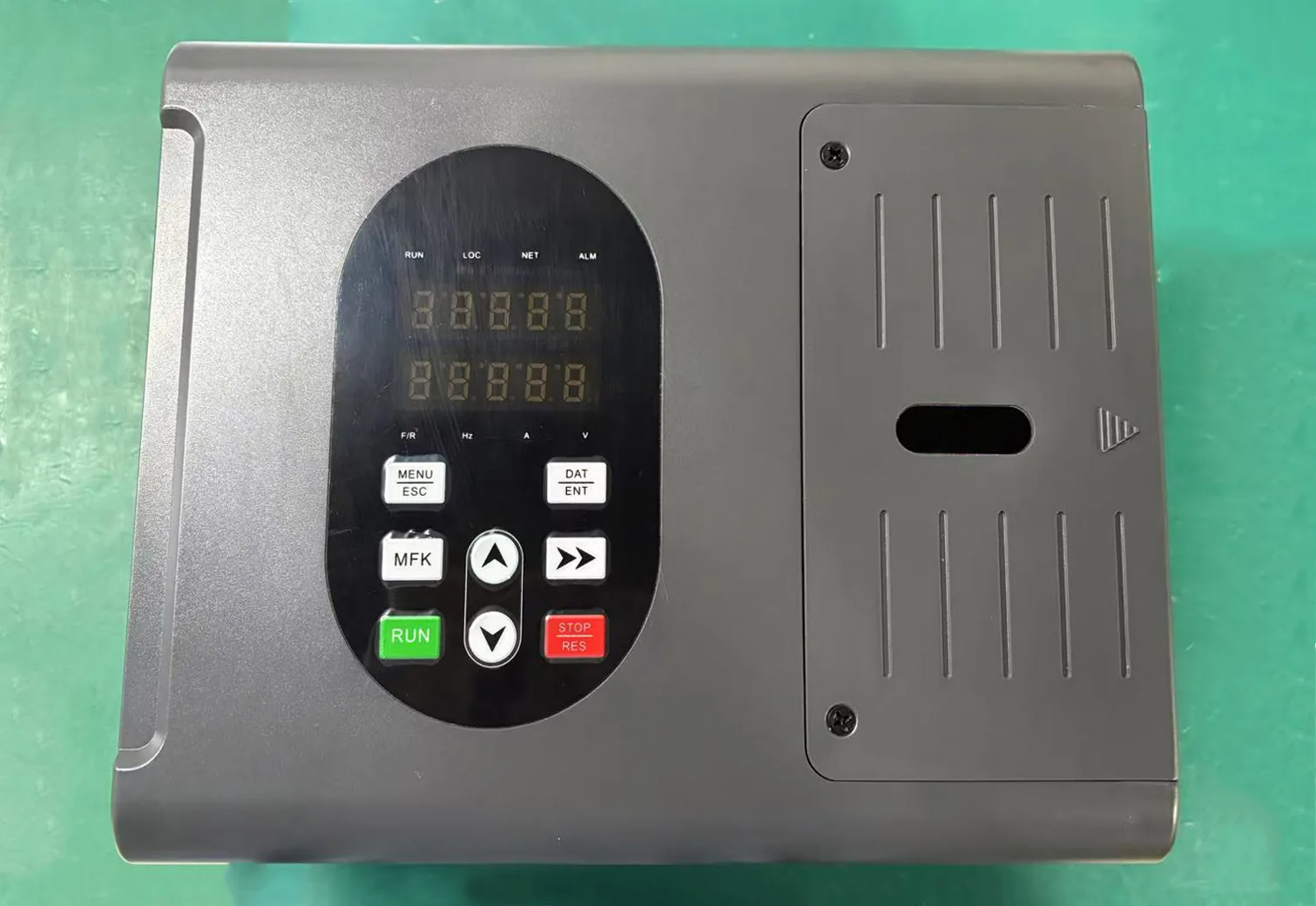

FS300 Series Intelligent Pump AC Drive
A dual-mode pump drive: constant-pressure supply or straight frequency modulation, switchable, running both permanent magnet and asynchronous pump motors to 22 kW.
FS300 series intelligent water pump AC Drive, Adopting an advanced integrated design of permanent magnet synchronous and asynchronous, integration of special PID control algorithms, with constant pressure water supply and frequency modulation dual mode of operation, can be flexibly switched to meet the diverse needs. The product body protection level up to IP54, fearless of complex environments, built-in multiple protection mechanisms, stable and reliable operation, to provide a full
- Voltage Level
- 220V Voltage Level: 380V
- Power Range
- 0.75kW~2.2kW Power Range: 0.75kW~22kW
Ask about FS300 on WhatsApp Email for pricing
Sold to buyers in Philippines, Turkey, Morocco and beyond.
Problems it solves
Why this model gets specified
One site needs constant pressure, the next needs plain speed control. FS300 runs both modes and switches between them.
PM pump motors are more efficient but need matched control. The integrated PM-and-asynchronous design drives either.
Pressure control loops that need tuning slow commissioning. A built-in dedicated PID algorithm handles constant-pressure supply out of the box.
Who it is for: Pump manufacturers and water-supply contractors covering both 220 V small sets and 380 V systems up to 22 kW.
Key benefits
FS300 Series Intelligent Water Pump Inverter
Integrated design of permanent magnet synchronous and asynchronous motors
Built-in dedicated PID algorithm
supporting free switching between constant pressure water supply and frequency regulation modes
IP54 protection rating
multiple protection mechanisms ensure stable and reliable operation
Provides a comprehensive and efficient drive solution for water pump systems
Technical specifications
As published for this series. Confirm the exact figures for your model code with Boray before ordering.
| Voltage Level | 220V Voltage Level: 380V |
|---|---|
| Power Range | 0.75kW~2.2kW Power Range: 0.75kW~22kW |
| V Voltage Class | ：Single phase 200V ～ 240V 400V Voltage Class：Three-phase 380V ～ 440V Frequency 50Hz/60Hz Voltage rang -15% ～ +15% ,Voltage out-of-balance rate<3% Power output |
| Output voltage | Three phase：0%~rated input voltage, error < ±3% |
| Output frequency | 0 ～ 600.00Hz,（Can be changed by parameter） |
| Overload capacity | 150% – 60s, 180% – 1s Control characteristics |
| Control mode | SVC、V/F control |
| Starting torque | 0.25Hz/150%（SVC） |
| Carrier frequency | 1.0kHz ～ 16kHz Input & Output terminals Input terminals 3 way DI 2 way AI， 0 ~ 10V or 0/4 ~ 20mA are selectable. Output terminals 1 way DO 1 way T1 1 way AO, 0-10V voltage or 0/4-20mA are selectable |
| Altitude | 0~2000m. De-rate 1% for every 100m when the altitude is above 1000 meters |
| Ambient temperature | 10℃ ~50℃ , The rated output current should be derated 1% for every 1℃ when the ambient is 40℃ ~50℃ Relative |
| Humidity | 1% for every 1℃ when the ambient is 40℃ ~50℃ Vibration Less than 5.9m/s² (0.6g) Storage temperature temperature -20℃～ +60℃ Others |
| Installation | Backpack, wall-mounted IP grade IP54 |
Engineering detail
Technical features
- BR500-P Solar Pump Inverter Wide Power Range Adaptability, All-Purpose Drive
- 75~22kW wide power range, support permanent magnet synchronous and asynchronous motor control, applicable to different types of water pumps
- Specialized PID control algorithm to meet the needs of water supply, drainage, HVAC and other fields. Easy to Use, Intelligent Maintenance
- Backpack fit mounting, small size, light weight,easy to install
- Support the operation of the upper computer,debugging parameters read with one key, efficientand convenient
- Equipped with IOT module, it supports remotemonitoring and management to enhance theefficiency of operation and maintenance. Water Supply Specialized Functions
- Water supply special function multi-pump intelligentjoint control, accurate PID adjustment, efficientmaster-slave synergy, to ensure stable operation ofthe pump group
- Flexible injection, anti-freezing protection, fireoverride, burst pipe detection, pool level monitoring,dormant mechanism and other rich functions tomeet the needs of diversified pumping units. Comprehensive Protection, Stableand Carefree
- IP54 high protection level, dustproof and splash-proof, applicable to a variety of harsh workingenvironments
- Multiple protection functions such as high/low pressure, dry pump, water shortage, waterleakage, overload, short circuit, etc. ensure thesafe and stable operation of the equipment
Applications
- BR500-P Solar Pump Inverter
- Neighborhood Water Supply
- Hotel Water Supply
- Construction Site Water Equipment
- Commercial Building
- Villa Water Supply
- Factory Equipment Boosting
- Municipal Water Supply
- Agricultural Irrigation and Drainage
Before you order the FS300 Series Intelligent Pump AC Drive
Four or five details decide the model code. These are the ones that matter for this series:
- Confirm the supply and rating
- Voltage Level: 220V Voltage Level: 380V
- Confirm the supply and rating
- Power Range: 0.75kW~2.2kW Power Range: 0.75kW~22kW
- Confirm the supply and rating
- V Voltage Class: ：Single phase 200V ～ 240V 400V Voltage Class：Three-phase 380V ～ 440V Frequency 50Hz/60Hz Voltage rang -15% ～ +15% ,Voltage out-of-balance rate<3% Power output
- Confirm the supply and rating
- Output voltage: Three phase：0%~rated input voltage, error < ±3%
- Match the motor and control mode
- Control mode: SVC、V/F control
Every Boray unit is full-load tested before delivery, and the customised VFD programme can adapt function set, protection rating and mechanical arrangement where a standard model does not fit. Operation manuals and wiring diagrams are issued per model code — request them with your enquiry.
Frequently Asked Questions
What voltage and power ranges are available?
220 V at 0.75–2.2 kW and 380 V at 0.75–22 kW.
What are the two operating modes?
Constant-pressure water supply and frequency modulation, flexibly switchable.
Which motor types are supported?
Permanent magnet synchronous and asynchronous motors, through an integrated design.
What is the protection rating?
IP54 on the product body, with multiple built-in protections.
Does it need an external PID controller?
No. A dedicated PID control algorithm is built in for constant-pressure operation.
