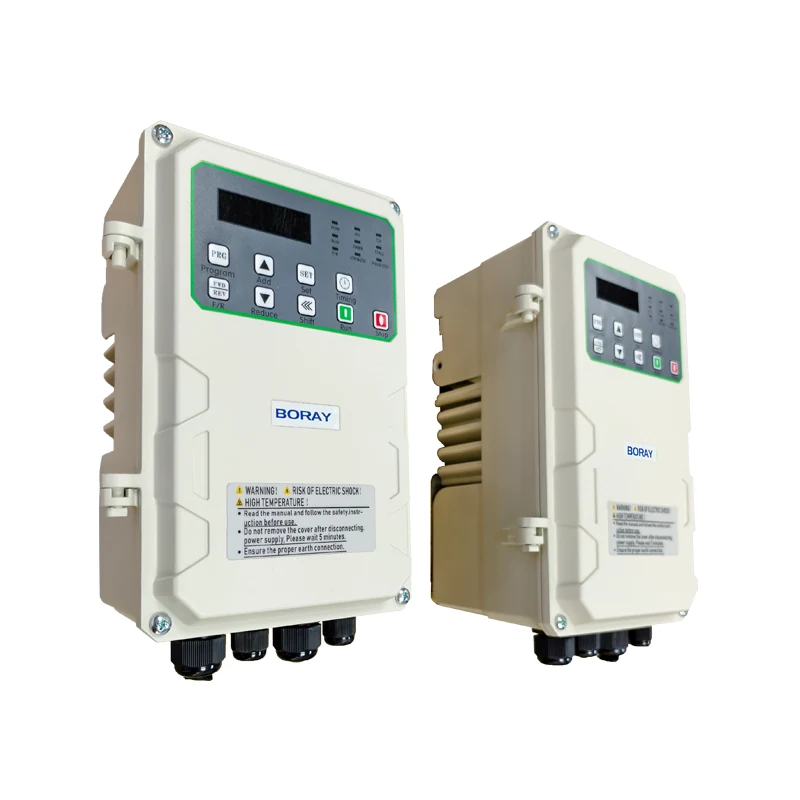

FD600 High Protection Solar Pump Inverter
A split-type sealed solar pump inverter with conformal-coated boards, built for steel, petrochemical and aquaculture sites where ordinary drives corrode.
FD600 High-Protection solar pump inverter is a specialized inverter developed for harsh-environment applications, such as steel, petroleum, chemical, fan, water pump, aquaculture, and other specialized industries. Structurally, it adopts a split-type sealed design with circuit boards coated with professional-grade conformal coating, providing multiple layers of protection. The entire unit is resistant to oxidation, salt spray, mold, high temperatures, humidity, and corrosion, achieving a protection rating of up to IP66, making it suitable for various demanding environmental conditions. Additionally, it features a built-in temperature detection and alarm function, ensuring safety and effectiveness while significantly extending the service life of the frequency converter
- Power Range
- FD600-2S0.5G ~ 2S2.2G / FD600-4T0.75G ~ 4T4.0G
- Input Voltage
- 220VAC / 150–400VDC or 380VAC / 250–800VDC
- Control Method
- V/F, SVC, VVC control
- Motor Type
- Supports asynchronous motors (IM) and permanent magnet synchronous motors (PMSM)
Ask about FD600 on WhatsApp Email for pricing
Sold to buyers in Philippines, Turkey, Morocco and beyond.
Problems it solves
Why this model gets specified

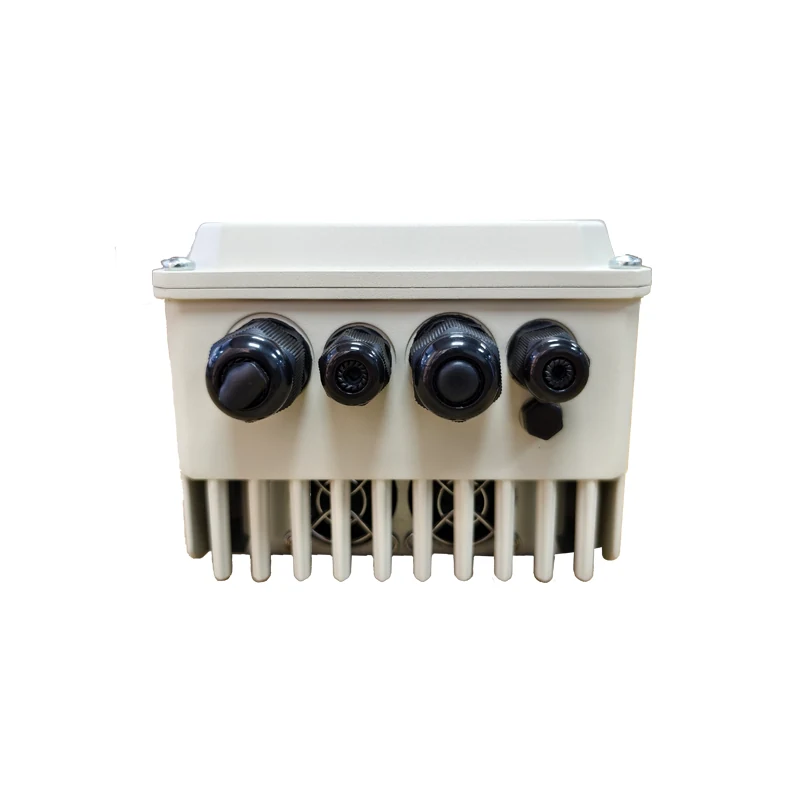

Salt, dust and corrosive vapour kill standard IP20 drives. FD600 uses a split-type sealed structure with professional-grade conformal coating on the circuit boards.
A drive that fails in a chemical plant takes the line with it. The unit is built to resist oxidation, salt spray and mould across the whole assembly.
Mixed motor fleets need one drive. FD600 supports both asynchronous (IM) and permanent magnet synchronous (PMSM) motors under V/F, SVC and VVC control.
Who it is for: Plant engineers in steel, petroleum, chemical, fan, pump and aquaculture applications specifying drives for corrosive or dusty environments.
Key benefits
FD600 series is a professional inverter designed specifically for harsh environments in special industries such as steel, petroleum, chemicals, fans, pumps, and aquaculture
Technical specifications
As published for this series. Confirm the exact figures for your model code with Boray before ordering.
| Power Range | FD600-2S0.5G ~ 2S2.2G / FD600-4T0.75G ~ 4T4.0G |
|---|---|
| Input Voltage | 220VAC / 150–400VDC or 380VAC / 250–800VDC |
| Control Method | V/F, SVC, VVC control |
| Motor Type | Supports asynchronous motors (IM) and permanent magnet synchronous motors (PMSM) |
| Efficiency | ≥96% Recommended input Voc range 1S:190VDC to 450VDC 2S:355VDC to 450VDC 4T:620V DC to 800VDC Recommended |
| MPPT | voltage range 1S:110VDC to 400VDC 2S:250VDC to 400VDC 4T:500V DC to 750VDC Output MPPT efficiency Above 99.6% |
| Output frequency | range 0~maximum frequency 600Hz |
| Overload capacity | 150% rated current for 60s, 180% rated current for 10s . |
| Humidity | 10 ～+ 50℃, derating above 40℃, maximum temperature 60℃(no-load operation)5% to 95% RH (non-condensing) Vibration When 9～200Hz, 5.9m/s2(0.6g) Storage temperature -30 ～+60℃ |
| Cooling | method Forced air cooling International Certificate CE, ISO |
Engineering detail
Technical features
- High Protection
- With an IP66 protection rating, it can be installed outdoors directly
- High Compatibility
- Compatible with both permanent magnet synchronous motors and asynchronous motors
- Easy Installation
- Integrated design of the control cabinet and frequency converter eliminates the need for secondary installation
- Low Maintenance
- Maintenance-free overall design
- User-Friendly Operation
- Start/stop control with 7-speed adjustment via up/down keys
Before you order the FD600 High Protection Solar Pump Inverter
Four or five details decide the model code. These are the ones that matter for this series:
- Confirm the supply and rating
- Power Range: FD600-2S0.5G ~ 2S2.2G / FD600-4T0.75G ~ 4T4.0G
- Confirm the supply and rating
- Input Voltage: 220VAC / 150–400VDC or 380VAC / 250–800VDC
- Match the motor and control mode
- Control Method: V/F, SVC, VVC control
- Match the motor and control mode
- Motor Type: Supports asynchronous motors (IM) and permanent magnet synchronous motors (PMSM)
- Apply derating
- Humidity: 10 ～+ 50℃, derating above 40℃, maximum temperature 60℃(no-load operation)5% to 95% RH (non-condensing) Vibration When 9～200Hz, 5.9m/s2(0.6g) Storage temperature -30 ～+60℃
Every Boray unit is full-load tested before delivery, and the customised VFD programme can adapt function set, protection rating and mechanical arrangement where a standard model does not fit. Operation manuals and wiring diagrams are issued per model code — request them with your enquiry.
Frequently Asked Questions
What input voltages does FD600 accept?
220 VAC or 150–400 VDC, and 380 VAC or 250–800 VDC.
Which models are in the range?
FD600-2S0.5G to 2S2.2G on single-phase 220 V, and FD600-4T0.75G to 4T4.0G on three-phase 380 V.
Which control methods are supported?
V/F, SVC and VVC control.
Does it drive permanent magnet motors?
Yes, both asynchronous motors (IM) and permanent magnet synchronous motors (PMSM).
What makes it 'high protection'?
A split-type sealed design with conformal-coated boards, giving resistance to oxidation, salt spray and mould for harsh-environment industries.
