FT0365 WiFi Weather Station
The FT0365 is a complete wireless weather station with an integrated outdoor sensor that measures temperature, humidity, wind speed and direction, rainfall, barometric pressure, UV and sunlight levels, then transmits all data to a console over a 433MHz link. The console connects
What This Model Is For
The FT0365 is a complete wireless weather station with an integrated outdoor sensor that measures temperature, humidity, wind speed and direction, rainfall, barometric pressure, UV and sunlight levels, then transmits all data to a console over a 433MHz link. The console connects to a 2.4GHz Wi-Fi network and uploads real-time data to weathercloud and wunderground. It runs on three AAA batteries in the console and three AA batteries in the outdoor sensor, with a solar panel providing auxiliary power to reduce battery drain. The sensor updates every 16 seconds and operates over 100m in open air.
- Integrated outdoor sensor eliminates separate wiring and mounting
- 433MHz transmission reaches 100m in open air without a gateway
- Solar assist reduces battery consumption without charging the cells
- Real-time data upload to weathercloud and wunderground for public display
- Console supports both 12-hour and 24-hour time formats with alarm functions

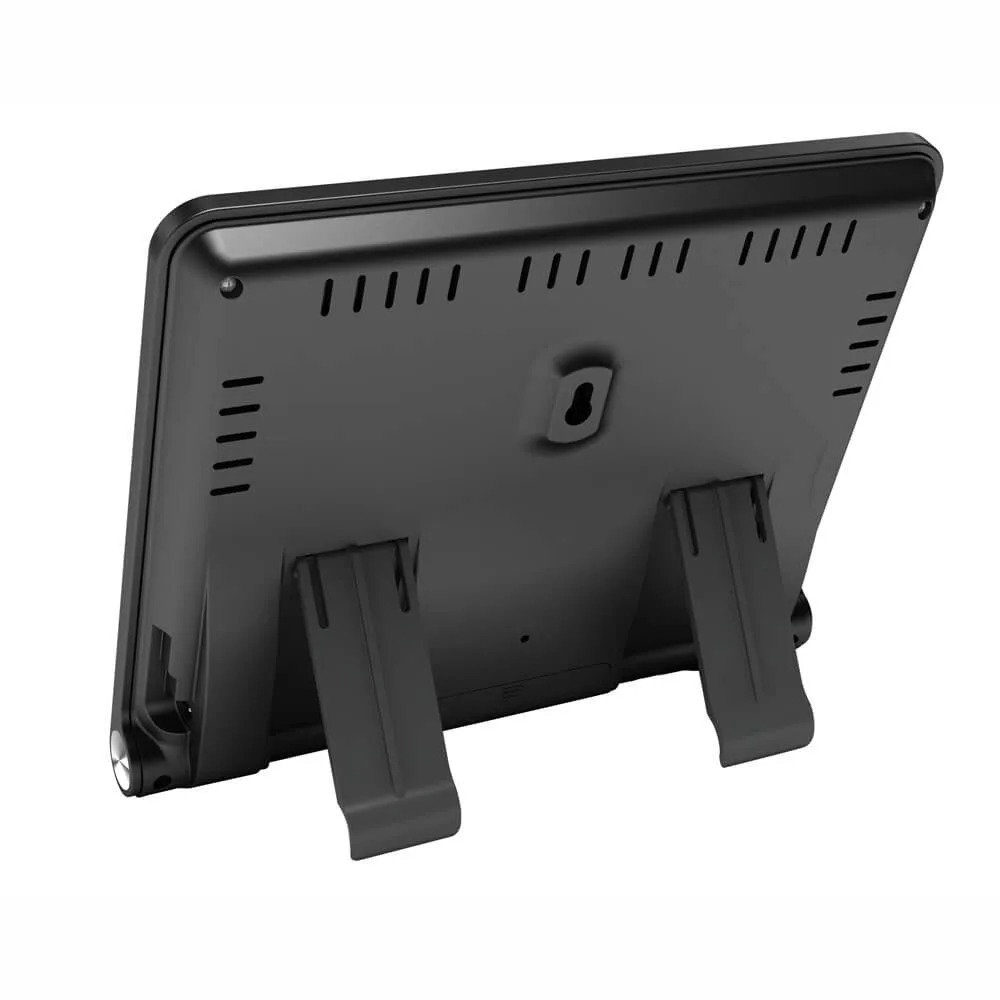

Product Images
Where It Is Used
- Home weather stations sold under a distributor's own brand with cloud data sharing
- Garden and rooftop monitoring where wired sensors are impractical
- Schools and visitor centres using live weather data for educational displays
- Agricultural sites needing local rainfall and wind data without internet cabling
- Cold chain and HVAC integrators using barometric pressure and dew point data
Who It Is For
- Consumer electronics brands launching a weather station with cloud connectivity
- Distributors replacing a wired weather station with a simpler wireless solution
- Agricultural suppliers bundling weather data with irrigation or greenhouse controls
- Integrators who need a battery-powered sensor for sites without power access
- Marine and leisure equipment brands adding weather data to dockside displays
Problems It Solves
- Wired sensors requiring trenching or conduit runs in gardens and rooftops
- Weather stations that fail to sync with internet time or lose data after power loss
- Cloud uploads that stop when the Wi-Fi router is offline or out of range
- Battery-only outdoor sensors needing replacement every 6 months in summer
- Separate sensors for wind, rain and pressure that increase failure points
Technical Features
- Integrated outdoor sensor with 433MHz transmission every 16 seconds
- Real-time data upload to weathercloud and wunderground via 2.4GHz Wi-Fi
- Outdoor temperature sensing from -40 to +60 degrees C with 0.3 degrees C accuracy
- Wind speed measured from 0 to 50 m/s with 0.3 m/s accuracy between 2 and 10 m/s
- Wind direction resolved across 0-360 degrees to within 10 degrees
- Rainfall measured up to 9999 mm with 0.3 mm resolution below 1000 mm
- Barometric pressure range of 300 to 1100 hPa with 3 hPa accuracy
- UV index and sunlight index displayed in multiple units with ±1 level and ±15% accuracy
- Console supports manual calibration of all sensor readings
- Solar panel provides auxiliary power but does not charge the batteries
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Outdoor Temperature Range | -40 to +60 degrees C |
|---|---|
| Outdoor Temperature Accuracy | plus or minus 0.3 degrees C |
| Indoor Temperature Range | 0 to +60 degrees C |
| Indoor Temperature Accuracy | plus or minus 1 degree C |
| Indoor Humidity Range | 10 to 99 percent RH |
| Indoor Humidity Accuracy | plus or minus 5 percent |
| Outdoor Humidity Range | 1 to 99 percent RH |
| Outdoor Humidity Accuracy | plus or minus 3 percent |
| Barometric Pressure Range | 300 to 1100 hPa |
| Barometric Pressure Accuracy | plus or minus 3 hPa |
| Rain Volume | 0 to 9999 mm |
| Rain Resolution | 0.3 mm below 1000 mm, 1 mm above 1000 mm |
| Rain Accuracy | Under 15 mm: plus or minus 1 mm; 15 to 9999 mm: plus or minus 7 percent |
| Wind Speed Range | 0 to 50 m/s |
| Wind Speed Accuracy | 2 to 10 m/s: plus or minus 0.3 m/s; 10 to 50 m/s: plus or minus 10 percent |
| Wind Direction | 0 to 360 degrees, plus or minus 10 degrees |
| Sunlight Index Range | 0 to 200,000 lux |
| Sunlight Index Accuracy | plus or minus 15 percent |
| UV Index Range | 1 to 15+ |
| UV Index Accuracy | plus or minus 1 level |
| Transmission Interval | 16 s |
| Transmission Range | 100 m open area, around 30 m under most conditions |
| Transmission Frequency | 433 MHz |
| Wi-Fi Standard | 802.11 b/g/n |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Line of Sight | 20 m |
| Console Power | 3 x AAA 1.5V alkaline or lithium cells, not included |
| Sensor Power | 3 x AA 1.5V alkaline or lithium cells, not included |
| Solar Panel | Auxiliary power, does not charge batteries |
Materials and Construction
- Moulded plastic housing for the outdoor sensor
- Integrated solar panel on the sensor body
- Weather sealed battery compartment sized for 3 x AA cells
How It Is Made
Outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit is ageing tested before it leaves the factory
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to reproduce transport and mast loading
- Smog ageing to check the housing and seals
- Final ageing test on every unit before packing
Customisation Options
- Own-label printing and retail packaging
- Console pairing to a customer's existing UCTECH-protocol display
- Alternative battery and solar configurations on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs Separate indoor console and outdoor sensor with wired connection
No cable run needed, but the wired version offers continuous power and no battery replacement
vs LoRa-based weather stations
433MHz is lower cost and sufficient for a single property; LoRa is better for long-range or multi-sensor sites
vs Wi-Fi-only outdoor sensors
The FT0365 sensor uses 433MHz, so it works even if the Wi-Fi signal is weak at the sensor location
Use Guide
- Mount the outdoor sensor at least 2m above ground and clear of obstructions
- Align the sensor’s direction mark to true north before securing the mast
- Use lithium cells in the outdoor sensor for sites that drop below freezing
- Pair the sensor with the console before mounting it on the mast
- Check the wind cups and rain collector for debris at the start of each season
FT0365 WiFi Weather Station Questions
What is the real range between the sensor and the console
100m in open air. Through walls, foliage and a roof, plan for around 30m, which covers a typical house and garden.
How often does the sensor update
Every 16 seconds, which is short enough that gusts show up rather than being averaged out.
Does the solar panel charge the batteries
No. The panel supplies power during daylight and reduces the load on the AA cells, so they last longer than in a battery-only sensor.
Can it work with a console we already sell
If that console is on the UCTECH 433MHz protocol, yes. Send us the model and we will confirm before you order.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
