FT0390 WIFI Large Screen Professional Weather Station with PM2.5
The FT0390 is a WiFi-connected weather station with a large screen and integrated outdoor sensor, designed for brands needing a complete, own-label solution without developing their own RF or firmware stack. It measures indoor and outdoor temperature, humidity, wind speed and dir
What This Model Is For
The FT0390 is a WiFi-connected weather station with a large screen and integrated outdoor sensor, designed for brands needing a complete, own-label solution without developing their own RF or firmware stack. It measures indoor and outdoor temperature, humidity, wind speed and direction, barometric pressure, rainfall, UV, sunlight, PM2.5, and provides real-time data upload to wunderground and WeatherCloud. The console runs on solar assist power, with the panel acting as an auxiliary supply rather than charging the battery. It supports 2.4GHz WiFi and displays weather forecast, moon phase, and high/low alarms across all key parameters.
- Integrated outdoor sensor eliminates separate mast and wiring, reducing site complexity
- WiFi 2.4GHz connectivity enables real-time data upload to wunderground and WeatherCloud
- Solar panel reduces battery drain by carrying daytime load, extending cell life

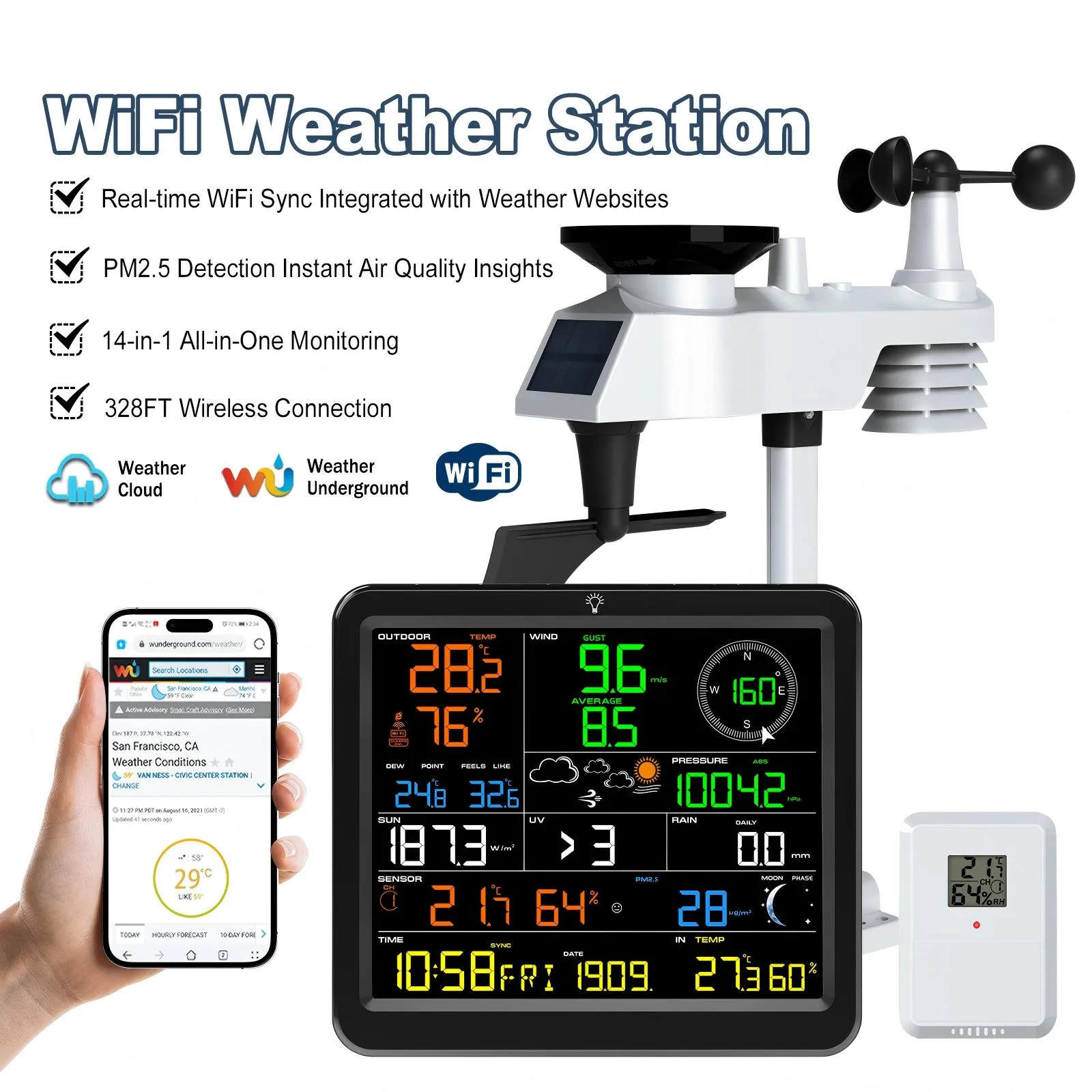

- Large screen with adjustable backlight supports wall mounting or desk use
- All sensor data is manually calibratable, including temperature, humidity, pressure, wind, rainfall, and sunlight
Product Images
Where It Is Used
- Consumer electronics brands launching an own-label weather station with no in-house RF or firmware team
- Distributors replacing a weather station that failed after one winter due to poor ageing performance
- Agricultural integrators needing a site-wide weather display with PM2.5 and UV monitoring
- Building services and HVAC teams using real-time data for climate control decisions
- Cold chain and warehouse operators tracking indoor and outdoor conditions for compliance
Who It Is For
- Consumer electronics brands sourcing an all-in-one weather station with own-label capability
- Distributors replacing a weather station that failed under rain, humidity, or vibration stress
- Agricultural and horticultural equipment suppliers bundling environmental monitoring
- HVAC and building integrators needing a low-maintenance, solar-assisted console
- Cold chain and logistics operators monitoring environmental conditions across facilities
Problems It Solves
- Brands unable to fund an RF and firmware team but need a full weather station with WiFi and app integration
- Sensors that fail after one season due to poor waterproofing, vibration, or humidity ageing
- Weather stations that cannot upload data to public platforms like wunderground or WeatherCloud
- Battery-only consoles requiring frequent cell changes in high-use environments
- Lack of PM2.5 and UV monitoring in standard weather stations for health and safety use cases
Technical Features
- Large screen console with 3-level adjustable backlight for visibility in low light
- Integrated outdoor sensor with low power indicator and 433MHz RF link to console

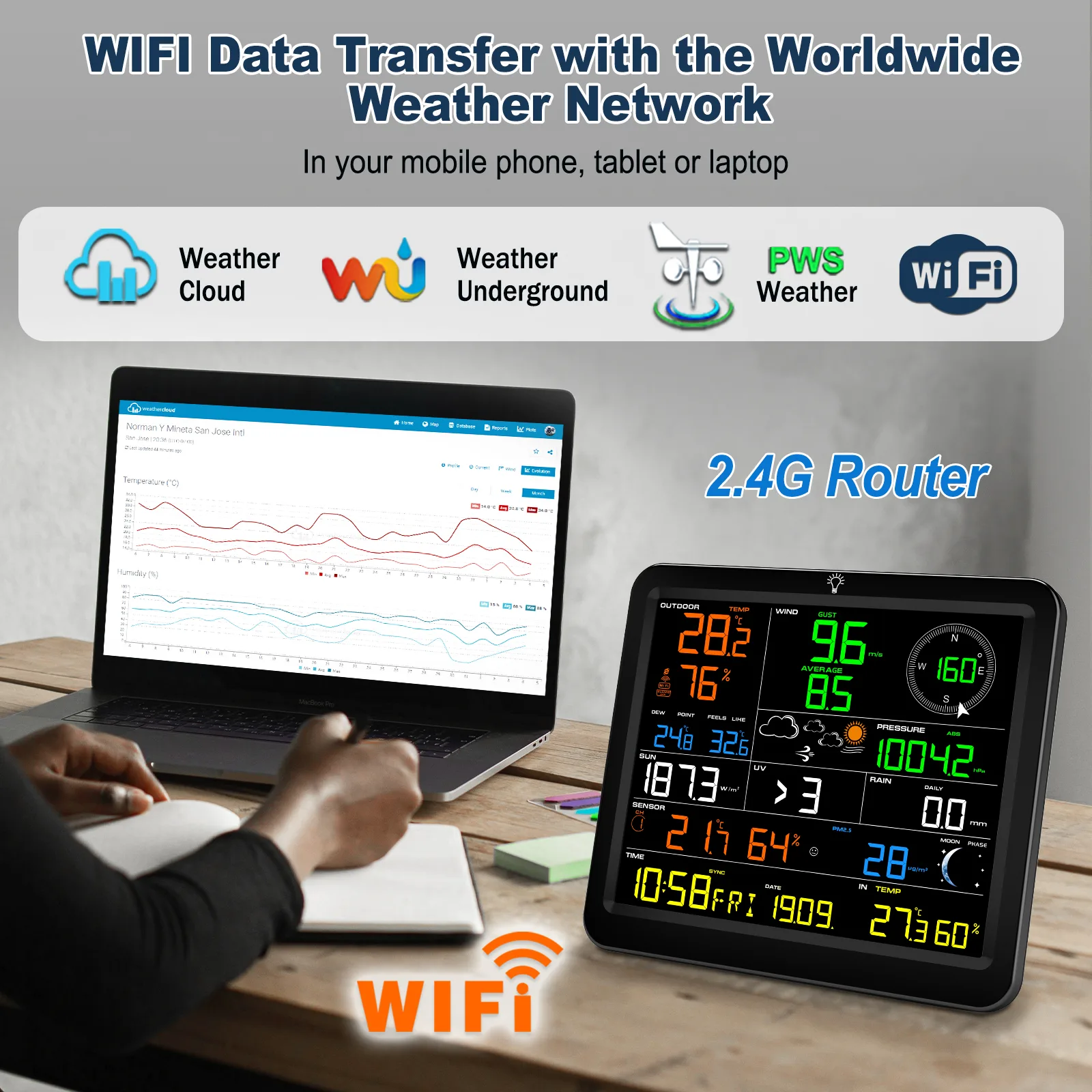

- WiFi 2.4GHz connection for real-time data upload to wunderground and WeatherCloud
- Supports time sync via internet, calendar, alarm 1 and 2, snooze function
- Displays indoor and outdoor temperature, humidity, dew point, heat index, and feels like
- Wind speed and gust display in multiple units (m/s, km/h, mph, knots, bft, ft/s) with 2-minute and 10-minute averages
- Wind direction shown via icon and numeric data across 0-360 degrees
- Barometric pressure in mmHg, inHg, or hPa with absolute or relative mode and high alarm
- Rainfall data in mm or inch with rate, 24-hour, weekly, monthly, and total accumulation
- PM2.5 or PM10 particle concentration monitoring with high alarm
- UV and sunlight index in W/m², fc, or lux with high alarm
- Min/Max records with manual clear or automatic 24-hour reset
- Manual calibration for all sensor inputs including temperature, humidity, pressure, wind, rainfall, and sunlight
- Solar panel provides auxiliary power during daylight, not battery charging
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Display Type | Large screen with 3-level adjustable backlight |
|---|---|
| PM2.5 | Monitored with high alarm, not specified accuracy |
| WiFi Range | Depends on router and site conditions, 2.4GHz only |
| Data Upload | Real-time to wunderground and WeatherCloud |

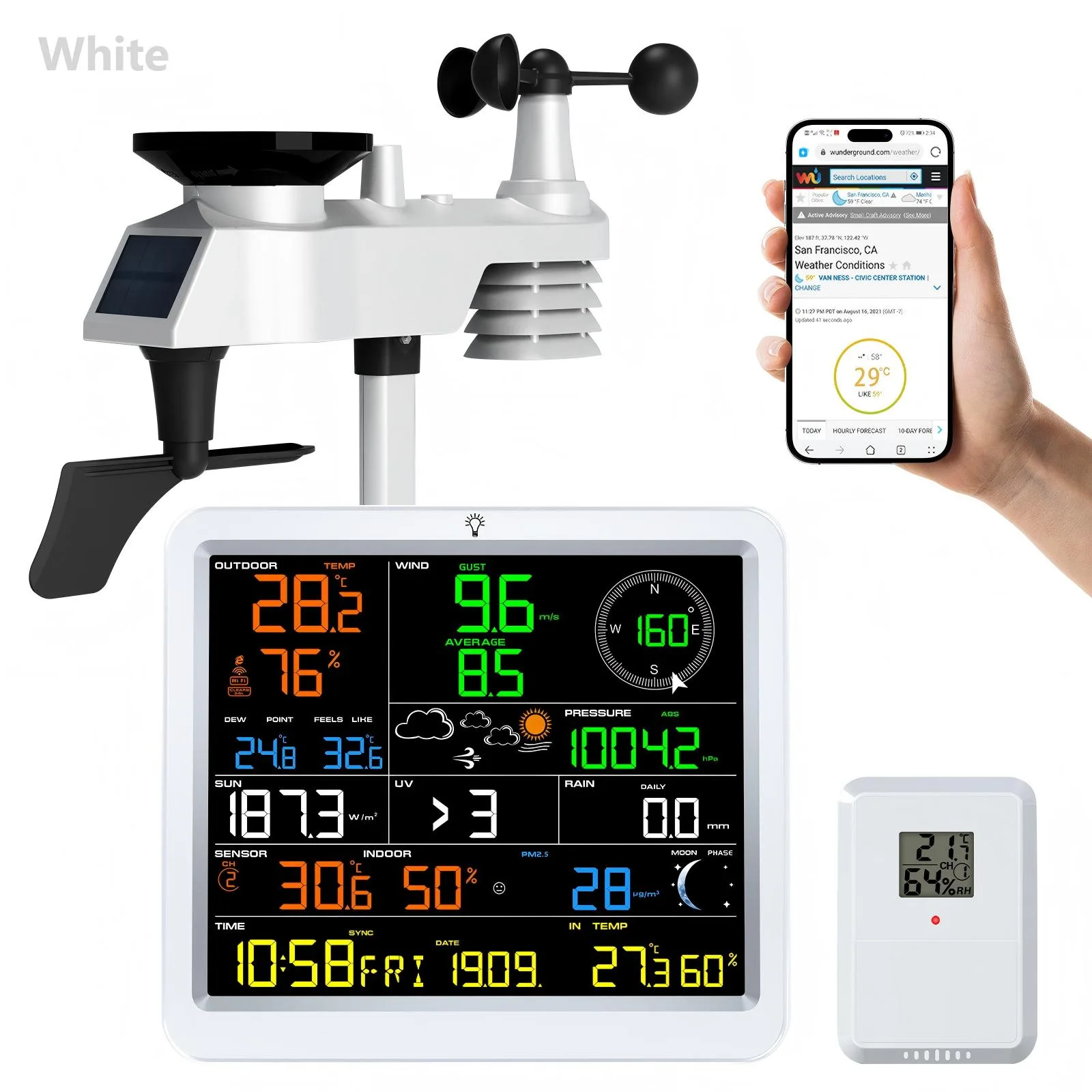

| Mounting | Wall hanging or desk freestanding |
Figures we could not verify against our own published documentation are held back rather than printed: Connection, Power, Outdoor Sensor Range, Wind Speed, Wind Direction, Barometric Pressure, Rainfall, UV Index, Transmission Interval, Dimensions. Ask us and we will confirm them in writing.
Materials and Construction
- Moulded plastic housing for the console and outdoor sensor
- Integrated solar panel on the console body
- Weather sealed battery compartment sized for 4 x AAA cells
How It Is Made
Console and outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit undergoes final ageing test before packing
Quality Control
- Rainfall and waterproof testing on assembled console and outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast mounting stress
- Smog ageing to evaluate housing and seal durability
- Final ageing test on every unit before packaging
Customisation Options
- Own-label printing and retail packaging
- Console firmware configured to match customer’s existing UCTECH-protocol display
- Alternative battery and solar configurations on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs Separate console and outdoor sensor with 433MHz RF
Integrated sensor reduces mast hardware and cabling, but limits sensor placement flexibility
vs Wired weather station with RS485 or USB connection
No cable run needed, but requires a power source at the sensor location
vs LoRa-based weather station
433MHz is sufficient for a single property; LoRa is better for large sites or multiple sensors
Use Guide

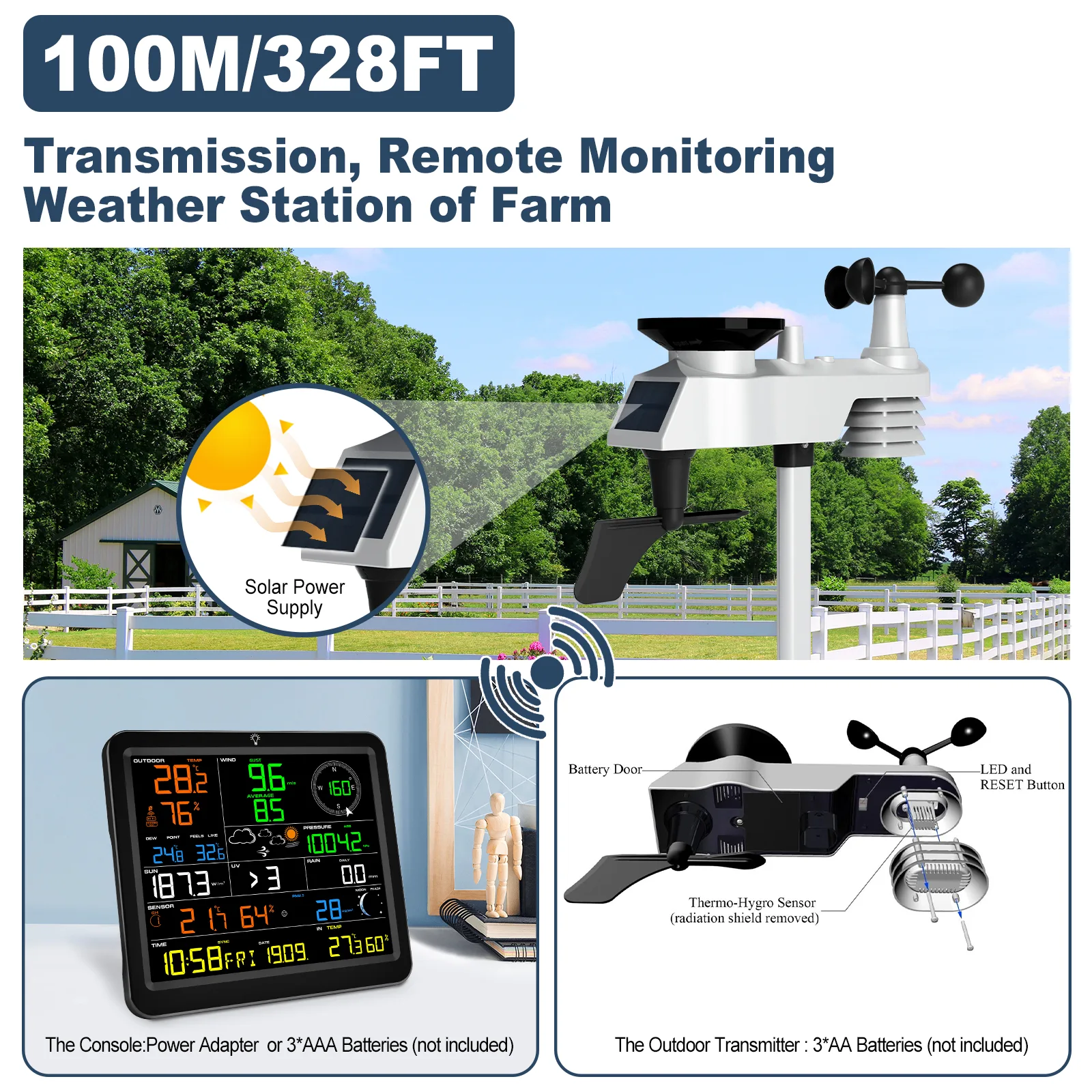

- Mount the console in a location with stable WiFi 2.4GHz signal and clear line of sight to the outdoor sensor
- Install the outdoor sensor at least 2 meters above ground, clear of obstructions
- Align the sensor direction marking to true north before securing the mast
- Use lithium AAA cells in cold climates to maintain performance below freezing
- Pair the console with the outdoor sensor before mounting the sensor on the mast
- Clear the min/max records manually or wait for the 24-hour automatic reset
- Check the outdoor sensor housing and wind cups for debris at the start of each season
FT0390 WIFI Large Screen Professional Weather Station with PM2.5 Questions
What is the real range between the console and outdoor sensor
433MHz RF link reaches up to 100m in open air. Through walls, foliage, or a roof, expect around 30m.
How often does it update the outdoor data
Real-time update via 433MHz RF, with no fixed interval — data is sent as soon as a change exceeds the threshold.
Does the solar panel charge the batteries
No. The solar panel supplies power during daylight and reduces battery drain, but does not charge the cells.
Can it upload data to wunderground and WeatherCloud
Yes. The console connects to 2.4GHz WiFi and uploads real-time data to both wunderground and WeatherCloud.
What is the lead time and minimum order
Email [email protected] with your target ship date and order quantity. We will confirm lead time and MOQ by return email.
Which certifications does it carry
TBC. Request the current certificate set for your destination market before placing the order.
