FT0355 WiFi Weather Station
The FT0355 WiFi Weather Station is a complete indoor console and integrated outdoor sensor system that measures temperature, humidity, wind, rain, barometric pressure, UV, and sunlight levels. It transmits data every 16 seconds over a 433MHz link to a console that connects to a 2
What This Model Is For
The FT0355 WiFi Weather Station is a complete indoor console and integrated outdoor sensor system that measures temperature, humidity, wind, rain, barometric pressure, UV, and sunlight levels. It transmits data every 16 seconds over a 433MHz link to a console that connects to a 2.4GHz Wi-Fi network, enabling real-time uploads to weather services like Weather Underground and WeatherCloud. The outdoor sensor uses solar assist to extend battery life, and the console runs on three AAA batteries. It is designed for brands needing a full weather station with a single supplier and a consistent protocol across sensor and display.
- Integrated outdoor sensor with 433MHz transmission, eliminating the need for separate RF modules
- 16 second update interval ensures gusts and rapid changes are captured, not averaged
- Solar assist on the outdoor sensor reduces battery drain in sunny conditions
- Wi-Fi connectivity allows real-time data upload to public weather networks
- All sensor data is available on a single console with adjustable backlight and alarm settings
Product Images
Where It Is Used
- Consumer electronics brands launching an own-label weather station without an in-house RF team
- Distributors replacing a weather station that failed after one season due to battery or RF issues
- Agricultural integrators needing a weather station that reports wind gusts and rainfall for irrigation decisions
- Marine and leisure equipment suppliers bundling a weather display with boat or pool monitoring systems
- HVAC and building services integrators using real-time outdoor data for climate control adjustments
Who It Is For
- Consumer electronics brands sourcing a complete weather station with own-label capability
- Distributors replacing a weather station that failed in rain, humidity, or vibration
- Agricultural and horticultural suppliers needing a low-maintenance outdoor sensor
- Integrators who need a battery-powered sensor with Wi-Fi upload and no cabling
- Building services teams requiring a console that displays real-time weather data for site operations
Problems It Solves
- Weather stations that report averaged data and miss short-term wind gusts or rainfall spikes
- Sensors that fail after one winter due to poor sealing or battery drain in high humidity
- RF links that drop out beyond 30m, especially through walls or foliage
- Console systems that require separate sensors and complex pairing for each data type
- Lack of real-time data upload to public weather networks for brand visibility
Technical Features
- Integrated outdoor sensor with 433MHz transmission every 16 seconds
- Outdoor temperature sensing from -40 to +60 degrees C with 0.3 degrees C accuracy
- Outdoor humidity sensing from 1 to 99 percent RH with 3 percent accuracy
- Wind speed from 0 to 50 m/s with 0.3 m/s accuracy between 2 and 10 m/s
- Wind direction resolved across 0 to 360 degrees with 10 degrees accuracy
- Barometric pressure from 300 to 1100 hPa with 3 hPa accuracy
- Rainfall volume up to 9999 mm with 0.3 mm resolution below 1000 mm
- UV index from 1 to 15+ with 1 level accuracy, sunlight index up to 200,000 lux

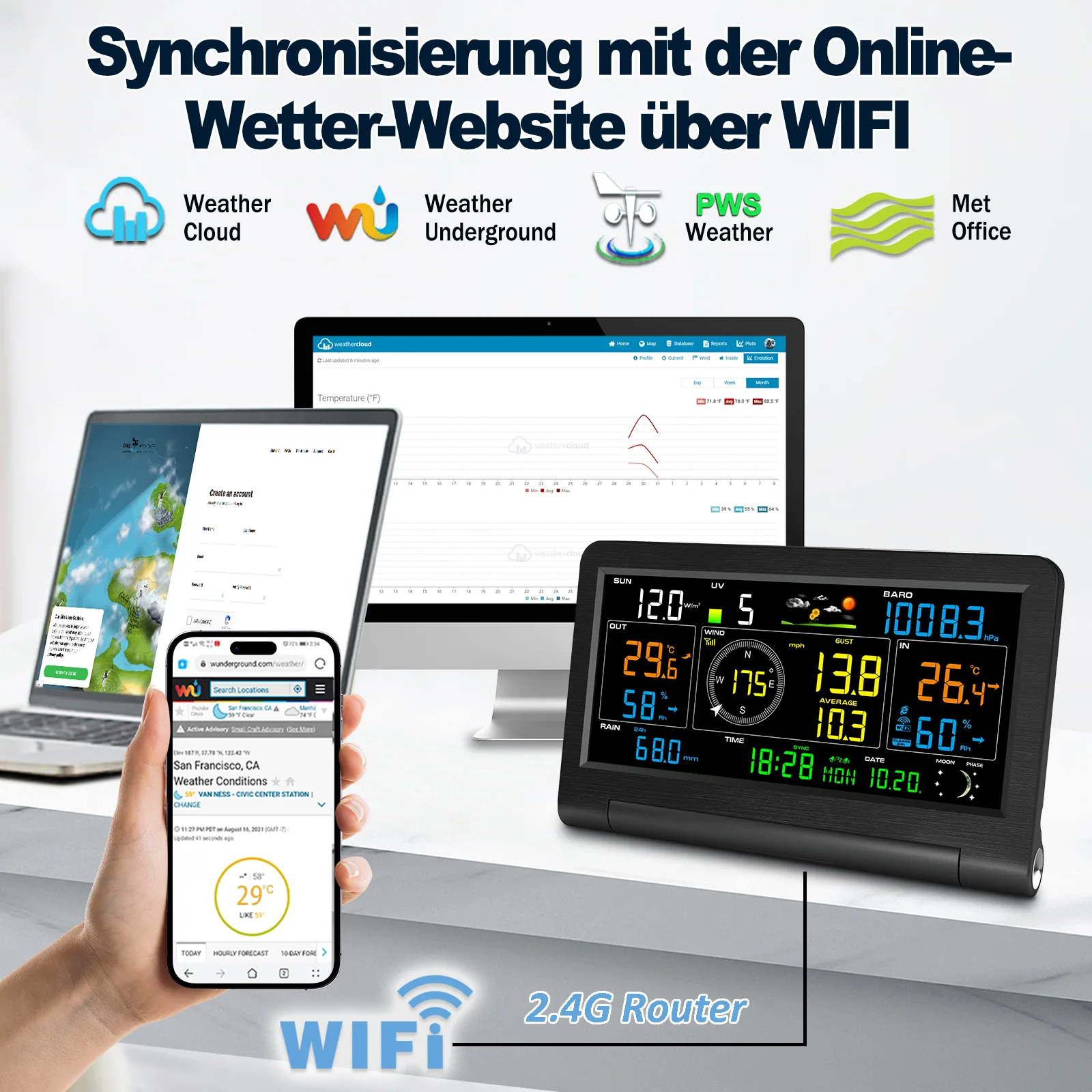

- Console connects to 2.4GHz Wi-Fi and uploads data to Weather Underground and WeatherCloud
- Solar panel on the outdoor sensor acts as auxiliary power, not a battery charger
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Outdoor Temperature Range | -40 to +60 degrees C |
|---|---|
| Outdoor Temperature Accuracy | plus or minus 0.3 degrees C |
| Indoor Temperature Range | 0 to +60 degrees C |
| Indoor Temperature Accuracy | plus or minus 1 degree C |
| Indoor Humidity Range | 10 to 99 percent RH |
| Indoor Humidity Accuracy | plus or minus 5 percent |
| Outdoor Humidity Range | 1 to 99 percent RH |
| Outdoor Humidity Accuracy | plus or minus 3 percent |
| Barometric Pressure Range | 300 to 1100 hPa |
| Barometric Pressure Accuracy | plus or minus 3 hPa |
| Rain Volume | 0 to 9999 mm |
| Rain Resolution | 0.3 mm below 1000 mm, 1 mm above 1000 mm |
| Rain Accuracy | Under 15 mm: plus or minus 1 mm; 15 to 9999 mm: plus or minus 7 percent |
| Wind Speed Range | 0 to 50 m/s |
| Wind Speed Accuracy | 2 to 10 m/s: plus or minus 0.3 m/s; 10 to 50 m/s: plus or minus 10 percent |
| Wind Direction | 0 to 360 degrees, plus or minus 10 degrees |
| Sunlight Index Range | 0 to 200,000 lux |
| Sunlight Index Accuracy | plus or minus 15 percent |
| UV Index Range | 1 to 15+ |
| UV Index Accuracy | plus or minus 1 level |
| Transmission Interval | 16 s |

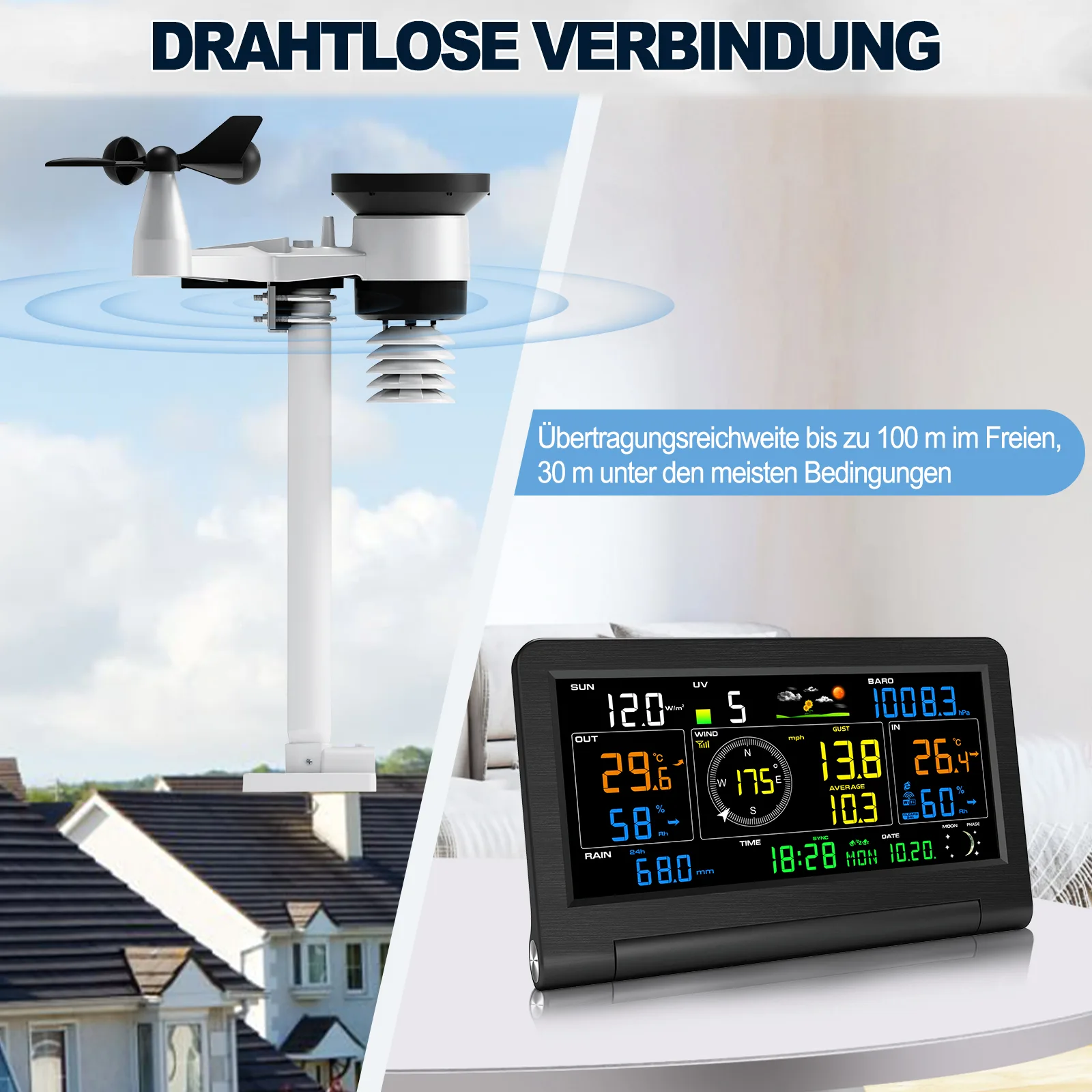

| Transmission Range | 100 m open area, around 30 m in most conditions |
| Transmission Frequency | 433 MHz |
| Wi-Fi Standard | 802.11 b/g/n |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Line of Sight | 20 m |
| Console Power | 3 x AAA 1.5V alkaline or lithium batteries, not included |
| Outdoor Sensor Power | 3 x AA 1.5V alkaline or lithium batteries, not included |
| Solar Assist | Integrated solar panel, auxiliary power only, not a charger |
Materials and Construction

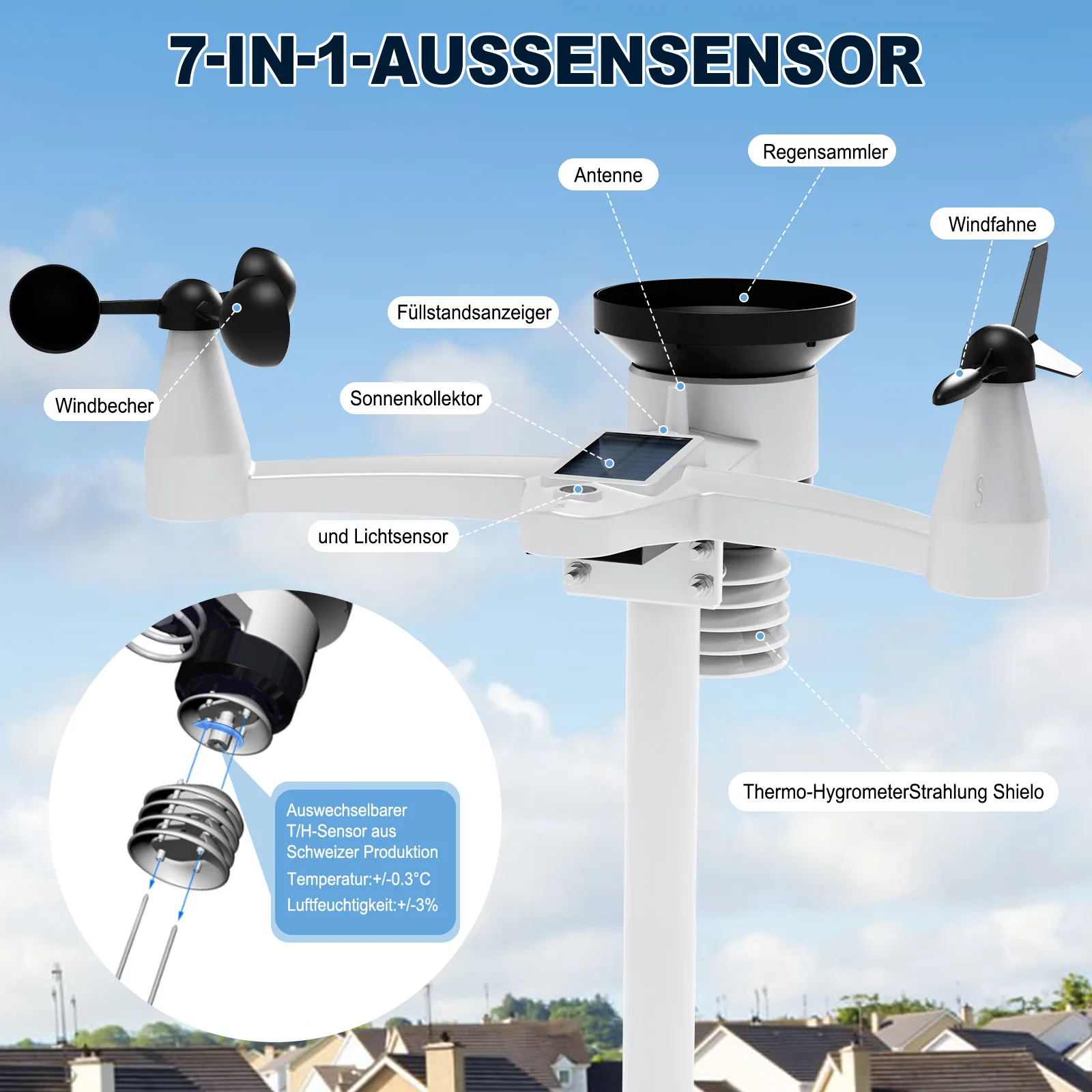

- Moulded plastic housing for the outdoor sensor
- Integrated solar panel on the outdoor sensor body
- Weather sealed battery compartment sized for 3 x AA cells
How It Is Made
Outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Sensor modules are tested for wind, temperature, and humidity before final assembly
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit is ageing tested before it leaves the factory
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast loading
- Smog ageing to check housing and seal integrity
- Final ageing test on every unit before packing
Customisation Options
- Own-label printing and retail packaging
- Console firmware configured to match a customer’s existing protocol
- Alternative battery types (lithium or alkaline) on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs Separate indoor console and outdoor sensor with different RF protocols
One protocol ensures seamless pairing and reduces integration risk
vs Wired weather stations requiring cable runs
No trenching or conduit needed, but battery life is shorter without solar assist
vs LoRa-based sensors in the FT0310 or FT0832 range
433MHz is lower cost and sufficient for a single property; LoRa is better for large sites
Use Guide
- Mount the outdoor sensor clear of walls and roof edges, ideally 2m above the nearest obstruction
- Align the direction marking to true north before tightening the mast clamp
- Use 3 x AA lithium cells for sites that drop below freezing
- Pair the sensor with the console before mounting it on the mast
- Check the solar panel for debris and clean it at the start of each season
FT0355 WiFi Weather Station Questions
What is the real range between the sensor and the console
100m in open air. Through walls, foliage, or a roof, plan for around 30m, which covers a typical house and garden.
How often does it update
Every 16 seconds, which is short enough to capture gusts and rapid changes without averaging them out.
Does the solar panel charge the batteries
No. The solar panel supplies power during daylight and reduces the load on the AA batteries, extending their life.
Can it work with a console we already sell
If your console uses the UCTECH 433MHz protocol, yes. Send us the model and we will confirm before you order.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
