FT0214 Wireless Weather Station Wind Gauge
The FT0214 Wireless Weather Station Wind Gauge is a complete indoor-outdoor system that measures wind speed and direction on a single outdoor sensor head, while also reporting indoor and outdoor temperature and humidity. It transmits data every 16 seconds over a 433MHz link to a
What This Model Is For

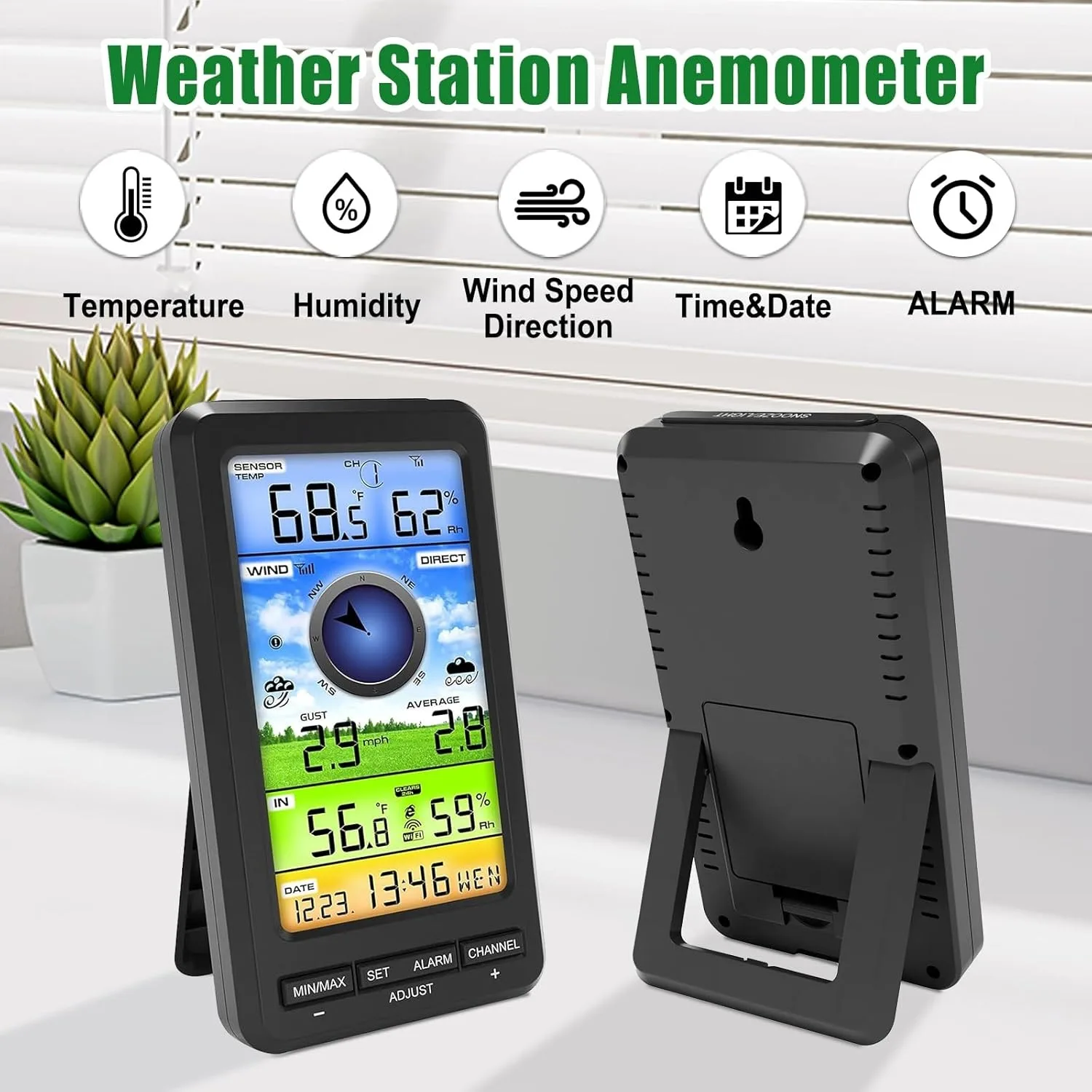

The FT0214 Wireless Weather Station Wind Gauge is a complete indoor-outdoor system that measures wind speed and direction on a single outdoor sensor head, while also reporting indoor and outdoor temperature and humidity. It transmits data every 16 seconds over a 433MHz link to a console that supports up to eight temperature and humidity sensors, with dip switches for channel setup. The system operates on standard batteries and includes wind chill, dew point, alarms, and a backlight for visibility in low light.
- One outdoor sensor handles wind speed, direction, temperature, and humidity, reducing mounting points and wiring
- 16 second wind update interval captures gusts without averaging them out

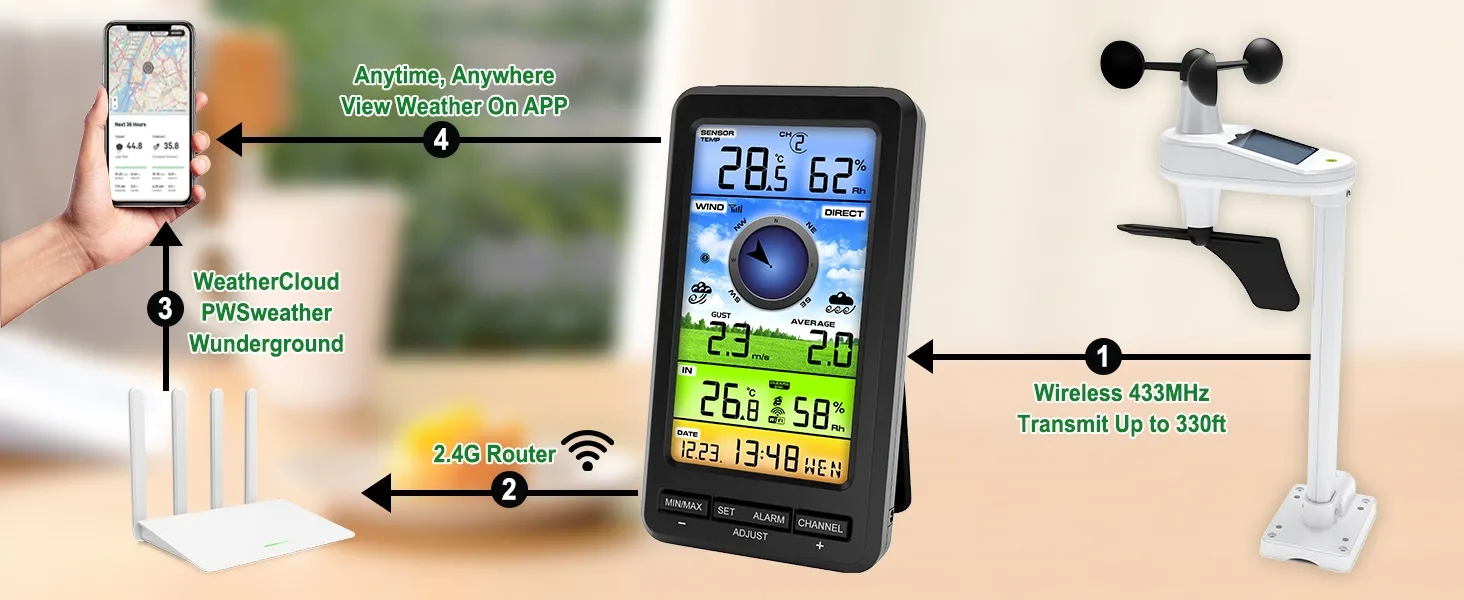

- 433MHz transmission reaches 100m in open air, suitable for most residential and small commercial sites
- Supports up to eight T/H sensors on the same console, enabling multi-point monitoring
- Dip switches allow channel assignment without needing a custom app or firmware
Product Images
Where It Is Used
- Rooftop and garden weather stations for consumer electronics brands with own-label programs
- Agricultural monitoring where wind gusts impact irrigation or spraying decisions
- Marina and leisure facility weather displays for safety and user information
- HVAC and building services monitoring in small commercial buildings
- Cold chain logistics sites needing real-time wind and temperature data
Who It Is For
- Consumer electronics brands launching a weather station with wind capability
- Distributors replacing a wind sensor that failed after one season
- Agricultural suppliers bundling weather data with irrigation or greenhouse controls
- Integrators needing a battery-powered sensor for sites where cabling is impractical
Problems It Solves
- Wind sensors that report averaged values and miss critical gusts
- Multiple sensors on separate masts increasing failure points and installation complexity
- Battery-only sensors requiring frequent replacements in high-use environments
- RF links that drop out beyond a garden’s edge without a gateway or repeater
Technical Features

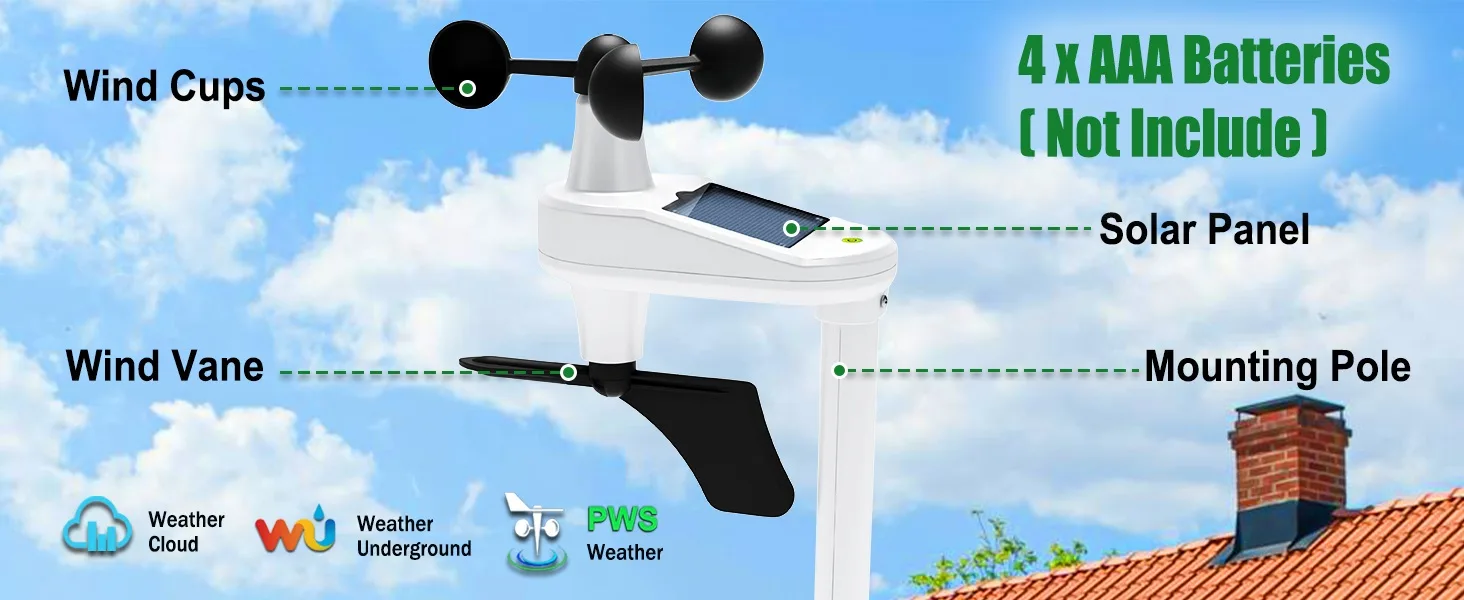

- Outdoor wind speed and direction sensor with integrated temperature and humidity sensing
- 433MHz one-way transmission with 16 second wind update interval
- Wind speed measured from 0 to 50 m/s with accuracy of plus or minus 0.3 m/s between 2 and 10 m/s, plus or minus 10 percent above 10 m/s
- Wind direction resolved across 0 to 360 degrees with accuracy of plus or minus 10 degrees
- Indoor and outdoor temperature sensing from -40 to +60 degrees C, accuracy plus or minus 1 degree C
- Indoor and outdoor humidity sensing from 10 to 99 percent RH, accuracy plus or minus 5 percent
- Wind chill and dew point calculations displayed on the console
- High and low alarms for temperature, humidity, and wind speed
- Alarm clock and calendar functions on the console
- Bright backlight for visibility in low light conditions
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Wind Speed Range | 0 to 50 m/s |
|---|---|
| Wind Speed Accuracy | 2 to 10 m/s: plus or minus 0.3 m/s; 10 to 50 m/s: plus or minus 10 percent |
| Wind Direction | 0 to 360 degrees, plus or minus 10 degrees |
| Outdoor Temperature Range | -40 to +60 degrees C, plus or minus 1 degree C |
| Indoor Temperature Range | 0 to +60 degrees C, plus or minus 1 degree C |
| Outdoor Humidity Range | 10 to 99 percent RH, plus or minus 5 percent |
| Indoor Humidity Range | 10 to 99 percent RH, plus or minus 5 percent |
| Wind Sensor Transmission Interval | 16 s |
| T/H Sensor Transmission Interval | 60 s |

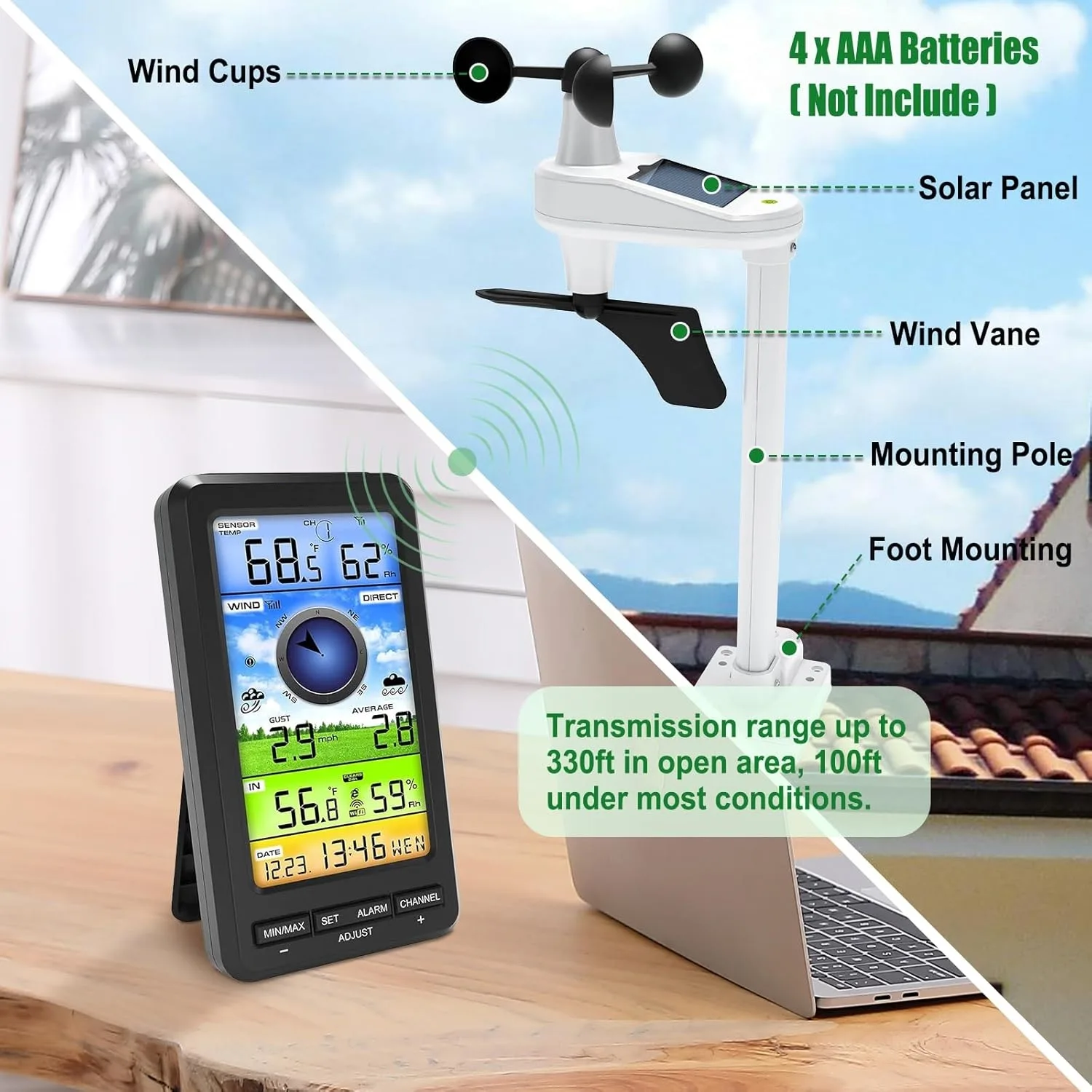

| Transmission Range | 100 m open area, around 30 m under most conditions |
| Transmission Frequency | 433 MHz |

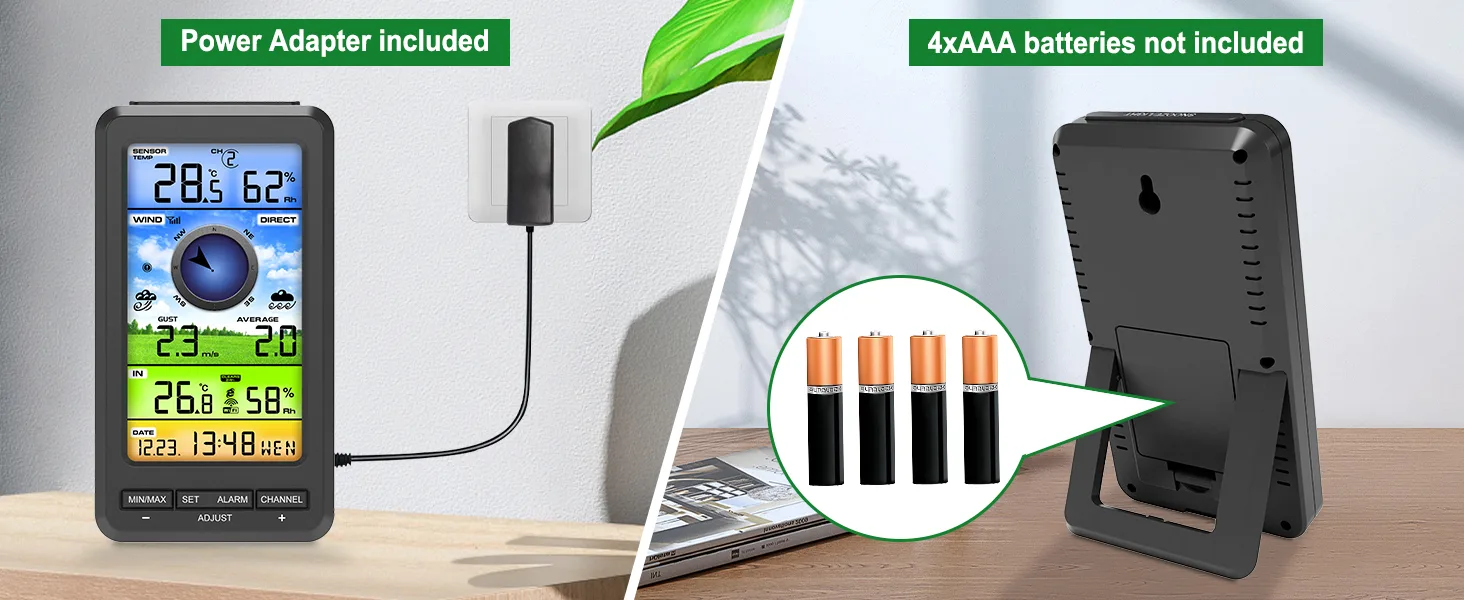

| Base Station Power | 4 x AA 1.5V alkaline or lithium batteries, not included |
| Base Station Adaptor | 6V to 500mA |
| Thermo-Hygrometer Sensor Power | 2 x AAA alkaline or lithium batteries, not included |
| Wind Sensor Power | 4 x AAA alkaline or lithium batteries, not included |
Materials and Construction
- Moulded plastic housing for the outdoor sensor head
- Weather sealed battery compartment sized for 4 x AAA cells
- Integrated solar panel on the sensor body
How It Is Made
Outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Wind sensor components are balanced and tested before final housing
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit is ageing tested before it leaves the factory
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast mounting stress
- Smog ageing to evaluate housing and seal durability
- Final ageing test on every unit before packing
Customisation Options
- Own-label printing and retail packaging
- Console pairing to a customer's existing UCTECH-protocol display
- Alternative battery configurations on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs Separate wind speed and direction sensors
One head reduces mounting hardware and failure points, but limits the ability to place speed and direction sensors at different heights
vs Wired sensors such as the FT019T
No cable run required, but range is limited to 100m in open air and battery life is longer than a wired alternative
vs LoRa sensors in our FT0310 and FT0832 range
433MHz is lower cost and sufficient for a single property; LoRa is better for large sites with multiple sensors across a field
Use Guide
- Mount the sensor clear of walls and roof edges, ideally 2m above the nearest obstruction
- Align the direction marking to true north before tightening the mast clamp
- Use AAA lithium cells for sites that drop below freezing
- Set dip switches on the sensor before pairing with the console
- Check the wind sensor bearings and clear debris at the start of each season
FT0214 Wireless Weather Station Wind Gauge Questions
What is the real range between the sensor and the console
100m in open air. Through walls, foliage, and a roof, plan for around 30m, which covers a typical house and garden.
How often does the wind sensor update
Every 16 seconds, which is short enough to capture gusts without averaging them out.
Can the solar panel charge the batteries
No. The panel supplies power during daylight and the AAA cells carry the load through the night and dull weather, extending cell life.
Can it work with a console we already sell
If that console uses the UCTECH 433MHz protocol, yes. Send us the model and we will confirm before you order.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
