Precision Zirconia ZrO2 Ceramic Blade
Non-magnetic zirconia blades that hold an edge in wet and corrosive cutting.
- ColorWhite
- MOQ10 pcs
- MaterialZirconia

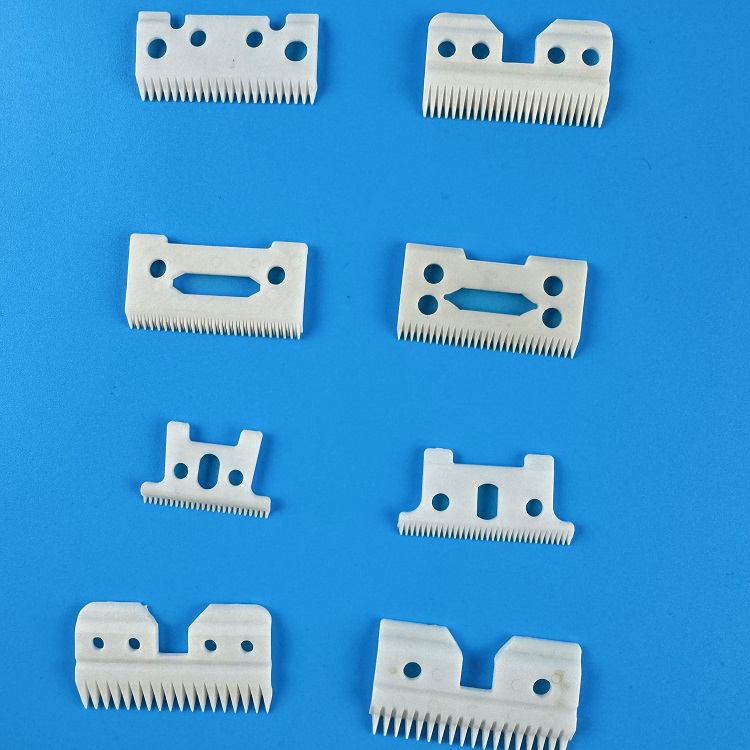

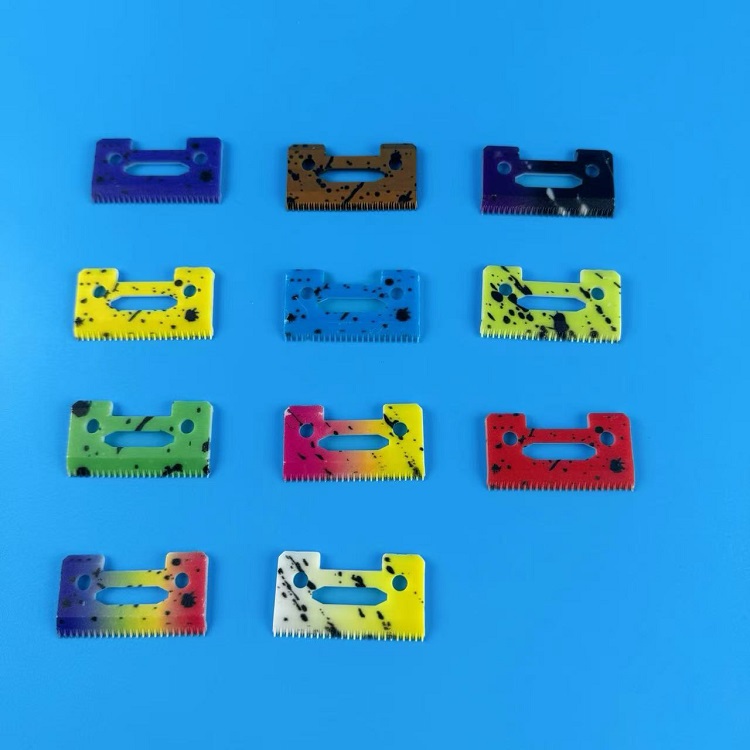

Zirconia Ceramic Replacement Clipper Blade
18th and 25th replacement clipper blades with up to 5x the life of steel.
| Size | 18th, 25th |
|---|---|
| Color | White, black, yellow, purple |
| MOQ | 100 pcs |
| Sample delivery | 3-5 days |
| Delivery time | 4-7 days |
Overview
Our precision ceramic clipper blades are the ideal upgrade from traditional metal blades. Made from advanced zirconia ceramic, these blades offer exceptional wear resistance and cutting performance. Compared to standard steel clipper blades, ceramic blades deliver up to 5 times longer service life, thanks to their superior hardness and low friction.
We specialize in the manufacturing of high-precision ceramic parts using advanced materials such as zirconia (ZrO2), alumina (Al2O3), silicon carbide (SiC) and silicon nitride (Si3N4). From raw material preparation, forming, surface grinding, internal and external diameter grinding, to precision CNC machining, all processes are carried out in-house under strict quality control.
Key Benefits
- Up to 5 times longer service life than standard steel clipper blades
- Superior hardness
- Low friction
- Non-magnetic
- Corrosion resistance
Problems It Solves
- Steel clipper blades dull quickly and have to be resharpened or replaced.
Application Scenarios
- Electric hair clippers
- Pet grooming clippers
- Adjustable and detachable ceramic blades
- High-speed shearing tools
Who It Is For
Specifications
| Size | 18th, 25th |
|---|---|
| Color | White, black, yellow, purple |
| MOQ | 100 pcs |
| Sample delivery | 3-5 days |
| Delivery time | 4-7 days |
Material Data
| Item | Unit | Typical value |
|---|---|---|
| Physical Properties | ||
| Colour | white | |
| Density | g/cm3 | 6.0 |
| Zirconia Content | % | 94.40% |
| Gas permeability | 0 | |
| Water Absorption | % | 0% |
| Crystal Size | um | 0.5 |
| Mechanical Properties | ||
| Rockwell Hardness (45N) | R45N | 78 |
| Vickers Hardness (Load 500g) | GPa(Kg/mm2) | 11.5 (1175) |
| Flexural Strength (20C) | MPa | 800 |
| Compressive Strength (20C) | MPa | 2000 |
| Modulus of Elasticity (20C) | GPa | > 200 |
| Fracture Toughness (20C) | MPam1/2 | 9.0 |
| Thermal Properties | ||
| Thermal Conductivity (20C-400C) | W/(m.K) | 2.5 |
| Thermal Expansion Coefficient | 10-6/C | 9.6 |
| Thermal Shock Resistance | dT C | 250 |
Manufacturing Process
- Material And Drawing ReviewWe start from your drawing, sample or performance requirement and confirm which of the five material families fits the duty.
- Powder Preparation And FormingDry pressing, hot pressing or injection moulding, chosen by the shape and the wall thickness of the part.
- High Temperature SinteringParts are sintered to full density. Zirconia reaches 6.0 g/cm3 and 99% alumina reaches 3.85 g/cm3.
- Grinding Polishing And CNCSurface grinding, internal and external diameter grinding and precision CNC machining bring the part to final size and finish.
Quality Control
We promise to provide quality assurance for all products. Parts are inspected according to your drawings and we issue an inspection report with the shipment.
We follow standard packaging protocols to protect your products during transit and provide photographic documentation of the packing and shipping process for your reference. In the event of transportation damage caused by non-human factors, we arrange a free replacement shipment.
From raw material preparation, forming, surface grinding, internal and external diameter grinding, to precision CNC machining, all processes are carried out in house under strict quality control.
Customisation Options
- Size and shape made to your drawing
- Material grade selected against the duty rather than assumed
- Surface finish, including ground and polished faces
- Colour where the material allows it
- Metallizing and plating where the part has to braze into an assembly
Our main business is OEM and ODM. Send your drawing over WhatsApp or email and we will quote the part.
Comparison With Other Materials
| Property | Zirconia | Alumina | Steatite |
|---|---|---|---|
| Flexural strength | Zirconia 800 MPa | 99% alumina 330 MPa | Steatite relatively high |
| Fracture toughness | Zirconia 9.0 MPam1/2 | 99% alumina 4 MPam1/2 | Not published |
| Max use temperature | Zirconia not rated here | 99% alumina 1650C | Steatite 1100C |
| Thermal conductivity | Zirconia 2.5 W(m.K) | 99% alumina 27.5 W(m.K) | Good |
| Density | Zirconia 6.0 g/cm3 | 99% alumina 3.85 g/cm3 | Talc based |
| Dielectric strength | Zirconia not published | 99% alumina >10 KV/mm | Excellent |
Use Guide
- Confirm the fit before you order volumeTake a free sample first. Samples ship in 4 to 7 working days and we do not charge for the part, only the freight.
- Give the critical dimension a toleranceCeramic is ground to size after sintering. Marking one dimension as critical is cheaper than treating them all as critical.
- Handle by the body, not the edgeCeramic is hard but it chips. Zirconia tolerates handling far better than alumina because its fracture toughness is more than twice as high.
- Tell us the duty, not just the shapeTemperature, fluid, load, speed, and whether the part has to insulate or stay non-magnetic, all change which grade we would quote.
Questions About This Part
Can this part be made to our drawing?
Yes. We can supply the products according to the customer's drawings, samples and performance requirement.
What is the minimum order quantity?
100 pcs
How long does a sample take?
Sample delivery is 4 to 7 working days, free of charge, freight not included.
What are the payment terms?
Payment up to 1000 USD is 100% in advance. Above 1000 USD it is 50% T/T in advance with the balance before shipment.
How will the parts be packed?
We follow standard packaging protocols and provide photographic documentation of the packing and shipping process for your reference.
