FT0345 RF Weather Station(PC Version)
The FT0345 RF Weather Station (PC Version) is a complete weather monitoring system with an integrated outdoor sensor that measures temperature, humidity, wind speed and direction, barometric pressure, rainfall, and dew point. It transmits data every 60 seconds over 433MHz RF to a
What This Model Is For
The FT0345 RF Weather Station (PC Version) is a complete weather monitoring system with an integrated outdoor sensor that measures temperature, humidity, wind speed and direction, barometric pressure, rainfall, and dew point. It transmits data every 60 seconds over 433MHz RF to a console that displays real-time readings, historical trends, and weather forecasts. The console connects to a PC via USB to upload data and store over 5,000 records, enabling long-term environmental tracking. Solar assist reduces battery drain on the outdoor sensor, extending cell life in sunny conditions.
- Integrated outdoor sensor eliminates separate mounting and wiring
- 60-second transmission interval balances data freshness and battery life
- 100m open area range at 433MHz supports a full house and garden coverage
- PC software enables data logging, graphing, and remote monitoring
- Solar assist reduces outdoor sensor battery consumption without charging cells
Product Images
Where It Is Used
- Home and office weather displays for users who want real-time data and forecasts
- Small farms and greenhouses needing daily environmental tracking without a wired system
- School science projects using live data for climate and weather lessons
- Retail or exhibition displays where a PC connection allows live data feed
- Remote monitoring of outdoor conditions in a building services or HVAC integration
Who It Is For
- Consumer electronics brands launching a weather station with PC connectivity
- Distributors needing a ready-to-sell weather station with own-label options
- Agricultural suppliers bundling weather data with irrigation or climate control
- Integrators who need a battery-powered sensor with a PC interface for site monitoring
- Hobbyists and educators requiring a low-cost, self-contained weather system
Problems It Solves
- Sensors that require a wired connection to a PC or gateway
- Systems that lose data when the console is powered off or disconnected
- Outdoor sensors that fail after one season due to poor battery management
- Weather stations that lack historical data storage or graphing
- Console-only displays that cannot be linked to a computer for analysis
Technical Features
- Integrated outdoor sensor with temperature, humidity, wind speed, wind direction, pressure, rainfall, and dew point sensing
- Console displays time, date, alarm, indoor/outdoor temp and humidity, wind, pressure, rainfall, forecast, and moon phase
- PC software uploads real-time data and stores over 5,000 records
- Solar panel provides auxiliary power to the outdoor sensor, not charging batteries
- Historical graph display for indoor and outdoor temperature, humidity, pressure, wind, and rainfall
- Manual calibration for all sensor readings, including temperature, humidity, pressure, wind, and rainfall
- Low power indicator on the outdoor sensor to signal battery status
- Adjustable backlight on the console for visibility in low light
- Supports both 12-hour and 24-hour time formats with calendar and alarm functions
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Outdoor Temperature Range | -40 to +60 degrees C (-40 to 140 degrees F) |
|---|---|
| Outdoor Temperature Accuracy | plus or minus 1 degree C (plus or minus 2 degrees F) |
| Indoor Temperature Range | 0 to +60 degrees C (32 to 140 degrees F) |
| Indoor Temperature Accuracy | plus or minus 1 degree C (plus or minus 2 degrees F) |
| Humidity Range | 10 to 99 percent RH |
| Humidity Accuracy | plus or minus 5 percent |
| Barometric Pressure Range | 300 to 1100 hPa |
| Barometric Pressure Accuracy | plus or minus 3 hPa |
| Rain Volume | 0 to 9999 mm |
| Rain Resolution | 0.3 mm below 1000 mm; 1 mm above 1000 mm |
| Rain Accuracy | Under 15 mm: plus or minus 1 mm; 15 to 9999 mm: plus or minus 7 percent |
| Wind Speed Range | 0 to 50 m/s |
| Wind Speed Accuracy | 2 to 10 m/s: plus or minus 0.3 m/s; 10 to 50 m/s: plus or minus 10 percent |
| Wind Direction | 0 to 360 degrees, plus or minus 10 degrees |
| Outdoor Transmission Interval | 60 s |
| Outdoor Transmission Range | 100 m open area, around 30 m under most conditions |
| Outdoor Transmission Frequency | 433 MHz |
| Console Power | 3 x AAA 1.5V alkaline or lithium batteries, not included |
| Outdoor Sensor Power | 3 x AA 1.5V alkaline or lithium batteries, not included |
| Data Storage | Over 5000 groups of data in console memory |
| PC Connection | USB, compatible with Windows system software |
Materials and Construction
- Moulded plastic housing for the outdoor sensor
- Integrated solar panel on the outdoor sensor body
- Weather sealed battery compartment sized for 3 x AA cells
How It Is Made
Outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit is ageing tested before it leaves the factory
Console and sensor are paired during final assembly
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast mounting
- Smog ageing to verify housing and seal integrity
- Final ageing test on every unit before packing
Customisation Options
- Own-label printing and retail packaging
- Console firmware configured to match a customer's existing UCTECH-protocol display
- Alternative battery and solar configurations on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs Separate indoor console and outdoor sensor with no PC interface
The FT0345 includes PC connectivity and data logging, which a standalone system lacks
vs Wired weather stations requiring cable runs to the sensor
No trenching or cabling needed; the RF link covers a full property
vs LoRa-based weather stations
433MHz is simpler and lower cost for a single site; LoRa is better for multi-site or long-range deployments
Use Guide
- Mount the outdoor sensor clear of obstructions, ideally 2m above ground
- Align the sensor direction mark to true north before securing the mast
- Use lithium batteries in cold climates to maintain performance below freezing
- Pair the sensor with the console before mounting it outdoors
- Check the outdoor sensor battery level monthly and replace when low
FT0345 RF Weather Station(PC Version) Questions
What is the real range between the sensor and the console
100m in open air. Through walls, foliage, and a roof, plan for around 30m, which covers a typical house and garden.
How often does the sensor update
Every 60 seconds, which balances data freshness with battery life.
Does the solar panel charge the batteries
No. The solar panel supplies power during daylight and reduces battery drain, but the batteries are not charged by it.

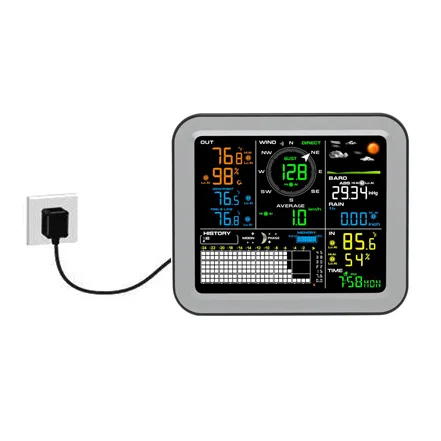

Can I connect this to a PC for data logging
Yes. The console connects via USB to Windows software, which uploads real-time data and stores over 5,000 records.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
