FT0342 RF Weather Station
The FT0342 RF Weather Station is a complete indoor-outdoor system with an integrated outdoor sensor that measures temperature, humidity, wind speed, wind direction, barometric pressure, rainfall, and dew point. It transmits data to the console every 16 seconds over a 433MHz link,
What This Model Is For
The FT0342 RF Weather Station is a complete indoor-outdoor system with an integrated outdoor sensor that measures temperature, humidity, wind speed, wind direction, barometric pressure, rainfall, and dew point. It transmits data to the console every 16 seconds over a 433MHz link, with solar assist to extend battery life. The console displays time, date, weather forecast, moon phase, and alarm thresholds for indoor and outdoor conditions. It is designed for brands needing a ready-to-market weather station without developing their own RF or firmware stack.
- Integrated outdoor sensor with solar assist reduces battery replacement frequency
- 433MHz transmission reaches 100m in open air, suitable for a single property without cabling

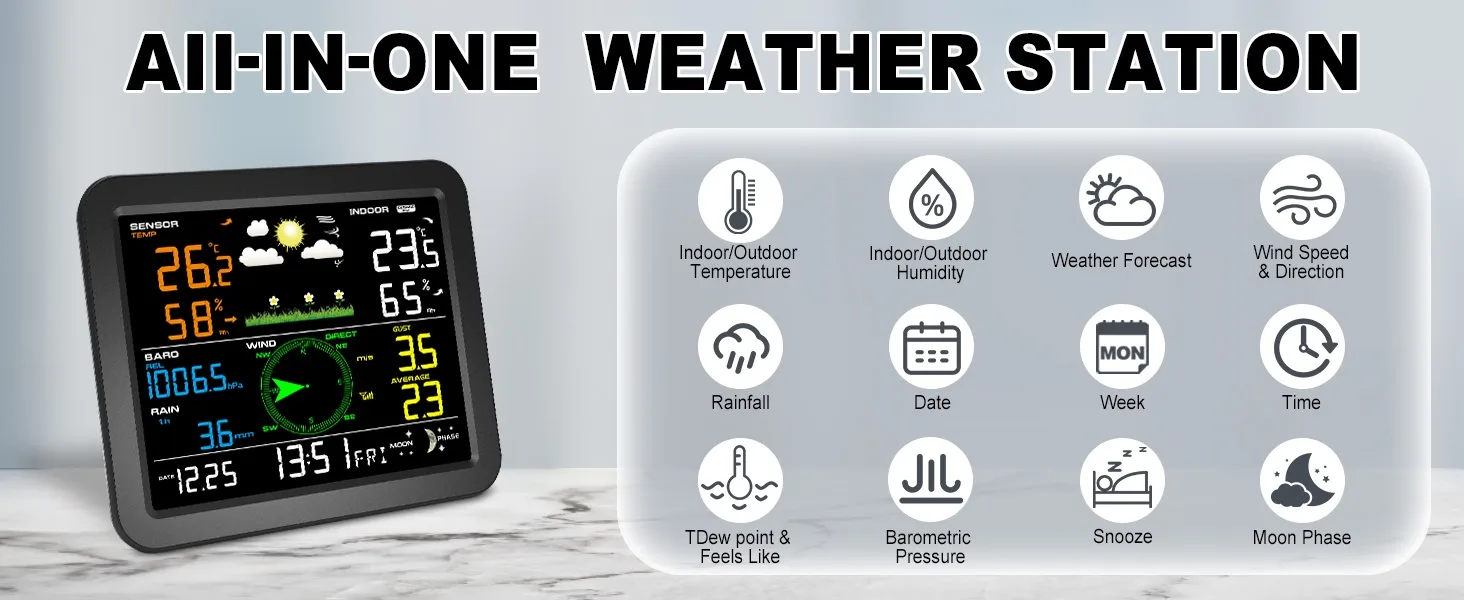

- All core weather parameters measured and displayed, including wind speed, direction, rainfall, and barometric pressure
- Console and sensor share the same protocol, enabling drop-in replacement or expansion
- Manual calibration of temperature, humidity, pressure, wind speed, and rainfall for site-specific accuracy
Product Images
Where It Is Used
- Consumer electronics brands launching an own-label weather station with minimal R&D effort
- Distributors replacing a weather station that failed after one winter due to poor battery endurance
- Horticultural suppliers bundling weather data with irrigation or greenhouse control systems
- Marine and leisure equipment integrators adding weather monitoring to docks or cabins
- Cold chain and building services teams using real-time indoor and outdoor data for HVAC optimisation
Who It Is For
- Consumer electronics brands sourcing an own-label weather station without an RF team
- Distributors replacing a sensor that failed under rain, humidity, or vibration stress
- Agricultural integrators needing wind and rainfall data across a small farm or greenhouse
- HVAC and building services engineers monitoring indoor-outdoor conditions for efficiency
- Marine and pool equipment suppliers adding weather data to control or display units
Problems It Solves
- Weather stations that require a wired connection to the sensor, increasing installation complexity
- Battery-only sensors that need replacement every 3–6 months in sunny conditions
- RF links that fail beyond 30m, making placement near the console the only option
- Sensors that report averaged wind or rainfall, missing real-time events like sudden gusts or downpours
- Console systems that cannot be calibrated in the field, leading to drift over time
Technical Features

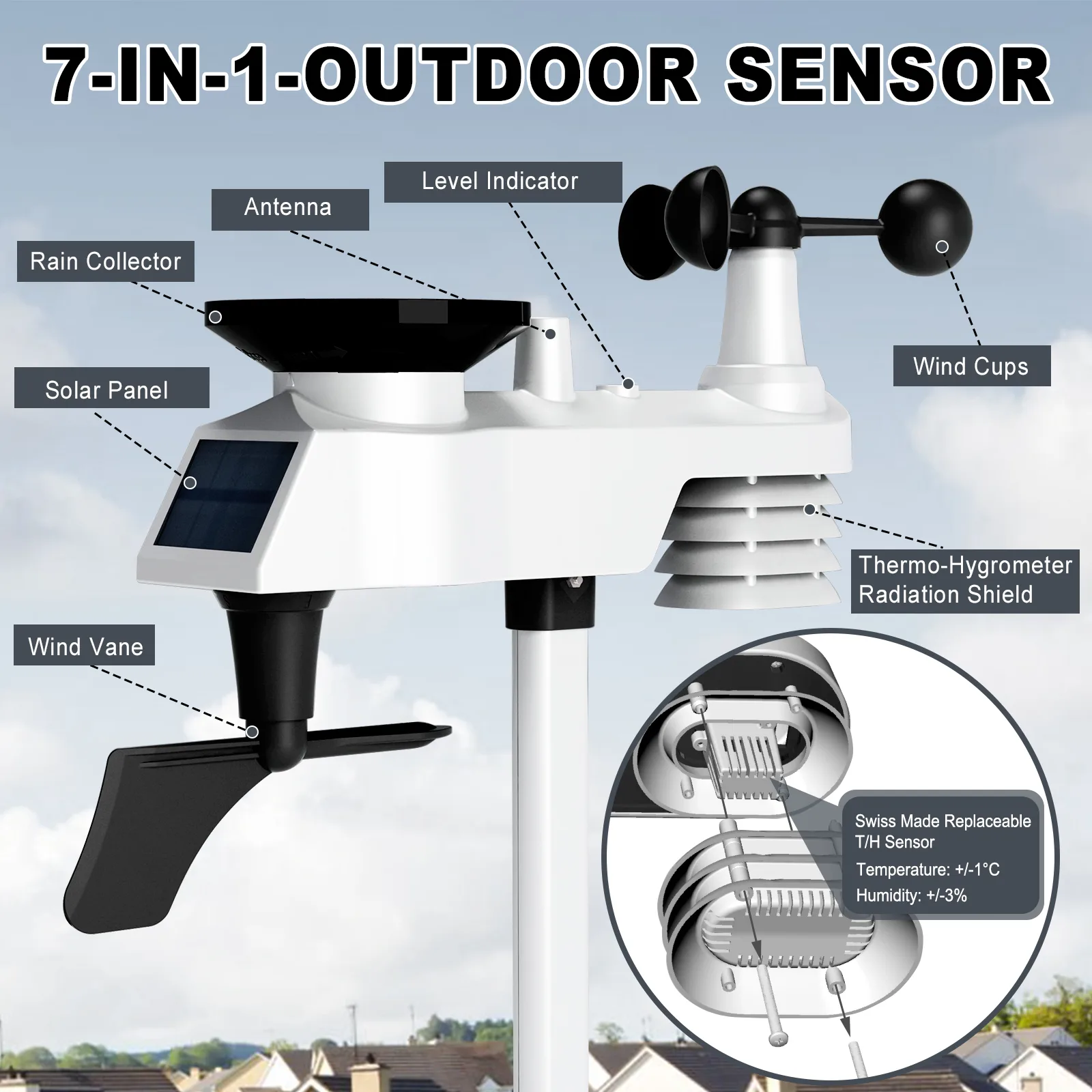

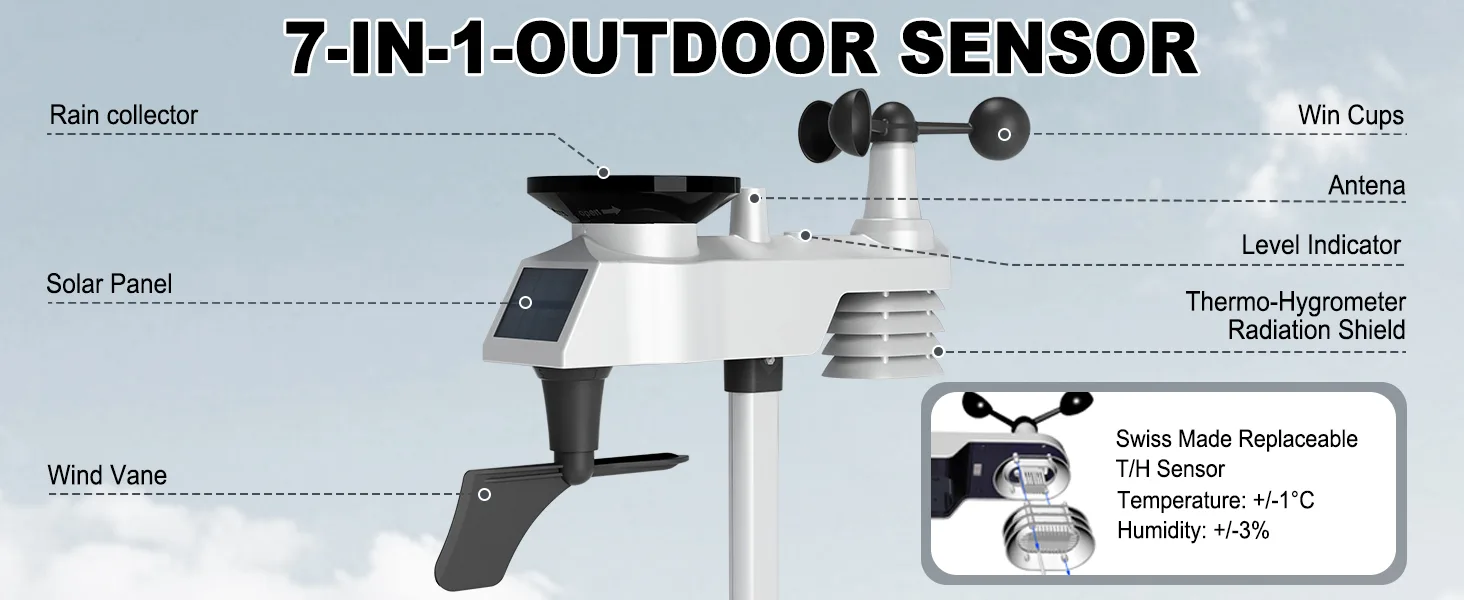

- Integrated outdoor sensor with solar assist for extended battery life

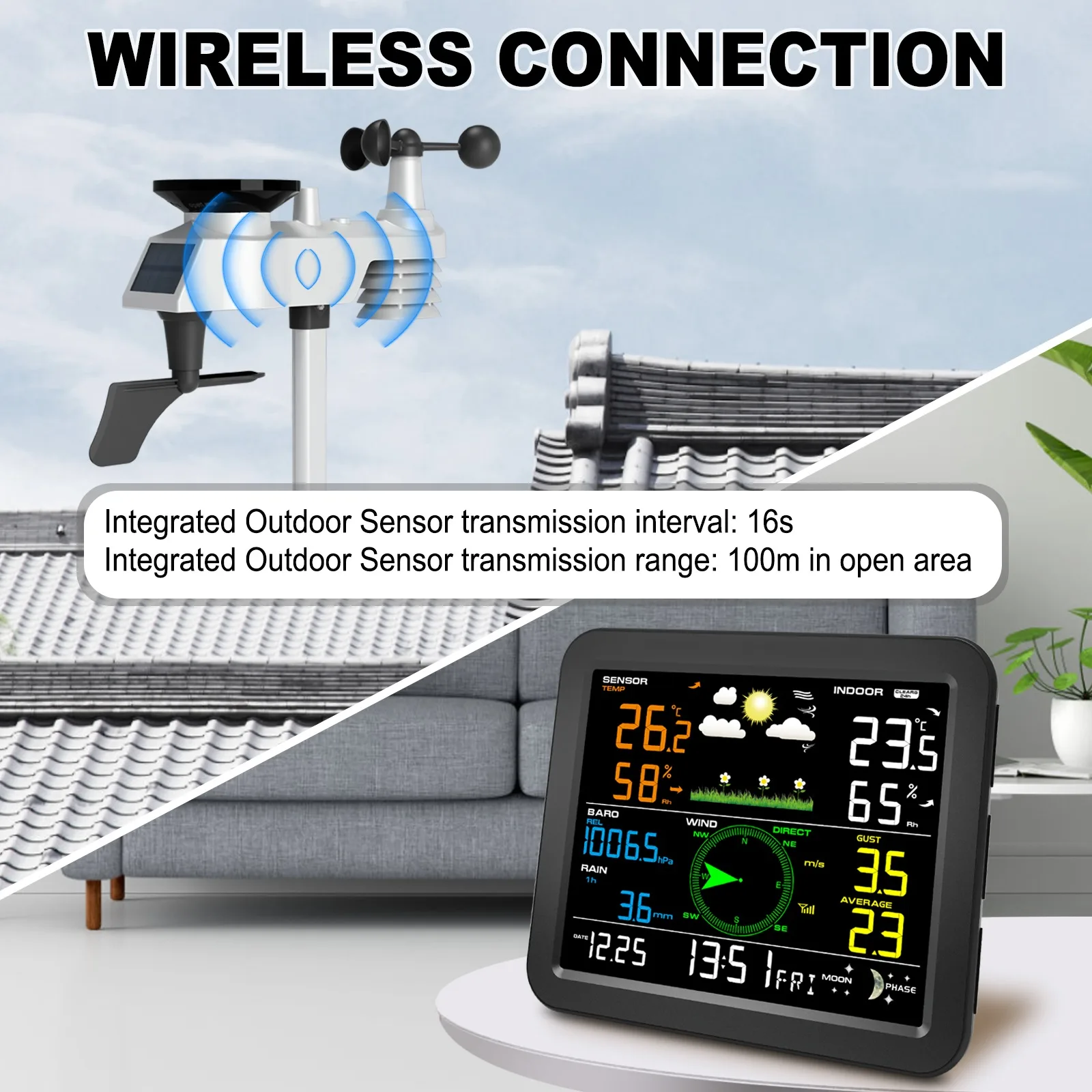

- 433MHz one-way transmission with 16-second update interval
- Measures wind speed in m/s, km/h, mph, knots, and Beaufort scale
- Displays wind direction via icon and numeric data
- Barometric pressure in hPa, inHg, or mmHg with absolute or relative mode
- Rainfall data for 1 hour, 24 hours, week, month, and total with high alarm

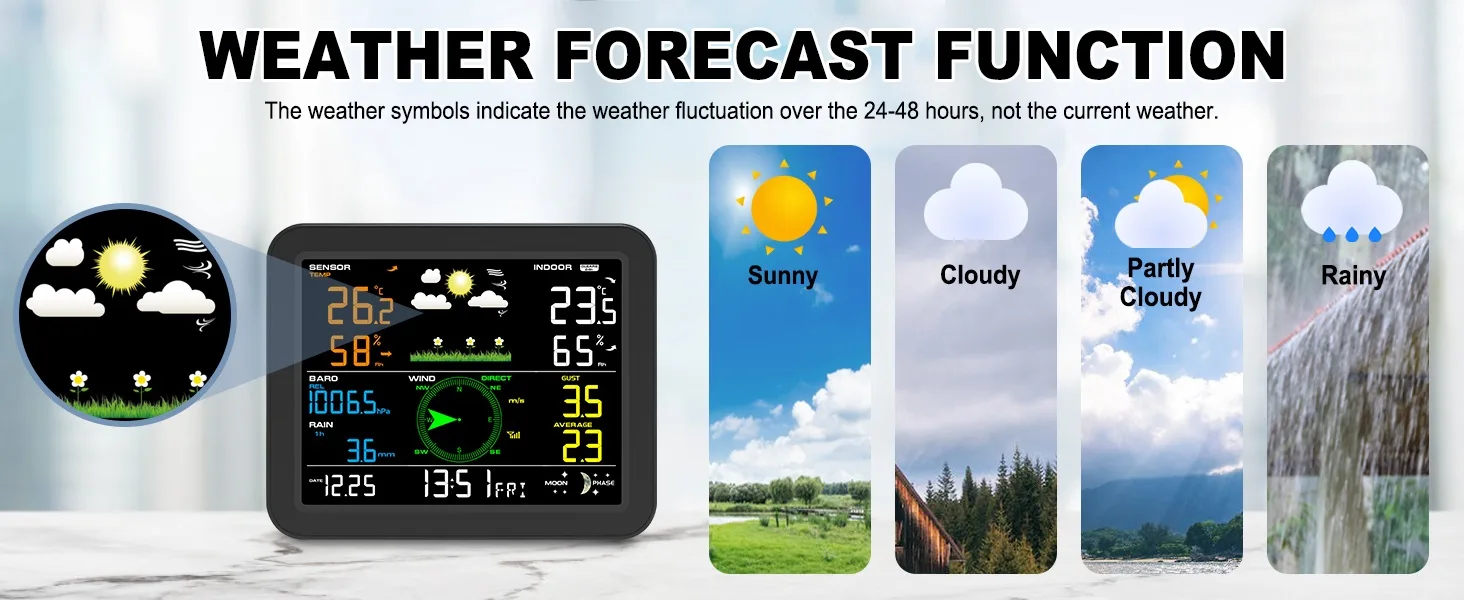

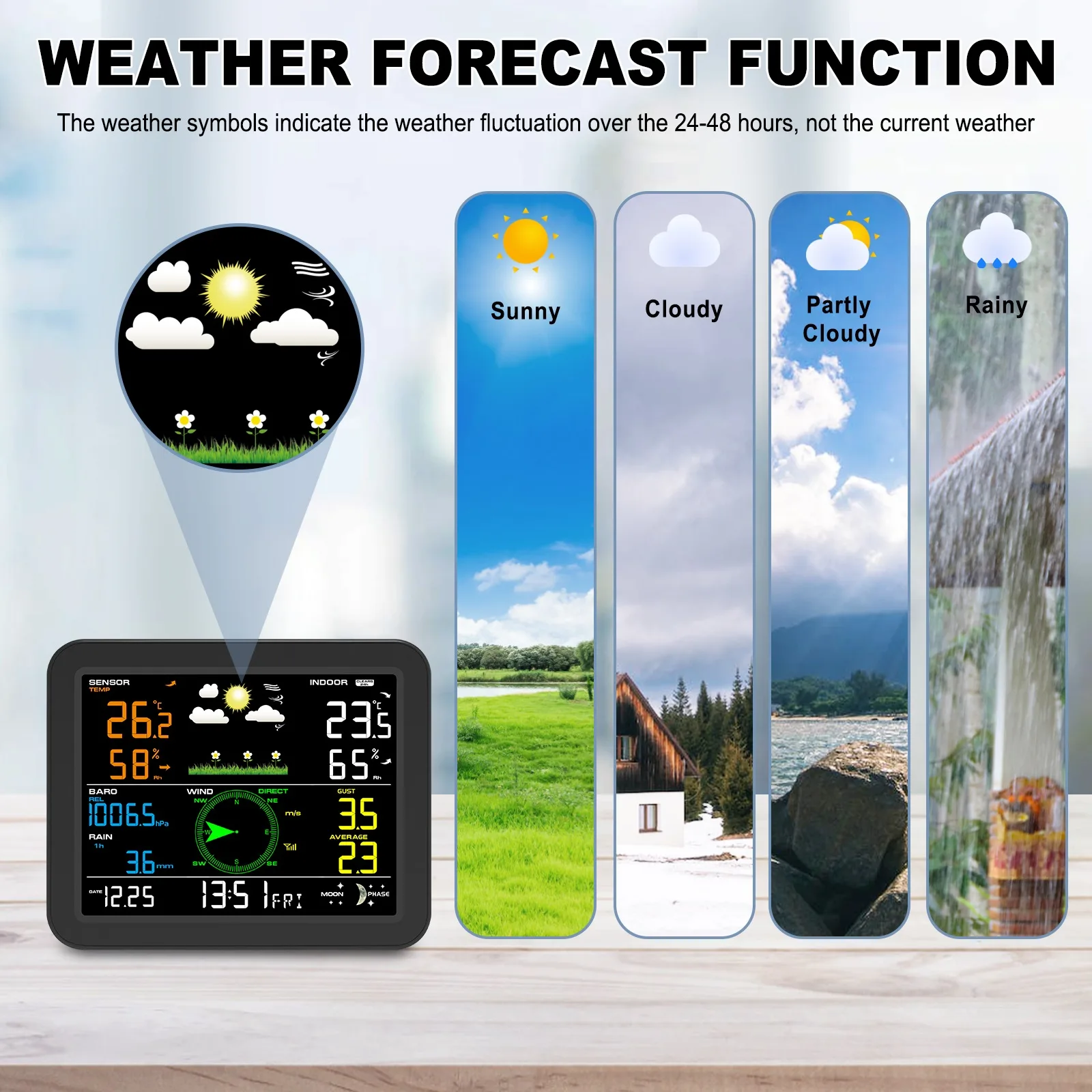

- Weather forecast based on pressure trend: Sunny, Partly Cloudy, Cloudy, Rainy
- Moon phase display and dual alarm settings with snooze function
- Indoor and outdoor temperature, humidity, dew point, and feels like temperature
- Manual calibration of all sensor inputs for site-specific accuracy
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Transmission Interval | 16 s |
|---|---|
| Outdoor Humidity Accuracy | Plus or minus 3 percent |
| Barometric Pressure Accuracy | Plus or minus 1 hPa |
| Console Power | 3 x AAA 1.5V alkaline or lithium batteries, not included |
| Outdoor Sensor Power | 3 x AA 1.5V alkaline or lithium batteries, not included |
| Solar Panel | Integrated, auxiliary power only, does not charge batteries |

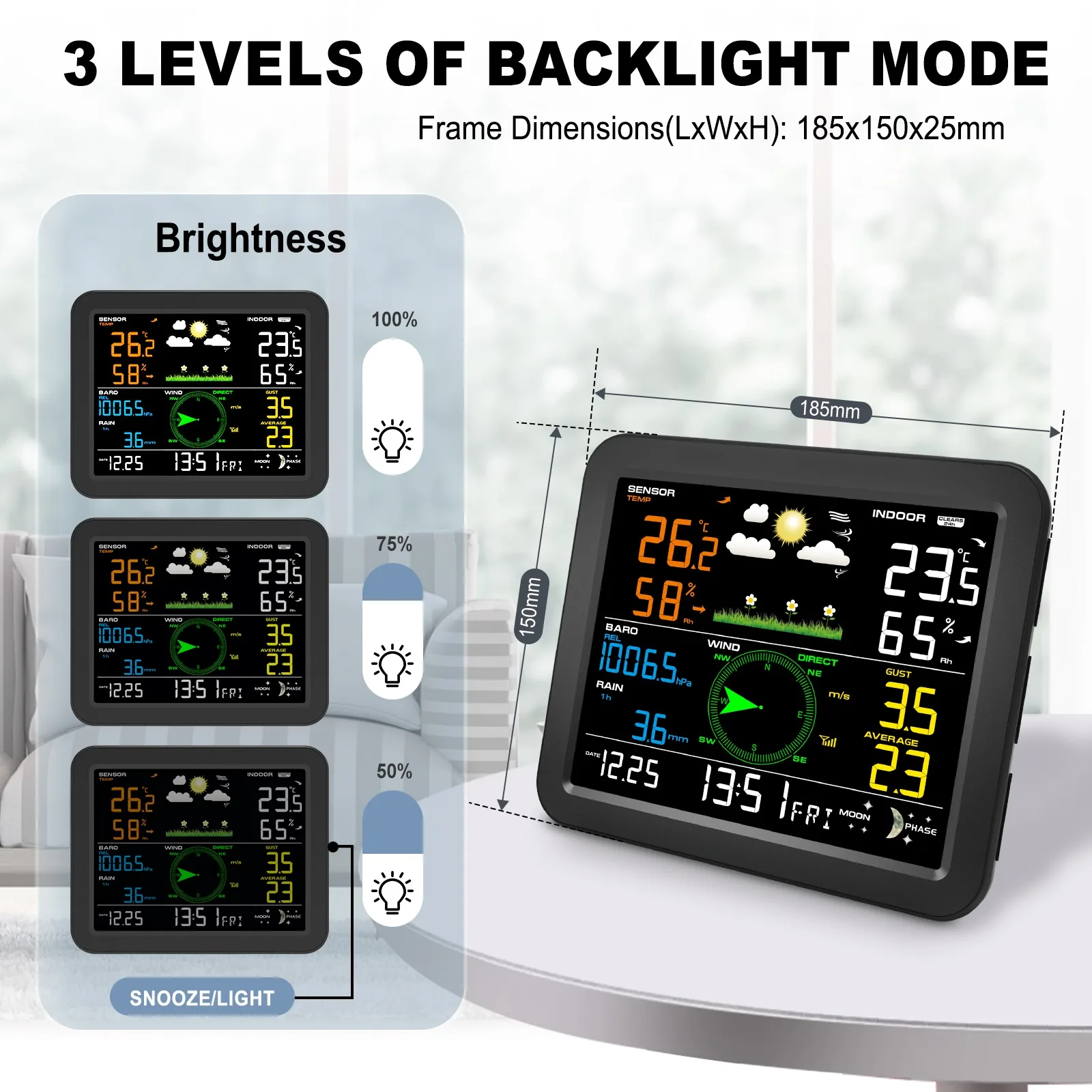

| Console Dimensions | 142 x 120 x 22 mm (5.6 x 4.7 x 0.87 inch) |
| Outdoor Sensor Dimensions | 330 x 280 x 150 mm (13 x 11 x 5.9 inch) |
Figures we could not verify against our own published documentation are held back rather than printed: Transmission Frequency, Transmission Range, Wind Speed Range, Wind Speed Accuracy, Wind Direction, Outdoor Temperature Range, Outdoor Temperature Accuracy, Outdoor Humidity Range, Rainfall Range, Rainfall Resolution, Rainfall Accuracy, Barometric Pressure Range. Ask us and we will confirm them in writing.
Materials and Construction
- Moulded plastic housing for the outdoor sensor
- Integrated solar panel on the outdoor sensor body
- Weather sealed battery compartment sized for 3 x AA cells
How It Is Made
Sensor sub-assemblies are populated and soldered on our own assembly line
Outdoor sensor housing is sealed and tested for waterproof integrity
Console and sensor are paired and tested on the 433MHz protocol
Every unit is ageing tested before it leaves the factory
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast mounting stress
- Smog ageing to evaluate housing and seal durability
- Final ageing test on every unit before packaging
Customisation Options
- Own-label printing and retail packaging on request
- Console firmware updated to match a customer’s existing UCTECH-protocol display
- Alternative battery and solar configurations available on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs Separate indoor console and outdoor sensor with no solar assist
Solar assist extends battery life but adds cost; no solar version is available for lower price points
vs Wired weather stations such as the FT019T
No cable run needed, but range is limited to 100m; wired systems offer continuous power
vs LoRa-based sensors like the FT0310 or FT0832
433MHz is cheaper and sufficient for a single site; LoRa is better for large farms or multi-site monitoring
Use Guide
- Mount the outdoor sensor clear of obstructions, ideally 2m above ground
- Align the sensor’s direction marking to true north before securing the mast
- Use lithium batteries in cold climates to maintain performance below freezing
- Pair the console and sensor before mounting the outdoor unit
- Check the solar panel and battery compartment for debris at the start of each season
FT0342 RF Weather Station Questions
What is the real range between the sensor and the console

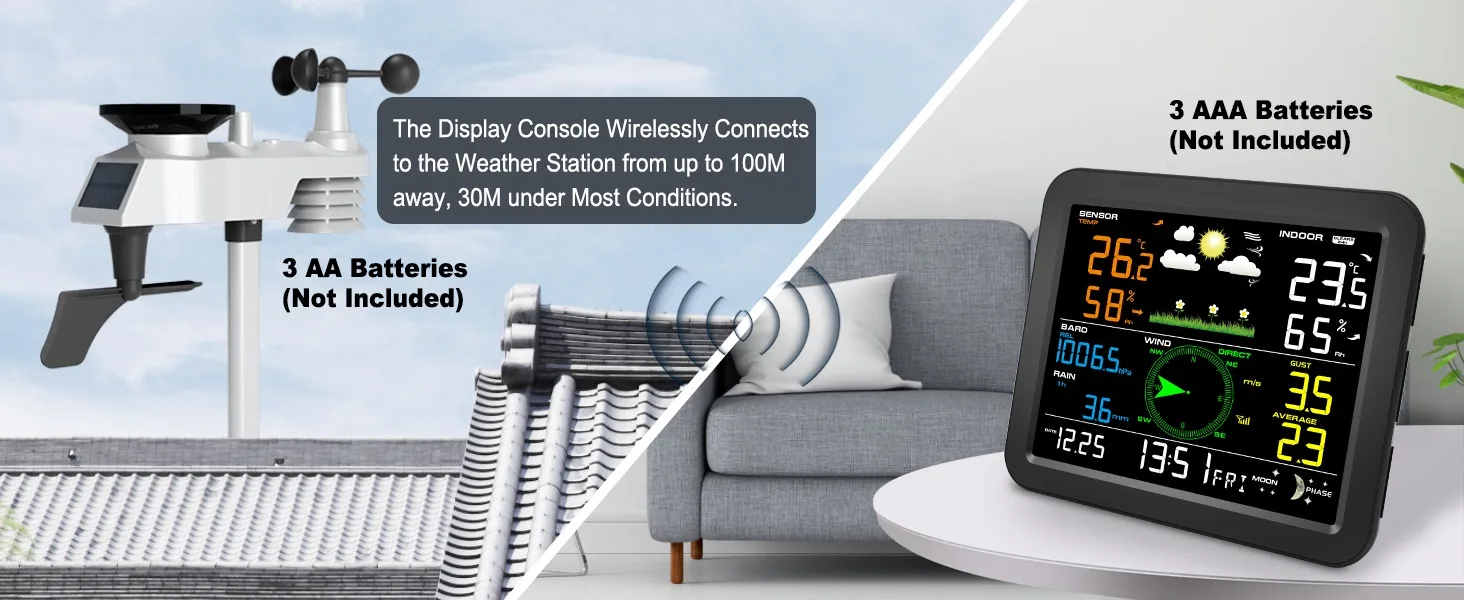

100m in open air. Through walls, foliage, or a roof, expect around 30m, which covers a typical house and garden.
How often does it update
Every 16 seconds, which captures gusts and short rainfall bursts without averaging them out.
Does the solar panel charge the batteries
No. The solar panel supplies power during daylight, reducing battery drain. The batteries are backup only.
Can it work with a console we already sell
If that console uses the UCTECH 433MHz protocol, yes. Send us the model and we will confirm before you order.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
