FT0350 RF Weather Station
The FT0350 RF Weather Station is a complete, integrated system with a console and a single outdoor sensor that measures temperature, humidity, wind speed and direction, barometric pressure, rainfall, and weather forecast. It transmits data every 16 seconds over a 433MHz link with
What This Model Is For
The FT0350 RF Weather Station is a complete, integrated system with a console and a single outdoor sensor that measures temperature, humidity, wind speed and direction, barometric pressure, rainfall, and weather forecast. It transmits data every 16 seconds over a 433MHz link with a range of up to 100m in open air, making it suitable for residential and small commercial sites without cabling. The outdoor sensor uses solar assist to extend battery life, with three AAA cells providing backup during low-light periods. The system supports manual calibration and displays both indoor and outdoor conditions with high and low alarms for all key parameters.
- One outdoor sensor with integrated solar panel reduces battery drain and extends operational life
- 433MHz transmission reaches 100m in open air without a gateway or site wiring
- 16 second update interval captures real-time changes in wind and rain, not averaged data
- All sensor data is displayed on a single console with alarm thresholds for temperature, humidity, pressure, wind, and rainfall
- Manual calibration allows fine-tuning for site-specific accuracy without firmware changes

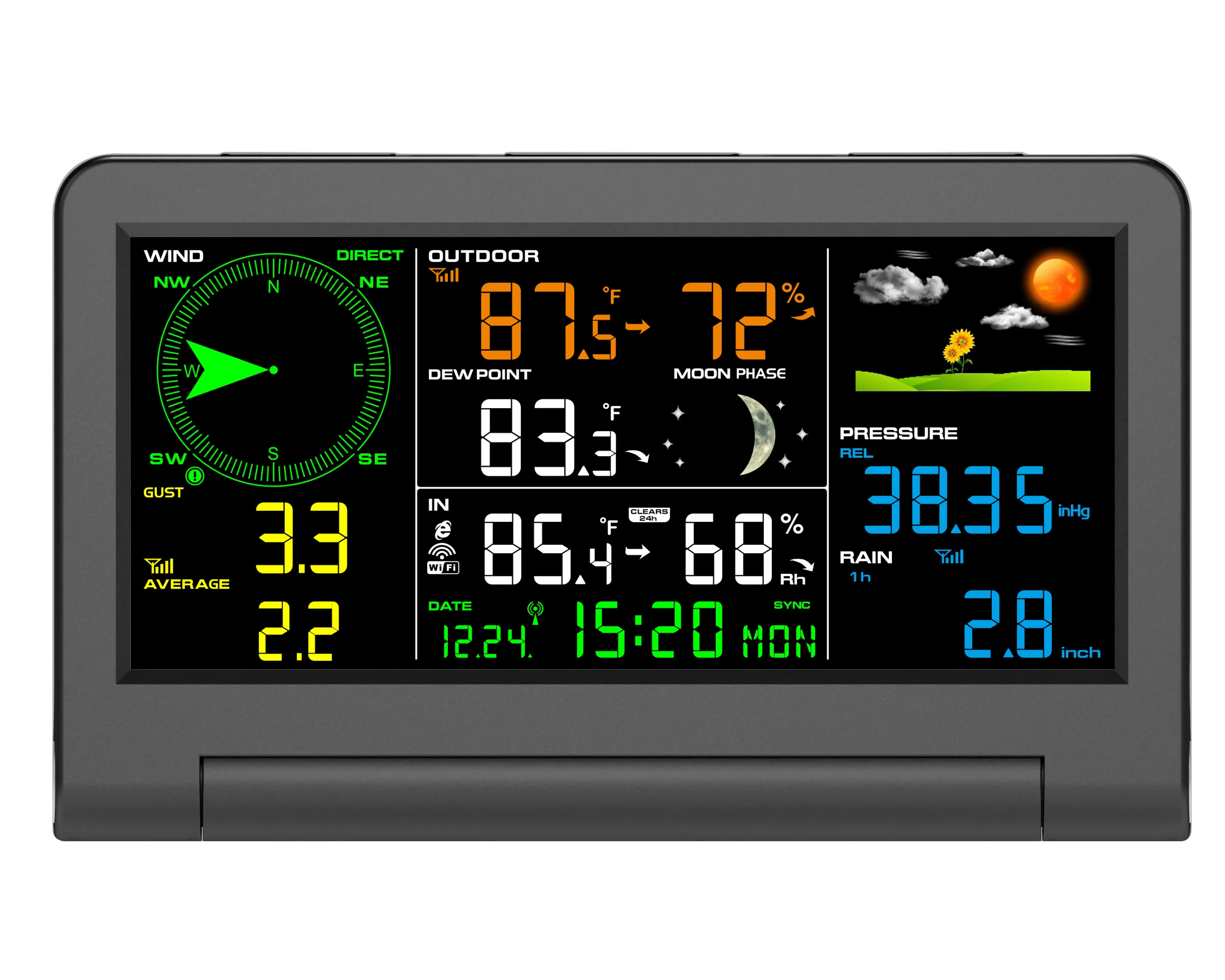

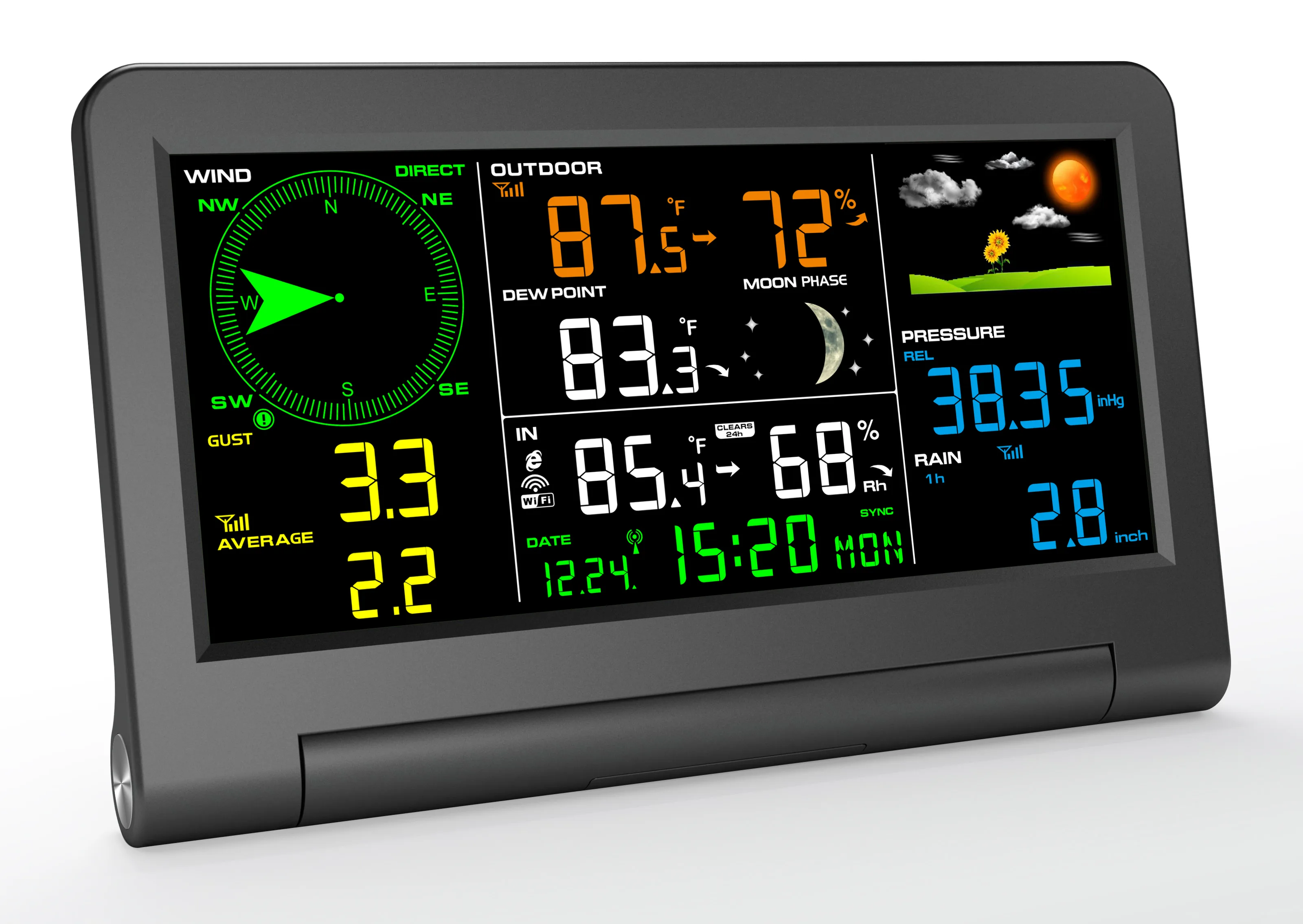

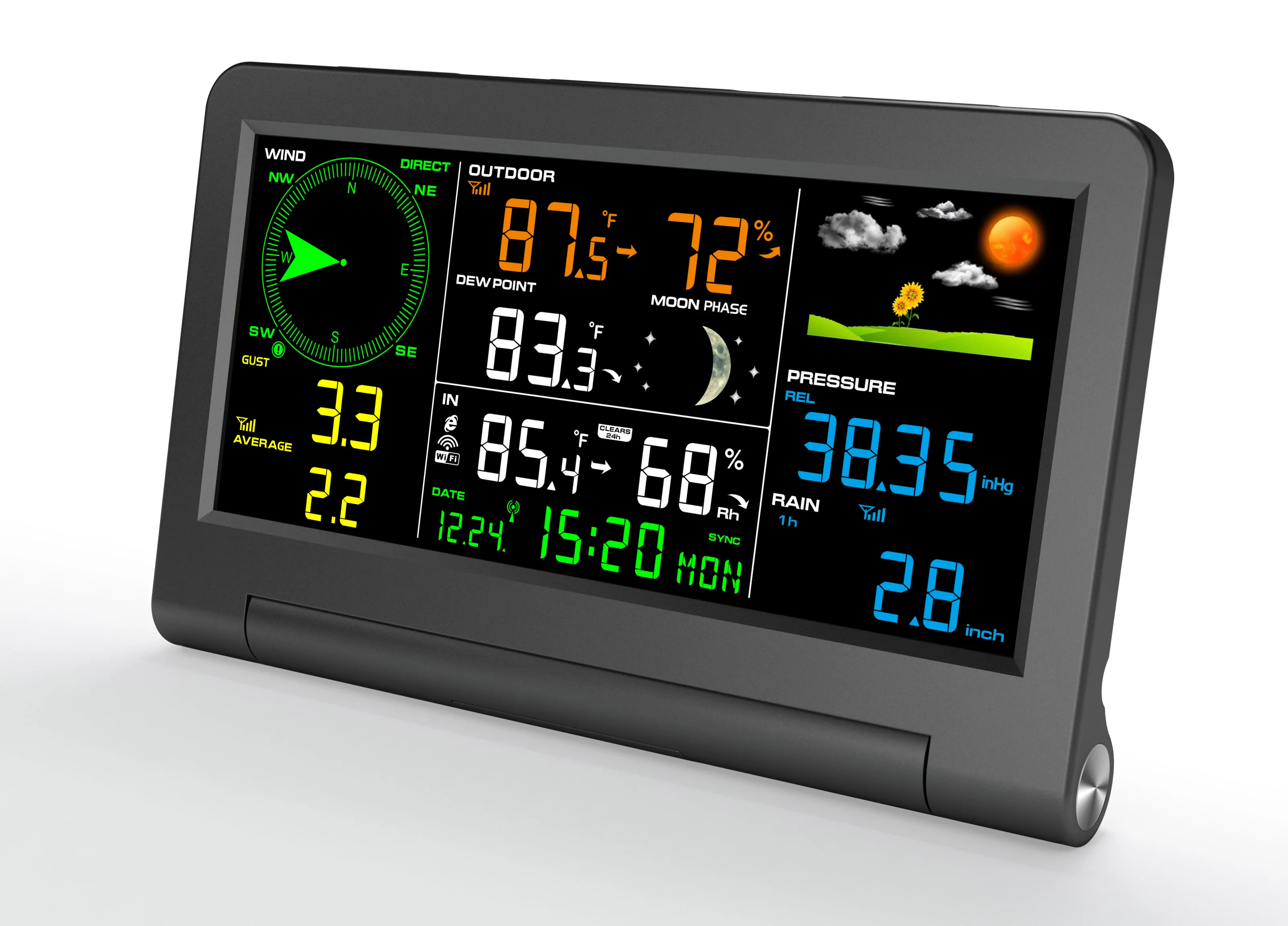

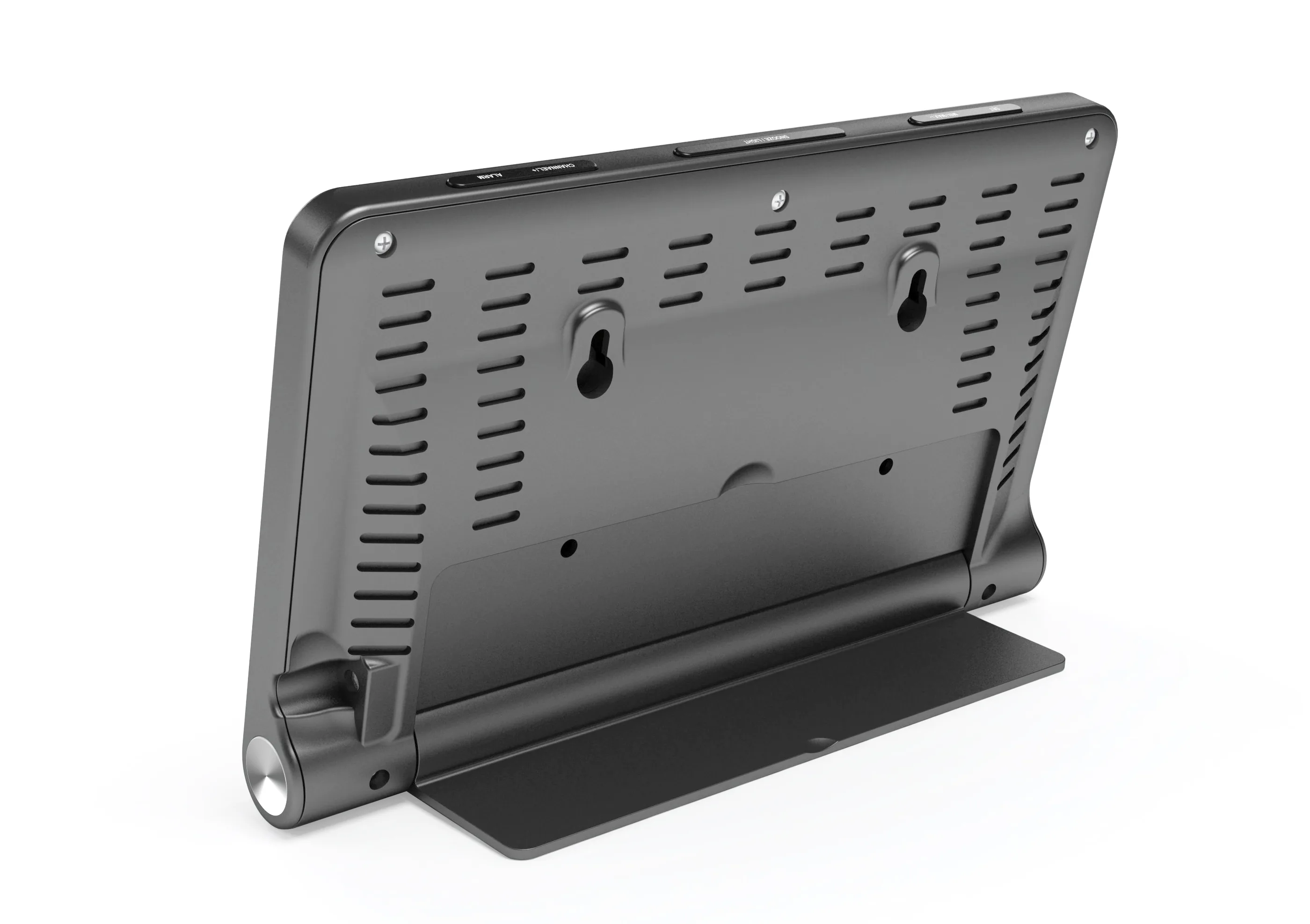

Product Images
Where It Is Used
- Rooftop and garden weather stations for consumer brands with own-label requirements
- Small farms and greenhouses needing real-time wind and rainfall data without wired sensors
- Retail and distributor displays in Europe and North America with a compact, self-contained unit
- Building services and HVAC integrators installing a low-maintenance monitoring point
- Marine and leisure applications where battery life and weather resistance are critical
Who It Is For
- Consumer electronics brands launching a weather station without an in-house RF or firmware team
- Distributors replacing a sensor that failed after one winter due to poor battery or RF performance
- Agricultural suppliers bundling weather data with irrigation or climate control systems
- Integrators needing a battery-powered sensor where trenching or cabling is not feasible
- Horticultural and cold chain operators monitoring microclimate conditions in storage or greenhouses
Problems It Solves
- Sensors that fail after one season due to battery drain or poor RF range
- Weather stations that report averaged wind or rain data, missing short-term events
- Separate indoor and outdoor units that require individual calibration and maintenance
- Systems that need a wired connection or gateway for basic operation
- Console-only displays that lack real-time wind and rainfall updates
Technical Features
- Integrated outdoor sensor with solar assist and 3 x AAA battery backup
- 433MHz one-way transmission every 16 seconds with 100m open-air range
- Outdoor temperature sensing from -40 to +60 degrees C at plus or minus 0.3 degrees C accuracy
- Outdoor humidity sensing from 1 to 99 percent RH at plus or minus 3 percent accuracy
- Barometric pressure range from 300 to 1100 hPa at plus or minus 3 hPa accuracy
- Rainfall measurement to 9999 mm with 0.3 mm resolution below 1000 mm and 1 mm above
- Wind speed from 0 to 50 m/s with plus or minus 0.3 m/s accuracy between 2 and 10 m/s
- Wind direction resolved across 0 to 360 degrees to within plus or minus 10 degrees
- Weather forecast based on pressure trend and historical data (Sunny, Partly Cloudy, Cloudy, Rainy)
- Moon phase display and dual alarm settings with snooze function
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Outdoor Temperature Range | -40 to +60 degrees C |
|---|---|
| Outdoor Temperature Accuracy | plus or minus 0.3 degrees C |
| Indoor Temperature Range | 0 to +60 degrees C |
| Indoor Temperature Accuracy | plus or minus 1 degree C |
| Indoor Humidity Range | 10 to 99 percent RH |
| Indoor Humidity Accuracy | plus or minus 5 percent |
| Outdoor Humidity Range | 1 to 99 percent RH |
| Outdoor Humidity Accuracy | plus or minus 3 percent |
| Barometric Pressure Range | 300 to 1100 hPa |
| Barometric Pressure Accuracy | plus or minus 3 hPa |
| Rain Volume | 0 to 9999 mm |
| Rain Resolution | 0.3 mm below 1000 mm, 1 mm above 1000 mm |
| Rain Accuracy | Under 15 mm: plus or minus 1 mm; 15 to 9999 mm: plus or minus 7 percent |
| Wind Speed Range | 0 to 50 m/s |
| Wind Speed Accuracy | 2 to 10 m/s: plus or minus 0.3 m/s; 10 to 50 m/s: plus or minus 10 percent |
| Wind Direction | 0 to 360 degrees, plus or minus 10 degrees |
| Transmission Interval | 16 s |
| Transmission Range | 100 m open area, around 30 m in most conditions |
| Transmission Frequency | 433 MHz |
| Console Power | 3 x AAA 1.5V alkaline or lithium batteries, not included |
| Outdoor Sensor Power | 3 x AA 1.5V alkaline or lithium batteries, not included, with solar assist |
| Solar Panel Function | Auxiliary power supply, does not charge batteries |
| Console Dimensions | 192 x 116 x 18 mm |
| Outdoor Sensor Dimensions | 330 x 280 x 150 mm |
Materials and Construction
- Moulded plastic housing for the outdoor sensor
- Integrated solar panel on the sensor body
- Weather sealed battery compartment sized for 3 x AA cells
How It Is Made
Outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit is ageing tested before it leaves the factory
Console and sensor are paired and tested together before packaging
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast mounting stress
- Smog ageing to verify housing and seal integrity
- Final ageing test on every unit before packing
Customisation Options
- Own-label printing and retail packaging on request
- Console firmware adapted to match a customer’s existing protocol
- Alternative battery types (lithium or alkaline) specified at order time
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs Separate indoor console and outdoor sensor units
One integrated sensor reduces mounting complexity and failure points, but limits the ability to place sensor and display apart
vs Wired weather stations
No cable run required, but range is limited to 100m and installation is simpler than trenching
vs LoRa-based sensors
433MHz is lower cost and sufficient for a single property; LoRa is better for large sites or multiple sensors
Use Guide
- Mount the outdoor sensor clear of walls and obstructions, ideally 2m above ground
- Align the sensor’s direction marking to true north before securing the mast
- Use lithium batteries for sites that drop below freezing
- Pair the sensor with the console before mounting it on the mast
- Check the solar panel and battery compartment for debris at the start of each season
FT0350 RF Weather Station Questions
What is the real range between the sensor and the console
100m in open air. Through walls, foliage, or a roof, plan for around 30m, which covers a typical house and garden.
How often does it update
Every 16 seconds, which is short enough to capture gusts and rain bursts without averaging them out.
Does the solar panel charge the batteries
No. The solar panel supplies power during daylight, and the AAA batteries provide backup at night and in low light. It extends battery life but does not charge them.
Can it work with a console we already sell
If your console uses the UCTECH 433MHz protocol, yes. Send us the model number and we will confirm compatibility before you order.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
