Kitchen Customizable Stainless Steel Drainboard Sink
The drainer is part of the sink, not a tray sitting on the worktop
What This Product Is And Who It Is For
A single-bowl stainless steel sink with the drainboard pressed into the same sheet as the bowl and deck.
It is specified by kitchen brands and fit-out contractors who want draining built into the sink instead of an accessory on the counter.
Bowl size, board length and hand are all made to order, and the unit is produced brushed or with a PVD copper finish.
Why Buyers Specify It
No joint to leak or stain
The board and the bowl are one piece, so there is no silicone seam between them to discolour.
Water goes back to the drain
The board is ribbed and falls towards the bowl, so drips run to the waste instead of pooling at the edge.
Left or right hand from the same tooling
Board hand is set during fabrication, so a range can carry both without doubling the tooling bill.
Copper finish without copper price
A PVD layer on stainless gives the warm finish that sells, on a substrate that behaves like steel.
What It Fixes In A Buying Programme
Separate drainer trays look like an afterthought
An integrated board reads as part of the kitchen.
Sealed joints between sink and drainer discolour
There is no joint here.
Colour finishes are usually a different product
The PVD version is the same body, so spares and cut-outs stay common.
Who It Is For
- Brands that need a drainboard sink in several widths from one supplier
- Contractors buying repeat quantities for apartment projects
- Distributors adding a colour finish to a plain stainless range
Technical Features
- One-piece bowl and drainboard
- Ribbed board falling towards the bowl
- Left-hand or right-hand board
- Brushed stainless or PVD copper / rose gold finish
- Single faucet hole, or undrilled for a wall-mounted spout
Where It Ends Up
Family kitchens
Somewhere to stand a washed pan without wetting the worktop.
Rental and social housing fit-outs
A one-piece unit is faster to install and has fewer joints to fail.
Kitchenettes in offices and clinics
Small bowl, short board, no separate drainer to buy.
Design-led ranges
The copper PVD version is a colour SKU that costs no more to fit than the steel one.
Kitchen Customizable Stainless Steel Drainb… In Detail

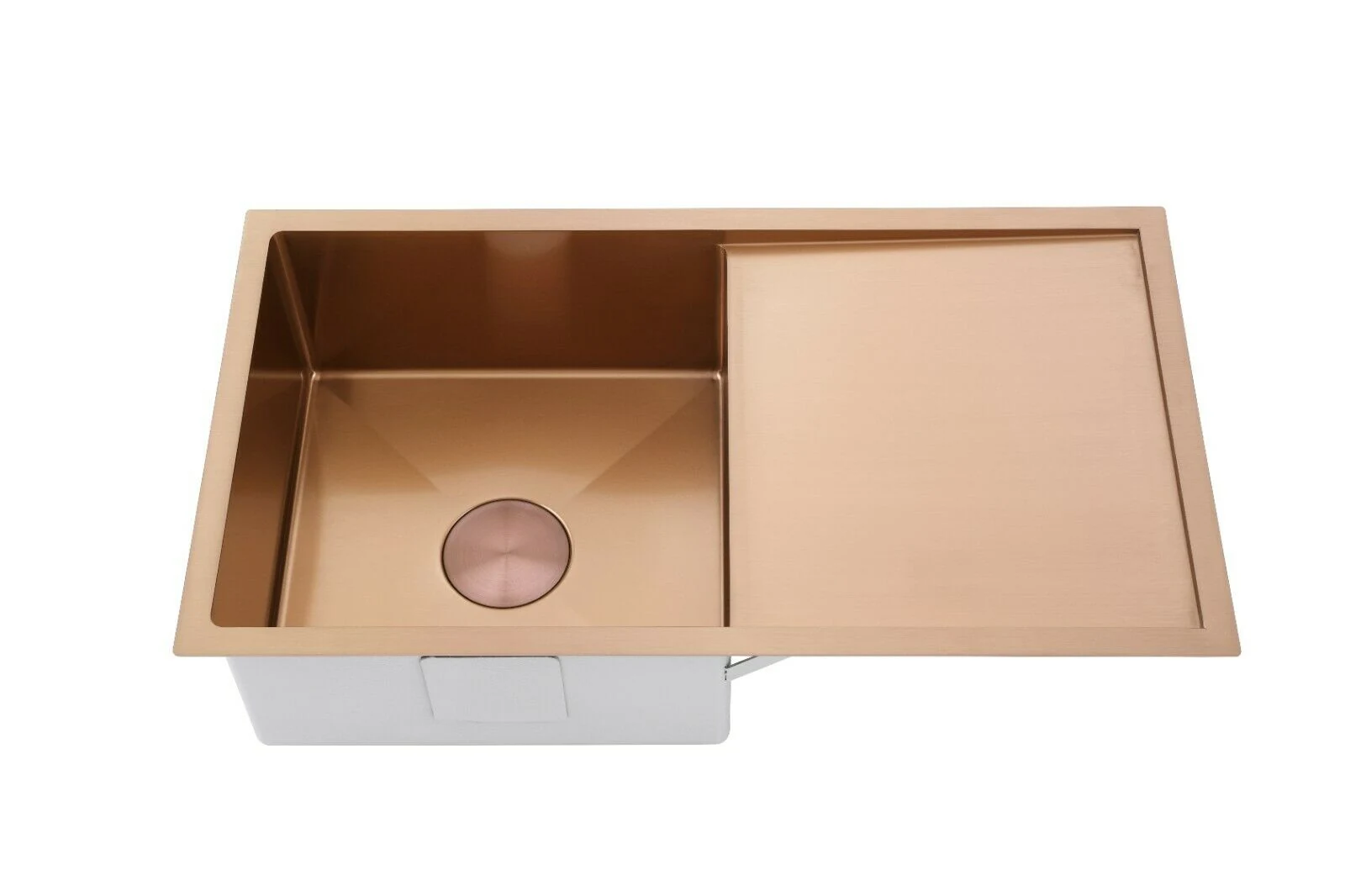

Factory photographs of the kitchen customizable stainless steel drainb…. Every finish and accessory combination visible on the kitchen customizable stainless steel drainb… can be ordered as shown.
Specification Table
Every figure we can evidence for this workstation sink is listed below. Where a dimension on the kitchen customizable stainless steel drainb… is set by your own order, or has not been measured and documented yet, the row reads TBC instead of a plausible-looking number.
| Product type | Single bowl sink with integrated drainboard |
|---|---|
| Bowl configuration | Single bowl, board left or right |
| Material | 304 stainless steel (202 / 201 on request) |
| Finish | Brushed stainless, or PVD copper / rose gold |
| Mounting | Topmount |
| Overall size | TBC — confirm on enquiry |
| Board length | TBC — confirm on enquiry |
| Bowl depth | TBC — confirm on enquiry |
| Steel thickness | TBC — confirm on enquiry |
Materials
Body in 304 stainless steel unless another grade is agreed; 202 and 201 are available for price-led ranges.
The copper tone is a PVD coating applied over the finished stainless body, not a plating or a paint.
Customisation Options
- Bowl and board dimensions to your drawing
- Board hand — left or right
- Finish — brushed stainless, PVD copper, rose gold or black
- Faucet hole count and position, or undrilled
How It Is Made
Set out the blank
Bowl, deck and board are laid out on one sheet so the finished unit has no seam between them.
Form
The bowl is drawn and the board ribs are pressed in the same operation sequence.
Level the fall
The board is checked for fall towards the bowl before the deck is trimmed.
Finish
The unit is brushed, then PVD coated if a colour finish has been ordered.
Quality Control
- Water is poured on the board and has to clear to the drain with nothing standing.
- PVD units are checked for colour consistency against the batch reference before packing.
- Every unit is water-tested at the waste.
Certifications
No certification mark is claimed for the kitchen customizable stainless steel drainb… anywhere on this site, because we state only what a document can back up. If your market needs WaterMark, cUPC, CE or a material certificate against this workstation sink, raise it before the order and we will reply in writing on what is available for the kitchen customizable stainless steel drainb….
Compared With A Bowl With A Separate Drainer Tray
Most catalogues cover draining either with an integrated board or with a loose tray.
| Aspect | Kitchen Customizable Stainless Steel Drainb… | A Bowl With A Separate Drainer Tray |
|---|---|---|
| Joints | None — one piece | Silicone seam or none, tray sits loose |
| Worktop cut-out | One long cut-out | Short cut-out plus tray space |
| Appearance after two years | Uniform | Tray marks the worktop |
Use Guide
Step 1
Check the board hand against the door swing and the dishwasher position before ordering.
Step 2
Cut the worktop to the full unit length, not just the bowl.
Step 3
Rinse the board after washing anything salty and wipe it dry.
Step 4
On PVD finishes use a soft cloth only — abrasive pads will dull the coating.
Kitchen Customizable Stainless Steel Drainb… — Frequently Asked Questions
Can we order left-hand and right-hand from the same order?
Yes. Hand is set during fabrication, so a mixed order is normal.
Does the PVD finish wear off around the drain?
PVD is a hard vacuum-deposited layer, not a plating. Keep abrasive pads off it and it stays even. Coating thickness and test data are TBC — ask if your market requires them.
What lead time should we plan for?
Lead time depends on quantity and finish. Email [email protected] with the quantity and we will confirm.
