FT0832 LORA WiFi Weather Station
The FT0832 LORA WiFi Weather Station is a complete, integrated system with a console and outdoor sensor that communicates over 433MHz, 868MHz, or 915MHz LoRa and Wi-Fi, enabling reliable data transmission across large sites without cabling. The outdoor sensor measures temperature
What This Model Is For
The FT0832 LORA WiFi Weather Station is a complete, integrated system with a console and outdoor sensor that communicates over 433MHz, 868MHz, or 915MHz LoRa and Wi-Fi, enabling reliable data transmission across large sites without cabling. The outdoor sensor measures temperature, humidity, wind speed and direction, rainfall, sunlight and UV index, then sends readings every 16 seconds to the console, which displays real-time data and uploads it to weather platforms like wunderground and WeatherCloud. The sensor uses solar assist to extend battery life, with three AA cells as backup during low-light periods. It is designed for brands and integrators who need a full weather station with long-range wireless and cloud connectivity, all from a single supplier.
- LoRa and Wi-Fi dual connectivity allows data to reach across 1500m in open air, ideal for farms, campuses and industrial sites
- Integrated outdoor sensor with solar assist reduces battery replacement frequency compared to battery-only units
- Real-time data upload to wunderground and WeatherCloud enables public weather display and data sharing
- 16-second transmission interval ensures gusts and rapid changes are captured, not averaged out
- Console supports both 12-hour and 24-hour time formats with calendar, alarm and snooze functions
Product Images
Where It Is Used
- Large vineyard or orchard where sensors are placed across multiple blocks and need to reach a central console
- Campus or industrial site with multiple weather monitoring points and no cabling infrastructure
- Marina or leisure facility requiring public-facing weather displays with real-time updates
- Agricultural integrators bundling weather data with irrigation or greenhouse control systems
- Building services teams monitoring outdoor conditions for HVAC or cold chain performance
Who It Is For
- Consumer electronics brands launching a weather station with cloud connectivity and long-range capability
- Distributors replacing a 433MHz sensor that fails beyond 50m due to signal drop
- Agricultural suppliers needing a weather station that works across a large field without a gateway
- Integrators who need a single supplier for console, sensor, app and cloud upload
- Marine and leisure equipment brands requiring a weather station that works on docks and pontoons
Problems It Solves
- 433MHz RF links that fail beyond 50m in open air or through obstacles
- Sensors that require a gateway or complex network setup to reach the console
- Cloud data upload that requires a separate device or app integration
- Battery-only sensors needing frequent replacement in sunny or high-use environments
- Sourcing teams needing one supplier to deliver console, sensor, app and cloud integration
Technical Features
- Integrated outdoor sensor with solar assist and 3 x AA batteries for backup
- Measures outdoor temperature, humidity, wind speed and direction, rainfall, sunlight and UV index
- Transmits data every 16 seconds over 433MHz, 868MHz or 915MHz LoRa and 2.4GHz Wi-Fi

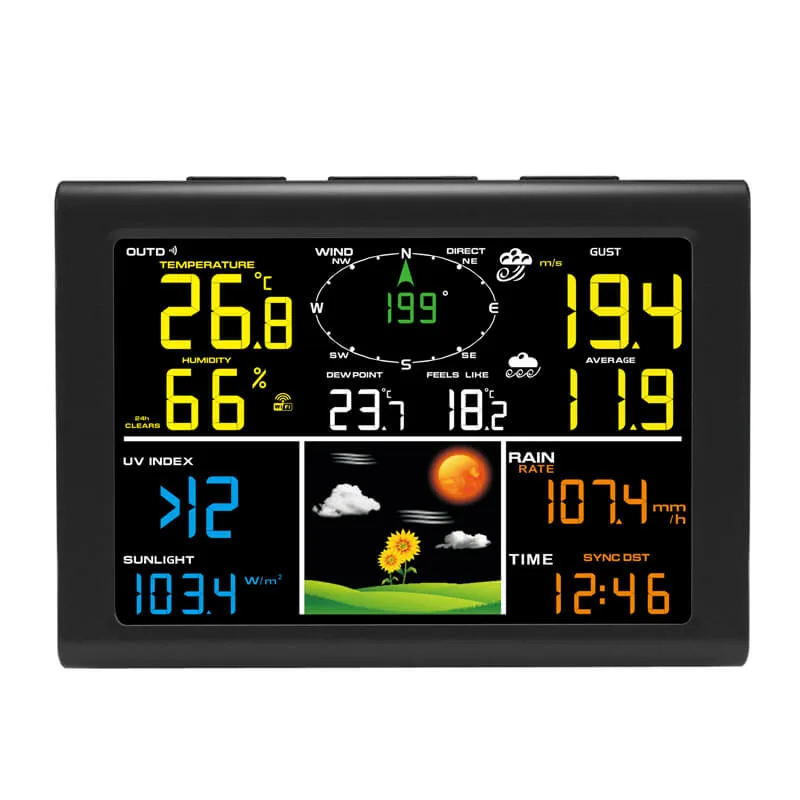

- Console displays time, date, indoor and outdoor temperature and humidity, wind, rain, UV and sunlight
- Supports real-time upload to wunderground and WeatherCloud via Wi-Fi
- Includes high/low alarms for temperature, humidity, wind, rain and UV
- Displays weather forecast, moon phase, dew point, feels like temperature and wind gusts
- Console has adjustable backlight and manual calibration for all sensors
Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Outdoor Temperature Range | -40 to +60 degrees C |
|---|---|
| Outdoor Temperature Accuracy | plus or minus 0.3 degrees C |
| Indoor Temperature Range | 0 to +60 degrees C |
| Indoor Temperature Accuracy | plus or minus 1 degree C |
| Indoor Humidity Range | 10 to 99 percent RH |
| Indoor Humidity Accuracy | plus or minus 5 percent |
| Outdoor Humidity Range | 1 to 99 percent RH |
| Outdoor Humidity Accuracy | plus or minus 3 percent |
| Rain Volume | 0 to 9999 mm |
| Rain Resolution | 0.3 mm below 1000 mm, 1 mm above 1000 mm |
| Rain Accuracy | Under 15 mm: plus or minus 1 mm; 15 to 9999 mm: plus or minus 7 percent |
| Wind Speed Range | 0 to 50 m/s |
| Wind Speed Accuracy | 2 to 10 m/s: plus or minus 0.3 m/s; 10 to 50 m/s: plus or minus 10 percent |
| Wind Direction | 0 to 360 degrees, plus or minus 10 degrees |
| Sunlight Index Range | 0 to 200,000 Lux |
| Sunlight Index Accuracy | plus or minus 15 percent |
| UV Index Range | 1 to 15+ |
| UV Index Accuracy | plus or minus 1 level |
| Transmission Interval | 16 s |
| Transmission Range | 1500 m open area, around 500 m under most conditions |
| Transmission Frequency | 433 MHz, 868 MHz, 915 MHz |
| Wi-Fi Standard | 802.11 b/g/n |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Line of Sight | 20 m |
| Console Power | 3 x AAA 1.5V alkaline or lithium batteries, not included |
| Sensor Power | 3 x AA 1.5V alkaline or lithium batteries, not included |
| Power Adaptor | 5.9V / 0.5A |
| Console Dimensions | 135 x 25 x 135 mm |
| Sensor Dimensions | Not specified in FACTS |
Materials and Construction
- Moulded plastic housing for the outdoor sensor
- Integrated solar panel on the sensor body
- Weather sealed battery compartment sized for 3 x AA cells
How It Is Made
Outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Sensor modules are tested for wind, rain, temperature and humidity before final assembly
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit is ageing tested before it leaves the factory
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast mounting stress
- Smog ageing to evaluate housing and seal durability
- Final ageing test on every unit before packing
Customisation Options
- Own-label printing and retail packaging
- Console pairing to a customer's existing UCTECH-protocol display
- Alternative battery configurations on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs 433MHz-only sensor with no LoRa or Wi-Fi
LoRa extends range to 1500m in open air, but adds cost and complexity compared to 433MHz
vs Wired sensor with a console
No cable run needed, but requires battery changes and has a 1500m range ceiling
vs Wi-Fi-only sensor
Wi-Fi has a 20m line-of-sight limit; LoRa is the answer for large or obstructed sites
Use Guide
- Mount the outdoor sensor clear of obstructions, ideally 2m above the ground
- Align the direction marker to true north before securing the sensor
- Use AA lithium cells for sites that drop below freezing
- Pair the sensor with the console before mounting it on the mast
- Check the solar panel for debris and clean it at the start of each season
FT0832 LORA WiFi Weather Station Questions
What is the real range between the sensor and the console
1500m in open air. Under typical conditions with walls, trees or roofs, plan for around 500m.
How often does it update
Every 16 seconds, which captures gusts and rapid changes without averaging them out.
Does the solar panel charge the batteries
No. The solar panel supplies power during daylight, and the AA cells carry the load at night or in low light, so battery life is extended.
Can it work with a console we already sell
If that console uses the UCTECH 433MHz, 868MHz or 915MHz protocol, yes. Send us the model and we will confirm before you order.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
