FT0310 Lora WiFi Weather Station
The FT0310 Lora WiFi Weather Station is a complete indoor console and integrated outdoor sensor system that measures temperature, humidity, wind, rain, barometric pressure, UV, and sunlight, then transmits data over 433MHz, 868MHz, or 915MHz LoRa and 2.4GHz Wi-Fi. It syncs time v
What This Model Is For
The FT0310 Lora WiFi Weather Station is a complete indoor console and integrated outdoor sensor system that measures temperature, humidity, wind, rain, barometric pressure, UV, and sunlight, then transmits data over 433MHz, 868MHz, or 915MHz LoRa and 2.4GHz Wi-Fi. It syncs time via internet, uploads real-time data to Wunderground and WeatherCloud, and runs on solar-assisted batteries. The outdoor sensor sends readings every 16 seconds with a 1500m open-air range, making it suitable for large gardens, farms, and industrial sites where 433MHz links fail. The console supports wall mounting or desk use and includes a three-level adjustable backlight.
- LoRa and Wi-Fi dual transmission for long-range and cloud connectivity without a gateway
- 1500m open-air range on 433MHz/868MHz/915MHz, covering large properties and industrial sites
- Solar-assisted outdoor sensor keeps AA batteries in reserve, extending life in sunny conditions
- Real-time data upload to Wunderground and WeatherCloud for public weather networks
- Integrated sensor with shared protocol allows easy expansion from temperature-only to full weather monitoring
Product Images
Where It Is Used
- Large vineyards and orchards where a single console must cover multiple sensor points across a site
- Industrial tank farms and cold chain facilities needing long-range wireless monitoring without cabling
- Rural homes and retreats with poor Wi-Fi coverage but strong LoRa signal from the console
- Educational and public weather displays that require data to be shared online via Wunderground
- Agricultural integrators bundling weather data with irrigation or greenhouse control systems
Who It Is For
- Consumer electronics brands launching a weather station with cloud connectivity and long-range
- Distributors replacing a 433MHz-only sensor that fails across a large garden or building
- Agricultural suppliers needing a weather station that works beyond a single house
- Integrators who need a battery-powered sensor with both LoRa and Wi-Fi for hybrid networks
- Marine and pool equipment brands adding weather data to smart pool controllers
Problems It Solves
- 433MHz links that drop out across a site due to distance or obstructions
- Sensors that require a wired connection or gateway, increasing installation cost and complexity
- Battery-only sensors that need frequent replacement in sunny or high-use environments
- Weather stations that cannot upload data to public networks like Wunderground
- Console systems that cannot scale from basic temperature to full weather monitoring without redesign
Technical Features

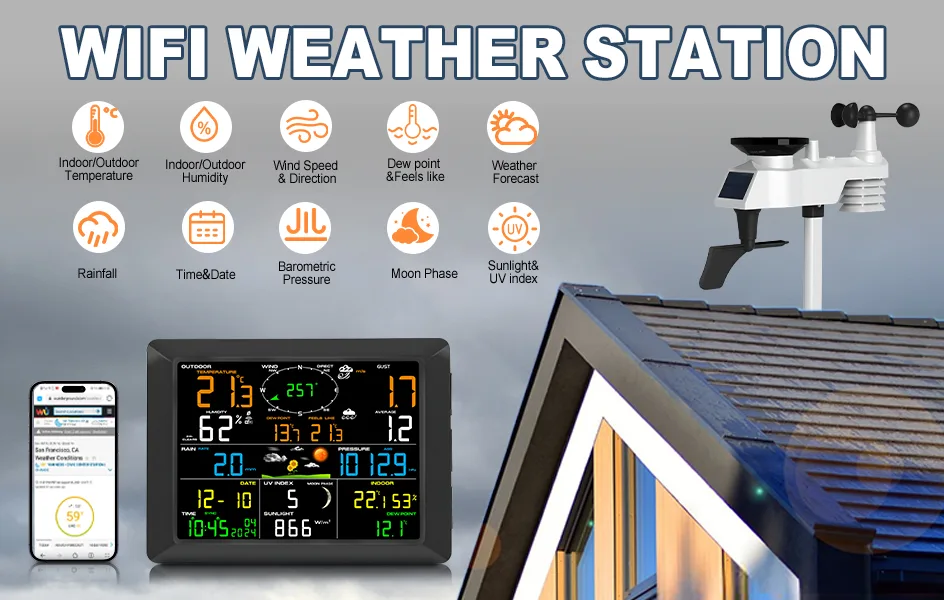

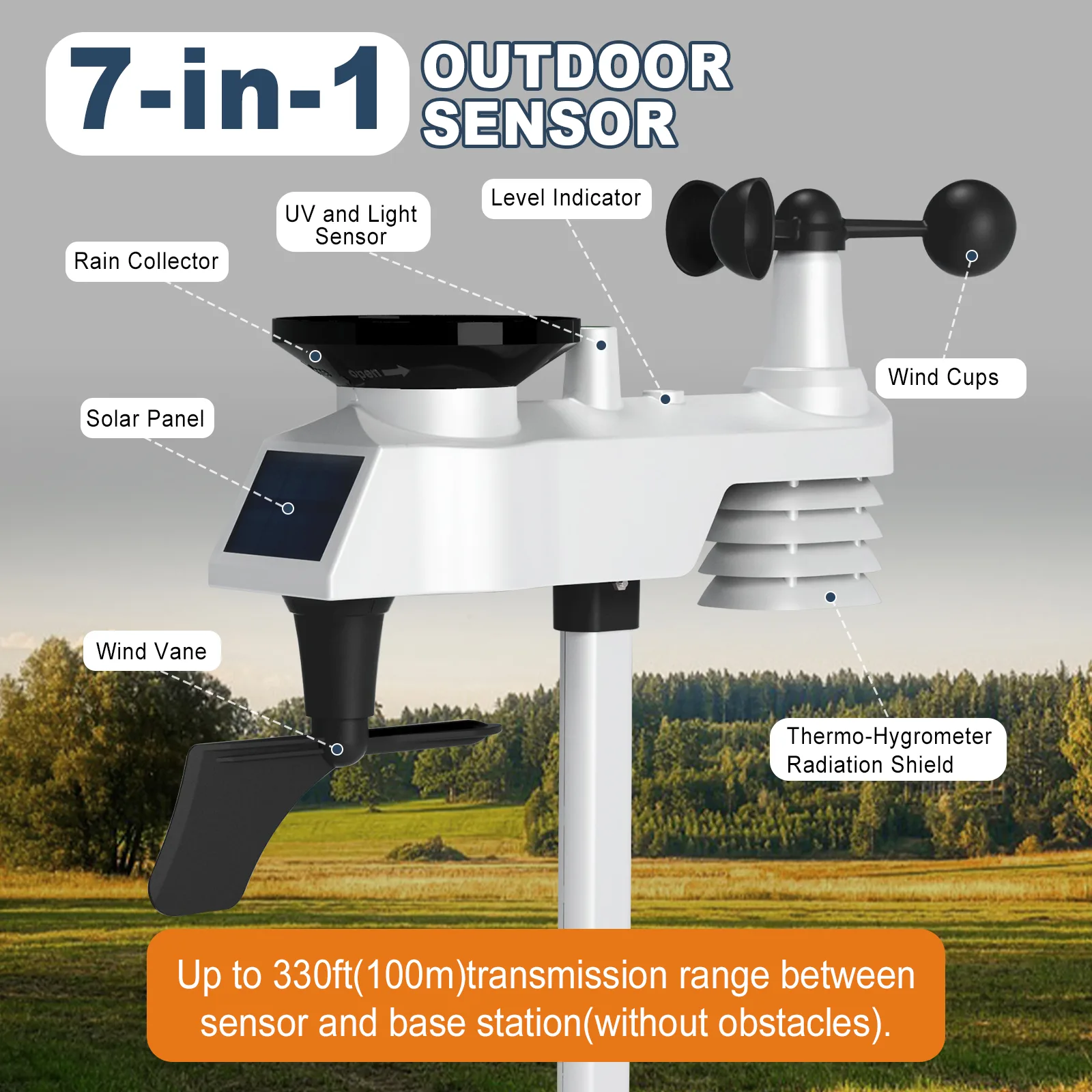

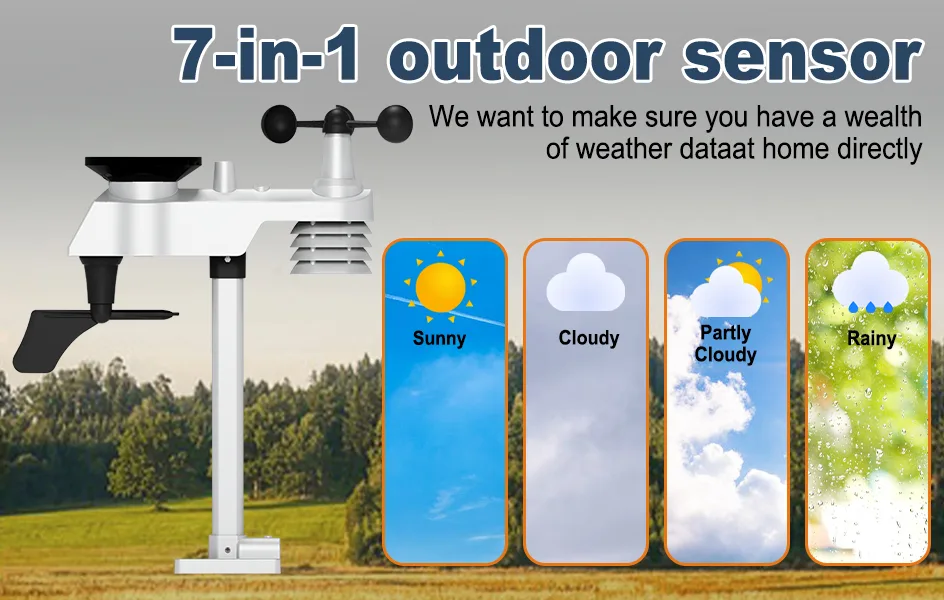

- Integrated outdoor sensor with temperature, humidity, wind, rain, barometric pressure, UV, and sunlight sensing
- 433MHz, 868MHz, and 915MHz LoRa transmission with 1500m open-air range
- 2.4GHz Wi-Fi (802.11 b/g/n) for cloud uploads and internet time sync
- 16-second transmission interval for timely gust and rainfall data
- Solar panel on the outdoor sensor that supplements power but does not charge batteries

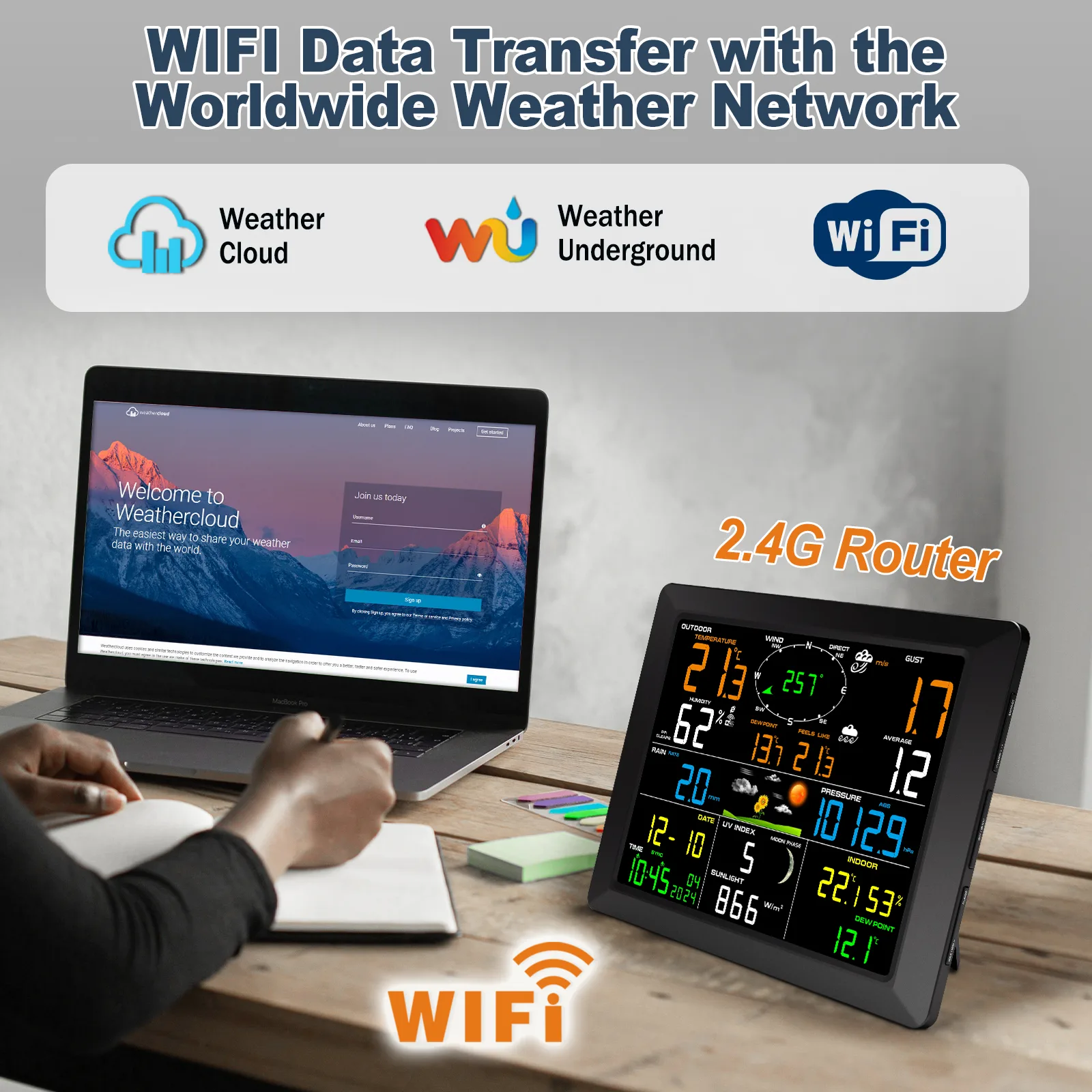

- Real-time data upload to Wunderground and WeatherCloud
- Dual power supply: 3 x AAA for console, 3 x AA for outdoor sensor

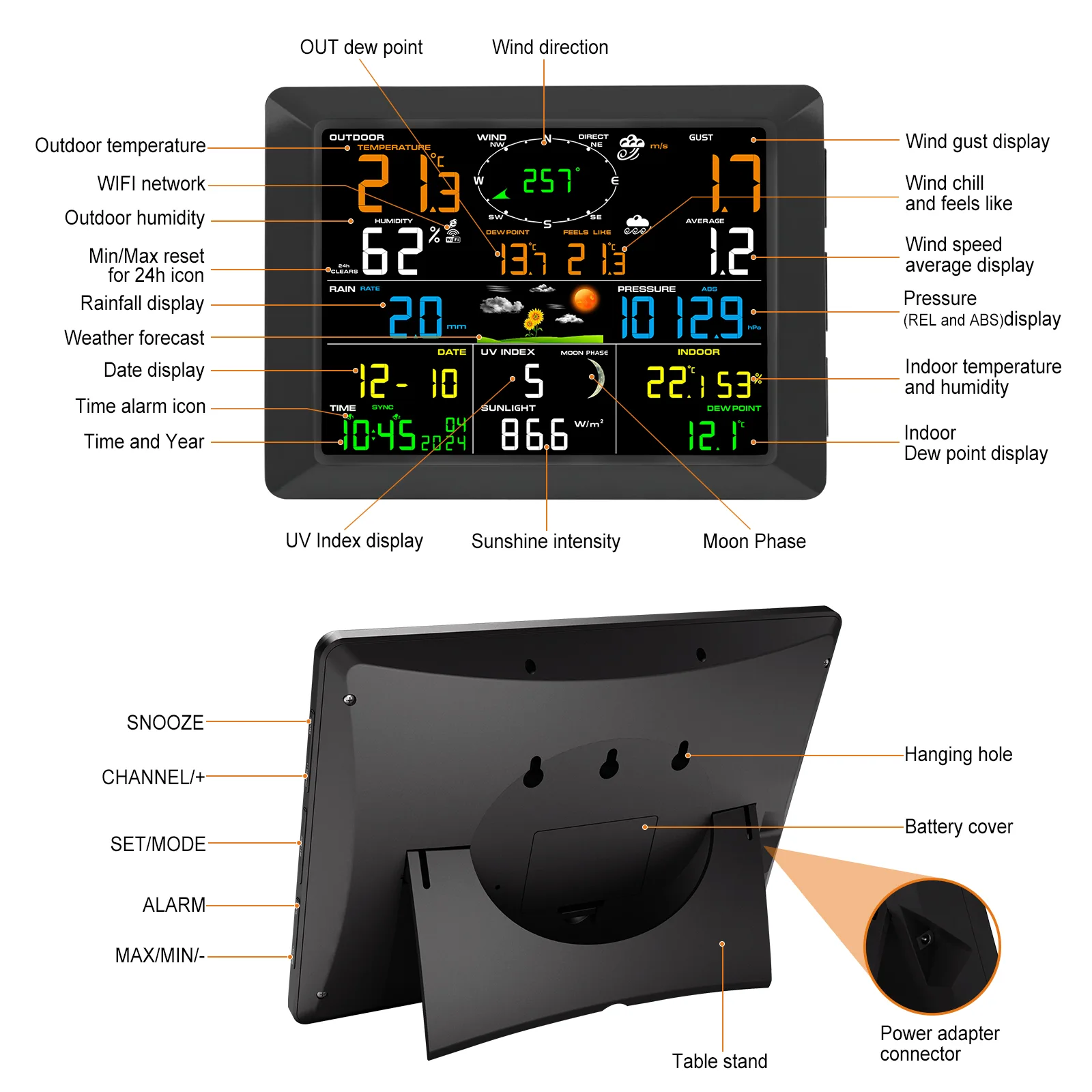

- Wall mount or desk stand console with adjustable backlight
- Manual calibration for temperature, humidity, pressure, wind, rainfall, and sunlight
- Hi/Lo alarms for indoor and outdoor temperature, humidity, dew point, pressure, wind, rainfall, UV, and sunlight

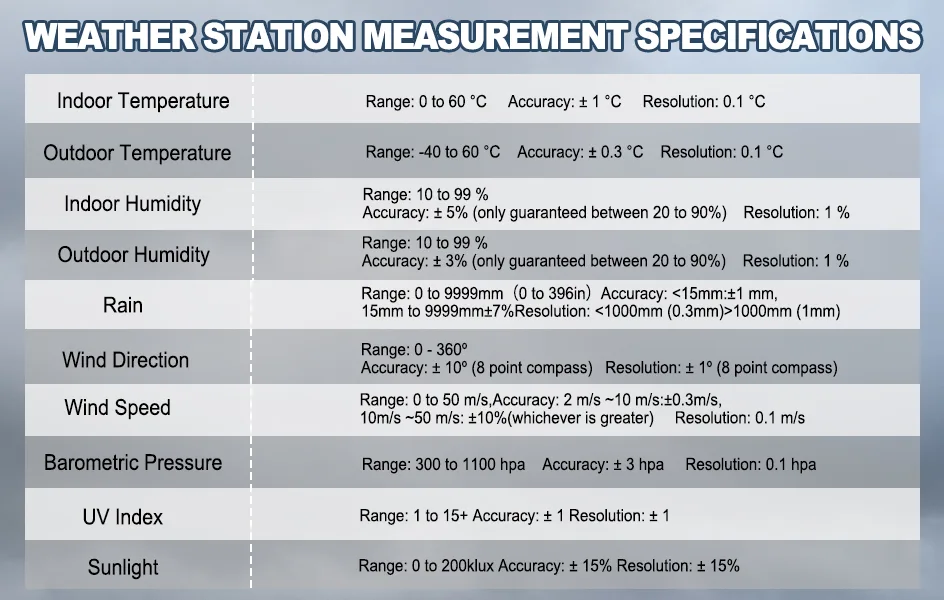

Specifications
Values taken from our own product documentation. Anything we cannot verify is marked rather than estimated.
| Outdoor Temperature Range | -40 to +60 degrees C |
|---|---|
| Outdoor Temperature Accuracy | plus or minus 0.3 degrees C |
| Indoor Temperature Range | 0 to +60 degrees C |
| Indoor Temperature Accuracy | plus or minus 1 degree C |
| Indoor Humidity Range | 10 to 99 percent RH |
| Indoor Humidity Accuracy | plus or minus 5 percent |
| Outdoor Humidity Range | 1 to 99 percent RH |
| Outdoor Humidity Accuracy | plus or minus 3 percent |
| Barometric Pressure Range | 300 to 1100 hPa |
| Barometric Pressure Accuracy | plus or minus 3 hPa |
| Rain Volume | 0 to 9999 mm |
| Rain Resolution | 0.3 mm below 1000 mm, 1 mm above 1000 mm |
| Rain Accuracy | under 15 mm: plus or minus 1 mm; 15 to 9999 mm: plus or minus 7 percent |
| Wind Speed Range | 0 to 50 m/s |
| Wind Speed Accuracy | 2 to 10 m/s: plus or minus 0.3 m/s; 10 to 50 m/s: plus or minus 10 percent |
| Wind Direction Accuracy | 0 to 360 degrees, plus or minus 10 degrees |
| Sunlight Index Range | 0 to 200,000 Lux |
| Sunlight Index Accuracy | plus or minus 15 percent |
| UV Index Range | 1 to 15+ |
| UV Index Accuracy | plus or minus 1 level |
| Transmission Interval | 16 s |

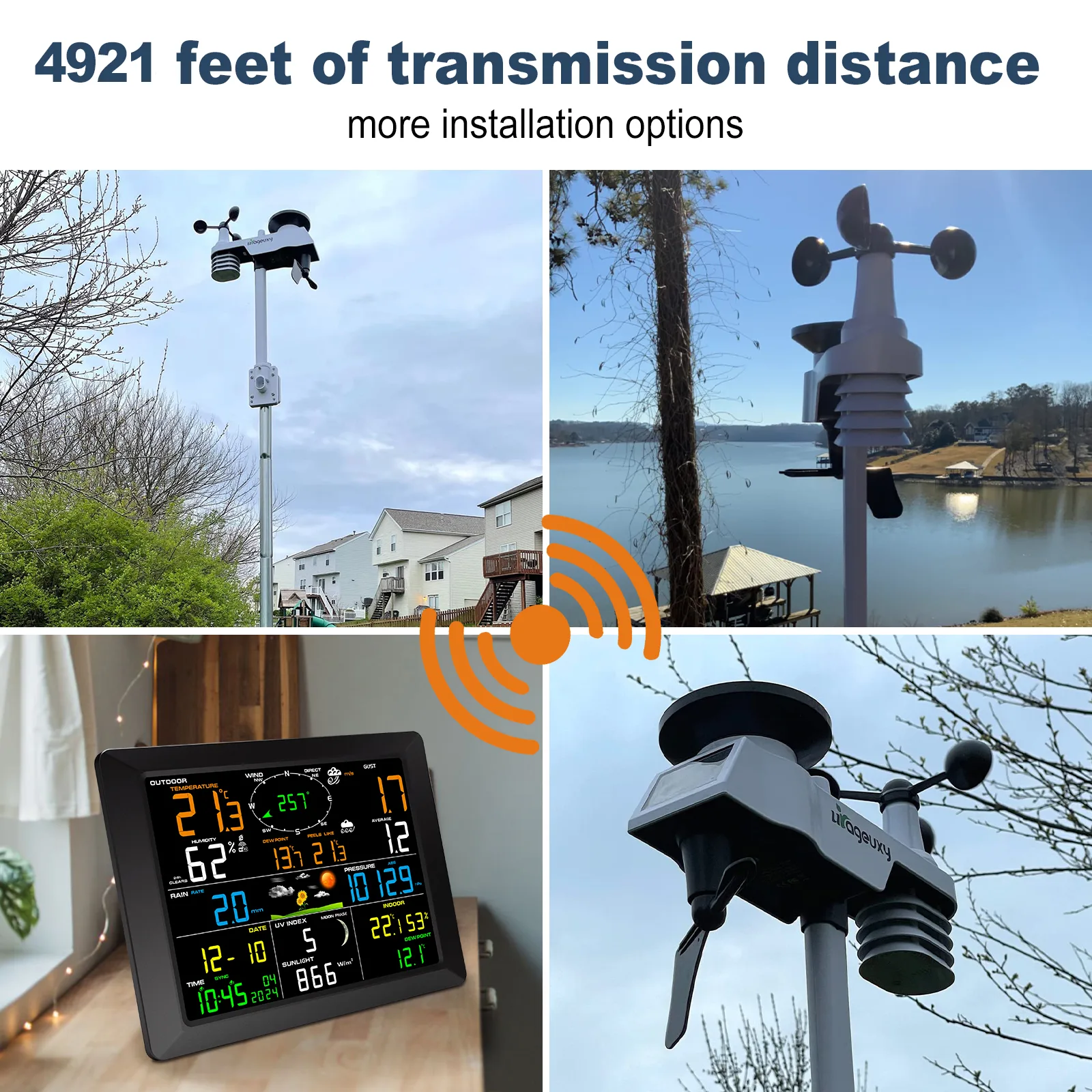

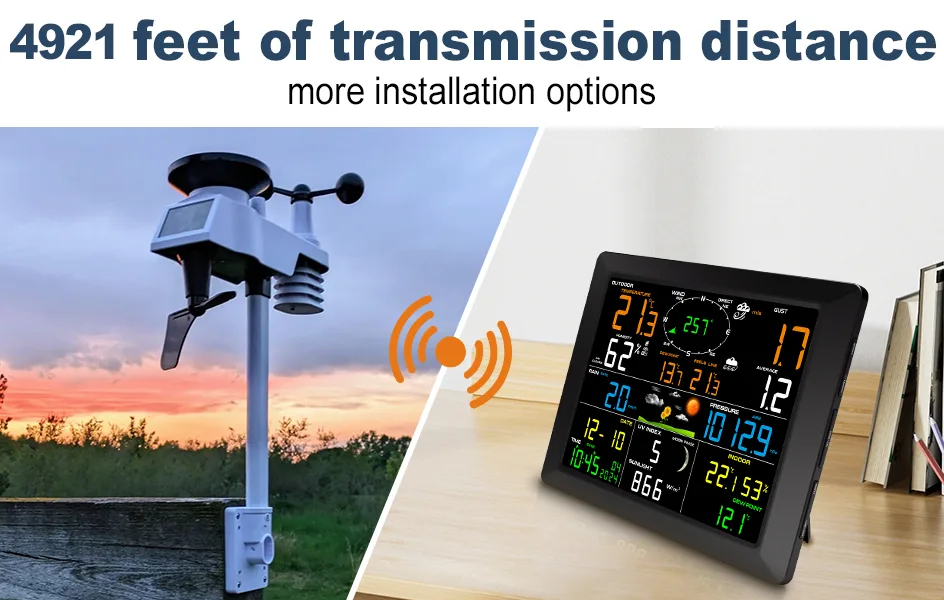

| Transmission Range | 1500 m open area, around 500 m under most conditions |
| Transmission Frequency | 433 MHz, 868 MHz, 915 MHz |
| Wi-Fi Standard | 802.11 b/g/n |
| Wi-Fi Frequency | 2.4 GHz |
| Line of Sight Wi-Fi Range | 20 m |
| Console Power | 3 x AAA 1.5V alkaline or lithium cells, not included |
| Outdoor Sensor Power | 3 x AA 1.5V alkaline cells, not included |
| Solar Panel | Integrated on outdoor sensor, auxiliary power only |
Materials and Construction
- Moulded plastic housing for the outdoor sensor
- Integrated solar panel on the outdoor sensor body
- Weather sealed battery compartment sized for 3 x AA cells
How It Is Made
Outdoor sensor sub-assemblies are populated and soldered on our own assembly line
Sensors are calibrated and tested before final housing assembly
Housings are sealed and checked on rainfall and waterproof test equipment
Every unit is ageing tested before it leaves the factory
Quality Control
- Rainfall and waterproof testing on the assembled outdoor sensor
- Constant temperature and humidity chamber runs covering the -40 to +60 degrees C range
- Vibration testing to simulate transport and mast mounting stress
- Smog ageing to evaluate housing and seal durability
- Final ageing test on every unit before packing
Customisation Options
- Own-label printing and retail packaging
- Console pairing to a customer's existing UCTECH-protocol display
- Alternative battery configurations on request
- Manual and quick start guide in the destination language
Compared With the Alternatives
vs 433MHz-only sensor with no LoRa
LoRa extends range to 1500m in open air, suitable for large sites where 433MHz fails
vs Wired weather station
No trenching or cabling required, but at the cost of battery replacement and a 1500m range ceiling
vs Wi-Fi-only sensor
Wi-Fi has a 20m line-of-sight limit; LoRa covers long distances without a router
Use Guide

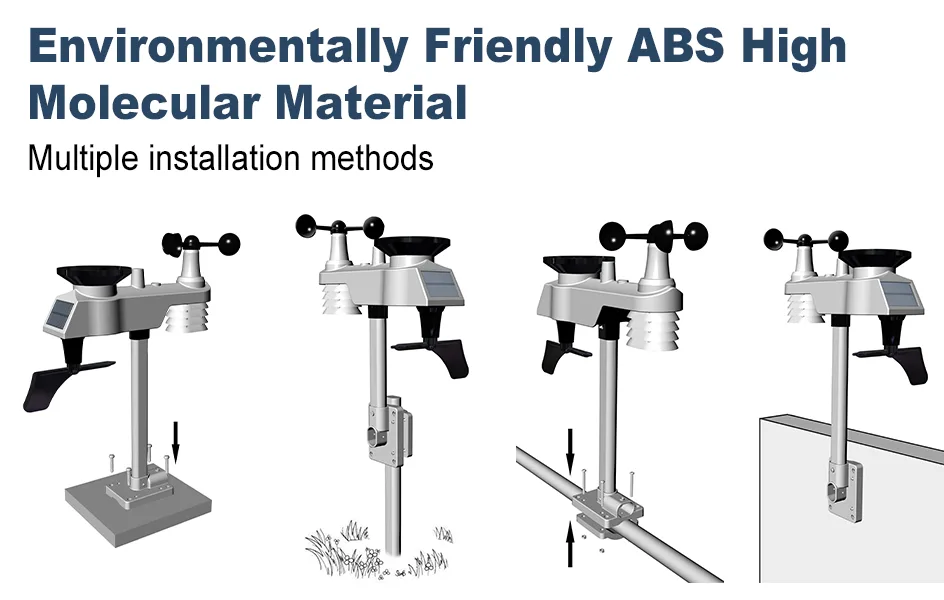

- Mount the outdoor sensor clear of obstructions, ideally 2m above ground
- Align the sensor direction marking to true north before securing the mast
- Use 3 x AA lithium cells for sites that drop below freezing
- Pair the sensor with the console before mounting it outdoors
- Check the wind vane and rain collector for debris at the start of each season
FT0310 Lora WiFi Weather Station Questions
What is the real range between the sensor and the console
1500m in open air. Under most conditions, such as through walls or foliage, expect around 500m.
How often does it update
Every 16 seconds, which captures gusts and rainfall changes without averaging them out.
Does the solar panel charge the batteries
No. The solar panel supplies power during daylight and reduces battery drain, but the AA cells remain the primary power source.
Can it work with a console we already sell
If that console uses the UCTECH 433MHz/LoRa protocol, yes. Send us the model and we will confirm before you order.
What is the lead time and minimum order
Tell us the quantity and target ship date and we will confirm both by email. Lead time depends on whether own-label printing and packaging are involved.
Which certifications does it carry
TBC. Ask us for the current certificate set for your destination market before you place the order.
