DF3A004 Concentric Flange Butterfly Valve Pin Type and Wormgear

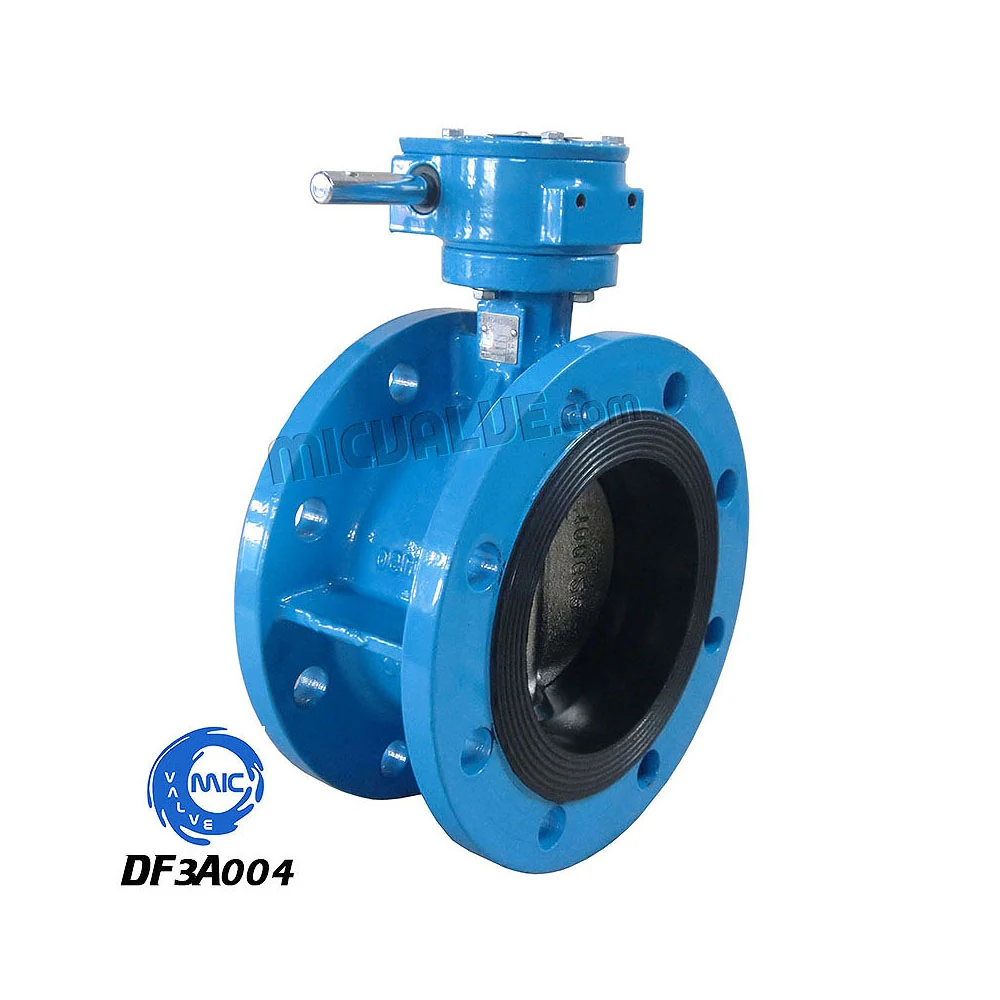

DF3A004 is a concentric flanged butterfly valve with a pin-fixed disc and wormgear operation, designed for on-off and throttling service in water, low-pressure industrial, and heating systems. It connects to pipe flanges with bolts and features a quarter-turn wormgear for precise manual control, suitable for applications where space is limited and reliable sealing under repeated cycling is required.
| Model Code | DF3A004 |
|---|---|
| Product Type | Concentric Flange Butterfly Valve[Pin type and Wormgear] |
| Category | Concentric Flanged Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DF3A004 |
| Valve Type | Concentric flanged butterfly valve with pin and wormgear |
| Connection | Flanged, bolted to pipe flanges |
| Operation | Quarter-turn, wormgear manual operation |
| Series | DF3A004 concentric flanged butterfly valve series |
| Nominal Diameter Range | DN10 to DN2600 mm |
| Nominal Pressure Range | 0.05 to 4.0 MPa |
What This Model Gives You
- Pin-fixed disc ensures consistent disc alignment and torque transfer during repeated open-close cycles
- Wormgear operation provides smooth, controlled quarter-turn motion with reduced operator effort
- Flanged connection allows secure attachment to existing pipe flanges without welding
- Compact design fits into tight spaces where gate valves or ball valves would not
- Bidirectional sealing with resilient seat allows installation in either direction
- Part of a valve programme certified to ISO 9001 and ISO 14001
Problems It Removes
- Disc misalignment and leakage after repeated cycling due to friction-only disc-to-stem connections
- High operator effort required for large-diameter valves without gear assistance
- Lack of standardised valve operation across different systems in a single plant
- Space constraints between flanges that prevent the use of longer valves like gate valves
- Need for a single supplier offering both small and large diameters within the same valve type
Where It Is Installed
- Isolation of branch lines in water distribution networks where space between flanges is limited
- Throttling control in low-pressure heating and cooling circuits in HVAC systems
- On-off service in petrochemical process lines handling non-corrosive fluids
- Valve integration in pump skids and control panels where manual operation with gear is preferred
- Replacement of older butterfly valves in retrofit projects requiring reliable quarter-turn operation
Buyers It Suits
- Water and wastewater utility engineers sourcing flanged butterfly valves for municipal systems
- HVAC contractors standardising on quarter-turn valves with gear operation for ease of maintenance
- Pump station operators needing reliable on-off valves with long service life under cycling
- Industrial plant maintenance teams replacing valves with consistent disc alignment and sealing
- EPC contractors sourcing valves for low- and medium-pressure systems across multiple project sites
How It Is Built
- Concentric flanged butterfly valve with pin-fixed disc
- Wormgear operation for quarter-turn control with reduced effort
- Flanged end connection compatible with standard pipe flanges
- Resilient seat for bidirectional sealing
- Quarter-turn stem suitable for manual, lever, or actuator integration
- Part of a product programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the medium and temperature of the service line
- Seat and disc variants follow the options available across the DF3A004 series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem machined and assembled with pin fixation for torque transfer
- Seat fitted and closure member set for concentric travel and sealing
- Valve assembled and tested under pressure before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of flange bolt pattern and face-to-face length before assembly
- Seat and shell tightness testing on the assembled valve
- Wormgear operation and full quarter-turn travel verified on every unit
- Testing performed on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Disc and seat variant selected based on the medium and temperature on the buyer's line
- Wormgear can be fitted with or without a handwheel depending on the application
- Flange drilling matched to the buyer's flange standard
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Concentric flanged butterfly valve with lever | The wormgear reduces operator effort and provides better control, especially on larger diameters |
|---|---|
| Gate valve with flanged ends | The gate valve offers a full bore but is longer, heavier, and requires more space between flanges |
| Lug type butterfly valve | The flanged version requires flanges on both sides; the lug type can be used for end-of-line service |
| Ball valve with flanged ends | The ball valve provides tighter sealing at higher pressure but costs more and requires more clearance for handle sweep |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe flanges before ordering
- Ensure the disc is in the open position before inserting the valve between flanges
- Tighten the flange bolts evenly in a cross pattern to avoid misalignment
- After tightening, open the disc fully and confirm free quarter-turn travel through the wormgear
- Do not use the flanged body as a pipe end closure during pressure testing
- Cycle the valve periodically on lines that remain in one position for extended periods
