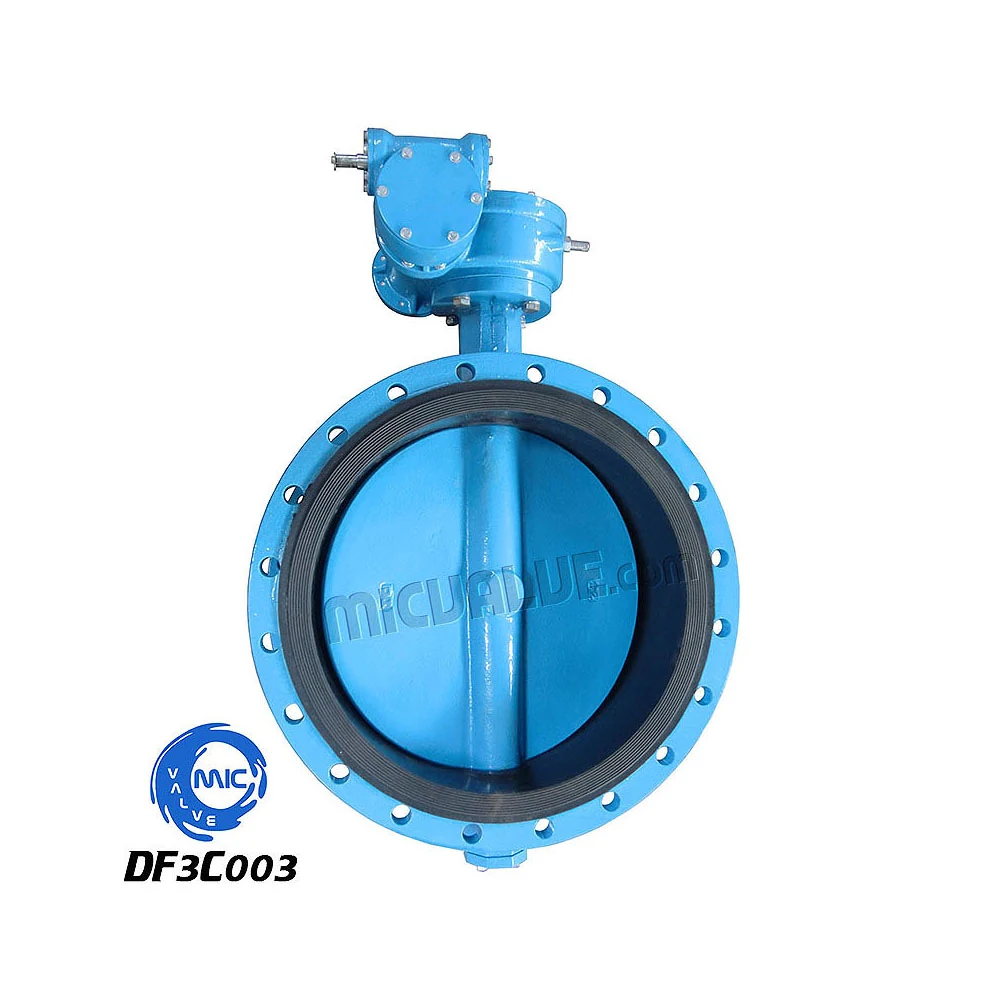

DF3C003 Concentric Flange Butterfly Valve Epoxy Coated Disc and Half Shaft
DF3C003 is a concentric flanged butterfly valve with an epoxy coated disc and half shaft, designed for on-off and throttling service in water, low-pressure industrial lines, and non-corrosive media. It connects via flanges on both ends, allowing direct bolt-up to existing piping without additional flanges. The half shaft design reduces stem length and weight while maintaining reliable torque transfer from the actuator to the disc.
| Model Code | DF3C003 |
|---|---|
| Product Type | Concentric Flange Butterfly Valve[Epoxy Coated Disc and Half Shaft] |
| Category | Concentric Flanged Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DF3C003 |
| Valve Type | Concentric flanged butterfly valve with epoxy coated disc and half shaft |
| Nominal Diameter | Confirmed on request |
| Connection | Flanged, with standard flange drilling |
| Operation | Quarter-turn, lever, gearbox, or actuator |
| Series | DF3C003 concentric flanged butterfly valve series |
What This Model Gives You
- Epoxy coated disc resists corrosion and wear in water and mild chemical service
- Half shaft reduces stem length and weight compared to full shaft designs
- Flanged connection allows direct bolt-up to pipe flanges without extra flange pairs
- Concentric disc design ensures low operating torque and smooth quarter-turn operation
- Built into a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
- Part of a factory-certified production line under ISO 9001 and ISO 14001
Problems It Removes
- Full shaft designs add length and weight to the valve stem, increasing actuator load and installation difficulty
- Uncoated discs can degrade in water service, leading to premature wear and leakage
- Lack of standard flange compatibility forces buyers to customise or stock multiple valve types
- Existing flanges cannot be reused when using wafer-style valves, increasing material cost
- Valves with inconsistent disc alignment under cycling lead to seat wear and leakage over time
Where It Is Installed
- Isolation of water supply lines in municipal distribution networks where space is limited
- Throttling control on low-pressure cooling water circuits in power and HVAC systems
- Batch isolation in chemical process lines handling non-aggressive fluids
- Maintenance shut-off in heating and district heating networks with flanged piping
- Valve replacement in retrofit projects where existing flanges must be reused
Buyers It Suits
- Water utility engineers sourcing flanged butterfly valves for municipal or industrial water systems
- HVAC and plant maintenance teams needing low-torque isolation valves for low-pressure lines
- EPC contractors standardising on flanged butterfly valves across multiple project sites
- Valve distributors stocking a range of concentric flanged valves from DN10 to DN2600
- Piping designers specifying compact valves with flange connections for tight installations
How It Is Built
- Flanged end connection with standard flange drilling
- Concentric disc design with half shaft for reduced stem length
- Epoxy coated disc for improved resistance to water and mild corrosion
- Quarter-turn operation for manual, gearbox, or actuator control
- Part of a flanged butterfly valve series covering DN10 to DN2600 and 0.05 to 4.0 MPa
- Designed for medium- and low-pressure service in water and non-aggressive media
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the medium and operating temperature
- Epoxy coating applied to the disc for corrosion resistance in water and non-aggressive fluids
- Material certificates issued upon request with the order
- Disc and seat variants follow the options available in the DF3C series
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc coated with epoxy and assembled with the half shaft stem
- Seat fitted and disc alignment checked for concentric travel
- Valve assembled, cycled, and pressure tested before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional checks on flange bolt pattern and face-to-face length before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel verified on every unit
- Testing performed on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Disc coating variant selected based on the medium and temperature on the buyer's line
- Flange drilling matched to the standard used on the buyer's pipework
- Lever, gearbox, pneumatic or electric actuator fitted before shipment
- Private label marking and packing available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Concentric flanged butterfly valve with full shaft | The full shaft version has a longer stem and higher weight, increasing actuator load and installation complexity |
|---|---|
| Wafer type butterfly valve | The wafer body cannot be used at the end of a line; the flanged body allows for end-of-line service and dead-end isolation |
| Double eccentric butterfly valve | The double eccentric design offers better sealing and longer life under higher pressure but is more complex and costly |
| Gate valve at same nominal diameter | The gate valve provides a full bore but is longer, heavier, and requires more space for actuator clearance |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe flanges before ordering
- Ensure the disc is fully open during insertion to prevent seat damage
- Tighten the flange bolts evenly in a cross pattern to avoid misalignment
- After tightening, open the disc fully and confirm free quarter-turn travel
- Do not use the valve as a pipe end closure during pressure testing
- Cycle the valve periodically if it remains in one position for extended periods
