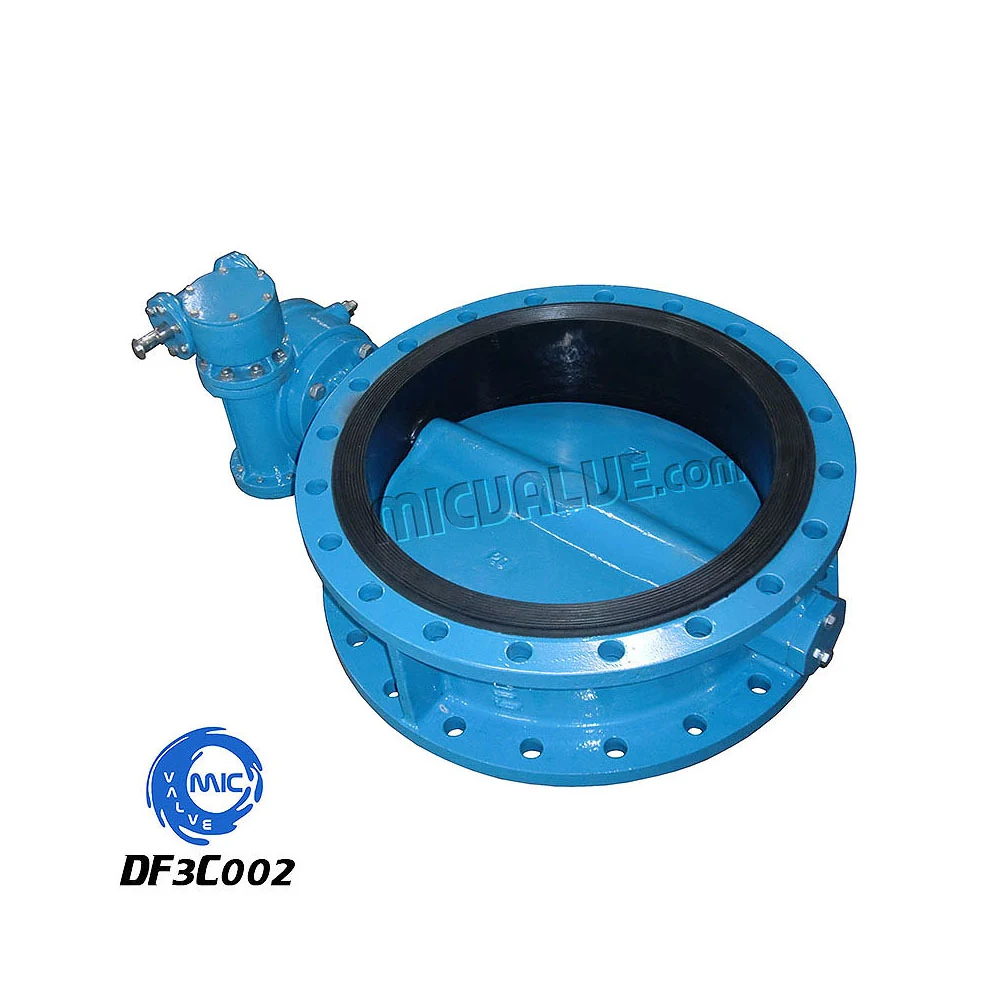

DF3C002 Concentric Flange Butterfly Valve Epoxy Coated Disc and Wormgear
DF3C002 is a concentric flanged butterfly valve with an epoxy coated disc and wormgear operation, designed for on-off and throttling service in water, low-pressure industrial, and heating applications. It connects to pipe flanges via bolted flange ends and uses a wormgear for manual quarter-turn control, allowing precise operation in tight spaces. The epoxy coating on the disc resists corrosion and wear in water and mild chemical environments.
| Model Code | DF3C002 |
|---|---|
| Product Type | Concentric Flange Butterfly Valve[Epoxy Coated Disc and Wormgear] |
| Category | Concentric Flanged Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DF3C002 |
| Valve Type | Concentric flanged butterfly valve |
| Disc Coating | Epoxy coated |
| Operation | Wormgear manual quarter-turn |
| Connection | Flanged, bolted to pipe flanges |
| Series | DF3C002 concentric flanged butterfly valve series |
What This Model Gives You
- Epoxy coated disc resists corrosion and wear in water and low-pressure service lines
- Flanged connection allows direct bolt-on installation to existing pipe flanges
- Wormgear operation provides smooth, controlled quarter-turn actuation with mechanical advantage
- Concentric disc design ensures low torque and minimal pressure drop in open position
- Compact size and lightweight construction reduce installation and support costs
- Part of a valve programme certified to ISO 9001 and ISO 14001
Problems It Removes
- Uncoated metal discs corrode or degrade in water and mild chemical service, leading to premature failure
- Manual operation with direct lever becomes difficult at larger diameters; wormgear reduces required torque
- Lack of standardised flanged butterfly valves with corrosion protection leads to inconsistent sourcing
- Space constraints between flanges make long valves impractical; flanged butterfly valves are compact
- Buyers need a single supplier for both small and large diameters across multiple valve types
Where It Is Installed
- Isolation of water supply lines in municipal and district heating systems where corrosion resistance is needed
- Throttling control in low-pressure cooling water circuits in power and industrial plants
- Service line isolation in pharmaceutical and chemical process piping with moderate media aggressiveness
- Installation in retrofit projects where space between flanges is limited and weight must be minimised
- Use in marine and offshore platforms where epoxy-coated components reduce maintenance from saltwater exposure
Buyers It Suits
- Water utility and district heating system operators sourcing corrosion-resistant valves
- Plant engineers standardising on flanged butterfly valves for low-pressure service
- EPC contractors procuring valves for water and heating packages with consistent performance
- Valve distributors stocking flanged butterfly valves with corrosion-resistant discs
- Marine and offshore project buyers needing lightweight, low-maintenance isolation valves
How It Is Built
- Concentric disc design with central pivot for balanced operation
- Flanged end connections for bolted attachment to pipe flanges
- Epoxy coated disc resists corrosion in water and mild chemical environments
- Wormgear actuator for manual quarter-turn operation with torque multiplication
- Quarter-turn stem for precise open-close control and position confirmation
- Part of a product programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
Material Selection
- Body, disc, stem and seat materials are confirmed per order against the buyer's medium and temperature
- Disc coating is epoxy resin applied to the disc surface for corrosion resistance
- Material certificates are issued with the order when the buyer requests them
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc coated with epoxy resin and cured under controlled conditions
- Wormgear assembly fitted to the stem and tested for smooth operation
- Valve assembled with disc, stem and gear, then cycled and pressure tested
- Marked, wrapped and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of flange bolt hole pattern and face-to-face length before assembly
- Seat and shell tightness tested on the assembled valve under pressure
- Operating torque and full quarter-turn travel verified on every unit
- Testing carried out on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Disc coating variant selected based on the medium and temperature on the buyer's line
- Flange drilling matched to the standard used on the buyer's pipework
- Wormgear can be replaced with lever, gearbox, or actuator on request
- Private label marking and packing available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Concentric flanged gate valve | The gate valve provides a full bore but is heavier and longer; the butterfly valve offers faster operation and lower cost |
|---|---|
| Lug type butterfly valve | The lug body allows end-of-line service; the flanged body requires flanges on both sides and cannot be used as a pipe end closure |
| Wafer type butterfly valve | The wafer body clamps between flanges; the flanged body bolts directly to pipe flanges and is more suitable for high-vibration or high-temperature service |
| Ball valve at DN100 | A ball valve offers tighter shut-off at higher pressure but costs more and requires more space for actuator clearance |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe flanges before ordering
- Ensure the disc is fully closed before bolting the valve into place to avoid seat damage
- Tighten flange bolts evenly in a cross pattern to prevent misalignment
- Operate the wormgear slowly to confirm smooth quarter-turn travel and no binding
- Do not use the flanged valve as a pipe end closure during pressure testing
- Cycle the valve periodically on lines that remain in one position for long durations
