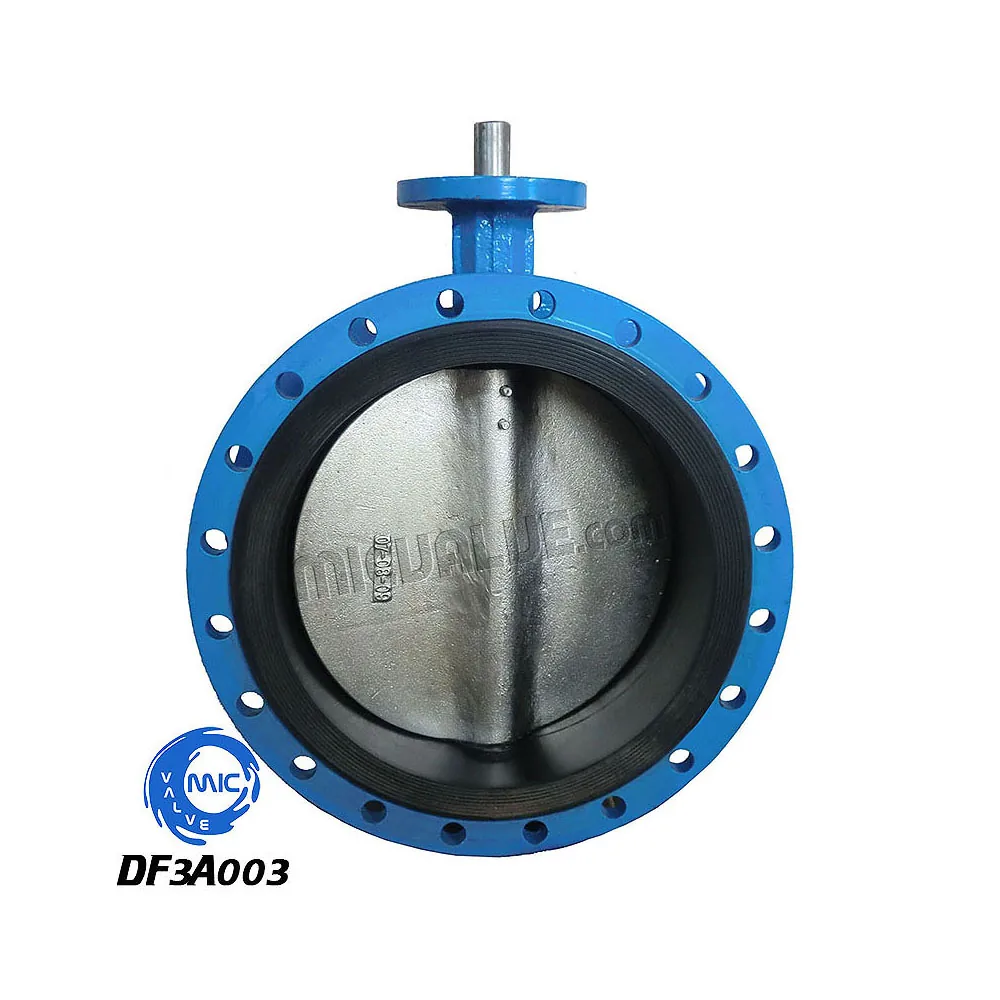

DF3A003 Concentric Flange Butterfly Valve Pin Type and Bare Shaft
DF3A003 is a concentric flanged butterfly valve with a pin-type disc and bare shaft, designed for on-off and throttling service in medium- and low-pressure water, heating, and industrial fluid lines. It connects via flanges to pipe ends, allowing direct bolt-up without additional flange pairs. The pin-fixed disc ensures consistent alignment during repeated cycling, reducing wear and leakage risk compared to friction-fit designs.
| Model Code | DF3A003 |
|---|---|
| Product Type | Concentric Flange Butterfly Valve[Pin type and Bare Shaft] |
| Category | Concentric Flanged Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DF3A003 |
| Valve Type | Concentric flanged butterfly valve with pin type and bare shaft |
| Connection | Flanged, bolted to pipe flanges |
| Operation | Quarter-turn, lever, gearbox, or actuator |
| Series | DF3A003 concentric flanged butterfly valve series |
| Nominal Diameter Range | DN10 to DN2600 mm |
| Nominal Pressure Range | 0.05 to 4.0 MPa |
What This Model Gives You
- Flanged connection allows direct bolt-up to existing pipe flanges without extra flange pairs
- Pin-fixed disc maintains centred position under repeated cycling, reducing wear and leakage
- Bare shaft stem enables direct attachment of levers, gearboxes, or actuators
- Concentric design provides smooth flow path with minimal pressure drop in open position
- Part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa, supporting project scalability
- Built under ISO 9001 and ISO 14001 certified systems for consistent quality and environmental control
Problems It Removes
- Friction-fit disc designs loosen over time, causing misalignment and leakage after repeated cycling
- Lack of standard flange connection forces extra flange purchases or welding work
- Valves with non-standard shafts complicate actuator integration and maintenance
- Small-diameter flanged valves are often treated as special-order items with long lead times
- Buyers need a single supplier who can cover both small and large flanged valves in the same series
Where It Is Installed
- Isolation of water supply lines in district heating systems where flanged connections are standard
- Throttling control in low-pressure cooling water circuits in power and industrial plants
- Zone shut-off in municipal water distribution networks using flanged pipe systems
- Process line isolation in chemical and pharmaceutical plants with flanged piping
- Retrofitting into existing flanged pipe runs where space and connection type are fixed
Buyers It Suits
- Water and heating system contractors sourcing flanged butterfly valves in project volumes
- Plant engineers specifying flanged valves for low- to medium-pressure service lines
- EPC firms standardising on flanged butterfly valves across multiple project types
- Valve distributors stocking flanged butterfly valves from DN10 upward
- Facility operators replacing older valves with a pin-type disc design for longer service life
How It Is Built
- Flanged connection to pipe ends using standard flange drilling
- Pin-fixed disc to stem for positive torque transfer and centred disc travel
- Bare shaft stem for direct lever, gearbox, or actuator mounting
- Concentric disc design for low turbulence and minimal pressure drop
- Quarter-turn operation for fast on-off and throttling control
- Part of a flanged butterfly valve series that continues through DN10 to DN2600
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the operating medium and temperature
- Material options follow the variants available in the DF3A003 series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem assembled with pin fixation as a matched unit
- Seat fitted and closure member set for concentric travel
- Valve assembled, cycled, and pressure tested before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of flange bolt pattern and face-to-face length before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel verified on every unit
- Testing performed on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Disc and seat variant selected based on the medium and temperature on the buyer's line
- Lever, gearbox, pneumatic or electric actuator fitted before shipment
- Flange drilling matched to the standard used on the buyer's pipework
- Private label marking and packing available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Flanged butterfly valve with half shaft | The half-shaft version reduces stem length but offers less direct torque transfer than the pin-fixed disc |
|---|---|
| Lug type butterfly valve | The lug body allows end-of-line service; the flanged version requires flanges on both sides |
| Gate valve with flanged ends | The gate valve provides full bore but is heavier, longer, and more expensive for the same duty |
| Wafer type butterfly valve | The wafer body clamps between flanges; the flanged body bolts directly to pipe flanges, allowing easier maintenance and end-of-line use |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe flanges before ordering
- Ensure the disc is fully open before inserting the valve into the flange alignment
- Tighten flange bolts evenly in a cross pattern to avoid misalignment
- After tightening, open the disc fully and confirm free quarter-turn operation
- Do not use the flanged valve as a pipe end closure during pressure testing
- Cycle the valve periodically on lines that remain in one position for extended periods
