DF3A001 Concentric Flange Butterfly Valve Wormgear and PN10 PN16

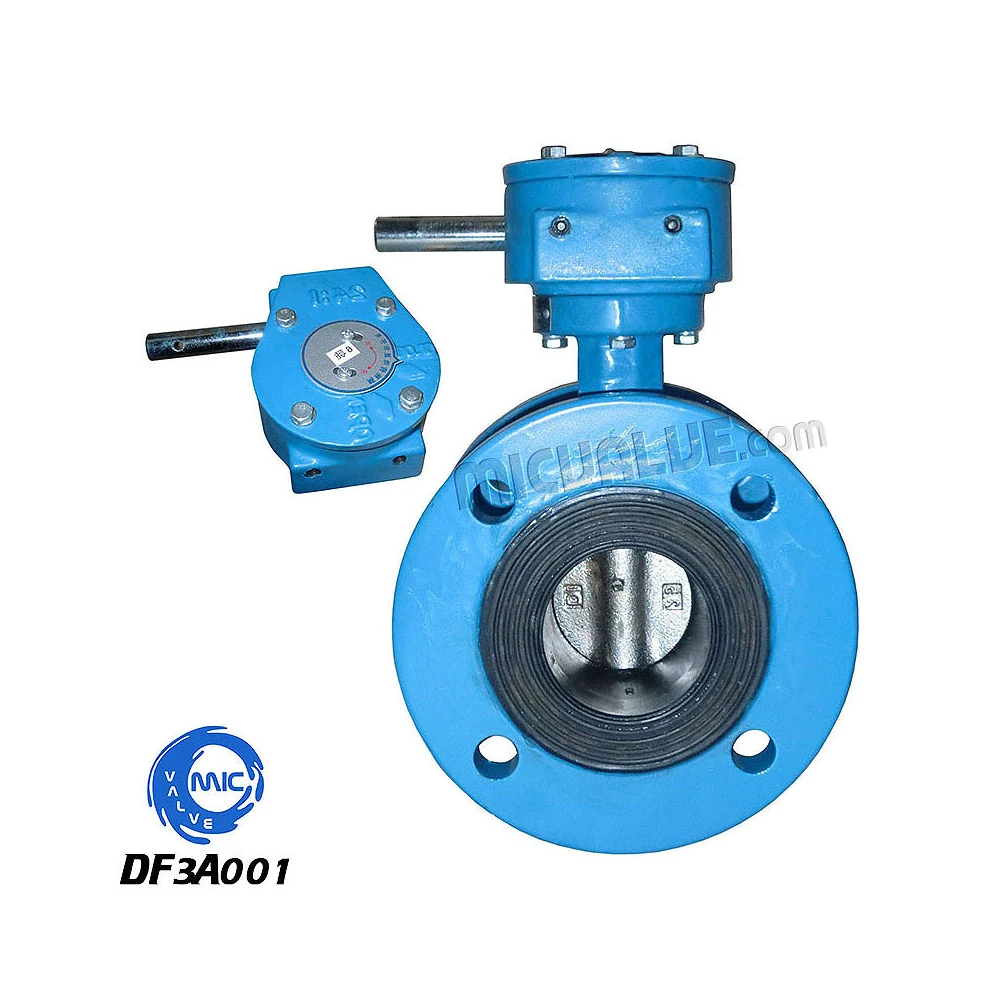

DF3A001 is a concentric flanged butterfly valve with wormgear operation, designed for on-off and throttling service in water, low-pressure process, and heating systems. It connects to pipe flanges with bolts and uses a central disc to control flow, offering a compact solution where space is limited. The wormgear provides smooth manual operation and position retention under pressure.
| Model Code | DF3A001 |
|---|---|
| Product Type | Concentric Flange Butterfly Valve[Wormgear and PN10 PN16] |
| Category | Concentric Flanged Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DF3A001 |
| Valve Type | Concentric flanged butterfly valve with wormgear |
| Connection | Flanged, bolted to pipe flanges |
| Operation | Quarter-turn, manual with wormgear |
| Series | DF3A001 flanged butterfly valve series |
| Nominal Diameter Range | DN10 to DN2600 mm |
| Nominal Pressure Range | 0.05 to 4.0 MPa |
What This Model Gives You
- Flanged connection allows secure bolted attachment to existing pipe flanges without welding
- Concentric disc design ensures low torque and smooth operation at low pressure
- Wormgear actuation provides precise control and holds position under pressure
- Compact size reduces space needed in piping layouts compared to gate valves
- Bidirectional sealing with resilient seat allows installation in either direction
- Part of a valve programme certified to ISO 9001 and ISO 14001
Problems It Removes
- Gate valves are too long and heavy for tight spaces between flanges in retrofit projects
- Manual operation without gear requires high effort and lacks position retention
- Valves with unsealed or misaligned discs leak after repeated cycling
- Lack of standardised flanged connections leads to mismatched piping and installation delays
- Buyers need one supplier who can provide both small and large diameters in the same series
Where It Is Installed
- Isolation of water supply lines in HVAC systems where space between flanges is limited
- Throttling control on low-pressure heating circuits in district heating plants
- Process line shut-off in chemical and pharmaceutical plants using water-based media
- Pump suction and discharge isolation in municipal water stations with flanged piping
- Maintenance isolation on industrial process headers where manual control is required
Buyers It Suits
- HVAC and plumbing contractors sourcing flanged butterfly valves for building services
- Plant engineers specifying low-torque isolation valves for water and heating systems
- EPC firms standardising on flanged butterfly valves across multiple project sites
- Valve distributors stocking medium- and low-pressure valves with manual wormgear
- Facility managers replacing older gate valves with compact, low-maintenance alternatives
How It Is Built
- Flanged connection with bolt holes matching standard flange patterns
- Concentric disc design with central stem for balanced flow control
- Wormgear actuation for smooth manual operation and position locking
- Resilient seat for bidirectional sealing and low leakage
- Quarter-turn operation with handle or gear for open-close control
- Part of a flanged butterfly valve series covering DN10 to DN2600
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the medium and temperature
- Seat and disc variants follow the options available in the DF3A001 series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem assembled with concentric alignment and seat fitted
- Wormgear unit attached and tested for smooth operation and torque consistency
- Valve assembled, cycled, and pressure tested before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of flange bolt pattern and face-to-face length before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel verified on every unit
- Testing conducted on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat and disc variant selected based on the medium and temperature of the buyer's line
- Wormgear or hand lever fitted depending on operational preference
- Flange drilling matched to the standard used on the buyer's piping system
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in a single container shipment
How It Compares With the Alternatives
| Flanged gate valve | The gate valve offers a full bore but is longer, heavier, and requires more space for operation |
|---|---|
| Wafer butterfly valve | The flanged version allows for easier disassembly and maintenance but adds more length than a wafer body |
| Butterfly valve with actuator | The wormgear provides manual control with position retention; an actuator would allow remote operation but adds cost and complexity |
| Concentric butterfly valve with lever | The wormgear gives better torque control and position holding, especially under pressure, compared to a simple lever |
Installing and Operating This Valve
- Confirm the flange standard, bolt pattern, and pressure rating before ordering
- Ensure the pipe flanges are clean and flat before installing the valve
- Insert the valve between flanges with the disc slightly open to avoid seat damage
- Tighten the flange bolts evenly in a cross pattern to prevent misalignment
- After tightening, open the disc fully and confirm smooth quarter-turn operation
- Do not use the valve as a pipe end closure during pressure testing
