What pouch sizes can the BHD-130S run?

The BHD-130S is published for width 60-130 mm and length 80-190 mm. Sizes inside that range are a tooling and recipe change rather than a different machine, so tell us the exact pouch you sell and we will confirm it against the format set before quoting.

How fast is the BHD-130S?

Rated output is 30-45 ppm. Real throughput depends on product, dose size and film, which is why every machine is run on your own product and film rolls during the factory acceptance test before it ships.

Which products is the BHD-130S built for?

Filling capacity is published at 350 ml. Dosing is selected to match the product — auger, volumetric cup, multihead weigher, pump, servo piston or track counter. The BHD series is aimed at brands that already sell in stand-up pouches and are being held back by pouch supply, and contract packers who need one frame to cover several pouch styles.

What is the minimum order and lead time for the BHD-130S?

Minimum order is one set. Lead time published for this model is 60 days. Lead time depends on product type, order quantity and the current schedule — standard machines run around 45 working days, and customised configurations take longer.

How is the BHD-130S built and what documentation comes with it?

Product contact parts on this model are published as stainless steel. Machine footprint is 4720 × 1125 × 1550 mm. Every machine ships with export voltage, English documentation, installation drawings, a spare-parts kit and remote video commissioning, and carries a one-year warranty with lifetime maintenance and 12-hour online support.

BHD series · BHD-130S

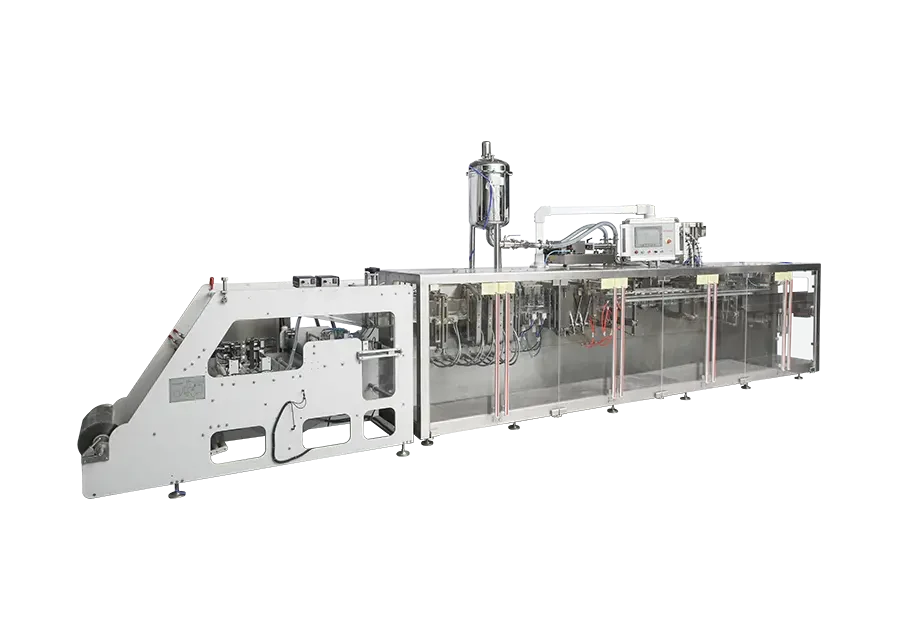

Boevan BHD-130S Horizontal Form Fill Seal Machine for Shaped Doypack

Name: Boevan BHD-130S Horizontal Form Fill Seal Machine for Shaped Doypack
Brand: Boevan
SKU: BHD-130S

The Boevan BHD-130S is a high-efficiency horizontal form fill seal machine (HFFS) engineered specifically for 30-350ml shaped doypack. As China's pioneer HFFS shaped sachet packing machine, this system was uniquely developed to master the complexities of the nutritional and pharmaceutical sectors.

Pouch Width60-130 mm

Pouch Length80-190 mm

Filling Capacity350 ml

Packaging Speed30-45 ppm

Get a quote on WhatsApp Email enquiry

Download the full catalogue (PDF)

Dimensions4720 × 1125 × 1550 mm

MaterialStainless steel

Minimum order1/set

Lead time60 days

Who It Is For and What It Solves

The BHD-130S sits in the BHD Doypack HFFS Machine range, rated at 30-45 ppm, filling up to 350 ml, with a pouch width of 60-130 mm. It is aimed at brands that already sell in stand-up pouches and are being held back by pouch supply, and contract packers who need one frame to cover several pouch styles.

Buying pre-made pouches ties your cost and your lead time to a converter. A BHD line forms the pouch from roll film on the spot, so bag cost drops, artwork changes take days instead of weeks, and pouch size becomes a recipe on the HMI rather than a new purchase order.

High-Performance Flexible Packaging Machines

As a trusted manufacturer of HFFS (Horizontal Form-Fill-Seal) stand-up pouch packaging machines, Boevan provides flexible packaging solutions widely used in industries such as food and beverage, dietary supplements, pharmaceuticals, condiments, pet food, baby food, and home & personal care. Our BHD series equipment supports various dosing-system configurations and allows for the customization of diverse pouch formats, including shaped pouches, spouted pouches, zippered pouches and straw-inserted pouches.

Optional configurations: full servo drive, zipper application units, spout insertion units, shaped cutting dies, ATEX explosion-proof certification, laminar flow systems, film sterilization systems, as well as laser coding and laser scoring (easy-tear line) units.

The Boevan BHD-130S is a high-efficiency horizontal form fill seal machine (HFFS) engineered specifically for 30-350ml shaped doypack. As China’s pioneer shaped doypack packing machine, this system was uniquely developed to master the complexities of the nutritional and pharmaceutical sectors—making it the ultimate, high-precision supplement sachet packing machine for liquid formulations. To guarantee absolute hygiene and safety, all product-contact components are crafted from premium 316L stainless steel, ensuring seamless and uncompromising compliance with stringent GMP standards

It is currently widely used in dietary supplements, snacks and beverages, pet food, dipping sauces and seasonings, etc.
