Torque Motor and DD Motor

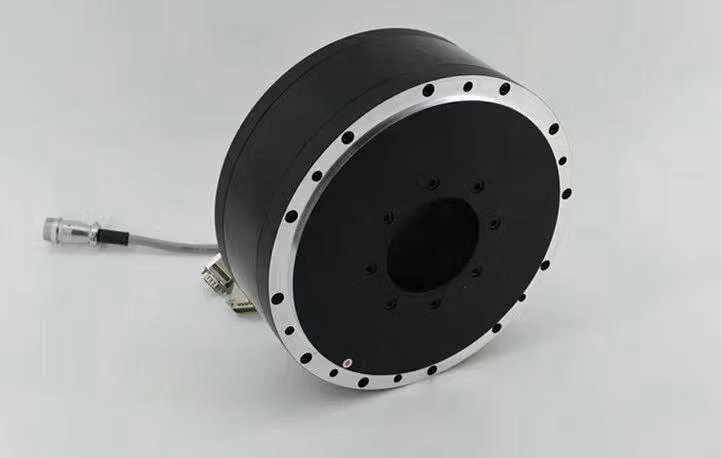

Mrright supplies torque motors and direct drive (DD) motors with their matched drives from stock in Zhuhai. These motors are designed for low-speed, high-torque applications where backlash must be eliminated, such as indexing tables, rotary stages, capping and labelling heads, and wafer or panel handling.
Overview
What This Part Does in Your Machine
Mrright supplies torque motors and direct drive (DD) motors with their matched drives from stock in Zhuhai. These motors are designed for low-speed, high-torque applications where backlash must be eliminated, such as indexing tables, rotary stages, capping and labelling heads, and wafer or panel handling. The motor and drive are quoted together to ensure compatibility and reduce commissioning delays.
Key Benefits
- Motor and drive are supplied as a matched set, eliminating encoder, connector and parameter mismatches
- Through-hole bore, outer diameter, height, and torque values are confirmed against the machine requirement before ordering
- Single-unit spares are accepted, which avoids long lead times on obsolete or low-volume parts
- Mixed orders with PLCs, HMIs, sensors and other automation components ship as one consolidated shipment
Problems It Solves
- A torque motor bought without its drive often fails to run due to mismatched encoder protocol or connector type
- Sourcing motors and drives from separate suppliers adds days to the procurement process and increases risk of mismatch
- Factory sales channels often require large minimum orders for single motor types, which is not practical for spares
- Multiple shipments from different suppliers increase freight cost and complicate customs clearance
Who It Is For
- Machine builders specifying rotary motion systems for packaging, semiconductor, or electronics assembly
- System integrators installing rotary stages or indexing cells with tight positioning requirements
- Maintenance and MRO buyers replacing a failed torque or DD motor without a minimum order
- Distributors consolidating automation parts from multiple brands into one China-based order
Application
Where Torque Motor and DD Motor Is Used
Application Scenarios
- Replacing a failed torque or DD motor on a production line where the original brand is no longer available locally
- Designing a new indexing table or rotary stage that requires high torque at low speed without a gearbox
- Upgrading a belt-driven rotary axis to a direct-drive system to eliminate backlash and improve repeatability
- Holding critical spare motors on hand for machines that cannot tolerate extended downtime
Technical Features
- Low-speed, high-torque motors designed for direct drive of rotary axes and index tables
- No gearbox or belt between motor and load, so backlash is eliminated
- Available with through-hole bore, outer diameter, height, and encoder resolution selected to match the application
- Matched drive supplied with the motor to ensure correct parameter settings and connector compatibility
- Multiple brands carried in stock, so an existing machine can be replaced without redesign
Specifications
What Is Confirmed Before You Order
Values that depend on the model you choose are marked as confirmed on quotation rather than guessed at here.
| Product type | Torque motor and direct drive (DD) motor |
|---|---|
| Drive type | Matched drive supplied with the motor |
| Application | Rotary axis, index table, capping and labelling head, wafer or panel handling |
| Speed range | Low speed, high torque - specific values confirmed on inquiry |
| Torque | Continuous and peak torque values confirmed against the machine requirement |
| Bore | Through-hole bore diameter confirmed on inquiry |
| Dimensions | Outer diameter and height confirmed on inquiry |
| Encoder | Resolution and type confirmed on inquiry |
| Brands | Multiple brands held in stock - confirmed on inquiry |
| Minimum order | Single unit accepted |
| Ships from | Zhuhai, Guangdong, China |
Checks Before Despatch
- Motor and drive checked as a set for encoder protocol, connector pinout, and parameter compatibility before dispatch
- Bore, outer diameter, height, and shaft dimensions verified against the customer's machine drawing or nameplate photo
- Packing list photographed before shipment so the buyer can confirm contents
Customisation and Selection
- Motor and drive selected based on an existing nameplate photo when the original part is obsolete
- Through-hole bore, outer diameter, height, and shaft dimensions confirmed against the machine layout
- Encoder resolution and drive parameters specified to match the application requirement
- Multiple motors and drives quoted as a package with the PLC and HMI that control them
Comparison
How It Compares
| Gearbox-driven rotary motor | A torque or DD motor removes the gearbox, so backlash is eliminated and maintenance is reduced |
|---|---|
| Motor bought without its drive | A matched pair ensures the drive is pre-configured for the motor's encoder and connector |
| Ordering direct from a brand factory | Single units and mixed brands are accepted, and all parts ship in one consolidated order from Zhuhai |
Use Guide
What to Send and What to Check
- Send a photo of the motor nameplate or the model number from the machine manual
- Confirm bore diameter, outer diameter, height, and shaft dimensions against the machine mounting
- State the required encoder resolution and cable length before the order is confirmed
- Request the drive parameter list so the motor can be tuned on arrival
Applications
Industries Using This Part
Electronics Assembly
Mrright supplies components for SMT and box-build electronics assembly lines including vacuum suction cups for PCB and component handling, photoelectric and fibre sensors for board presence detection, compact PLCs for feeder and conveyor control, and servo axes for handling systems.
Robotics and System Integration
Mrright provides system integrators with a consolidated sourcing solution for robot cells, gantries, and custom automation systems.
Solutions
Solutions Built Around It
Obsolete Axis Replacement
A machine is down, the servo axis has failed and the original model is discontinued. This is the route from a nameplate photo to a working axis on the shelf.
Consolidated Automation Sourcing
One mixed parts list, one supplier, one shipment. This is how a bill of materials with eight brands on it is handled.
Guides
Read Before You Specify
Related
Related Components
Automation PLC and Motion Components
Servo Motors and Drives
Mrright supplies AC servo motors with matched drives, power cables, and encoder cables for positioning axes. Each motor is quoted with the drive and cables that are compatible, so the axis arrives ready to commission.
Automation PLC and Motion Components
Automation PLC and Control Devices
Mrright supplies programmable logic controllers and expansion modules for machine control, held in stock in Zhuhai. Buyers select by I/O count, I/O type, supply voltage, communication port, and programming software.
Automation PLC and Motion Components
Industrial Sensors
Mrright supplies industrial sensors for machine automation including inductive and capacitive proximity switches, photoelectric sensors, fibre amplifiers, magnetic cylinder switches, and pressure switches. Multi-brand stock is held in Zhuhai and shipped worldwide on inquiry.
FAQ
Questions About Torque Motor and DD Motor
Can I buy just one torque motor as a spare?
Yes. Single-unit orders are accepted. Send the nameplate photo or model number and the matching drive will be quoted with it.
Do the motor and drive come from the same brand?
They are quoted as a matched set. Where a brand pairing is required by the encoder protocol, it follows that pairing; where an alternative is possible, it is stated in the quotation.
Which brands do you carry?
Several brands are held in stock in Zhuhai. Send the model you are replacing and availability and price are confirmed by return message.
Can I mix torque motors with PLCs and sensors in one order?
Yes. Motion, control, and sensing parts are consolidated into one shipment, which is usually cheaper than shipping each brand separately.
What do you need from me to quote?
The model number or a nameplate photo, the quantity, and the destination port or city. Bore, outer diameter, height, and cable length are confirmed before the order is placed.
Get Torque Motor and DD Motor Quoted
Send the model code or a nameplate photo and availability comes back in the same thread.
