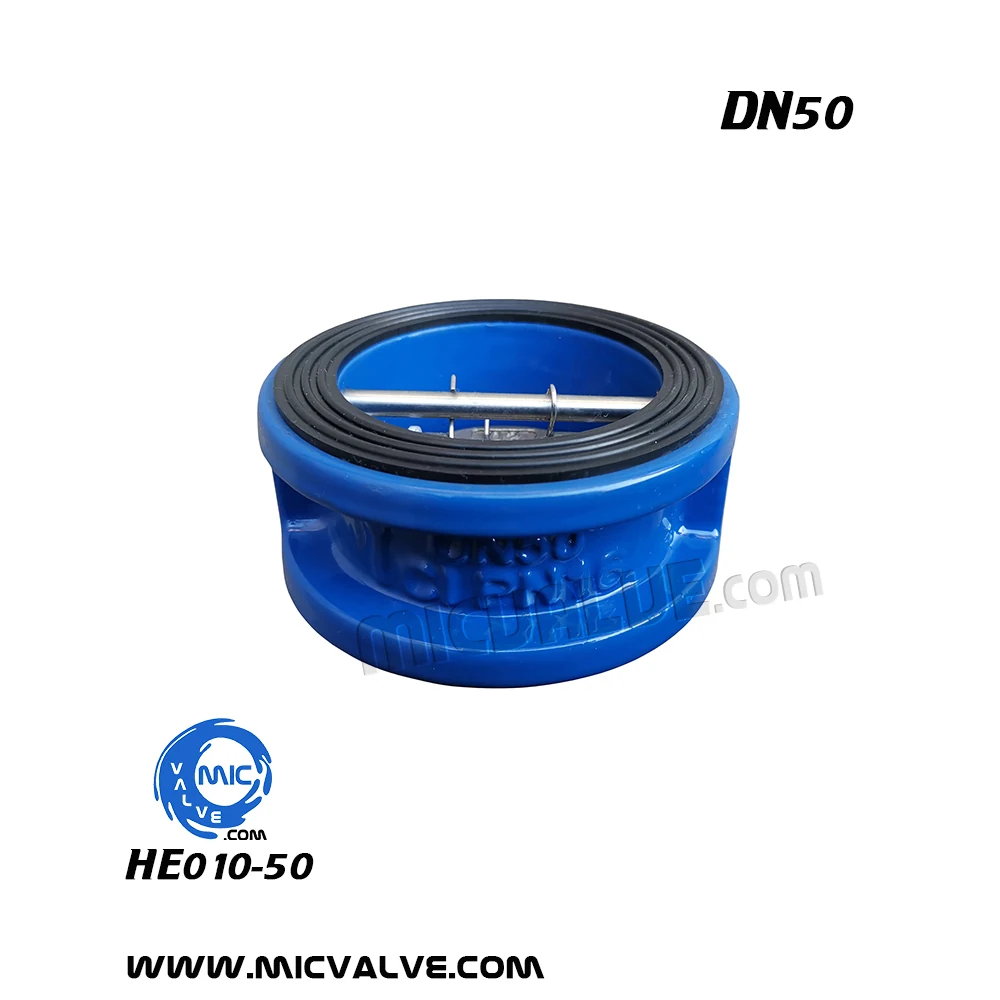

HE010-50 Check Valve
HE010-50 is a DN50 wafer type check valve designed for automatic non-return service in water, low-pressure fluid and air lines. It operates without manual input, opening under forward flow and closing by spring force and reverse flow. The wafer body clamps between two pipe flanges, requiring no additional flanges or welding. It is part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa, with over 600 models produced in-house.
| Model Code | HE010-50 |
|---|---|
| Product Type | Check Valve |
| Category | Wafer Type Dual Plate Check Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | HE010-50 |
| Valve Type | Wafer type check valve |
| Nominal Diameter | DN50 |
| Connection | Wafer, clamped between pipe flanges |
| Operation | Automatic non-return, spring-assisted closure |
| Series | HE010 wafer check valve series |
What This Model Gives You
- Automatic operation eliminates need for actuators, levers or manual intervention
- Wafer body clamps between existing flanges, reducing installation cost and space
- Spring-assisted closure ensures fast shut-off on reverse flow or pump stop
- Compact face-to-face length fits tight spaces where gate valves would not
- Bidirectional flow control with no external control required
- Part of a certified valve programme with ISO 9001 and ISO 14001 compliance
Problems It Removes
- Manual isolation valves require extra operators or actuators, increasing cost and complexity
- Gate valves are too long and heavy for tight spaces between flanges
- Lack of automatic closure leads to backflow damage in pump systems
- Mixed valve types on one project increase spare parts inventory and maintenance effort
- Buyers need a single supplier for both isolation and check valves across different diameters
Where It Is Installed
- Preventing backflow in pump discharge lines on water supply systems
- Protecting pumps from water hammer in low-pressure heating circuits
- Maintaining flow direction in gravity-fed water headers in industrial plants
- Isolation of auxiliary lines in power plant auxiliary systems where automatic shut-off is required
- Non-return service in chemical process lines with low to medium pressure
Buyers It Suits
- Water utility engineers specifying automatic check valves for pump stations
- HVAC and heating system designers needing compact non-return valves
- Pump and skid system builders integrating automatic isolation into fixed frames
- EPC contractors sourcing reliable check valves for multiple projects
- Valve distributors stocking a wafer check valve range from DN50 upward
How It Is Built
- Wafer body clamped between two pipe flanges with through bolts
- Automatic non-return operation using spring and reverse flow
- Spring-loaded disc opens on forward flow and closes on reverse flow
- No handle, lever, gearbox or actuator required
- Part of the HE010 wafer check valve series extending to larger nominal diameters
- Designed for use in water, low-pressure fluids and air systems
Material Selection
- Body, disc and spring materials are confirmed per order based on the medium and operating temperature
- Material selection follows the variants offered across the HE010 series
- Material certificates are issued with the order upon request
How It Is Made
- Body casting inspected and machined on in-house fine machining equipment
- Disc and spring assembled as a matched unit and tested for free movement
- Valve body clamped and the closure mechanism set for proper spring tension
- Assembled valve tested under forward and reverse flow conditions
- Marked, wrapped and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of body face-to-face length and flange bolt pattern before assembly
- Spring tension and disc movement verified during functional test
- Leakage test performed on the assembled valve under reverse flow
- Testing carried out on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Disc and spring variant selected for the medium and temperature on the buyer's line
- Flange drilling matched to the standard used on the buyer's pipework
- Private label marking and packing available on OEM orders
- Mixed-diameter orders combined with other valves in one container
- Material variants confirmed during quotation
How It Compares With the Alternatives
| Lug type check valve | The lug body allows end-of-line service; the wafer body requires flanges on both sides |
|---|---|
| Gate valve with manual operation | The gate valve requires a handle or actuator and is longer; the check valve operates automatically and is more compact |
| Ball valve with manual operation | The ball valve requires a handle or actuator and is more expensive; the check valve is automatic and lower cost for non-return duty |
| Butterfly check valve with disc | The butterfly check valve has a larger disc and higher pressure drop; the HE010 has a smaller disc and lower flow resistance |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe flanges before ordering
- Install the valve with the flow arrow aligned with the system direction
- Do not use the wafer body as a pipe end closure during pressure testing
- Ensure the disc can move freely before tightening the through bolts
- Avoid installing in horizontal runs with low flow where sediment may settle and jam the disc
- Inspect the valve periodically in systems where it remains in one position for long periods
