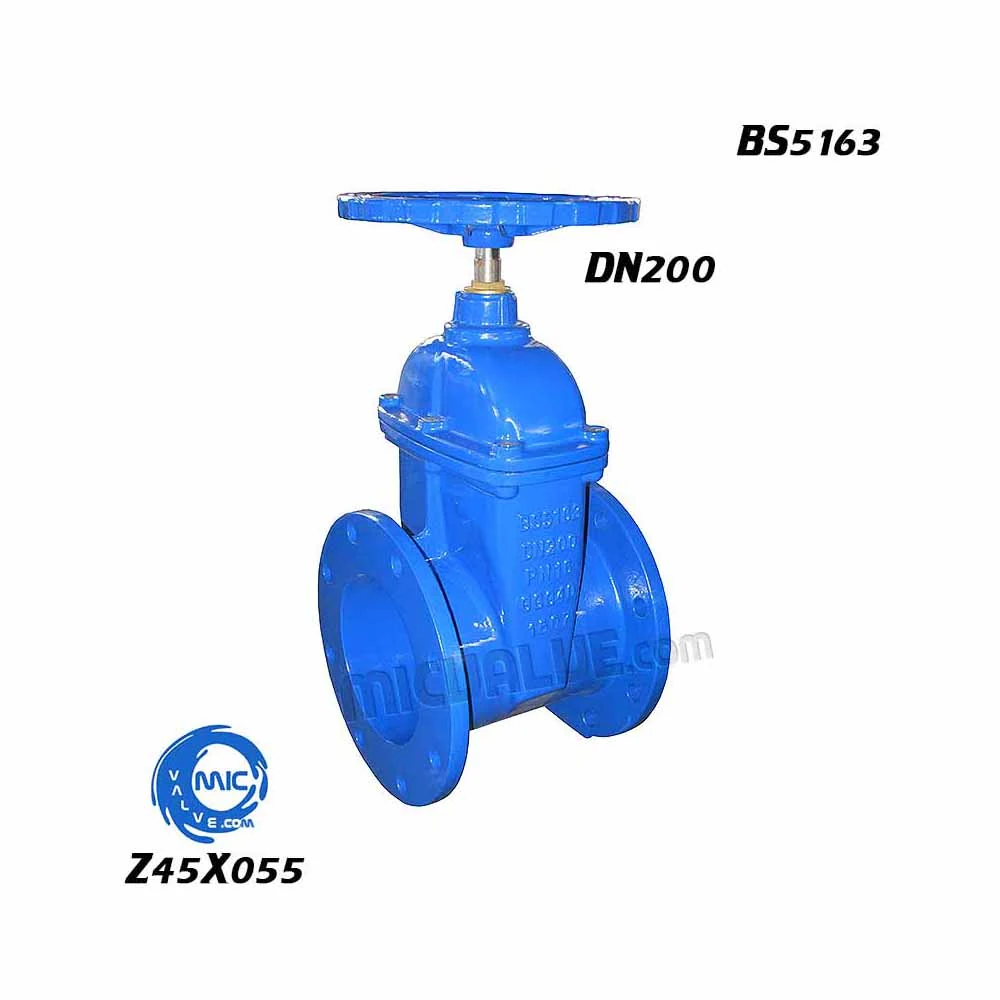

Z45X055 Non-rising Stem Resilient Seated Gate Valve BS5163
Z45X055 is a non-rising stem resilient seated gate valve designed for on-off service in water, low-pressure steam, and similar media. It features a resilient rubber seat that provides a tight seal and allows for bidirectional flow isolation. The valve body is cast and machined in-house, with the stem moving through the body without rising, which reduces the vertical space required for installation.
| Model Code | Z45X055 |
|---|---|
| Product Type | Non-rising Stem Resilient Seated Gate Valve[BS5163] |
| Category | Resilient Seated Gate Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | Z45X055 |
| Valve Type | Non-rising stem resilient seated gate valve |
| Standard | BS5163 |
| Nominal Diameter | Confirmed on request |
| Nominal Pressure | Confirmed on request |
| Operation | Manual, handwheel or gearbox |
| Series | Z45X055 non-rising stem gate valve series |
What This Model Gives You
- Non-rising stem saves vertical space in tight installations where overhead clearance is limited
- Resilient seat provides a tight seal under low to medium pressure and reduces wear over time
- Compact design fits into tight spaces between flanges, especially in retrofit or confined areas
- Bidirectional sealing allows installation without regard to flow direction
- Built within a valve programme certified to ISO 9001 and ISO 14001
- Part of a range covering DN10 to DN2600 with pressure ratings from 0.05 to 4.0 MPa
Problems It Removes
- Rising stem valves require overhead clearance that is not available in many retrofit or confined spaces
- Traditional gate valves with metal seats may wear faster and leak under repeated cycling
- Lack of bidirectional sealing forces careful orientation during installation, increasing error risk
- Inconsistent valve profiles across suppliers make spare parts and maintenance difficult to manage
- Buyers need a single source for valves from DN10 to DN2600 with consistent performance and certification
Where It Is Installed
- Isolation of branch lines in water distribution systems where vertical space is limited
- Control of flow in low-pressure heating circuits in industrial buildings and district heating plants
- On-off service in chemical process lines handling non-corrosive liquids at medium pressure
- Installation in pump suction and discharge lines where overhead clearance is restricted
- Use in sewage treatment plants where space constraints and bidirectional sealing are required
Buyers It Suits
- Water utility engineers sourcing reliable isolation valves for municipal distribution networks
- HVAC and mechanical contractors installing valves in tight plant rooms or basements
- EPC firms standardising on non-rising stem valves for consistent space management
- Valve distributors stocking medium- and low-pressure gate valves across a wide diameter range
- Industrial plant operators needing durable, low-maintenance valves for routine on-off service
How It Is Built
- Non-rising stem design with stem threaded into the gate and sealed by a gland
- Resilient rubber seat providing a tight seal and reducing friction during operation
- Gate moves linearly within the body, with no stem rise during opening or closing
- Body and bonnet cast from ductile iron or carbon steel, depending on the variant
- Suitable for use in water, low-pressure steam, and non-corrosive liquids
- Part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
Material Selection
- Body, gate, stem, and seat materials are confirmed per order based on the medium and temperature
- Resilient seat made from rubber or elastomer compatible with the service medium
- Material certificates are issued with the order when requested by the buyer
- Available in ductile iron and carbon steel variants depending on the application
How It Is Made
- Body and bonnet cast and inspected for defects before machining
- Stem and gate machined to precise tolerances on in-house fine machining equipment
- Resilient seat fitted and aligned to ensure even contact with the gate
- Assembly completed with stem gland and packing to prevent leakage
- Valve tested for tightness and operating torque before packing
- Marked, wrapped, and crated for shipment from Tianjin
How It Is Checked
- Dimensional checks on body face-to-face length and flange bolt pattern before assembly
- Seat tightness test performed on the assembled valve under test pressure
- Operating torque and full linear travel verified on every unit
- Testing conducted on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat material selected based on the service medium and temperature
- Flange drilling matched to the buyer's pipe standard (e.g., BS, ANSI, JIS)
- Handwheel, gearbox, or actuator fitted before shipment upon request
- Private label marking and packaging available for OEM orders
- Mixed-diameter orders combined with other valves in one container for export
How It Compares With the Alternatives
| Rising stem gate valve | The rising stem valve requires overhead space; the non-rising stem saves vertical clearance |
|---|---|
| Metal seated gate valve | The metal seated valve handles higher temperatures and pressures but has higher operating torque and wear |
| Butterfly valve | The butterfly valve is shorter and lighter but does not provide full bore or as tight a seal at low pressure |
| Lug type gate valve | The lug type allows end-of-line service; the non-rising stem valve requires flanges on both sides |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe ends before ordering
- Ensure the valve is fully closed before installing between flanges to avoid seat damage
- Tighten the handwheel evenly and avoid over-tightening to prevent stem binding
- Open and close the valve periodically on lines that remain in one position for long durations
- Do not use the valve as a throttling device; it is designed for on-off service only
- Inspect the stem gland and packing regularly for leaks during operation
Related Models Industries and Guides
Z45X421 Non-rising Stem Resilient Seated Gate Valve for PVC Pipe
View Specification

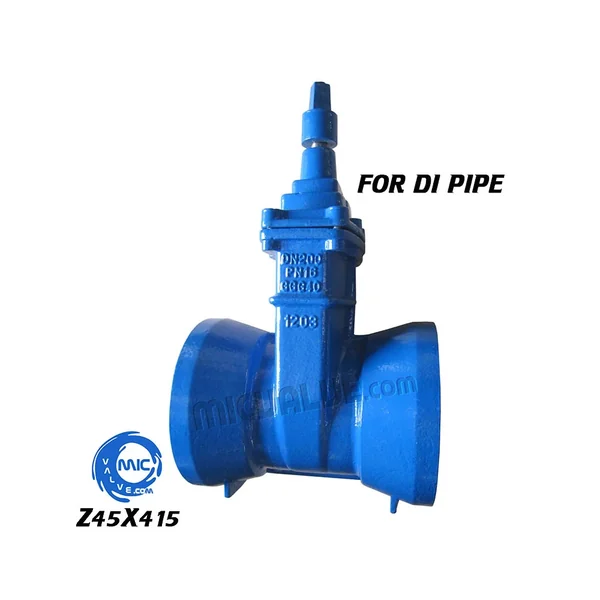

Z45X415 Non-rising Stem Resilient Seated Gate Valve for DI Pipe
View Specification

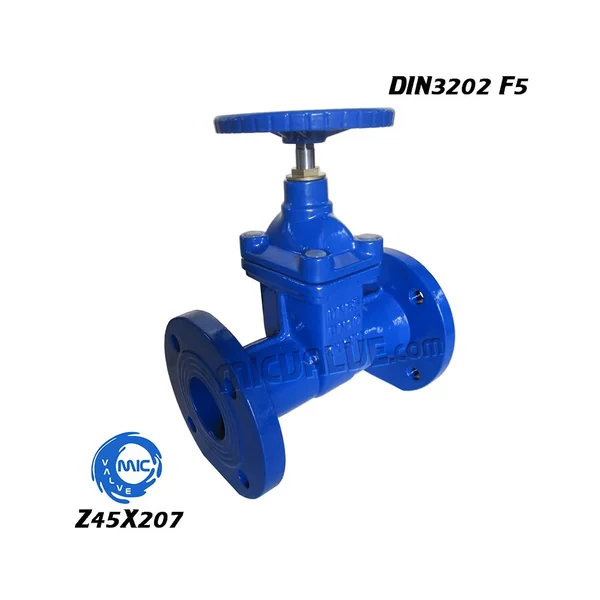

Z45X207 Non-rising Stem Resilient Seated Gate Valve DIN3202 F5
View Specification

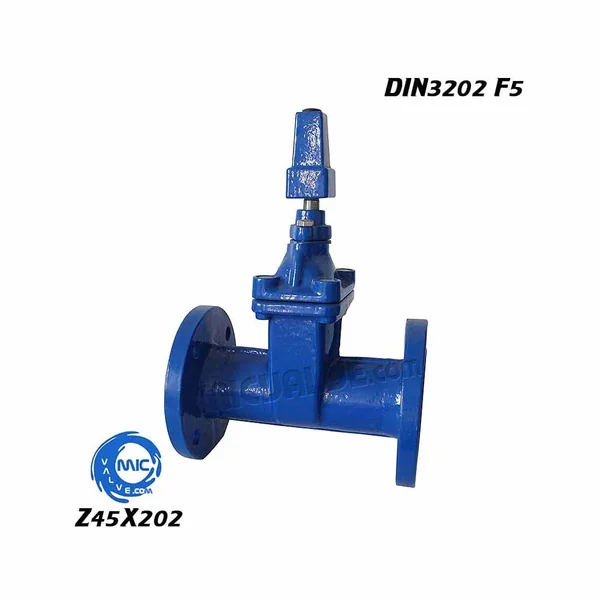

Z45X202 Non-rising Stem Resilient Seated Gate Valve DIN3202 F5
