Z41T004 OS&Y Metal Seated Gate Valve PN10 BS5163

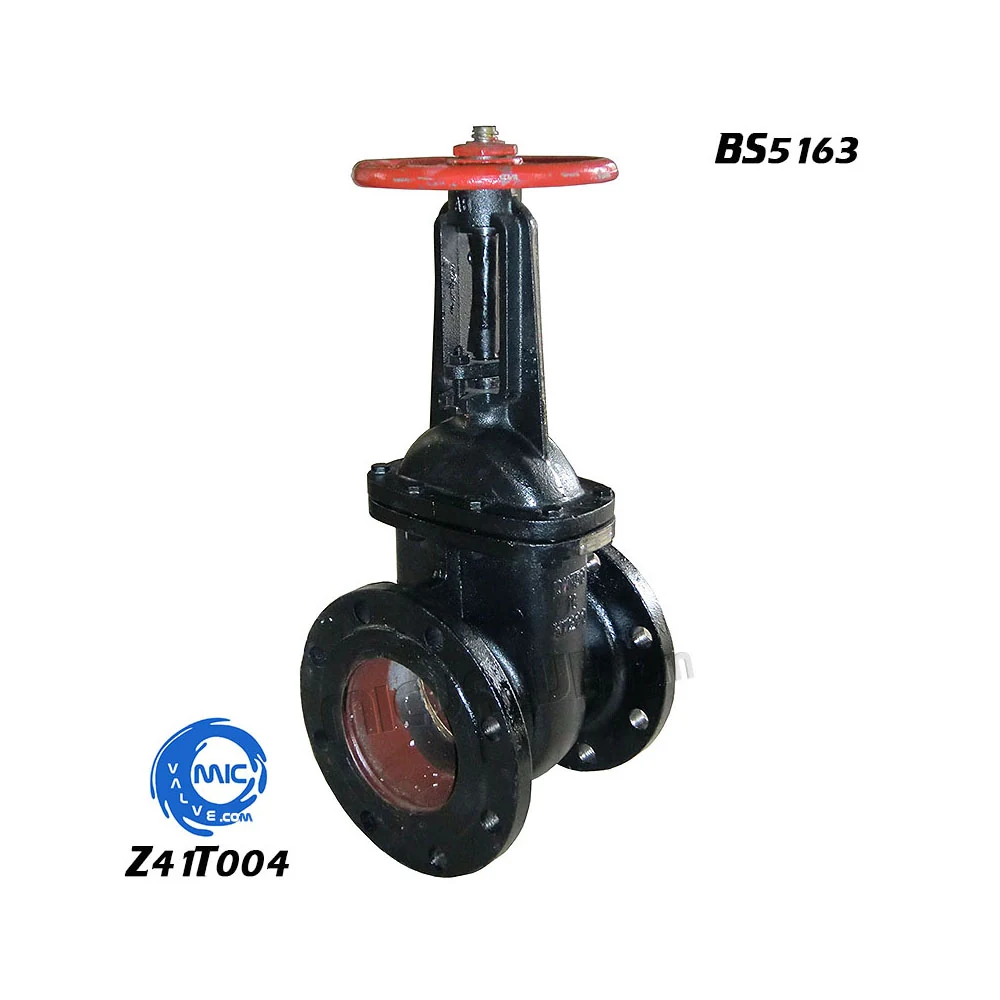

Z41T004 is a DN10 to DN2600 OS&Y metal seated gate valve rated PN10, designed for on-off service in water, power, petrochemical, heating, marine, pharmaceutical and metallurgical pipelines. It operates via a multi-turn handwheel, cap or gearbox and is built to the BS5163 flange standard. The valve features a metal seat for high-temperature and high-pressure service, with a rising stem that indicates the valve position during operation.
| Model Code | Z41T004 |
|---|---|
| Product Type | OS&Y Metal Seated Gate Valve PN10[BS5163] |
| Category | Metal Seated Gate Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | Z41T004 |
| Valve Type | OS&Y Metal Seated Gate Valve |
| Nominal Diameter | DN10 to DN2600 |
| Pressure Rating | PN10 |
| Flange Standard | BS5163 |
| Operation | Multi-turn, handwheel, cap or gearbox |
| Seat Material | Metal |
| Stem Type | Rising stem with external thread (OS&Y) |
What This Model Gives You
- Multi-turn operation allows precise control and clear position indication via the rising stem
- Metal seat provides durability and sealing integrity in high-temperature and high-pressure applications
- Built to BS5163 flange standard for compatibility with international piping systems
- Rising stem design gives visual confirmation of open or closed position
- Available across the full nominal diameter range from DN10 to DN2600
- Part of a valve programme certified to ISO 9001 and ISO 14001
Problems It Removes
- Lack of visual position indication in quarter-turn valves leads to uncertainty during operation
- Rubber seats fail under high temperature or abrasive media; metal seats offer longer life
- Inconsistent flange standards cause installation delays; BS5163 ensures compatibility
- Small-diameter gate valves are often unavailable in standard ranges; this model covers DN10 to DN2600
- Mixed valve types on a project increase spare parts inventory; a single series simplifies stock
Where It Is Installed
- Isolation of water supply lines in municipal and industrial distribution systems
- On-off control in low- and medium-pressure steam and hot water heating circuits
- Service isolation in petrochemical and chemical process piping at PN10
- Valve operation in power plant auxiliary systems where visual position indication is required
- Marine and offshore platform piping where metal seats resist wear and corrosion
Buyers It Suits
- Procurement engineers sourcing metal seated gate valves for water and heating systems
- EPC contractors standardising on OS&Y gate valves with rising stem indication
- Plant maintenance teams needing reliable on-off valves with visible position feedback
- Valve distributors stocking a full range of DN10 to DN2600 gate valves
- Engineering firms specifying BS5163-compliant valves for international projects
How It Is Built
- Multi-turn operation via handwheel, cap or gearbox
- Rising stem with external thread (OS&Y) for position indication
- Metal seat for high-temperature and high-pressure service
- Built to BS5163 flange standard
- Suitable for water, steam, oil, gas and non-corrosive media
- Part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
Material Selection
- Body, disc and stem materials are confirmed per order based on the medium and temperature
- Seat material is metal, selected to match the service conditions
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem machined and assembled with the rising stem mechanism
- Metal seat fitted and aligned for full closure and sealing
- Valve assembled and tested under pressure before packing
- Marked, wrapped and crated for container shipment from Tianjin
How It Is Checked
- Dimensional checks on body face-to-face length and flange bolt pattern before assembly
- Seat and shell tightness testing on the assembled valve
- Rising stem travel and full multi-turn operation verified on every unit
- Testing carried out on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat and body material selected for the medium and temperature on the buyer's line
- Handwheel, cap or gearbox fitted before shipment
- Flange drilling matched to the buyer's piping standard
- Private label marking and packing on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Resilient seated gate valve | The metal seat withstands higher temperatures and pressures but requires more torque to operate |
|---|---|
| Quarter-turn butterfly valve | The gate valve offers a full bore and better throttling control but requires more space and turns more times to open |
| Lug type gate valve | The OS&Y design provides visual position indication; the lug type does not |
| Butterfly valve at DN100 | The gate valve provides a full unobstructed bore and better sealing at higher pressure, but is heavier and slower to operate |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe flanges before ordering
- Ensure the stem is fully closed before installing the valve into the pipeline
- Turn the handwheel slowly and evenly to avoid stem binding or seat damage
- Do not use the valve for throttling; it is designed for on-off service only
- Inspect the stem packing regularly and replace if leakage is detected
- Cycle the valve periodically on lines that remain in one position for long periods
