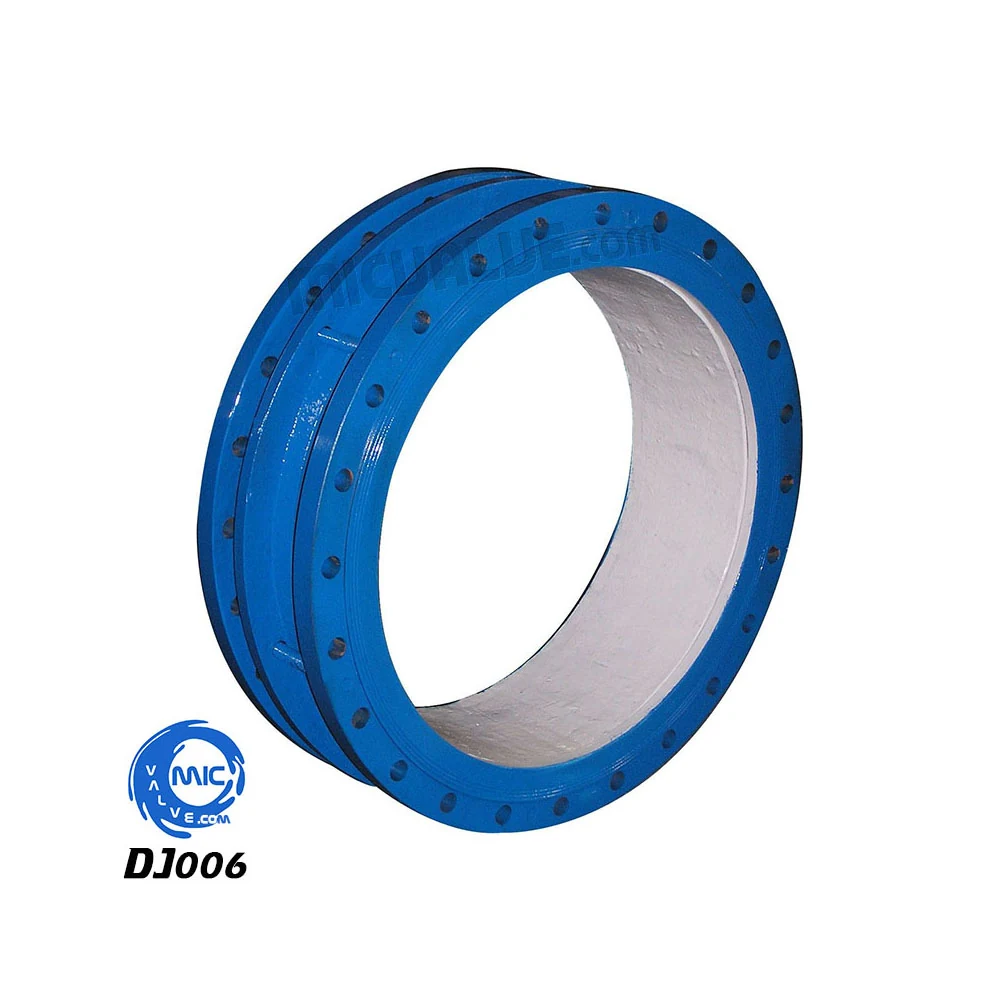

DJ006 Dismantling Joint Carbon Steel
DJ006 is a carbon steel dismantling joint designed for pipeline systems requiring frequent disassembly and maintenance. It connects two pipe sections with a removable flange interface, allowing quick access to the line without cutting or welding. The joint is built for medium- and low-pressure applications across water, power, petrochemical, and heating systems, with a nominal diameter range from DN10 to DN2600 mm and pressure ratings from 0.05 to 4.0 MPa.
| Model Code | DJ006 |
|---|---|
| Category | Dismantling Joints |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DJ006 |
| Product Type | Dismantling Joint |
| Material | Carbon Steel |
| Nominal Diameter | DN10 to DN2600 mm |
| Pressure Rating | 0.05 to 4.0 MPa |
| Connection | Flanged, removable interface |
| Series | DJ006 dismantling joint series |
What This Model Gives You
- Enables rapid disassembly and reassembly of pipeline sections without cutting or welding
- Carbon steel construction provides strength and durability in medium- and low-pressure service
- Flanged connection allows integration into existing pipe systems with standard flange patterns
- Designed for repeated use in maintenance cycles without loss of sealing integrity
- Part of a valve and joint programme covering DN10 to DN2600 mm and 0.05 to 4.0 MPa
- Built under ISO 9001 and ISO 14001 certified manufacturing processes
Problems It Removes
- Traditional welded joints require cutting and re-welding, increasing downtime and risk
- Lack of access points in long pipelines makes inspection and repair impractical
- Frequent disassembly with bolted flanges alone leads to gasket misalignment and leaks
- Inconsistent joint types across a system complicate spare parts and maintenance planning
- Buyers need a single supplier for both valves and dismantling joints across the full DN10 to DN2600 range
Where It Is Installed
- Maintenance access in water supply and drainage pipelines where frequent inspection is required
- Service entry points in power plant auxiliary systems needing periodic cleaning or sensor replacement
- Petrochemical process lines where valves or instruments must be removed without disturbing the full run
- Heating system loops in district heating plants for access during seasonal maintenance
- Marine and metallurgical plant piping where joint access is needed for inspection or repair
Buyers It Suits
- Plant maintenance engineers managing systems with scheduled disassembly needs
- EPC contractors specifying access points in long pipeline runs for future service
- Water utility operators requiring quick access to buried or elevated pipe sections
- Industrial facility owners standardising on reusable joint solutions across multiple systems
- Valve and piping system integrators sourcing reliable dismantling joints in various diameters
How It Is Built
- Carbon steel body with flanged ends for connection to pipe flanges
- Removable flange interface allowing disassembly without pipe cutting
- Designed for use in medium- and low-pressure systems up to 4.0 MPa
- Nominal diameter range from DN10 to DN2600 mm
- Part of a joint programme certified to ISO 9001 and ISO 14001
- Suitable for water, steam, oil, and low-pressure gas services
Material Selection
- Body material is carbon steel; other material variants are confirmed on request
- Flange and bolt materials follow standard carbon steel or alloy grades based on pressure and service
- Material certificates are issued with the order when requested by the buyer
- All materials are selected based on the operating medium and temperature of the buyer's system
How It Is Made
- Carbon steel body cast and machined on in-house fine machining equipment
- Flange faces and bolt holes machined to standard patterns for compatibility
- Removable flange interface assembled with precision alignment
- Final assembly inspected for proper fit and alignment before testing
- Marked, wrapped and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of flange bolt pattern and face-to-face length before assembly
- Visual and dimensional inspection of machined surfaces and bolt holes
- Leak test performed on assembled joints at rated pressure
- Testing carried out on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Flange standard and drilling pattern matched to the buyer's pipeline system
- Material variant selected based on medium and temperature requirements
- Optional marking and packaging for OEM or private label orders
- Mixed-diameter orders combined with other valves or joints in one container
How It Compares With the Alternatives
| Welded joint | A welded joint is permanent and requires cutting to disassemble; the dismantling joint allows repeated access without damage |
|---|---|
| Standard flanged joint | A standard flanged joint requires full disassembly of the line to remove; the dismantling joint allows access without removing the entire flange pair |
| Lug type butterfly valve | A lug valve is used for isolation; the dismantling joint is used for access and does not seal in the same way |
| Flanged coupling | A flanged coupling is for joining two pipes; the dismantling joint is designed specifically for disassembly and reassembly with a removable interface |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on both pipe ends before ordering
- Align the joint flange with the pipe flanges before tightening the bolts
- Tighten bolts evenly in a cross pattern to ensure even seating and prevent leakage
- Use a gasket compatible with the medium and temperature of the system
- After disassembly, inspect the gasket and flange faces for damage before reassembly
- Do not use the dismantling joint as a pressure-containing closure during testing
Related Models Industries and Guides
DJ005 Dismantling Joint Carbon Steel
View Specification
DJ003 Dismantling Joint Carbon Steel
View Specification
DJ002 Dismantling Joint Ductile Iron
View Specification
DJ001 Dismantling Joint DN400 Carbon Steel
View SpecificationDJ006 Dismantling Joint Carbon Steel FAQ
What is the size and pressure rating of DJ006?
It is a dismantling joint with nominal diameters from DN10 to DN2600 mm and pressure ratings from 0.05 to 4.0 MPa. The exact combination is confirmed on request based on your line data.
Can this joint be used in high-pressure systems?
It is designed for medium- and low-pressure applications up to 4.0 MPa. Confirm the pressure rating and material suitability for your system before ordering.
Which materials are used in the body and flanges?
The body is carbon steel. Other material options are confirmed on request based on the medium and temperature of your service line.
Can it be supplied with a specific flange standard?
Yes. Flange drilling and standard (e.g., ANSI, DIN, JIS) are matched to your pipeline system when you place the order.
Is it suitable for repeated disassembly?
Yes. The joint is designed for multiple disassembly and reassembly cycles without loss of sealing performance.
What certification does the factory hold?
Tianjin MIC Valve Co., Ltd. is certified to the ISO 9001 quality management system and the ISO 14001 environmental management system.
How do I get a quotation?
Send the model, required nominal diameter, flange standard, and operating conditions by WhatsApp or email, and our sales engineers will provide a quotation and confirmed specification sheet.
Get a Price for DJ006 Dismantling Joint Carbon Steel
Tell us the quantity, flange standard and the medium on your line. You get a quotation with a confirmed specification sheet, not a catalogue page.
