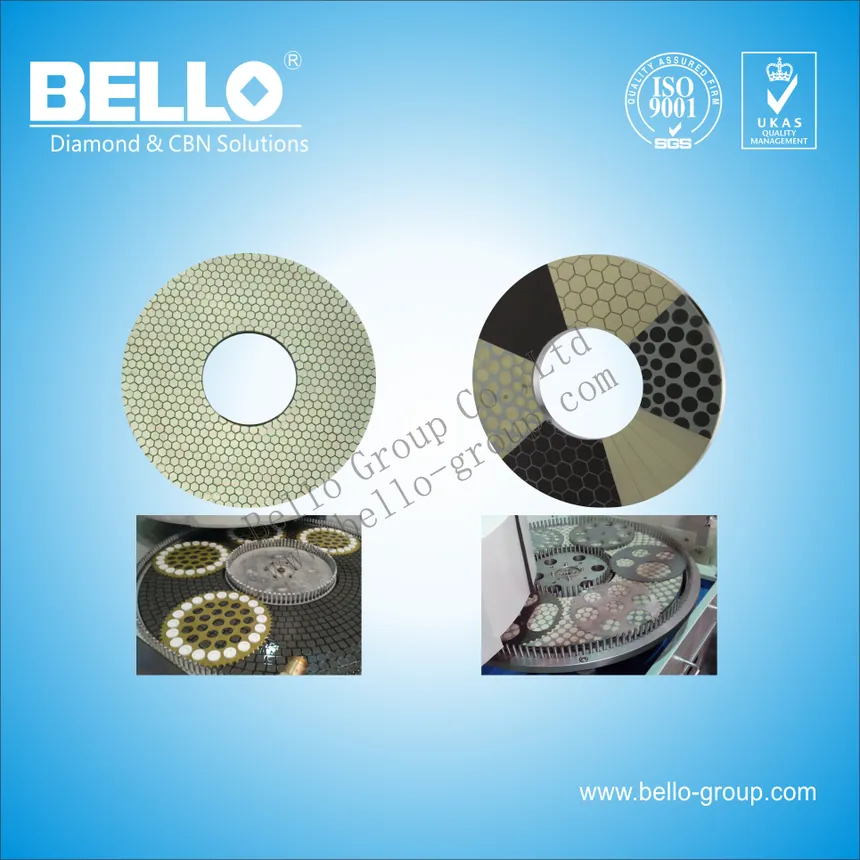

Vitrified Bond Diamond Grinding Disc
Double or single side fine lapping of sealing components, cutting tools, ceramic valves and powder metallurgy parts.
Product Overview
Vitrified Bond Diamond Grinding Disc
Double or single side fine lapping of sealing components, cutting tools, ceramic valves and powder metallurgy parts.
Feature & Advantage
- Semi-fine, fine grinding process of double or single side grinding
- Parallelism tolerance <0.003mm
- Flatness tolerance <0.003mm, Ra<0.005μm
- High precision, size error is 1-2μm in single disc parts
- Low processing cost, clean working environment
Application
- Sealing components (silicon carbide, alumina ceramics, zirconia ceramics, cermets, etc)
- Cutting tools (carbide, PCD, PCBN, HSS, etc)
- Ceramic valves
- All kinds of powder metallurgy and cemented carbide products
Specifications
Shapes And Dimensions
Shape codes and dimension ranges as published in the Bello printed catalogue. Other sizes on request.
| Shape | D (mm) | W (mm) | X (mm) |
|---|---|---|---|
| 1A2T | 250–1200 | 10–350 | 3–10 |
| 6A2B | 250–1200 | 10–350 | 3–10 |
Related Products
Also Used In Tool & Mould Application
Centerless Grinding Wheel
Rough, semi-fine and fine external grinding of tungsten carbide, ceramic, magnetic material, stainless steel bar and PCD/PCBN composite.
View Product →
Cutting Off & Slotting Wheel
Precise cutting and slotting of semiconductor, optical glass, quartz, magnetic material and cutting tool blanks.
View Product →
Diamond Wheel For CNC Grinder
Cemented carbide, cermet and HSS tool grinding on ANCA, WALTER and ROLLOMATIC machines.
View Product →
For PCD & PCBN Cutting Tools
Vitrified bond wheels for PCD and PCBN cutting tools on EWAG and Coborn grinders.
View Product →FAQ
Frequently Asked Questions
What is the Vitrified Bond Diamond Grinding Disc used for?
Sealing components (silicon carbide, alumina ceramics, zirconia ceramics, cermets, etc); Cutting tools (carbide, PCD, PCBN, HSS, etc); Ceramic valves; All kinds of powder metallurgy and cemented carbide products.
What are the advantages of the Vitrified Bond Diamond Grinding Disc?
Semi-fine, fine grinding process of double or single side grinding; Parallelism tolerance <0.003mm; Flatness tolerance <0.003mm, Ra<0.005μm; High precision, size error is 1-2μm in single disc parts; Low processing cost, clean working environment.
Which shapes are available?
1A2T, 6A2B. Dimension ranges are listed in the specification table above.
Which application groups is it listed under?
Tool & Mould Application, Compressor & Bearing.
How do I request a quotation?
Email [email protected] or call +86-370-7981119.
Need The Vitrified Bond Diamond Grinding Disc To A Drawing?
Send us your wheel specification, the workpiece material and the machine model.
