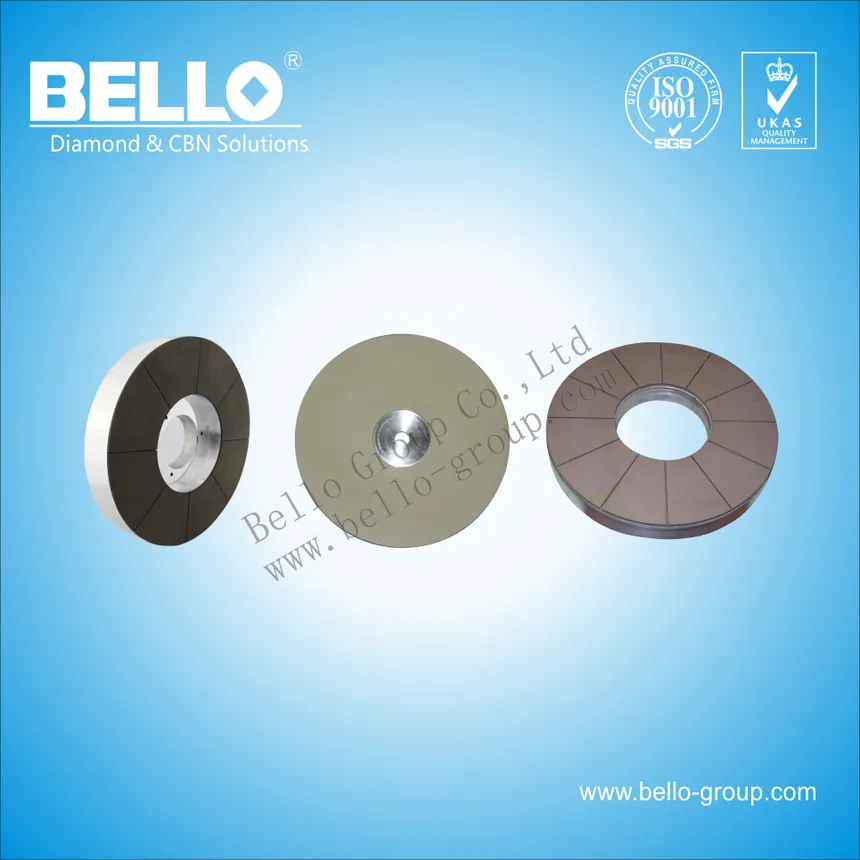

Resin Bond Grinding Disc
Double or single side lapping of compressor parts, vane pump vanes, carbide cutters, magnetic material and artificial gem.
Product Overview
Resin Bond Grinding Disc
Double or single side lapping of compressor parts, vane pump vanes, carbide cutters, magnetic material and artificial gem.
Feature & Advantage
- Roughing,semi-fine grinding process of double or single side grinding
- Work piece flatness tolerance<0.003mm
- High workpiece precision,Ra<0.05μm
- Perfect abrasion resistance and long life span
Application
- Parts of Air-conditioning compressor: cylinder block, sleeve, slide
- Hydraulic parts: vane of vane pump
- Tungsten carbide cutting tools: cutters
- Magnetic material: magnetic soft ferrite material etc.
- Artificial gem: glass,crystal,zircon and spinel and so on.
Specifications
Shapes And Dimensions
Shape codes and dimension ranges as published in the Bello printed catalogue. Other sizes on request.
| Shape | D (mm) | W (mm) | X (mm) |
|---|---|---|---|
| 6A2M | 250–1200 | 10–350 | 3–10 |
| 6A2H | 250–1200 | 10–350 | 3–10 |
Related Products
Also Used In Automobile Application
Vitrified Bond CBN Wheel For Camshaft, Crankshaft, Bear Shaft
High speed CBN grinding of camshafts, crankpins, main journals, flange necks and gear shafts.
View Product →
Vitrified Bond CBN Internal Grinding Wheel
Bore, channel and super finishing grinding for bearings, C.V. joints, nozzles and compressors.
View Product →
Diamond Honing Stone
Honing of cast iron, silicon-aluminum alloy, babbitt alloy, brass and bronze alloy, carbide and ceramic.
View Product →
Diamond Rotary Dresser
Dressing wheels for the gear, bearing, automotive component and refrigeration industries.
View Product →FAQ
Frequently Asked Questions
What is the Resin Bond Grinding Disc used for?
Parts of Air-conditioning compressor: cylinder block, sleeve, slide; Hydraulic parts: vane of vane pump; Tungsten carbide cutting tools: cutters; Magnetic material: magnetic soft ferrite material etc.; Artificial gem: glass,crystal,zircon and spinel and so on..
What are the advantages of the Resin Bond Grinding Disc?
Roughing,semi-fine grinding process of double or single side grinding; Work piece flatness tolerance<0.003mm; High workpiece precision,Ra<0.05μm; Perfect abrasion resistance and long life span.
Which shapes are available?
6A2M, 6A2H. Dimension ranges are listed in the specification table above.
Which application groups is it listed under?
Automobile Application, Tool & Mould Application, Compressor & Bearing.
How do I request a quotation?
Email [email protected] or call +86-370-7981119.
Need The Resin Bond Grinding Disc To A Drawing?
Send us your wheel specification, the workpiece material and the machine model.
