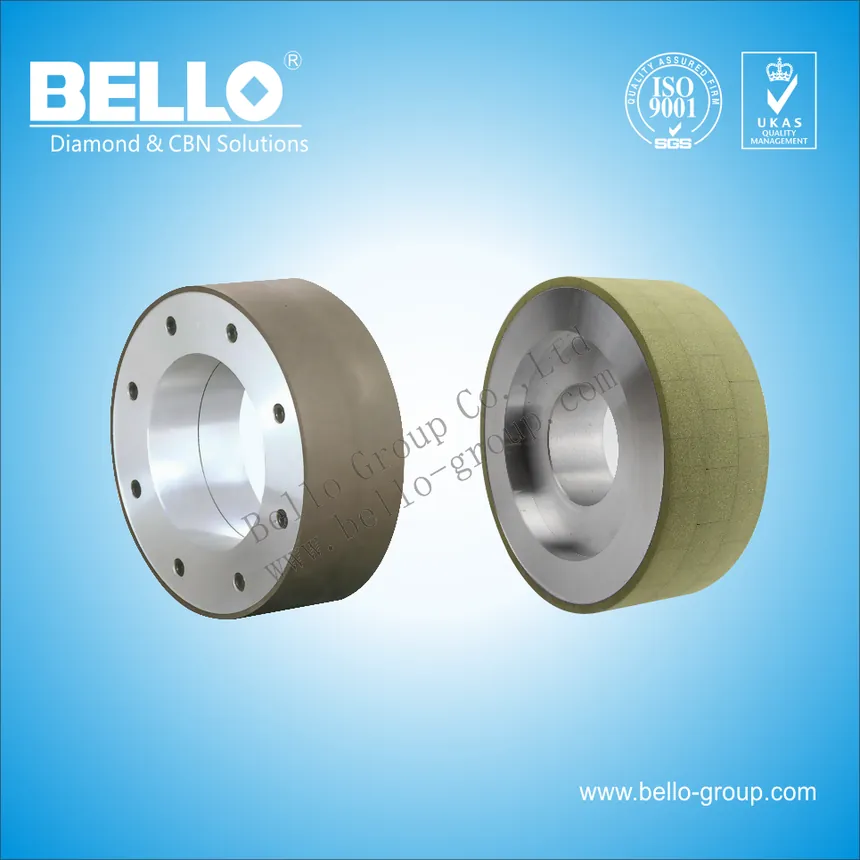

Centerless Grinding Wheel
Rough, semi-fine and fine external grinding of tungsten carbide, ceramic, magnetic material, stainless steel bar and PCD/PCBN composite.
Product Overview
Centerless Grinding Wheel
Rough, semi-fine and fine external grinding of tungsten carbide, ceramic, magnetic material, stainless steel bar and PCD/PCBN composite.
Feature & Advantage
- Used for rough grinding, semi-fine grinding and fine grinding
- Efficient batch external grinding
- High roundness and cylindricity of workpiece and good consistency of dimension
- Good surface finish after fine grinding
Application
- Tungsten carbide, ceramic, magnetic material
- Stainless steel bar
- PCD/PCBN composite
Specifications
Shapes And Dimensions
Shape codes and dimension ranges as published in the Bello printed catalogue. Other sizes on request.
| Shape | D (mm) | T (mm) | H (mm) | X (mm) |
|---|---|---|---|---|
| 1A1 | 125–600 | 50–350 | 75, 127, 203 | 5, 10 |
| 6A1 | 125–600 | 50–350 | 75, 127, 203 | 5, 10 |
| 9A1 | 125–600 | 50–350 | 75, 127, 203 | 5, 10 |
Related Products
Also Used In Tool & Mould Application
Cutting Off & Slotting Wheel
Precise cutting and slotting of semiconductor, optical glass, quartz, magnetic material and cutting tool blanks.
View Product →
Diamond Wheel For CNC Grinder
Cemented carbide, cermet and HSS tool grinding on ANCA, WALTER and ROLLOMATIC machines.
View Product →
For PCD & PCBN Cutting Tools
Vitrified bond wheels for PCD and PCBN cutting tools on EWAG and Coborn grinders.
View Product →
Hybrid Bond Diamond Wheel For Fluting
Deep flute grinding of cemented carbide, cermet and HSS with excellent shape keeping.
View Product →FAQ
Frequently Asked Questions
What is the Centerless Grinding Wheel used for?
Tungsten carbide, ceramic, magnetic material; Stainless steel bar; PCD/PCBN composite.
What are the advantages of the Centerless Grinding Wheel?
Used for rough grinding, semi-fine grinding and fine grinding; Efficient batch external grinding; High roundness and cylindricity of workpiece and good consistency of dimension; Good surface finish after fine grinding.
Which shapes are available?
1A1, 6A1, 9A1. Dimension ranges are listed in the specification table above.
Which application groups is it listed under?
Tool & Mould Application.
How do I request a quotation?
Email [email protected] or call +86-370-7981119.
Need The Centerless Grinding Wheel To A Drawing?
Send us your wheel specification, the workpiece material and the machine model.
