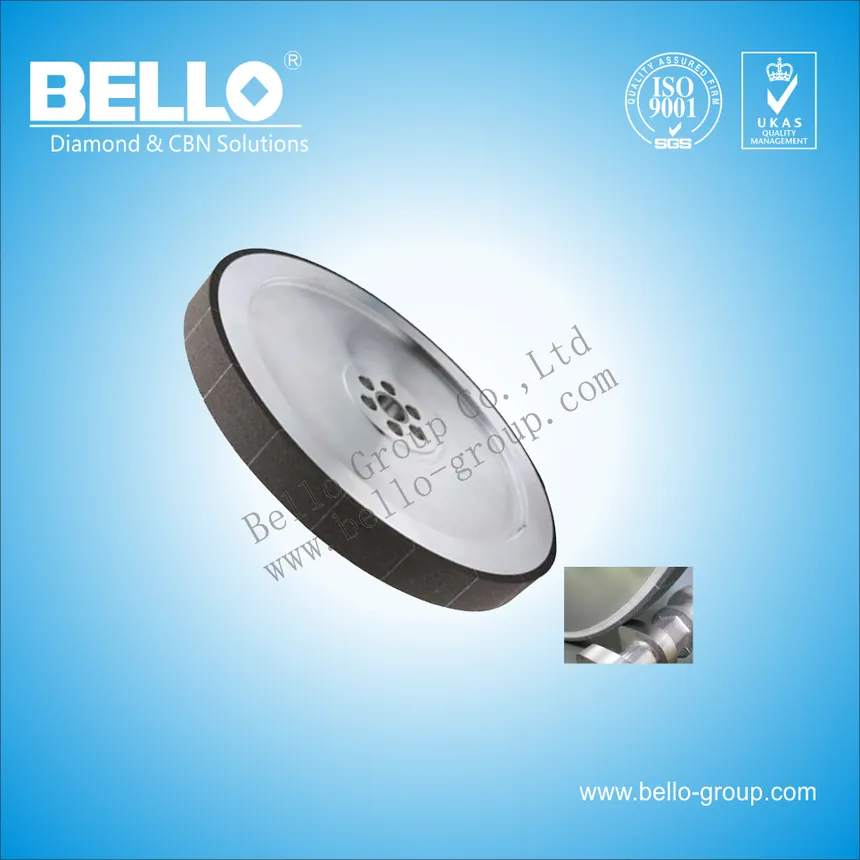

Vitrified Bond CBN Wheel For Camshaft, Crankshaft, Bear Shaft
High speed CBN grinding of camshafts, crankpins, main journals, flange necks and gear shafts.
Product Overview
Vitrified Bond CBN Wheel For Camshaft, Crankshaft, Bear Shaft
High speed CBN grinding of camshafts, crankpins, main journals, flange necks and gear shafts.
Feature & Advantage
- High grinding efficiency
- High precision and good surface quality
- Easy to dress
Application
- For precise and high-speed grinding the camshaft
- For precise and high-speed grinding the crankpin, main journal, flange neck, thrust face and end face
- For precise and high-speed grinding the gear shaft
Materials To Grind
- Cast iron : Chilled cast iron, nodular cast iron, grey cast iron, alloy cast iron and etc
- Steel: 20Cr, GCr15, CF53, 45# steel, 55# steel, 80B high carbon steel and etc
Grinder
- LANDIS: LT1, LT2
- SCHAUDT: CF41, CF61, ZEUSMX, ZX
- NAXOS: NAXOS-UNION, P310*1250, Gf70
- JUNKER: JUCAM5002/10, JUCAM500, JUCRANK5000,6000
- TOYODA: GCS63, GL5P-63, GL6P-100, GCH120B, GC32M-63, GCH63B, GL63M-T
Conventional Specifications
- 1A1, 3A1, 14A1, 9A1B, 3Q1, 14LL1
Related Products
Also Used In Automobile Application
Vitrified Bond CBN Internal Grinding Wheel
Bore, channel and super finishing grinding for bearings, C.V. joints, nozzles and compressors.
View Product →
Resin Bond Grinding Disc
Double or single side lapping of compressor parts, vane pump vanes, carbide cutters, magnetic material and artificial gem.
View Product →
Diamond Honing Stone
Honing of cast iron, silicon-aluminum alloy, babbitt alloy, brass and bronze alloy, carbide and ceramic.
View Product →
Diamond Rotary Dresser
Dressing wheels for the gear, bearing, automotive component and refrigeration industries.
View Product →FAQ
Frequently Asked Questions
What is the Vitrified Bond CBN Wheel For Camshaft, Crankshaft, Bear Shaft used for?
For precise and high-speed grinding the camshaft; For precise and high-speed grinding the crankpin, main journal, flange neck, thrust face and end face; For precise and high-speed grinding the gear shaft.
What are the advantages of the Vitrified Bond CBN Wheel For Camshaft, Crankshaft, Bear Shaft?
High grinding efficiency; High precision and good surface quality; Easy to dress.
Which workpiece materials can it grind?
Cast iron : Chilled cast iron, nodular cast iron, grey cast iron, alloy cast iron and etc Steel: 20Cr, GCr15, CF53, 45# steel, 55# steel, 80B high carbon steel and etc
Which grinding machines is it supplied for?
LANDIS: LT1, LT2, SCHAUDT: CF41, CF61, ZEUSMX, ZX, NAXOS: NAXOS-UNION, P310*1250, Gf70, JUNKER: JUCAM5002/10, JUCAM500, JUCRANK5000,6000, TOYODA: GCS63, GL5P-63, GL6P-100, GCH120B, GC32M-63, GCH63B, GL63M-T.
Which application groups is it listed under?
Automobile Application.
How do I request a quotation?
Email [email protected] or call +86-370-7981119.
Need The Vitrified Bond CBN Wheel For Camshaft, Crankshaft, Bear Shaft To A Drawing?
Send us your wheel specification, the workpiece material and the machine model.
